Toyota Land Cruiser(CHINA)
2007-12 → 2016-12 · chassis GRJ200,URJ202,UZJ200 · catalogue 790310 · General
Discontinued model
Data version 2017-05

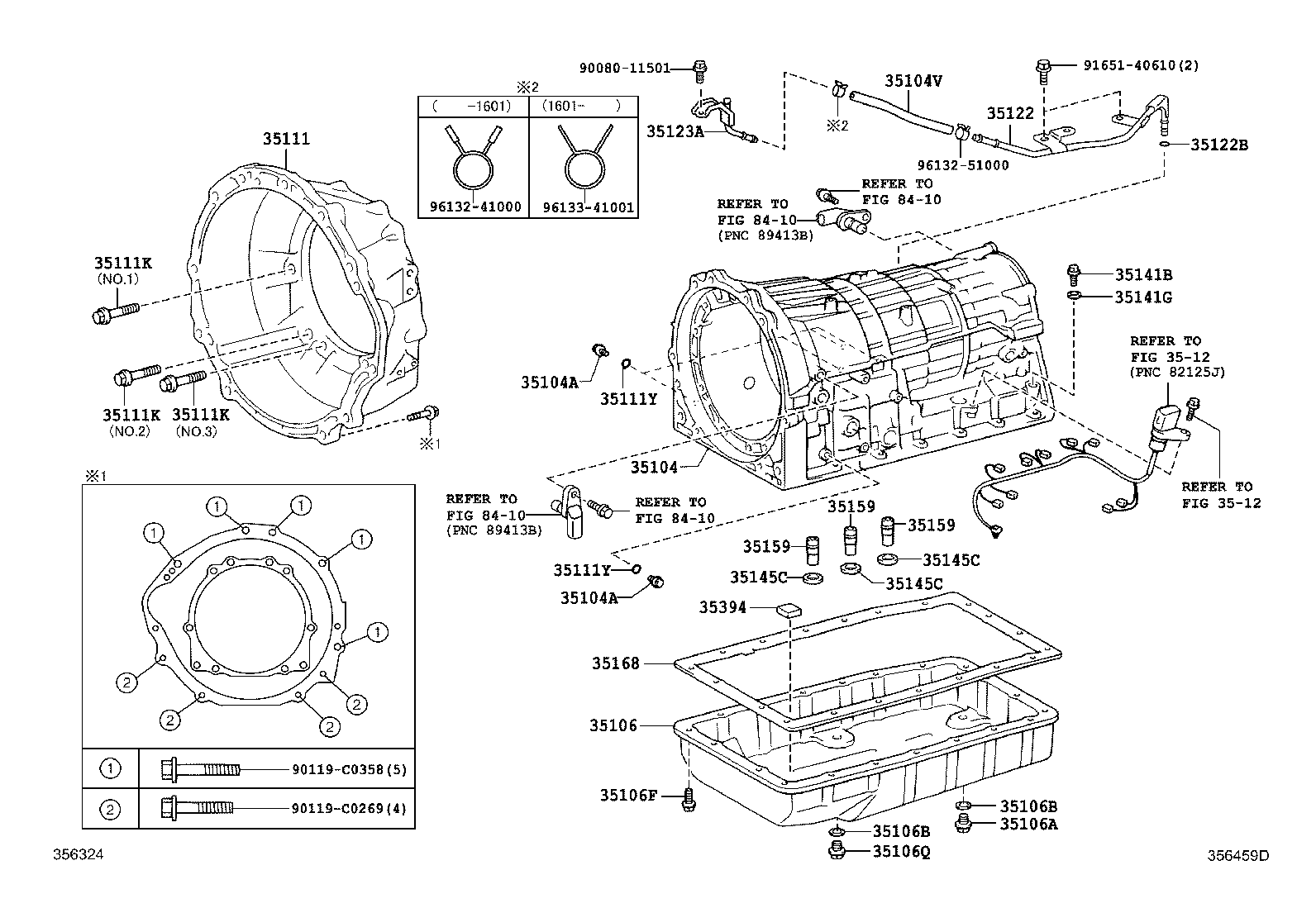

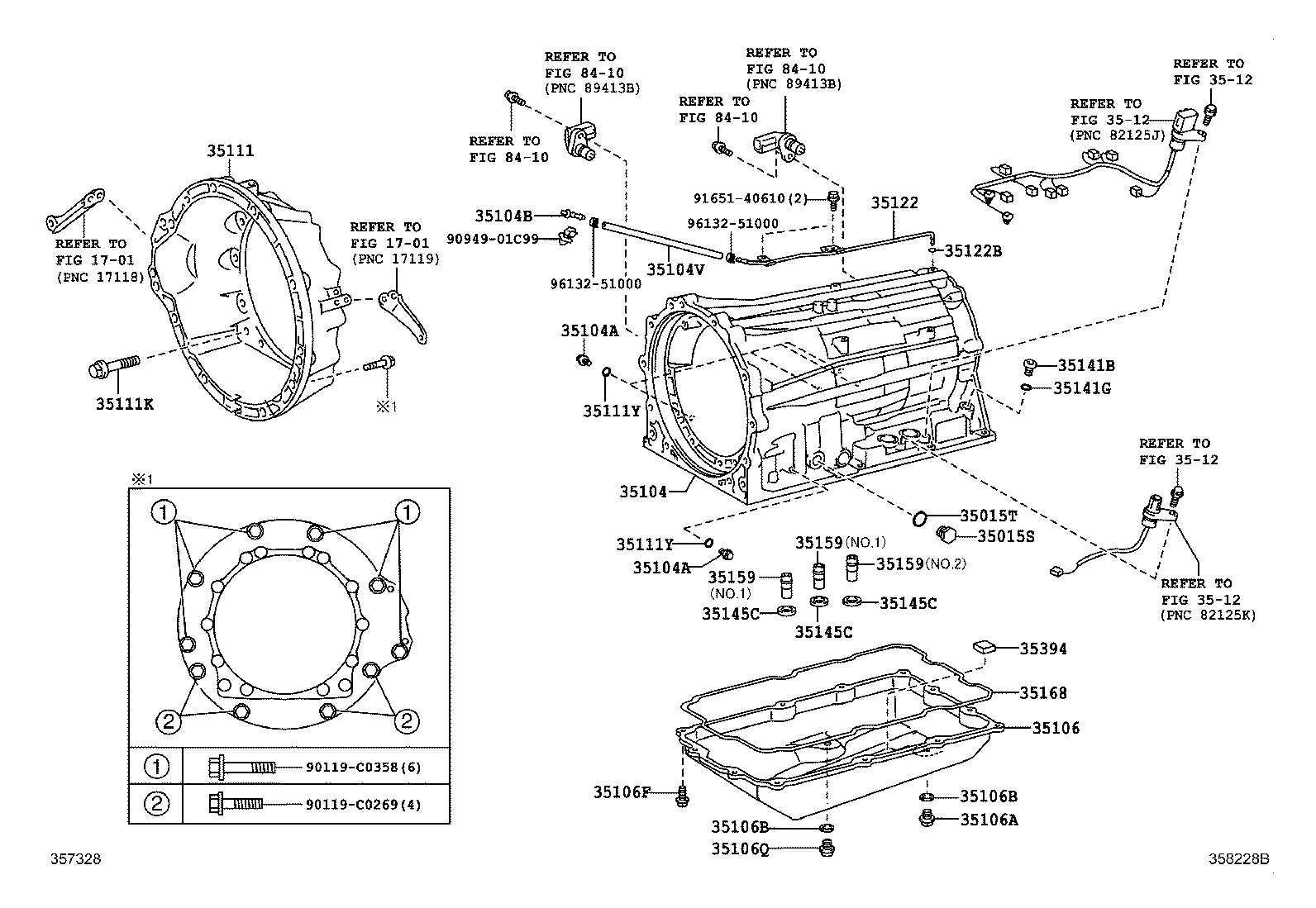

Transmission Case & Oil Pan (ATM)
23 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 35015S | Plug, Straight(FOR TRANSMISSION CASE ADAPTER) |
| 35015T | Ring, O(FOR TRANSMISSION CASE ADAPTER) |
| 35104 | Case Sub-assy, Automatic Transmission |
| 35104A | Plug, Automatic Transmission Case |
| 35104B | Plug, Breather, NO.1 (ATM) |
| 35104V | Hose (FOR BREATHER PLUG) |
| 35106 | Pan Sub-assy, Automatic Transmission Oil |
| 35106A | Plug Sub-assy, Drain (ATM) |
| 35106B | Gasket, Drain Plug (ATM) |
| 35106F | Bolt (FOR AUTOMATIC TRANSMISSION OIL PAN) |
| 35106Q | Plug (FOR AUTOMATIC TRANSMISSION OIL PAN) |
| 35111 | Housing, Automatic Transmission |
| 35111K | Bolt (FOR TRANSMISSION HOUSING & CASE SETTING) |
| 35111Y | Ring, O (FOR AUTOMATIC TRANSMISSION CASE) |
| 35122 | Tube, Breather (FOR AUTOMATIC TRANSAXLE) |
| 35122B | Ring, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION) |
| 35123A | Skirt, Transmission Breather |
| 35141B | Plug (FOR AUTOMATIC TRANSMISSION CASE) |
| 35141G | Ring, O (FOR AUTOMATIC TRANSMISSION CASE) |
| 35145C | Gasket, Transaxle Case |
| 35159 | Gasket, Brake Drum |
| 35168 | Gasket, Automatic Transmission Oil Pan |
| 35394 | Magnet, Oil Cleaner (FOR TRANSMISSION) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
