Toyota Land Cruiser(CHINA)
2007-12 → 2016-12 · chassis GRJ200,URJ202,UZJ200 · catalogue 790310 · General
Discontinued model
Data version 2017-05
Winch
30 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 28199B | Protector, Dust Winch Motor |
| 38110 | Winch Assy |
| 38186 | Seal, Gear Case Cover Oil |
| 38221 | Lever, Clutch Hub Shift |
| 38343 | Winch Wire |
| 38360 | Bracket Assy, Winch Roller |
| 38380 | Holder Assy, Winch Hook |

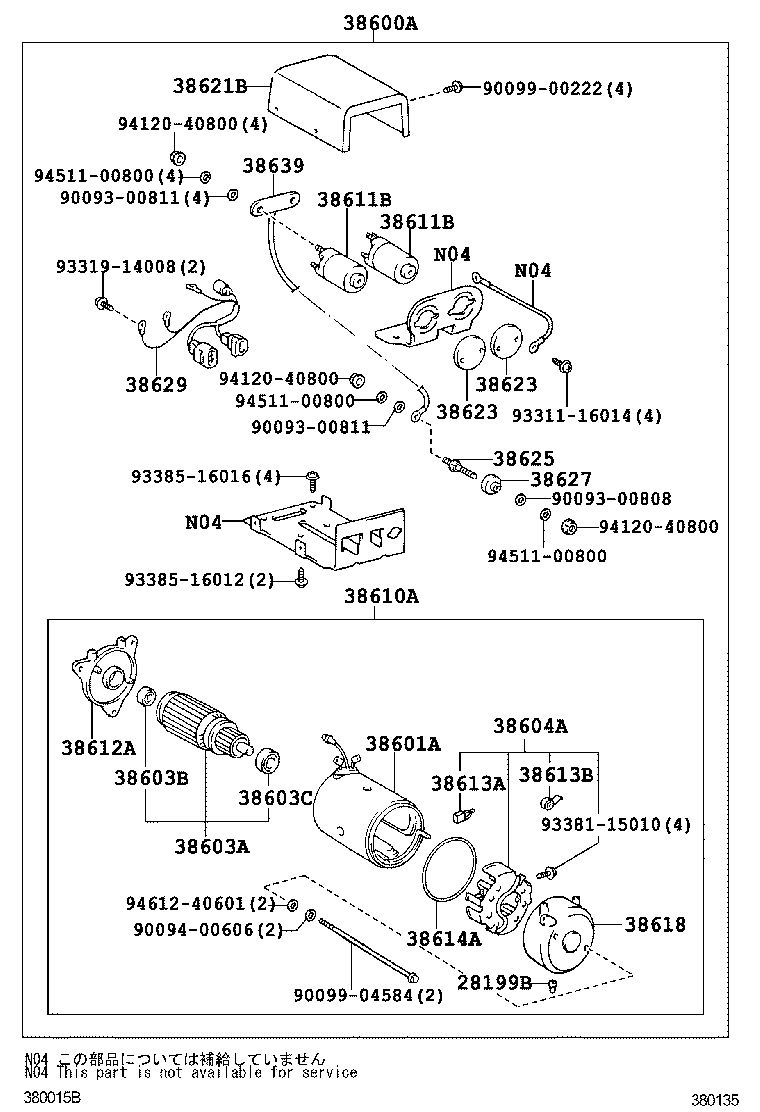

| 38600A | Motor Assy, W/Magnet Switch, Winch |
| 38601A | Yoke Sub-assy, Winch Motor |
| 38603A | Armature Sub-assy, Winch Motor |
| 38603B | Bearing, NO.1 (FOR WINCH MOTOR ARMATURE) |
| 38603C | Bearing, NO.2 (FOR WINCH MOTOR ARMATURE) |
| 38604A | Holder Assy, Winch Motor Brush |
| 38610A | Motor Assy, Winch |
| 38611B | Switch, Magnet, NO.2 (FOR WINCH MOTOR) |
| 38612A | Frame, Winch Motor End |
| 38613A | Brush, Winch Motor |
| 38613B | Spring, Winch Motor Brush |
| 38614A | Ring, O(FOR WINCH MOTOR) |
| 38618 | Frame, Winch Motor Commutator End |
| 38621B | Cover, Magnet Switch Winch |
| 38623 | Stopper, Winch Motor |
| 38625 | Bolt, Stud Winch Motor |
| 38627 | Bushing, Stepped Male Winch Motor |
| 38629 | Wire, Winch Motor |
| 38630 | Switch Assy, Magnet, NO.1 |
| 38639 | Wire (FOR WINCH MOTOR) |
| 38640 | Switch Assy, Winch Control |
| 38649 | Wire, Winch Control |
| 38659 | Cover, Winch Control Switch |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
