Toyota Land Cruiser(CHINA)
2007-12 → 2016-12 · chassis GRJ200,URJ202,UZJ200 · catalogue 790310 · General
Discontinued model
Data version 2017-05

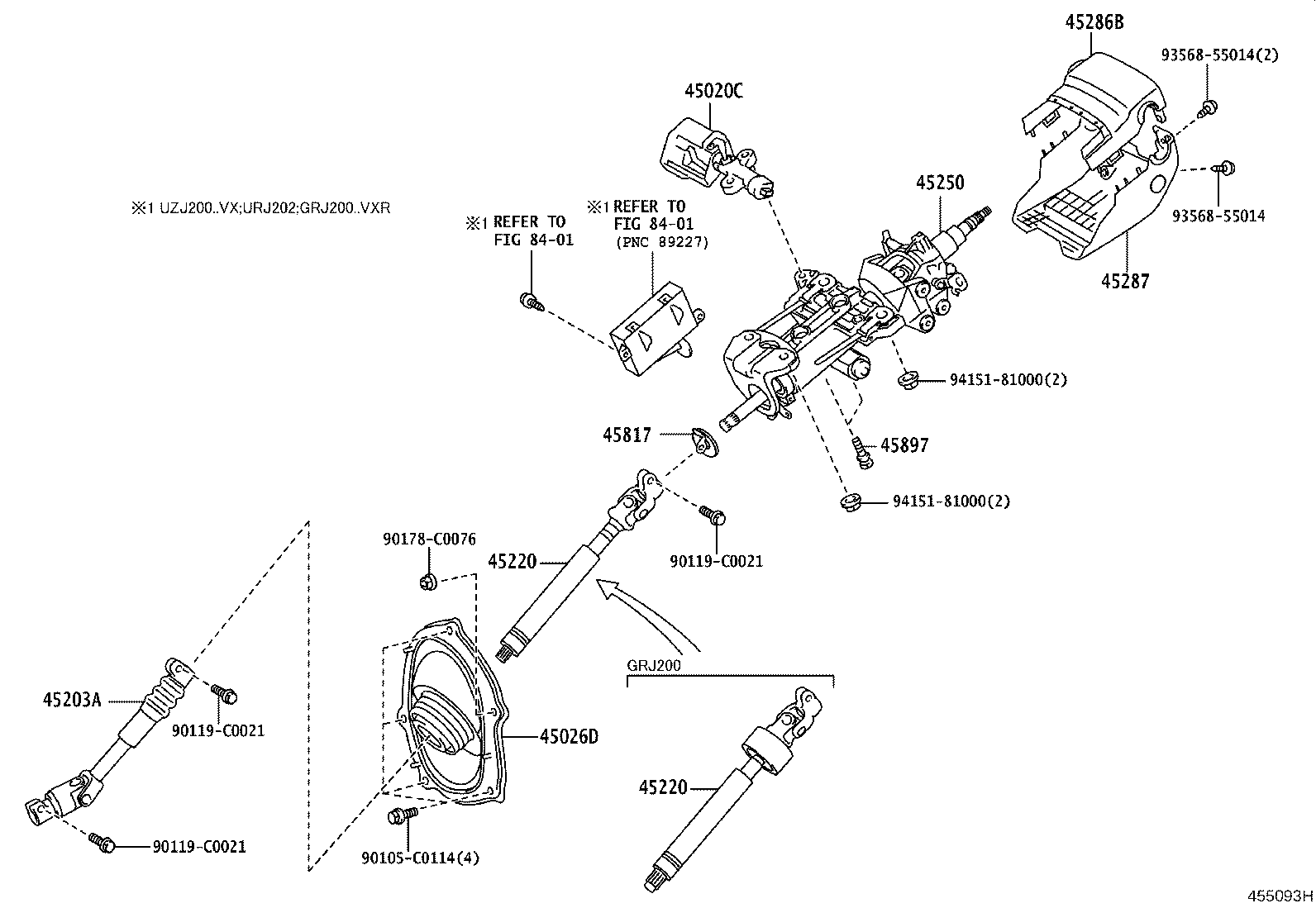

Steering Column & Shaft
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 45020C | Actuator Assy, Steering Lock(W/ECU) |
| 45026D | Cover Sub-assy, Steering Column Hole |
| 45203A | Shaft, Steering Intermediate, NO.2 |
| 45220 | Shaft Assy, Steering Intermediate |
| 45250 | Column Assy, Steering |
| 45286B | Cover, Steering Column, Upr |
| 45287 | Cover, Steering Column, Lwr |
| 45817 | Stopper, Steering Shaft Thrust |
| 45897 | Bolt, Steering Lock Set |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
