Toyota Land Cruiser(CHINA)

2007-12 → 2016-12 · chassis GRJ200,URJ202,UZJ200 · catalogue 790310 · General

Discontinued model Data version 2017-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

12 part groups · 3 illustrations

Illustrations

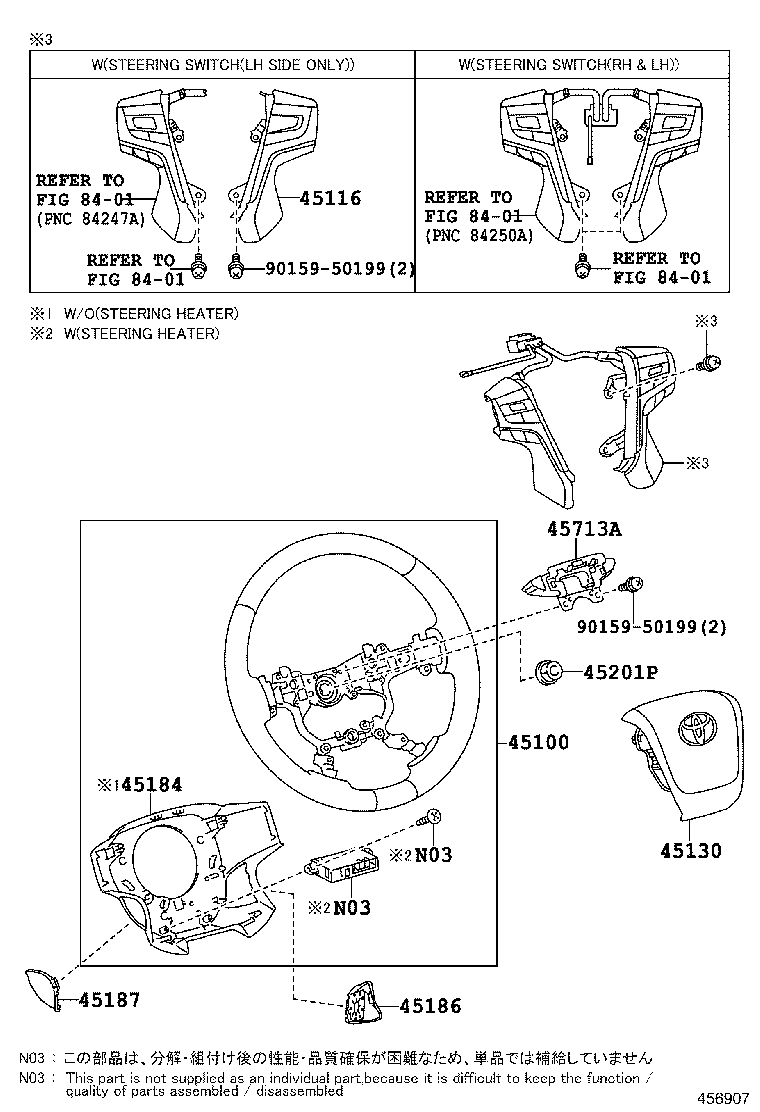

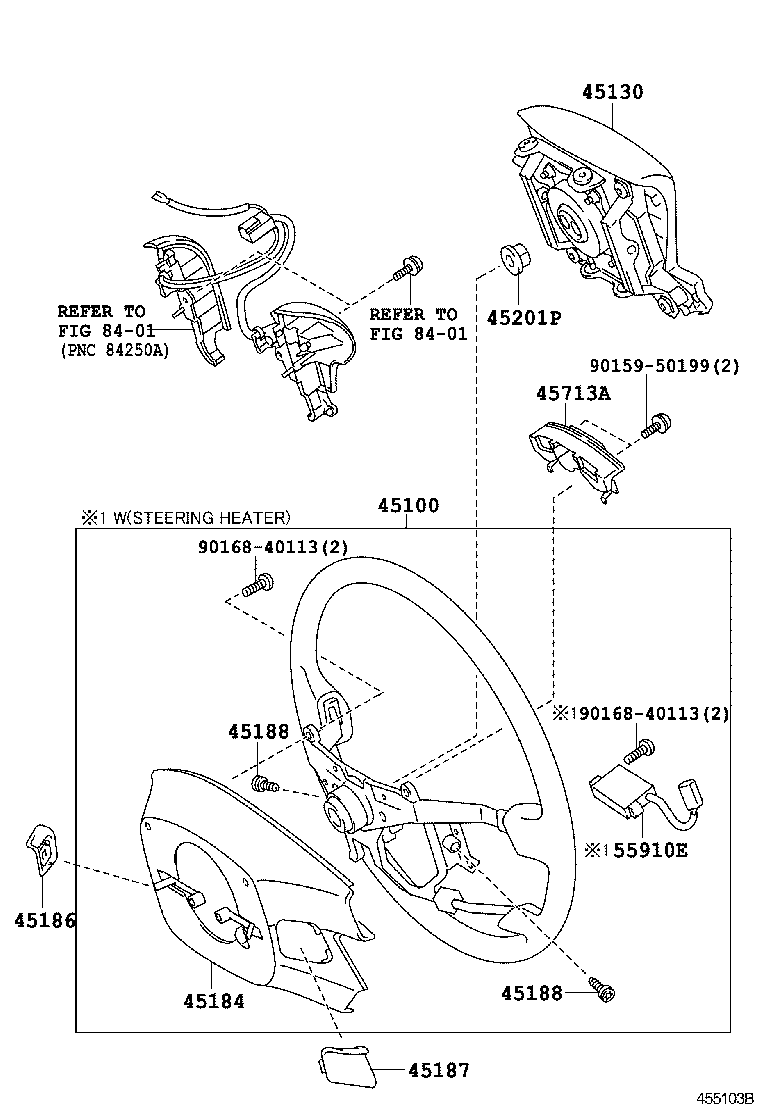

Figure 455102B 455102B 2007-12 → 2016-01 Figure 455103B 455103B 2007-12 → 2016-01 Figure 456907 456907 2016-01 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45116 Ornament, Steering Wheel, NO.1
45130 Button Assy, Horn
45184 Cover, Steering Wheel Boss, Lower
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45188 Screw, Steering Wheel Pad Attaching
45201P Nut, Steering Wheel Set
45713A Damper, Steering Shake
55910E Control Assy, Steering Wheel Heater
84258 Cover, Steering Pad, RH
84259 Cover, Steering Pad, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
