Toyota Land Cruiser(CHINA)
2007-12 → 2016-12 · chassis GRJ200,URJ202,UZJ200 · catalogue 790310 · General
Discontinued model
Data version 2017-05

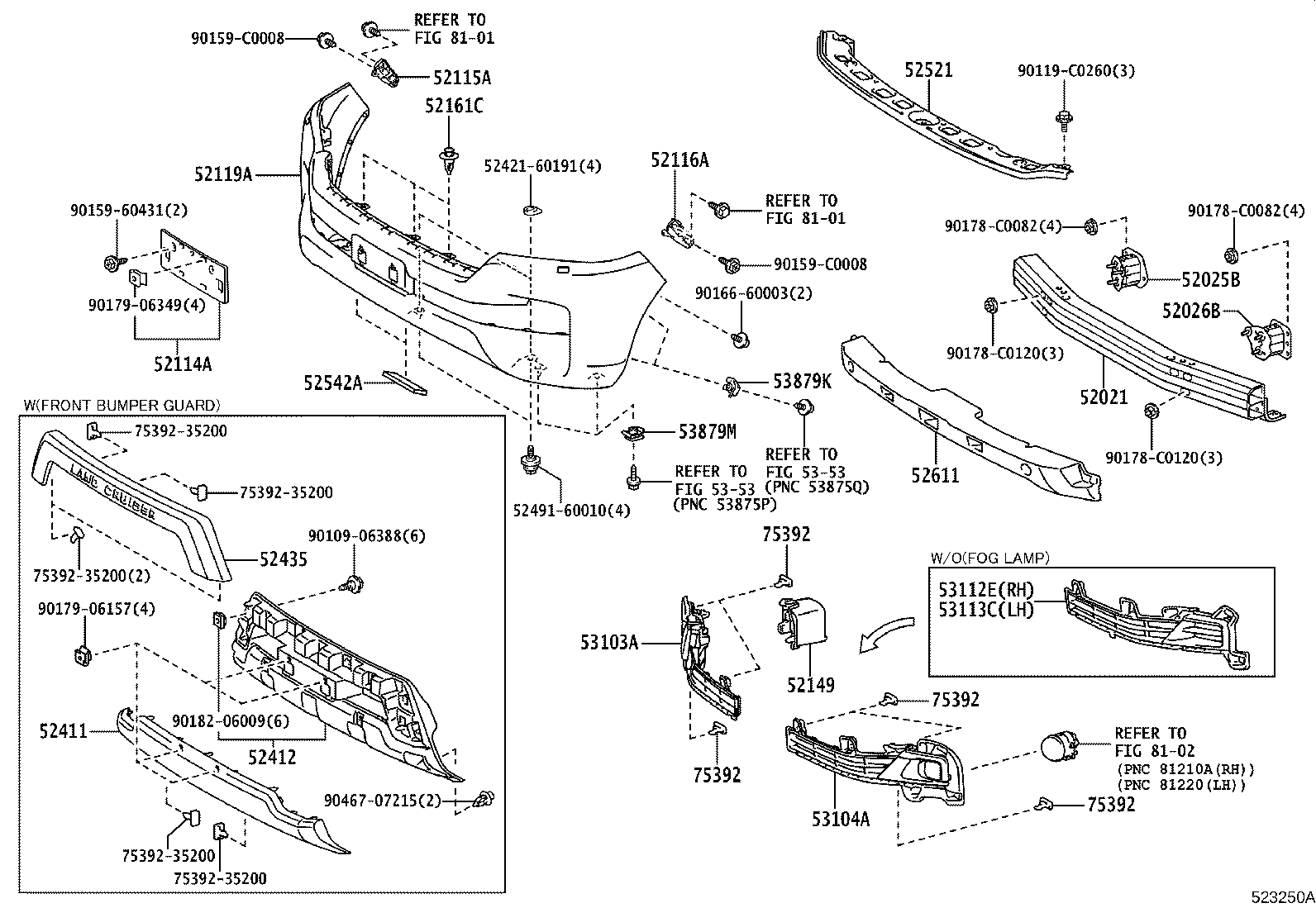

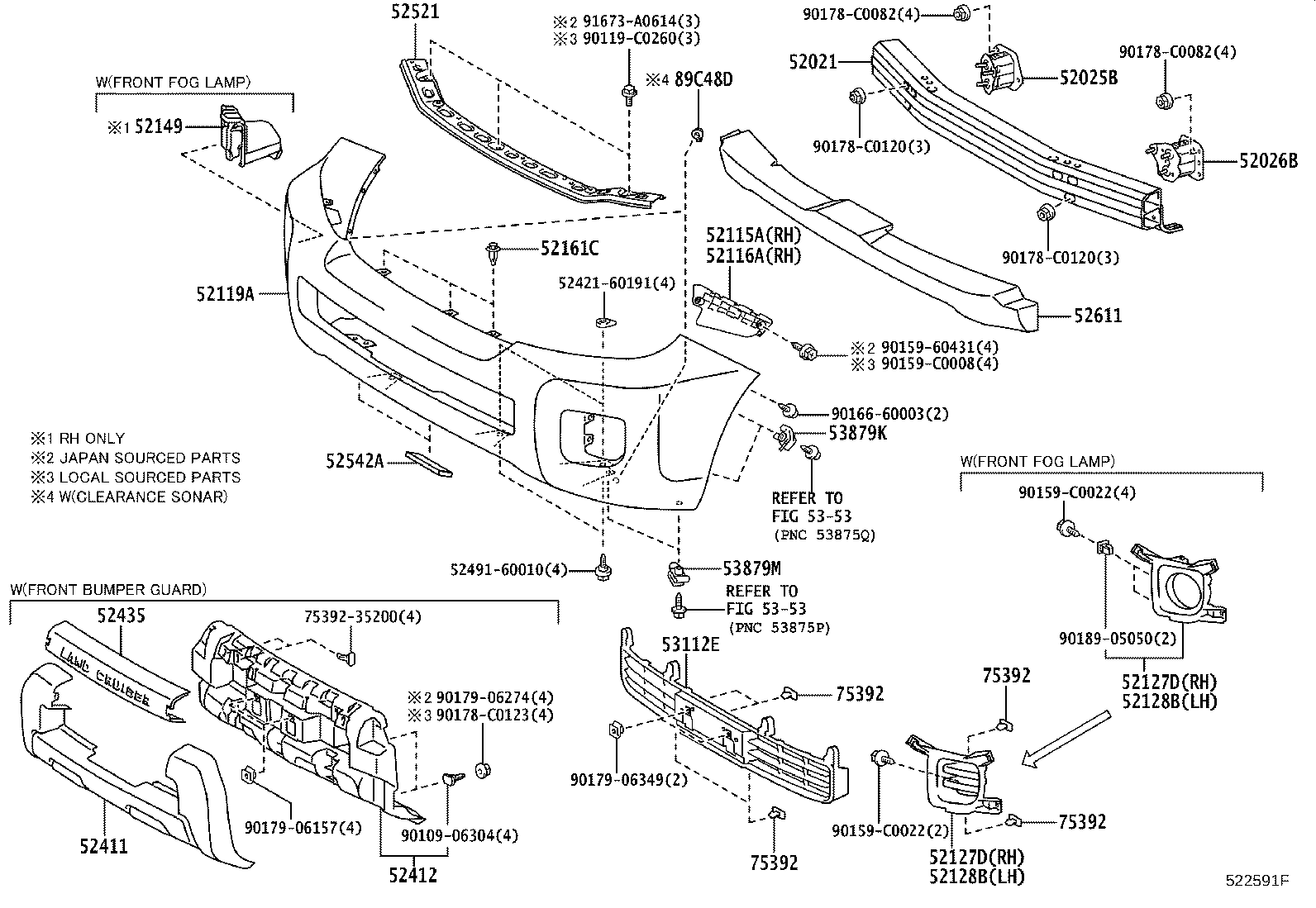

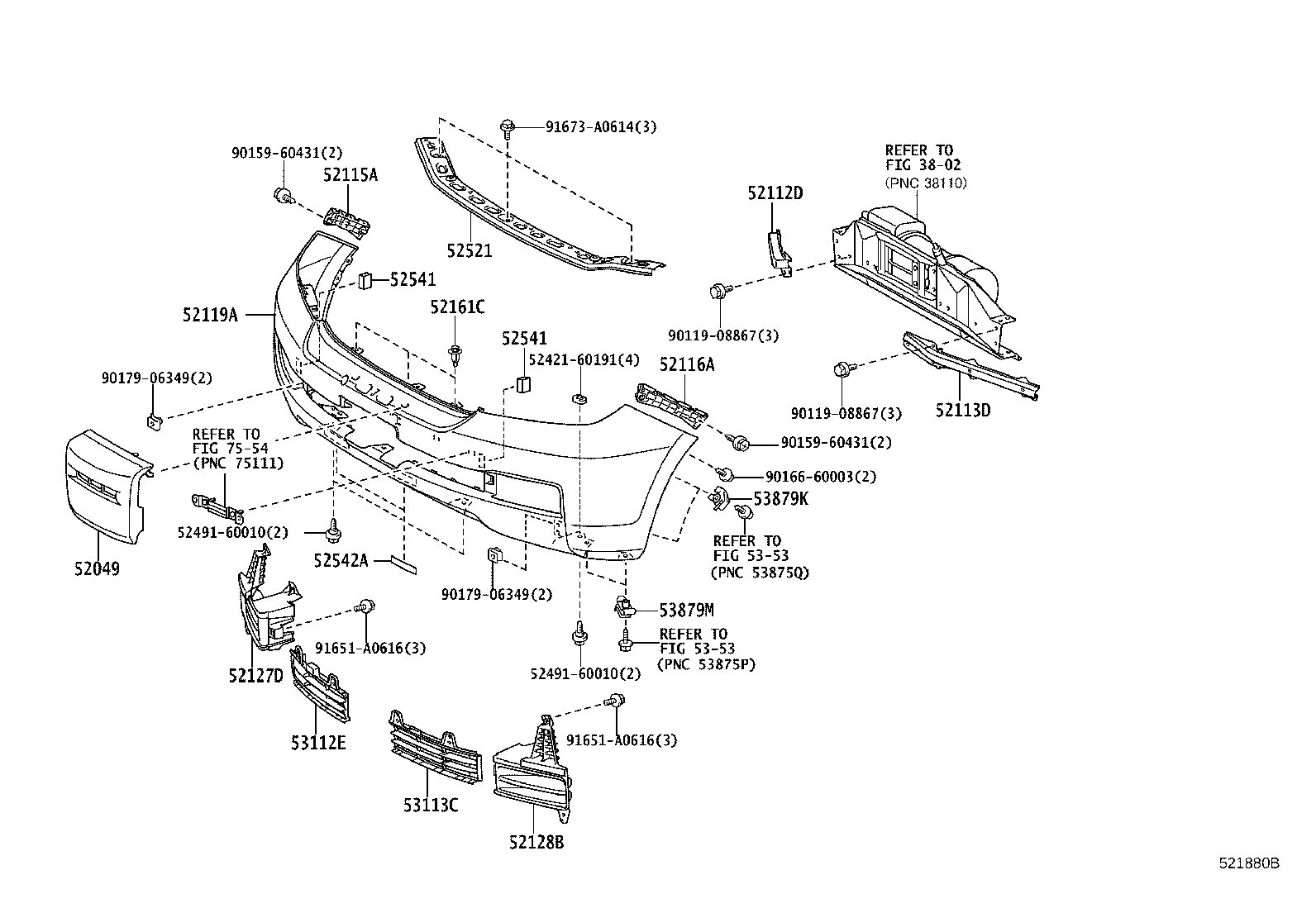

Front Bumper & Bumper Stay
29 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 52021 | Reinforcement Sub-assy, Front Bumper |
| 52025B | Extension Sub-assy, Front Bumper, NO.2 RH |
| 52026B | Extension Sub-assy, Front Bumper, NO.2 LH |
| 52049 | Cover Sub-assy, Front Bumper Winch |
| 52112D | Extension, Front Bumper, RH |
| 52113D | Extension, Front Bumper, LH |
| 52114A | Bracket, Front Bumper Extension Mounting |
| 52115A | Support, Front Bumper Side, RH |
| 52116A | Support, Front Bumper Side, LH |
| 52119A | Cover, Front Bumper |
| 52127D | Cover, Front Bumper Hole, RH |
| 52128B | Cover, Front Bumper Hole, LH |
| 52149 | Bracket, Front Bumper, Inner |
| 52161C | Piece, Front Bumper |
| 52411 | Guard, Front Bumper |
| 52412 | Guard, Front Bumper, NO.2 |
| 52435 | Garnish, Front Bumper Guard |
| 52521 | Retainer, Front Bumper, Upper Center |
| 52541 | Protector, Front Bumper |
| 52542A | Protector, Front Bumper, NO.2 |
| 52611 | Absorber, Front Bumper Energy |
| 53103A | Grille Sub-assy, Radiator, Lower RH |
| 53104A | Grille Sub-assy, Radiator, Lower LH |
| 53112E | Grille, Radiator, Lower NO.1 |
| 53113C | Grille, Radiator, Lower LH |
| 53879K | Retainer, Front Fender Liner |
| 53879M | Retainer, Front Fender Liner |
| 75392 | Retainer, Outside Moulding |
| 89C48D | Retainer, Ultrasonic Sensor, Front Corner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
