Toyota Land Cruiser(CHINA)

2007-12 → 2016-12 · chassis GRJ200,URJ202,UZJ200 · catalogue 790310 · General

Discontinued model Data version 2017-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

12 part groups · 3 illustrations

Illustrations

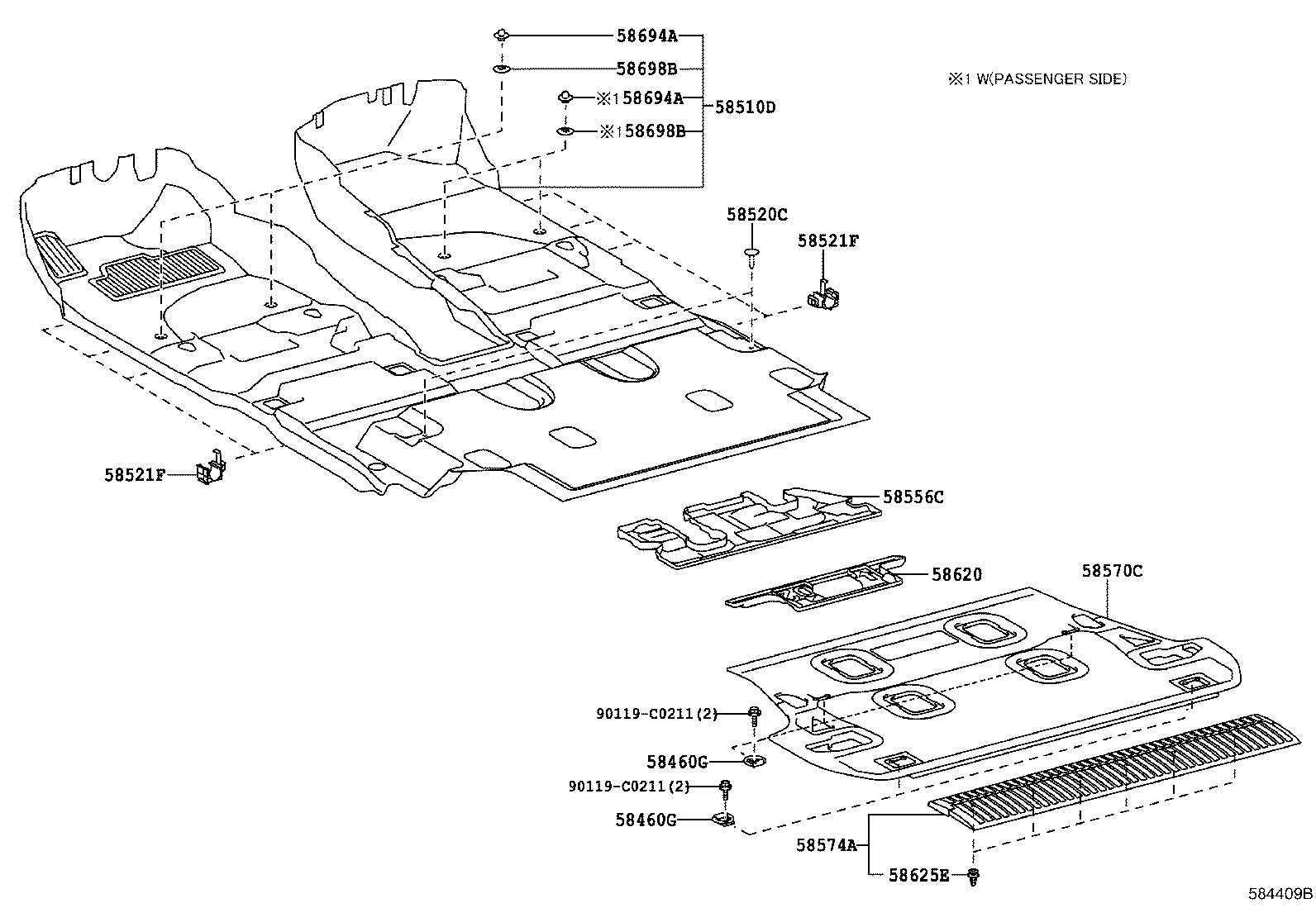

Figure 583267A 583267A 2007-12 → 2012-02 Figure 584409B 584409B 2012-02 → — Figure 584781 584781 2007-12 → —

Part groups

PNCDescription
58460G Striker Assy, Luggage Hold Belt
58510D Carpet Assy, Floor, Front
58510H Mat Assy, Floor
58520C Clip(FOR FRONT FLOOR CARPET)
58521F Hook, Floor Carpet
58556C Silencer, Rear Floor
58570C Carpet Assy, Rear Floor
58574A Plate, Rear Floor Mat Support, Rear
58620 Silencer, Rear Floor
58625E Clip(FOR REAR FLOOR MAT PLATE)
58694A Plate, Mat Set, Upper
58698B Plate, Mat Set, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
