Toyota Land Cruiser(CHINA)

2007-12 → 2016-12 · chassis GRJ200,URJ202,UZJ200 · catalogue 790310 · General

Discontinued model Data version 2017-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

20 part groups · 2 illustrations

Illustrations

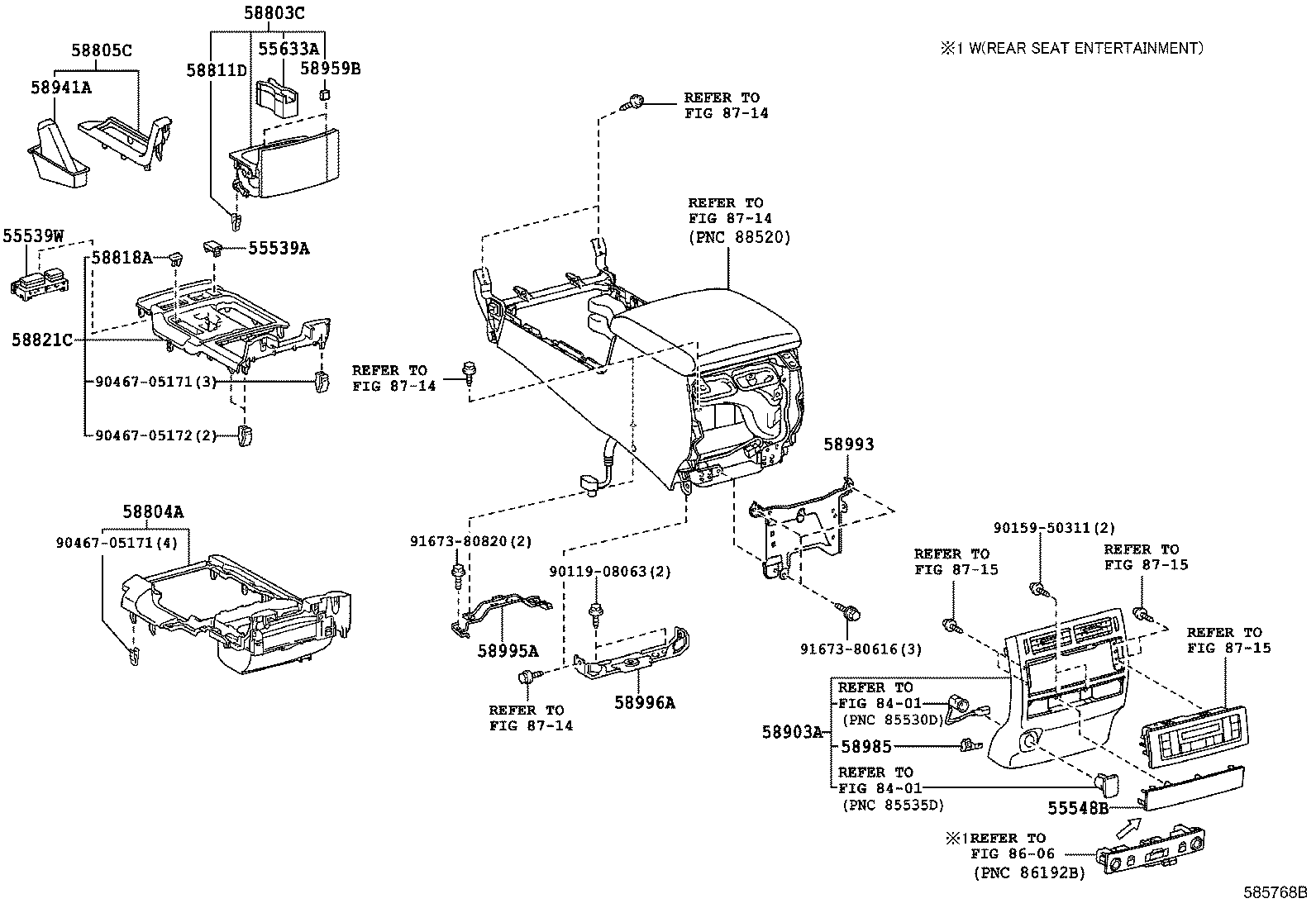

Figure 583268E 583268E 2007-12 → 2016-01 Figure 585768B 585768B 2016-01 → —

Part groups

PNCDescription
55539A Cover, Spare Switch Hole
55539W Cover, Spare Switch Hole
55548B Cover, Instrument Panel Hole
55633A Support, Instrument Panel Cup Holder, NO.1
58803C Box Sub-assy, Console Cup Holder
58804A Panel Sub-assy, Console, Upper
58805C Panel Sub-assy, Console, Upper Rear
58808 Cover Sub-assy, Shifting Hole
58811D Clip(FOR CONSOLE BOX)
58818A Cover, Console Box, FR
58821C Panel, Console, Upper
58844 Bezel, Console Box
58903A Panel Sub-assy, Console Rear End
58916 Mat, Box Bottom
58941A Cover, Parking Brake Hole
58959B Cushion, Console Compartment Door
58985 Retainer, Console Box
58993 Bracket, Console Box Mounting, Rear
58995A Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
