Toyota Land Cruiser(CHINA)

2007-12 → 2016-12 · chassis GRJ200,URJ202,UZJ200 · catalogue 790310 · General

Discontinued model Data version 2017-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

23 part groups · 3 illustrations

Illustrations

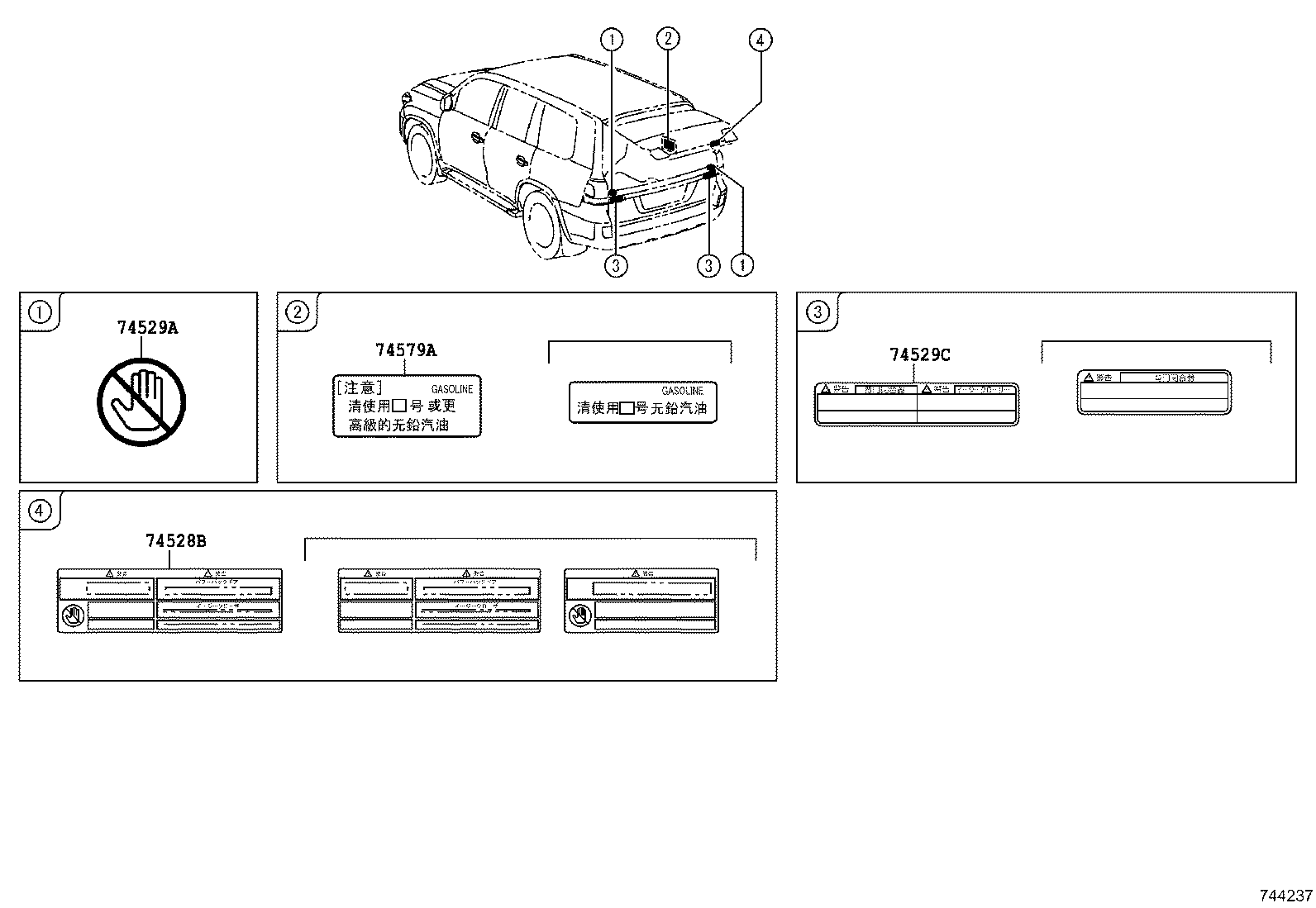

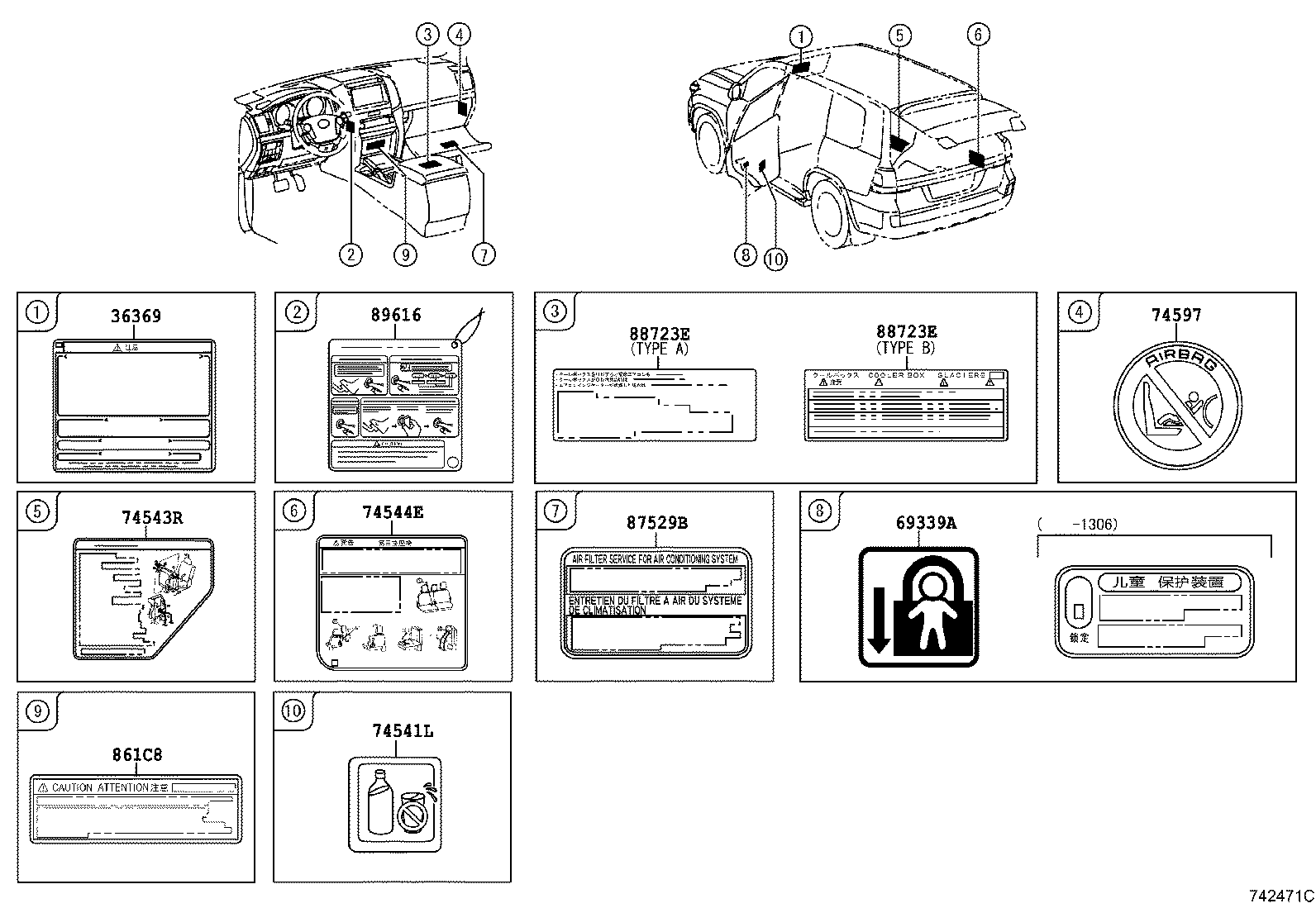

Figure 742472E 742472E 2007-12 → — Figure 744237 744237 2007-12 → — Figure 742471C 742471C 2007-12 → —

Part groups

PNCDescription
11289B Label, Spark Plug Notice
17791A Label, Maintenance Information
36369 Label, Transfer Information
38191A Plate, Caution, NO.1
38192B Plate, Caution, NO.2
69339A Plate, Child Protector Lock Caution
74515B Plate, Theft Warning
74528B Label, Back Door Caution
74529A Plate, Back Door Caution
74529C Plate, Back Door Caution
74541L Label, Bottle Holder Information
74543C Label, Rear Seat Information
74543R Label, Rear Seat Caution
74544E Label, Rear NO.2 Seat Information
74579A Label, Unleaded Fuel Information
74596A Label, Side Airbag Caution
74597 Label, Driver & Passenger Airbag Caution
74751 Label, Tire Pressure Information
861C8 Label, Mobile Wireless Charger Caution
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
88723H Label, Cooler Service Caution
89616 Label, Push Start Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
