Toyota Land Cruiser(CHINA)

2007-12 → 2016-12 · chassis GRJ200,URJ202,UZJ200 · catalogue 790310 · General

Discontinued model Data version 2017-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

12 part groups · 4 illustrations

Illustrations

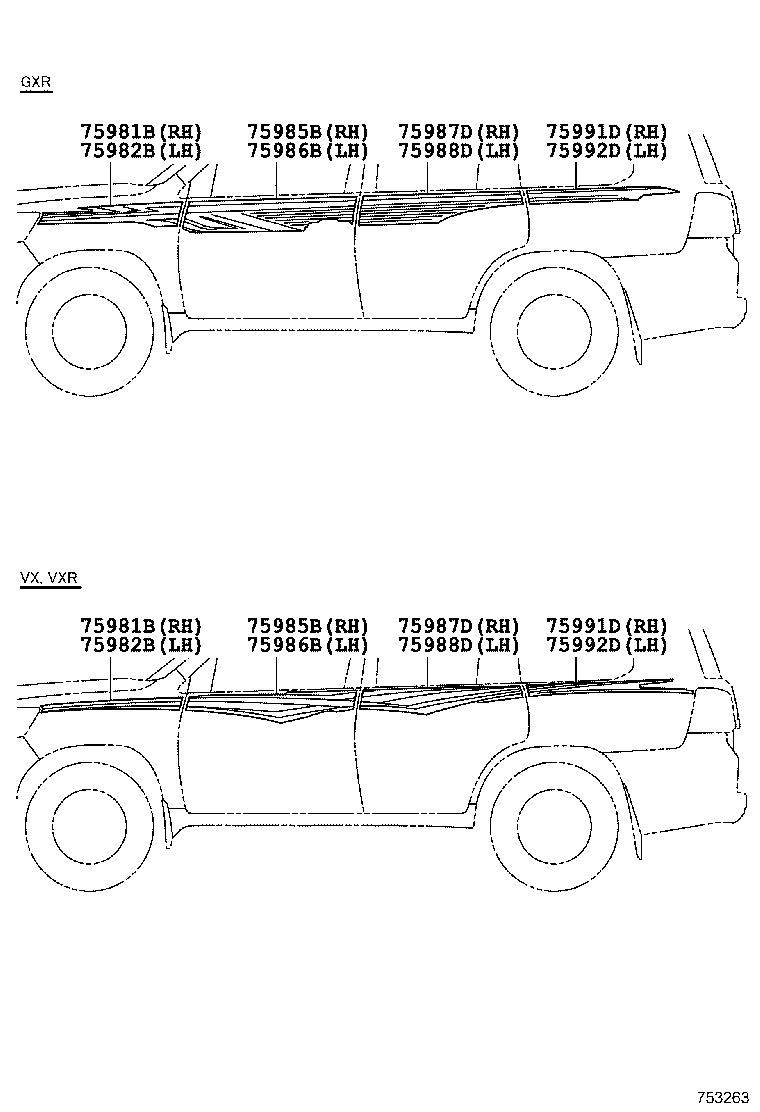

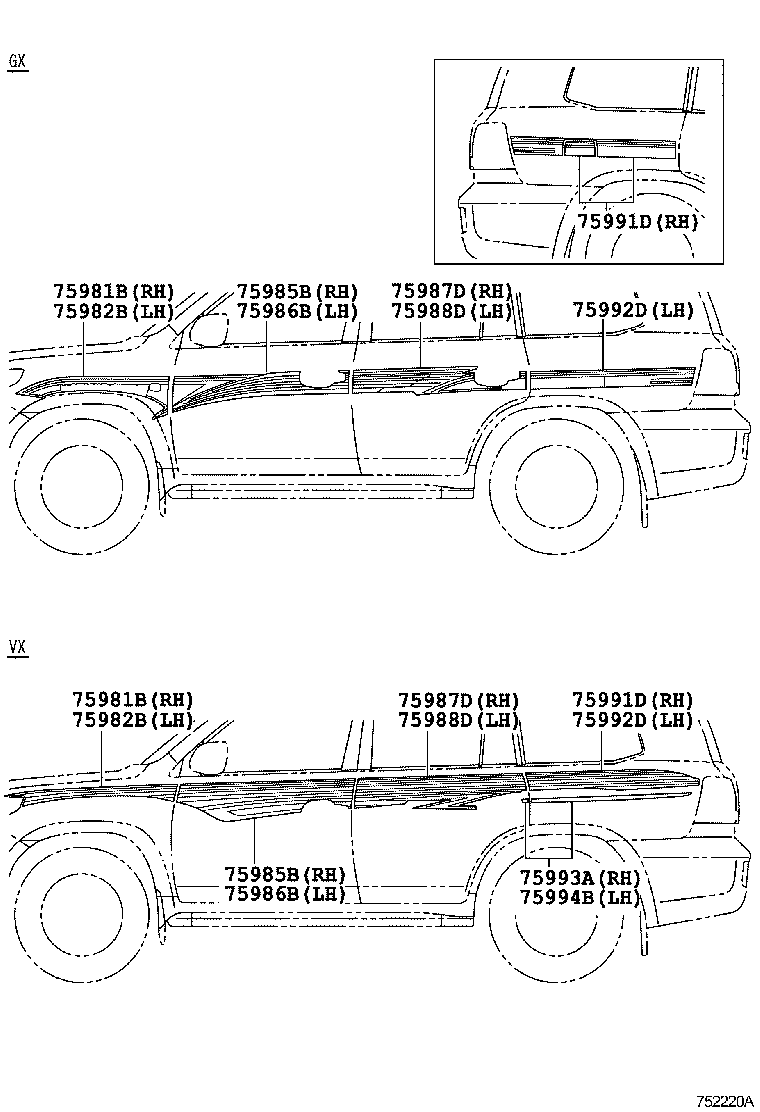

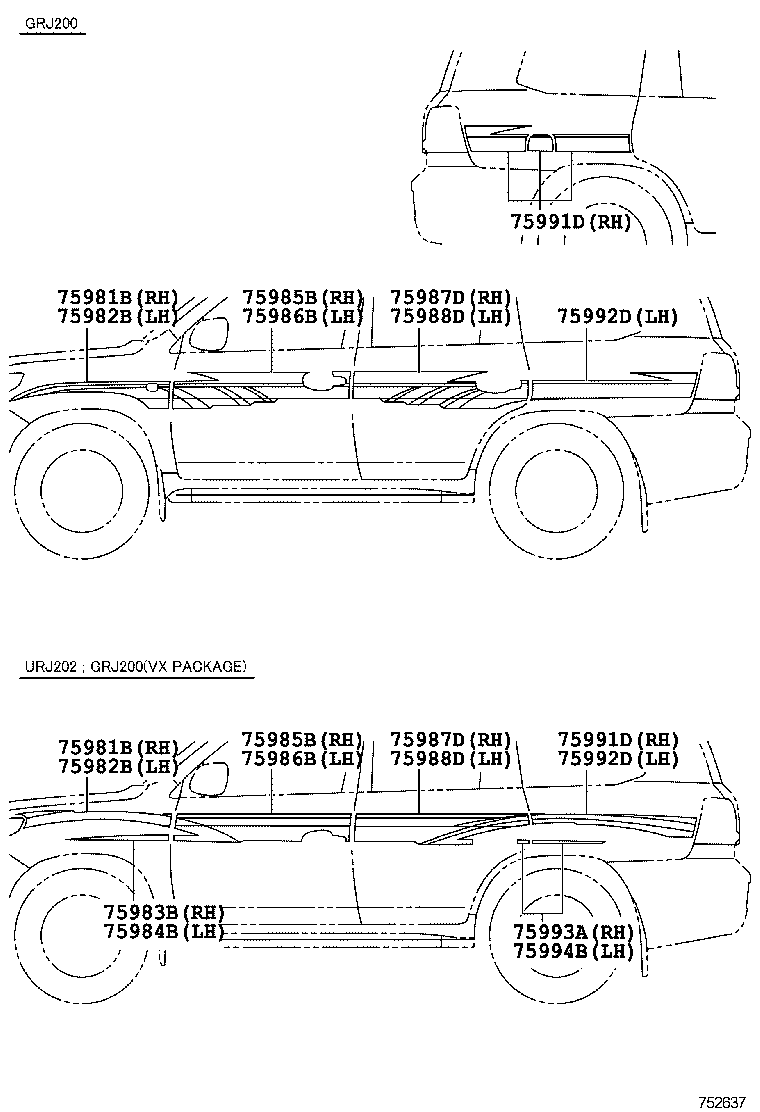

Figure 752008A 752008A 2007-12 → 2009-11 Figure 752220A 752220A 2009-11 → 2012-02 Figure 752637 752637 2012-02 → 2016-01 Figure 753263 753263 2016-01 → —

Part groups

PNCDescription
75981B Stripe, Fender, RH
75982B Stripe, Fender, LH
75983B Stripe, Front Fender, Rear RH
75984B Stripe, Front Fender, Rear LH
75985B Stripe, Front Door, NO.3 RH
75986B Stripe, Front Door, NO.3 LH
75987D Stripe, Rear Door, Outside, RH
75988D Stripe, Rear Door Outside, LH
75991D Stripe, Quarter, Front RH
75992D Stripe, Quarter, Front LH
75993A Stripe, Quarter, Rear RH
75994B Strip, Quarter, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
