Toyota Land Cruiser(CHINA)

2007-12 → 2016-12 · chassis GRJ200,URJ202,UZJ200 · catalogue 790310 · General

Discontinued model Data version 2017-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

7 part groups · 5 illustrations

Illustrations

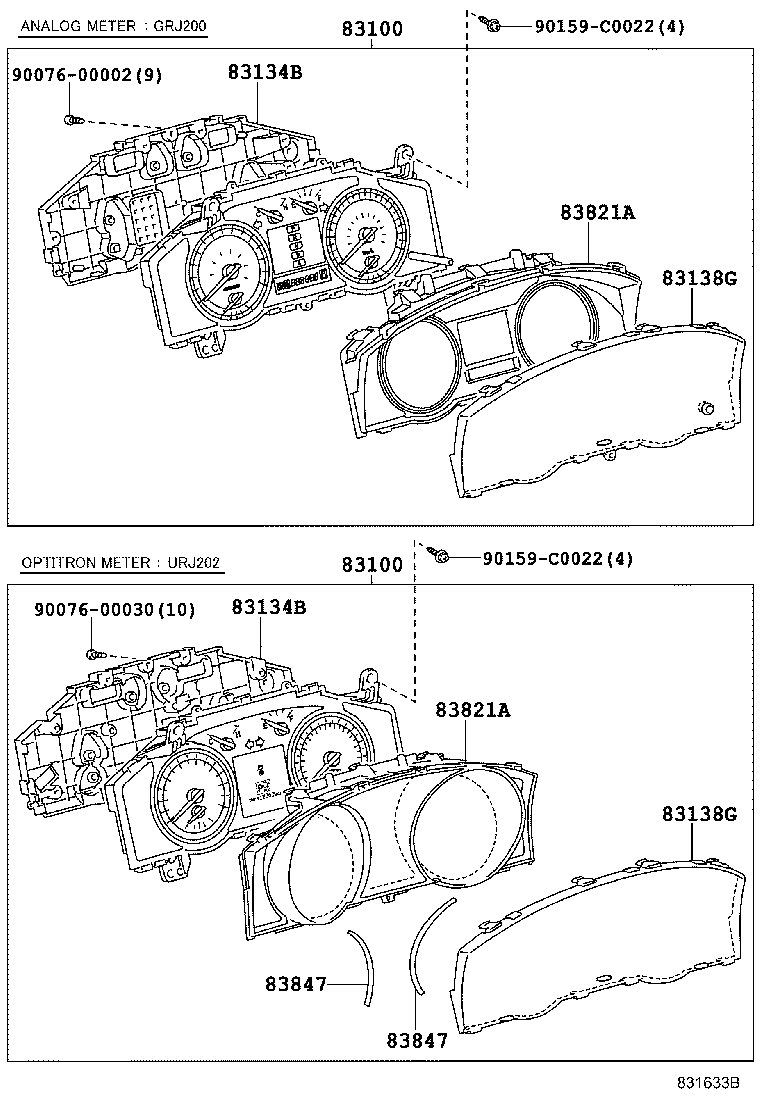

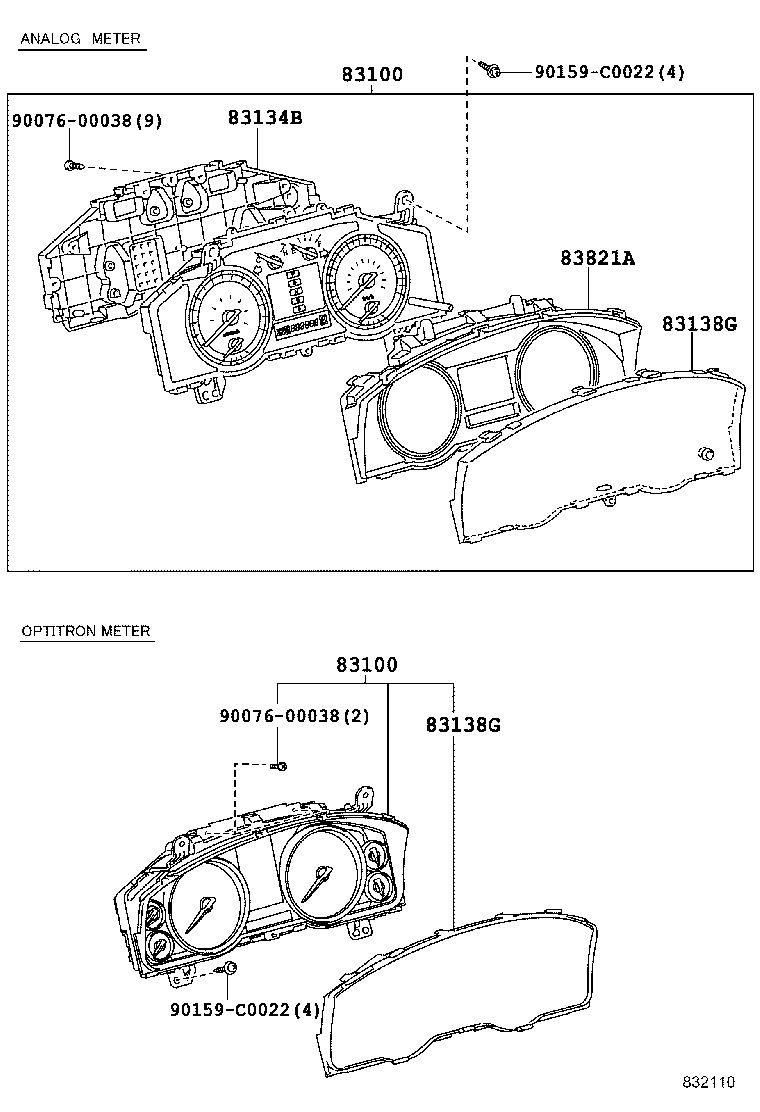

Figure 831474B 831474B 2007-12 → 2012-02 Figure 831633B 831633B 2012-02 → 2016-01 Figure 832110 832110 2016-01 → — Figure 831404B 831404B 2007-12 → 2016-01 Figure 832111 832111 2016-01 → —

Part groups

PNCDescription
83100 Meter Assy, Combination
83134B Cover, Combination Meter, NO.2
83138G Glass, Combination Meter
83138H Glass, Combination Meter NO.2
83821A Cover, Combination Meter, NO.1
83847 Cushion, Combination Speedometer, NO.1
83910 Clock Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
