Toyota Land Cruiser(CHINA)
2007-12 → 2016-12 · chassis GRJ200,URJ202,UZJ200 · catalogue 790310 · General
Discontinued model
Data version 2017-05

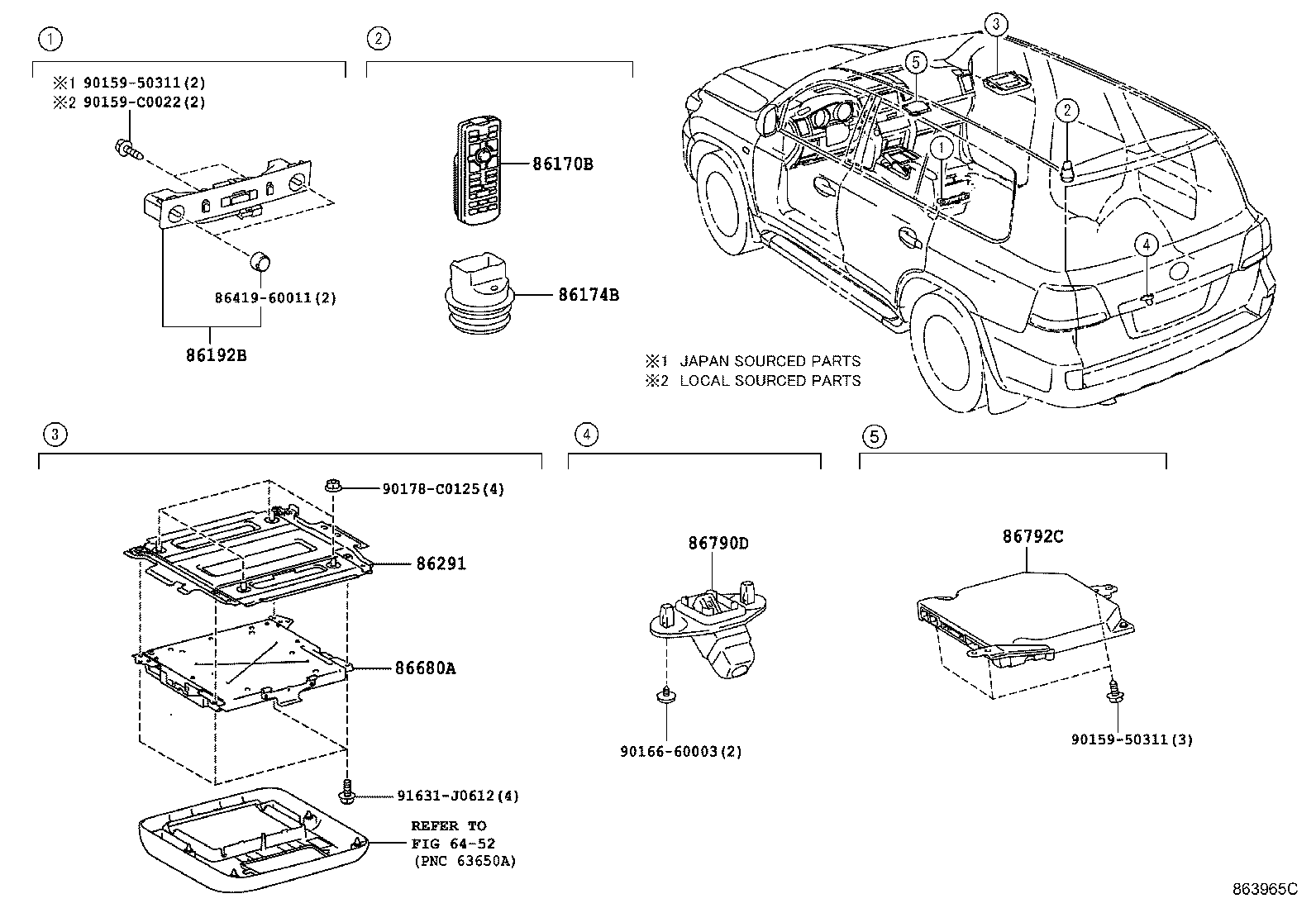

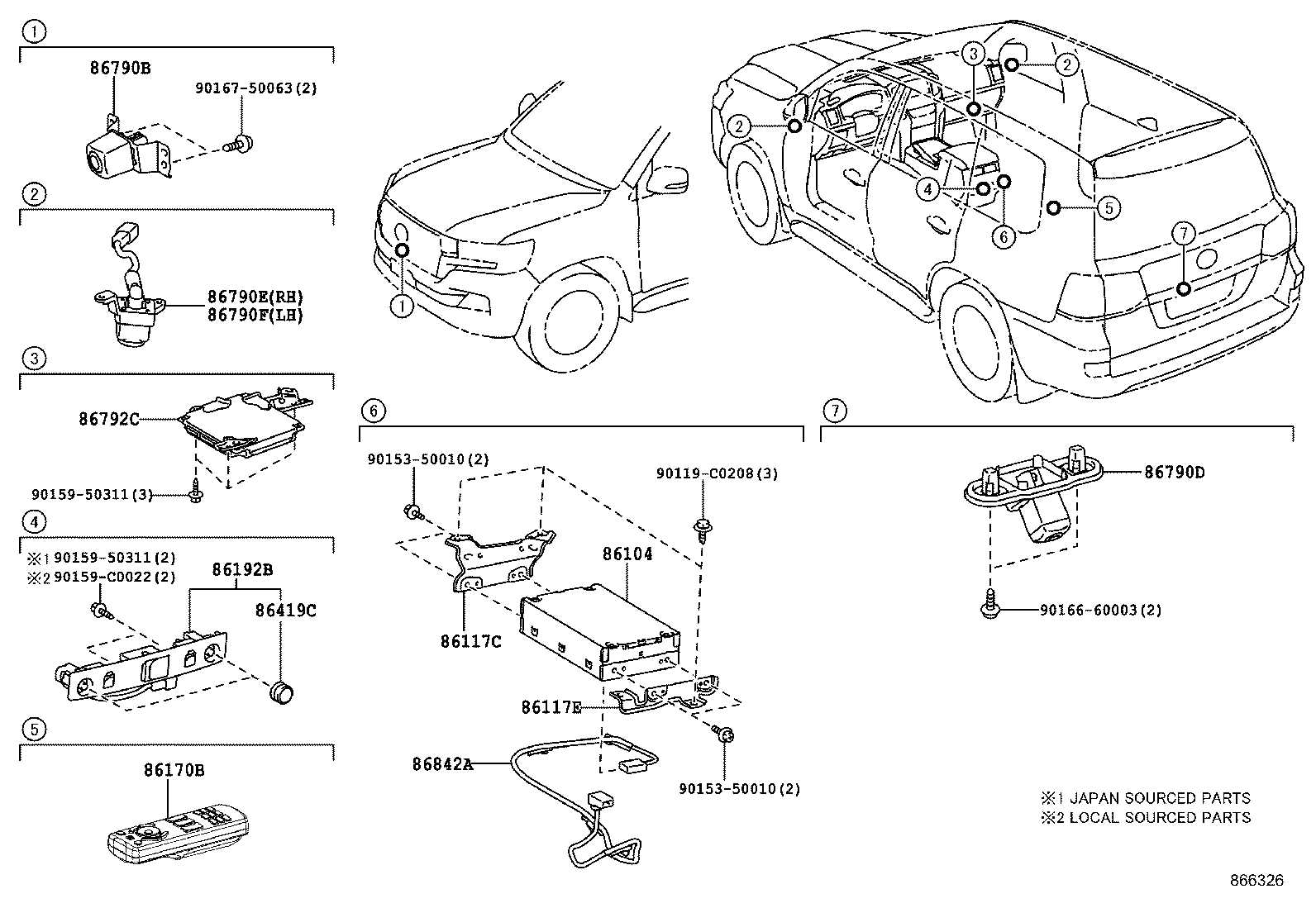

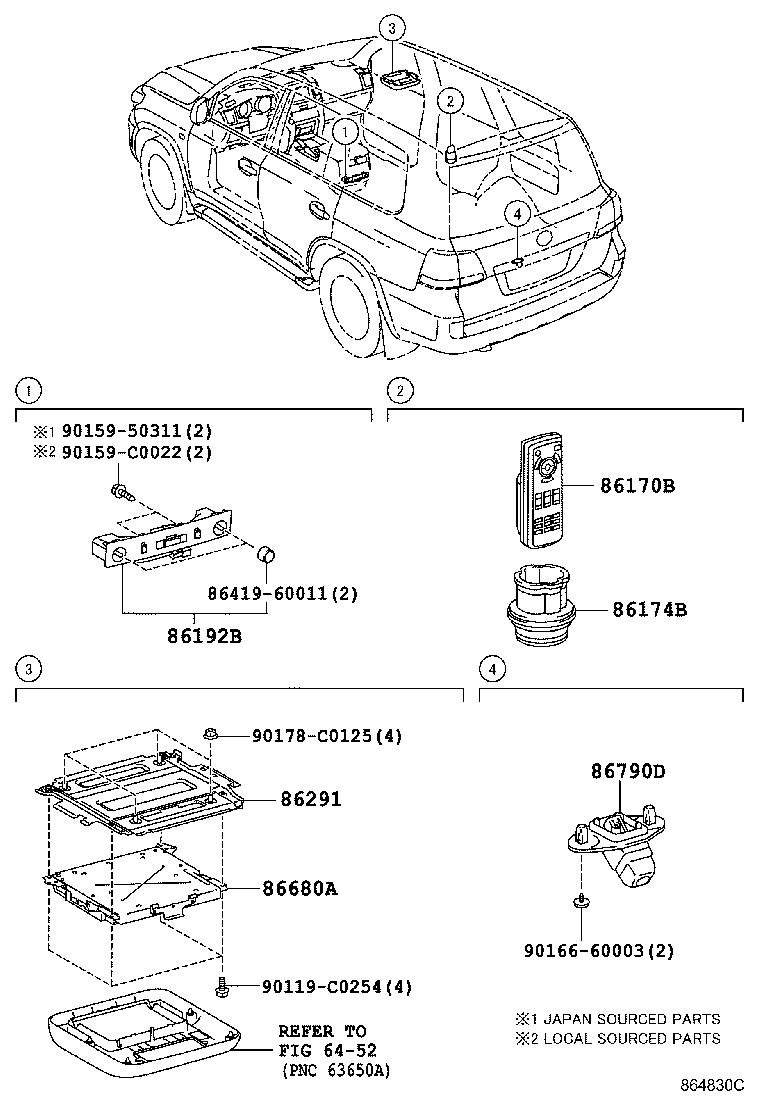

Camera & Rear Monitor Display
19 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 86104 | Controller Sub-assy, Multi-display |
| 86117C | Bracket, Multi-display Controller, NO.2 |
| 86117E | Bracket, Multi-display Controller, NO.3 |
| 86170B | Switch & Volume Assy, Television |
| 86174B | Case, Switch & Volume |
| 86192B | Terminal, Headphone |
| 86291 | Bracket, Television |
| 86292 | Cover, Television Set |
| 86292D | Clip(FOR TELEVISION SET COVER) |
| 86295 | Base, Television |
| 86295E | Base, Television, NO.2 |
| 86419C | Knob, Audio Module |
| 86680A | Display Assy, Television |
| 86790B | Camera Assy, Television, FR |
| 86790D | Camera Assy, Television, RR |
| 86790E | Camera Assy, Television, Side RH |
| 86790F | Camera Assy, Television, Side LH |
| 86792C | Computer, Parking Assist |
| 86842A | Wire, Navigation, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
