Heating & Air Conditioning - Water Piping

17 part groups · 6 illustrations

Illustrations

Figure 879922A

879922A 2007-12 → 2012-02

Figure 879922A

879922A 2012-02 → —

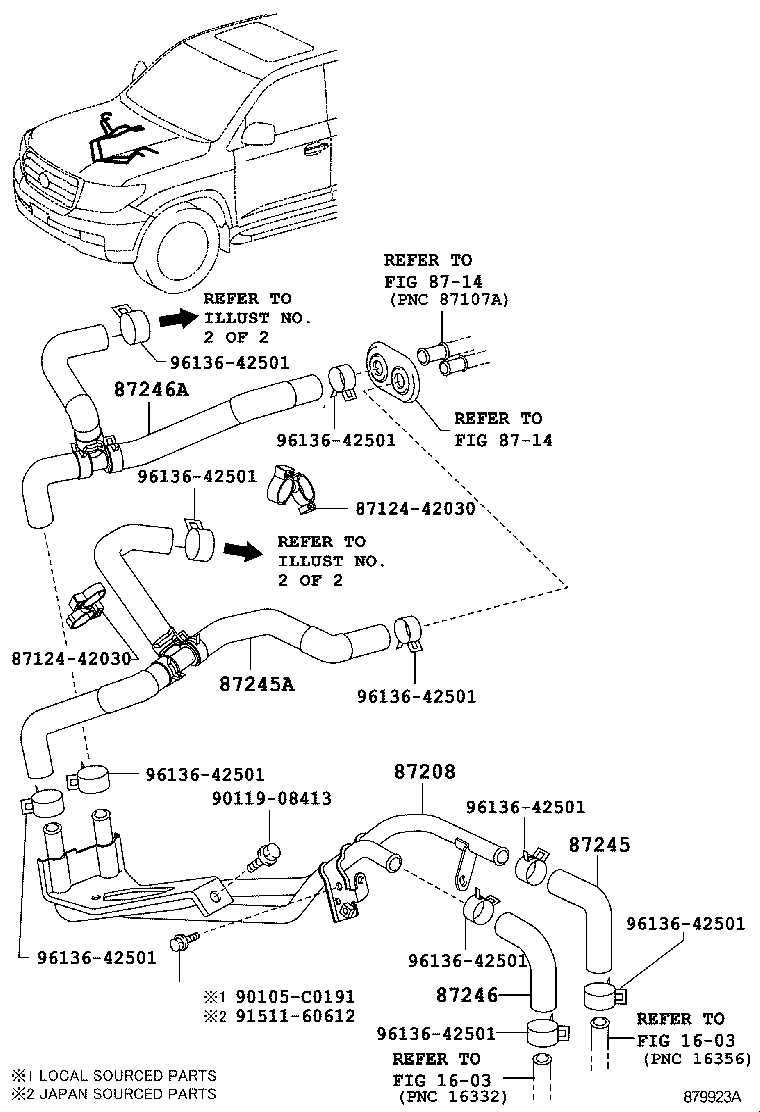

Figure 879923A

879923A 2007-12 → 2012-02

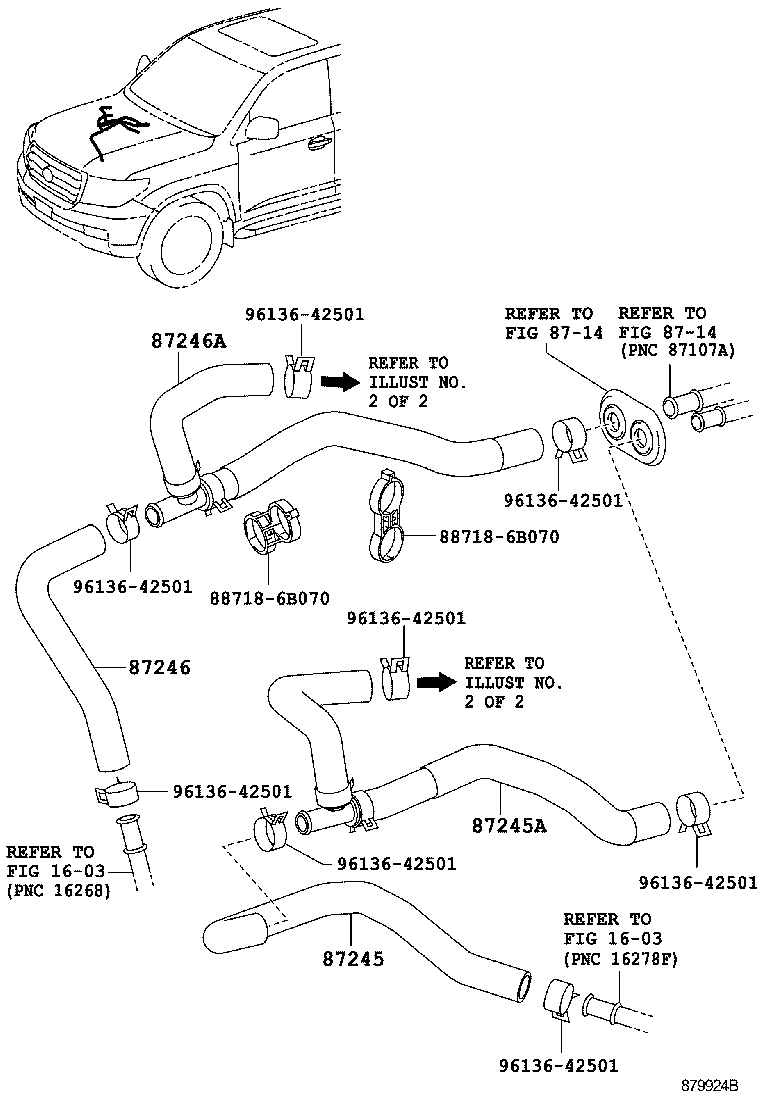

Figure 879924B

879924B 2007-12 → 2012-02

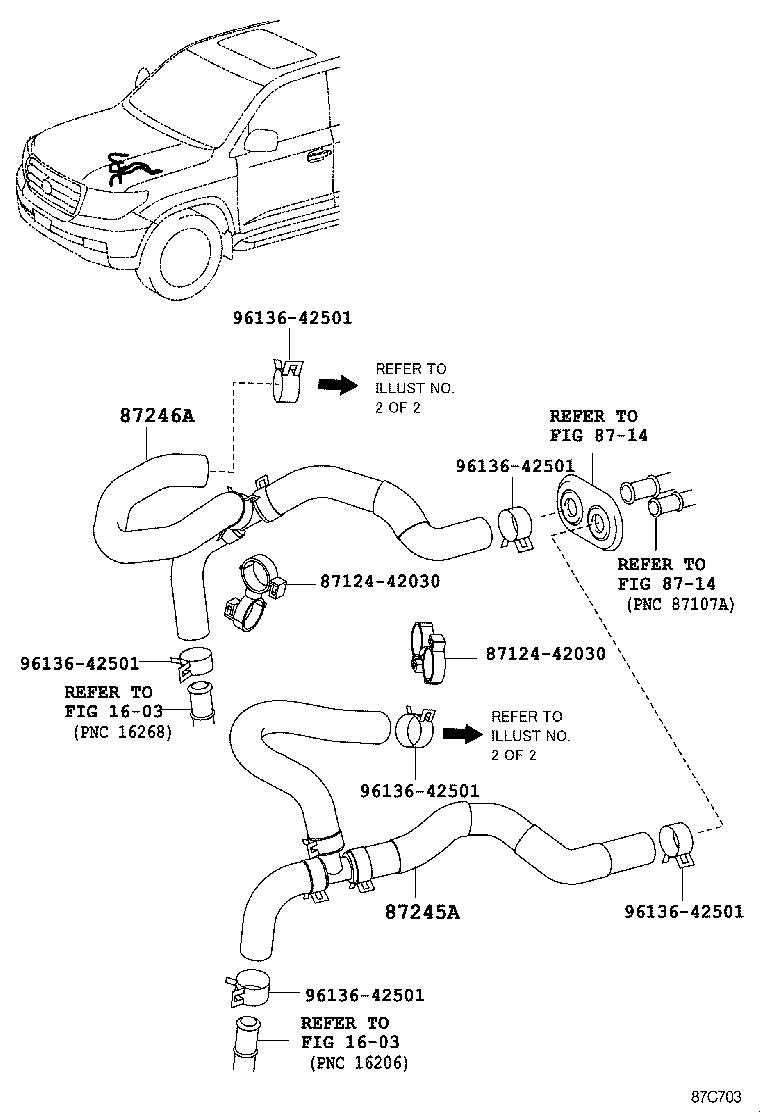

Figure 87C703

87C703 2012-02 → —

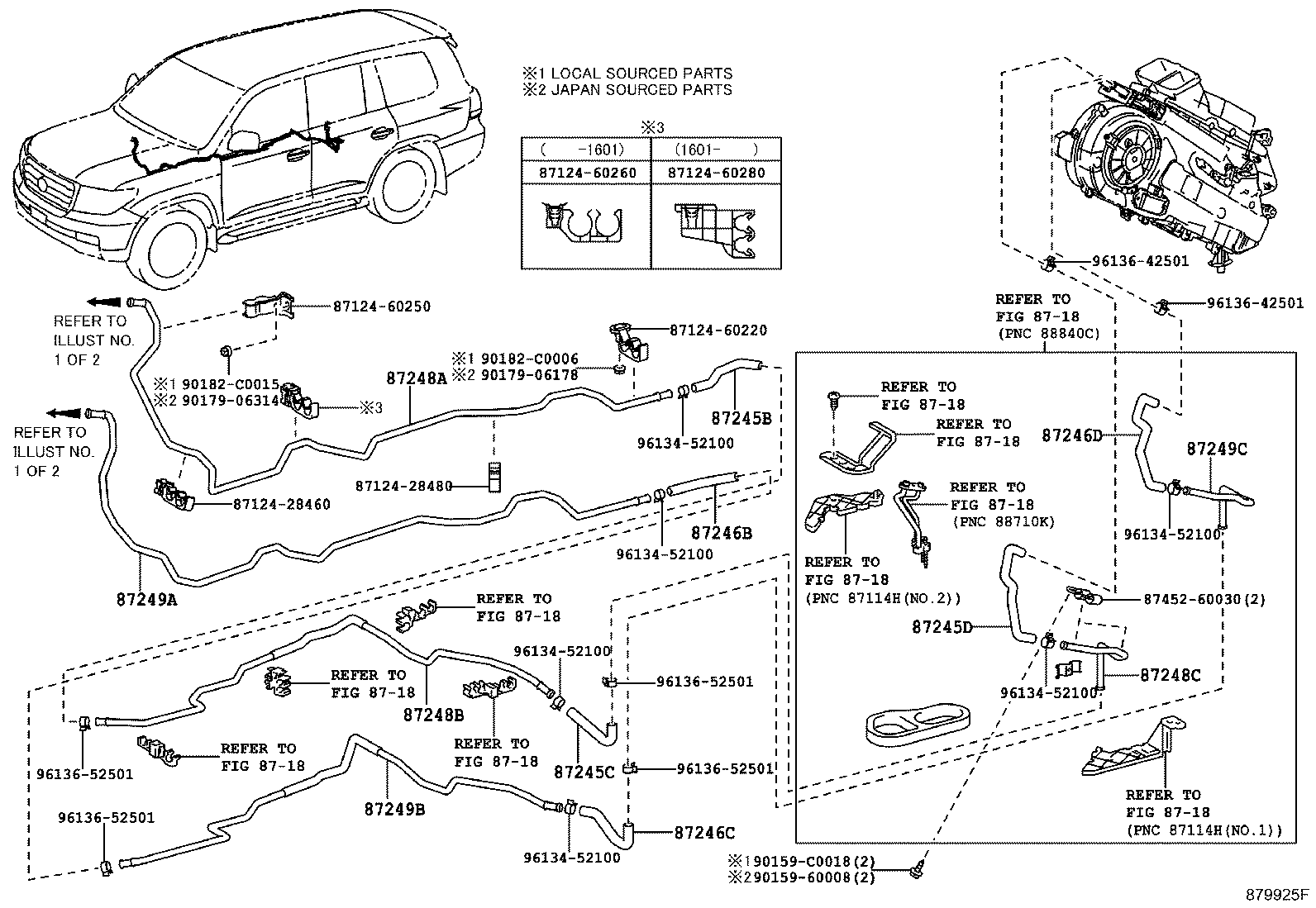

Figure 879925F

879925F 2007-12 → —

Part groups

PNC	Description
87208	Pipe Sub-assy, Heater Water
87245	Hose, Heater Water, Inlet
87245A	Hose, Heater Water, Inlet A
87245B	Hose, Heater Water, Inlet B
87245C	Hose, Heater Water ,Inlet C
87245D	Hose, Heater Water, Inlet D
87246	Hose, Heater Water, Outlet
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
87246C	Hose, Heater Water, Outlet C
87246D	Hose, Heater Water, Outlet D
87248A	Pipe, Heater Water Inlet, A
87248B	Pipe, Heater Water Inlet, B
87248C	Pipe, Heater Water Inlet, C
87249A	Pipe, Heater Water Outlet, A
87249B	Pipe, Heater Water Outlet, B
87249C	Pipe, Heater Water Outlet, C

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
