Heating & Air Conditioning - Compressor

5 part groups · 3 illustrations

Illustrations

879894 2007-12 → —

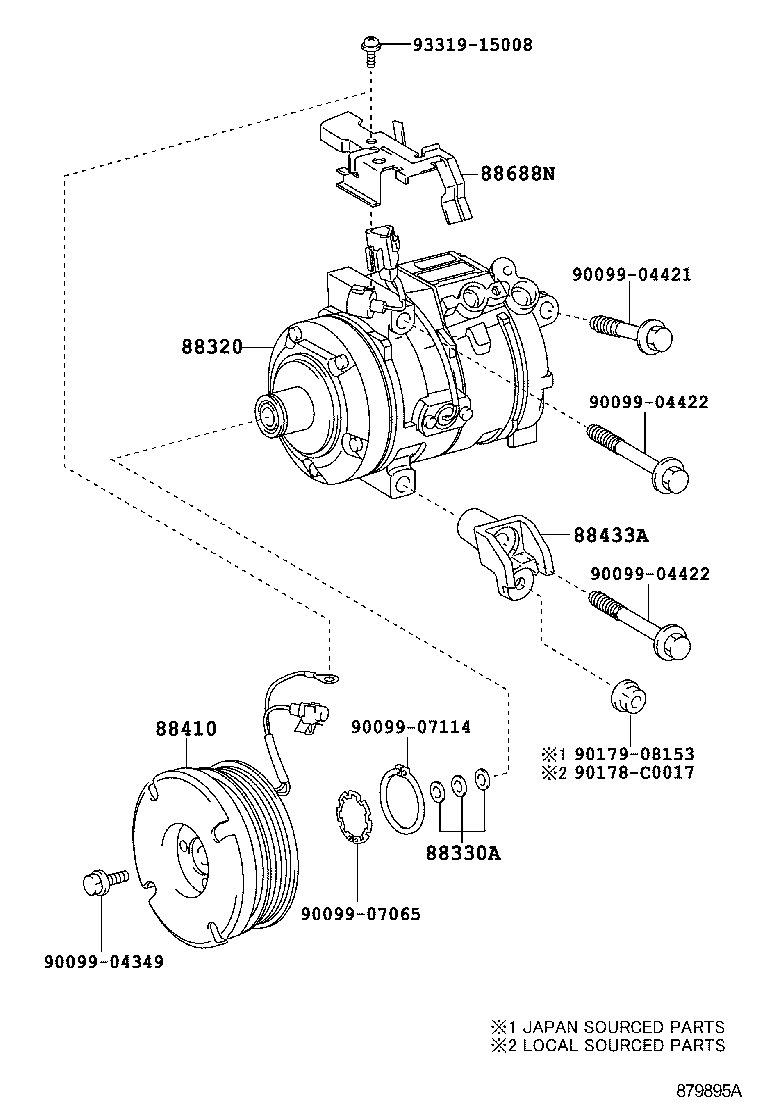

Figure 879895A

879895A 2007-12 → 2012-02

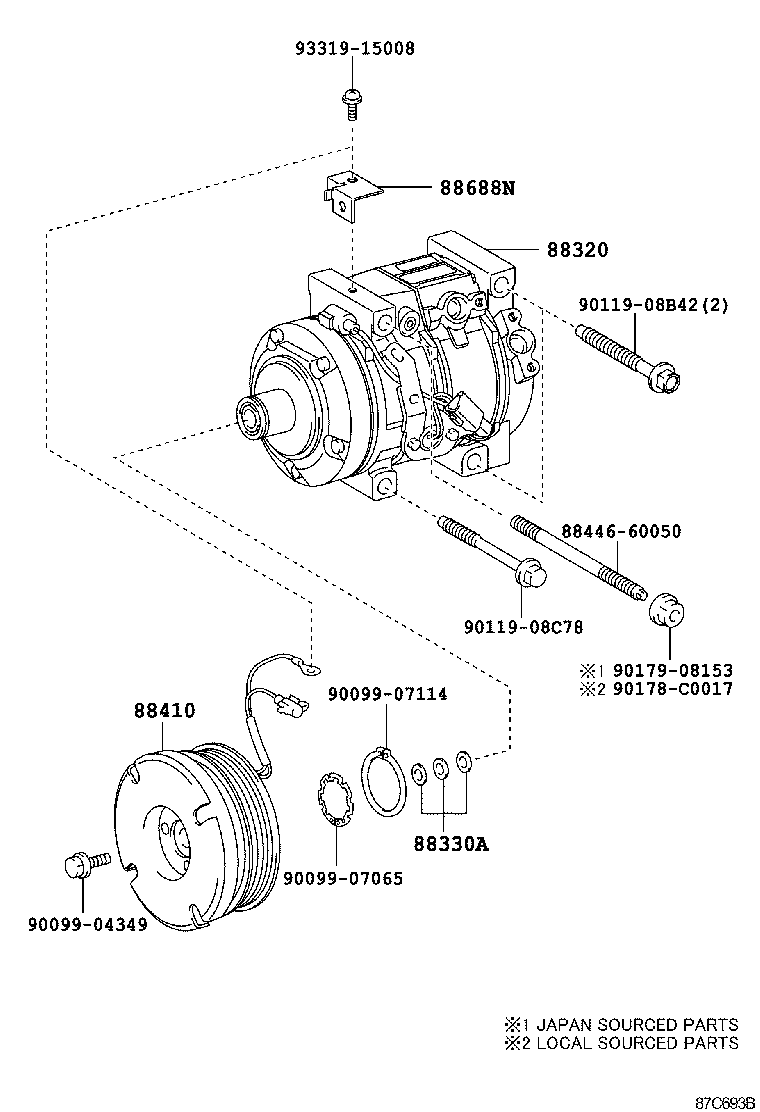

Figure 87C693B

87C693B 2012-02 → —

Part groups

PNC	Description
88320	Compressor Assy, Cooler
88330A	Washer (FOR MAGNET CLUTCH)
88410	Clutch Assy, Magnet
88433A	Stay, Compressor
88688N	Bracket, Cooler

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
