Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · General

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Head

29 part groups · 6 illustrations

Illustrations

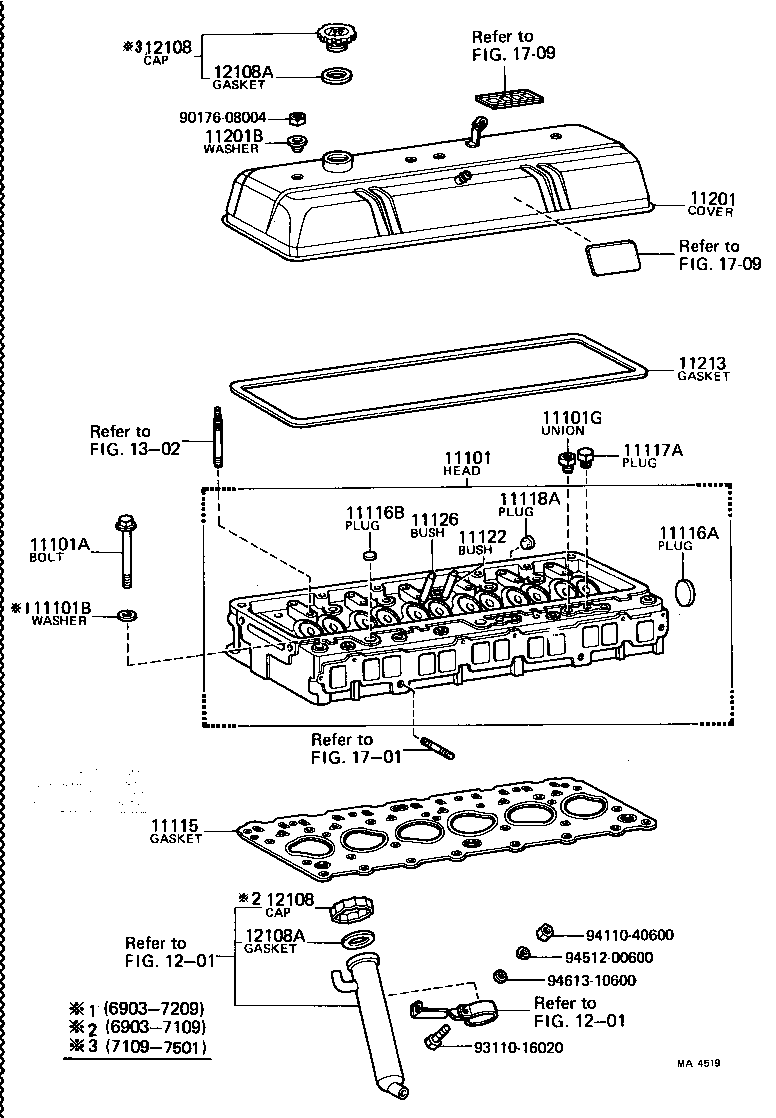

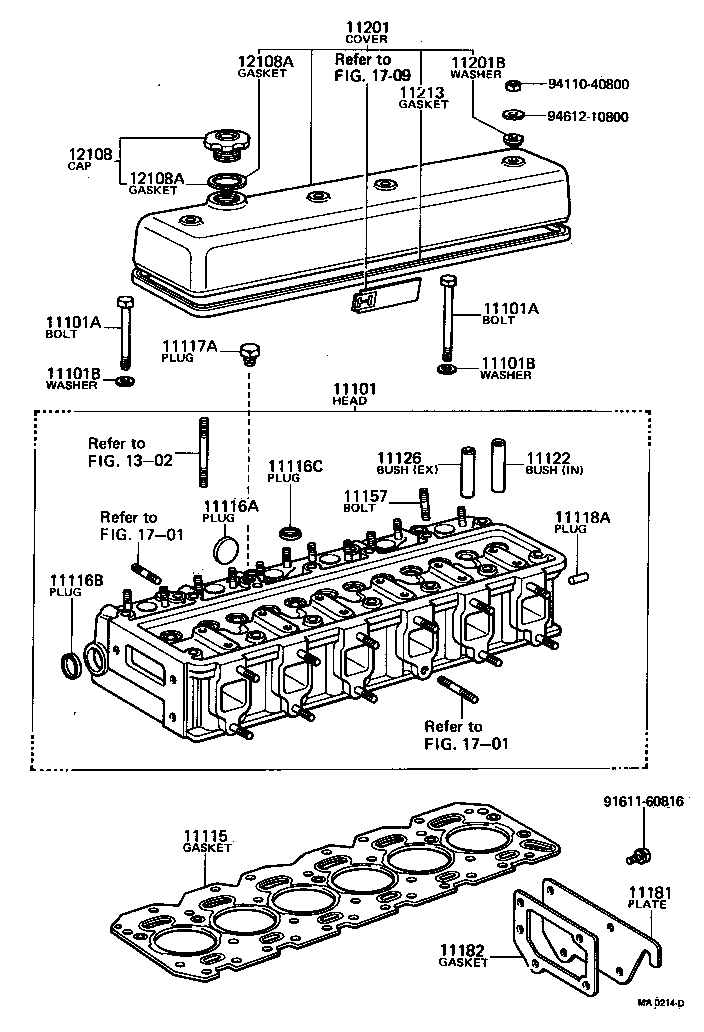

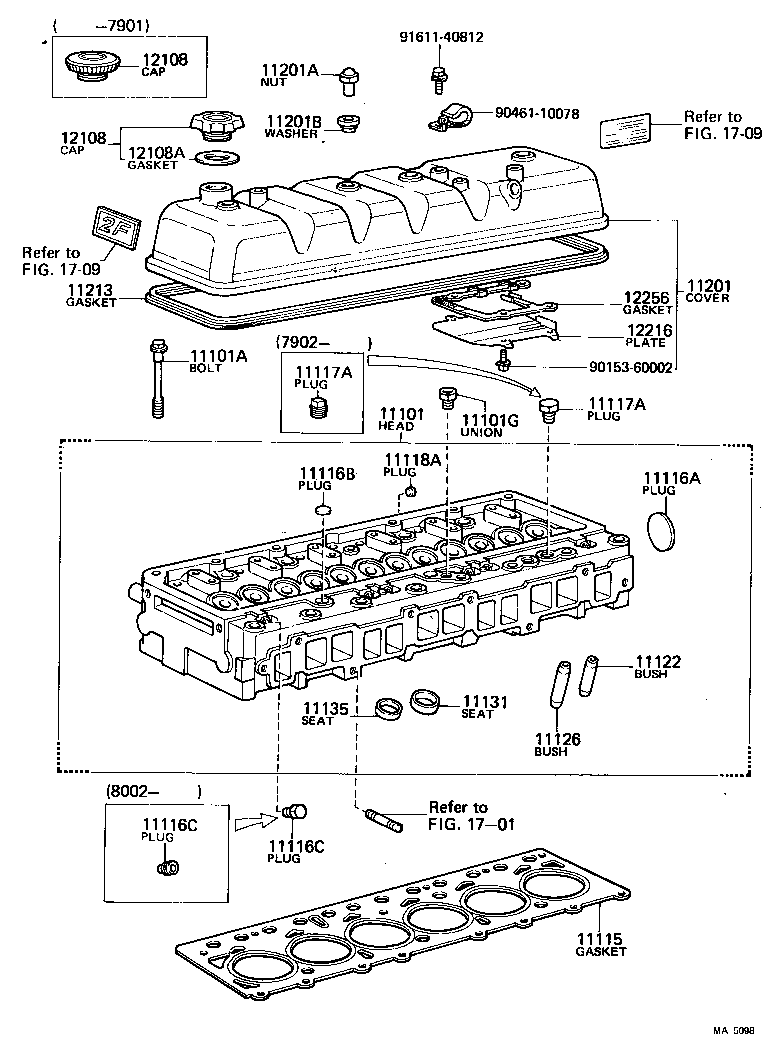

Figure MA3940A MA3940A 1974-02 → 1977-09 Figure MA4495 MA4495 1977-09 → 1980-07 Figure MA4519 MA4519 1969-03 → 1975-01 Figure MA5098 MA5098 1975-01 → 1980-07 Figure MA0214D MA0214D 1972-04 → 1973-06 Figure MA4496A MA4496A 1973-06 → 1980-07

Part groups

PNCDescription
11101 Head Sub-assy, Cylinder
11101A Bolt(FOR CYLINDER HEAD SET)
11101B Washer, Plate(FOR CYLINDER HEAD SET)
11101G Union(FOR CYLINDER HEAD)
11115 Gasket, Cylinder Head
11116A Plug, Tight, NO.1
11116B Plug, Tight, NO.2
11116C Plug, Tight, NO.3
11116D Plug, Tight, NO.4
11116E Plug, Tight, NO.5
11117A Plug, W/Head Taper Screw, NO.1
11117B Plug, W/Head Taper Screw, NO.2
11118A Plug, Straight, NO.1
11118B Plug, Straight, NO.2
11122 Bush, Intake Valve Guide
11126 Bush, Exhaust Valve Guide
11131 Seat, Intake Valve
11135 Seat, Exhaust Valve
11157 Bolt, Stud(FOR HEAD TO NOZZLE & NOZZLE SET)
11181 Plate, Cylinder Head, Rear
11182 Gasket, Cylinder Head Rear Plate
11201 Cover Sub-assy, Cylinder Head
11201A Nut, Cap(FOR CYLINDER HEAD COVER)
11201B Washer, Seal(FOR CYLINDER HEAD COVER)
11213 Gasket, Cylinder Head Cover
12108 Cap Sub-assy, Oil Filler
12108A Gasket(FOR OIL FILLER CAP)
12216 Plate, Ventilation Baffle
12256 Gasket, Ventilation Baffle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
