Toyota Land Cruiser
1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · General
Discontinued model
Data version 1987-01

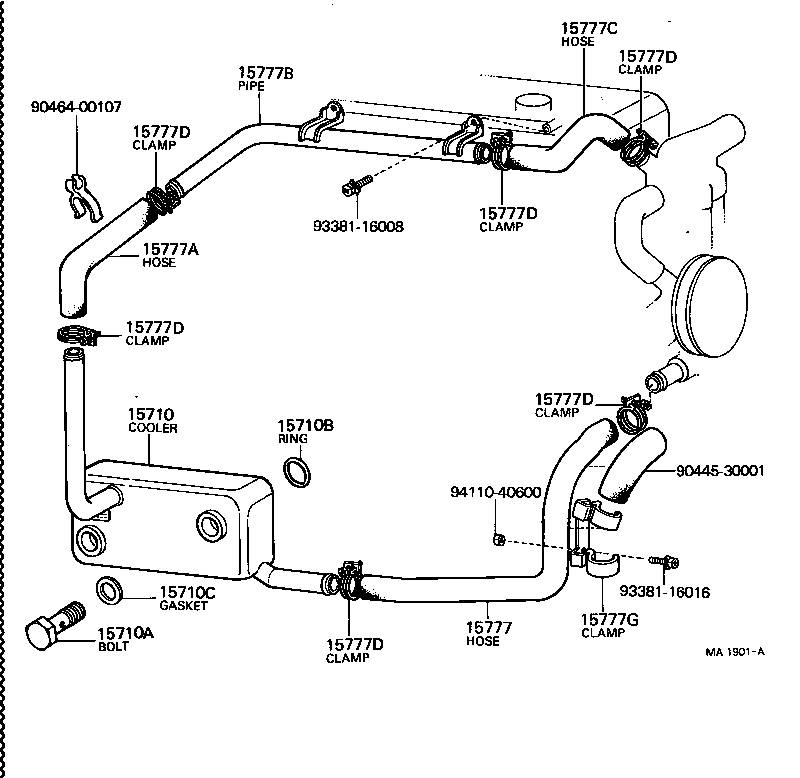

Engine Oil Cooler
19 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 15710 | Cooler Assy, Oil |
| 15710A | Bolt, Union(FOR OIL COOLER) |
| 15710B | Ring, O(FOR OIL COOLER) |
| 15710C | Gasket(FOR OIL COOLER) |
| 15710D | Plug, W/Head Straight Screw |
| 15710E | Gasket(FOR STRAIGHT SCREW PLUG) |
| 15771E | Bolt, Union(FOR OIL PIPE) |
| 15771F | Ring, O |
| 15771G | Gasket |
| 15771H | Plug, W/Head Straight Screw |
| 15771J | Gasket(FOR STRAIGHT SCREW PLUG) |
| 15777 | Hose, Oil Cooler |
| 15777A | Hose, Oil Cooler |
| 15777B | Pipe, Oil Cooler |
| 15777C | Hose, Oil Cooler |
| 15777D | Clamp OR Clip, Hose(FOR OIL COOLER HOSE) |
| 15777E | Union |
| 15777F | Plug |
| 15777G | Clamp OR Crip, Hose |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
