Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · General

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

21 part groups · 10 illustrations

Illustrations

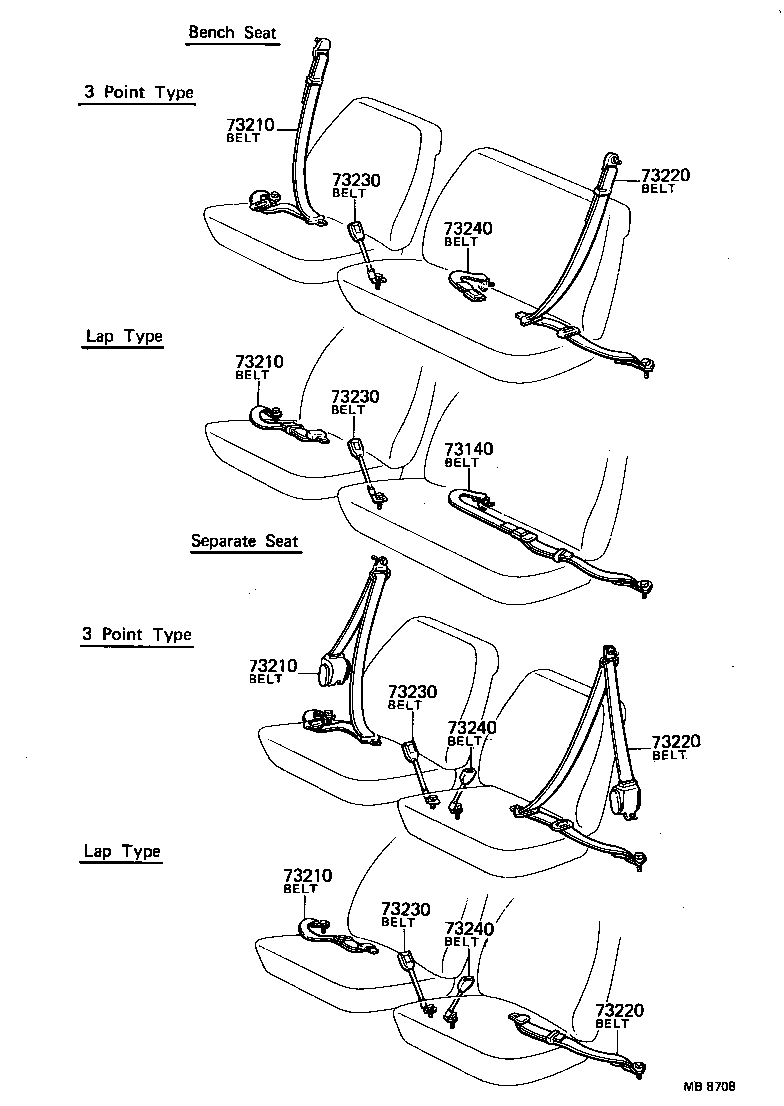

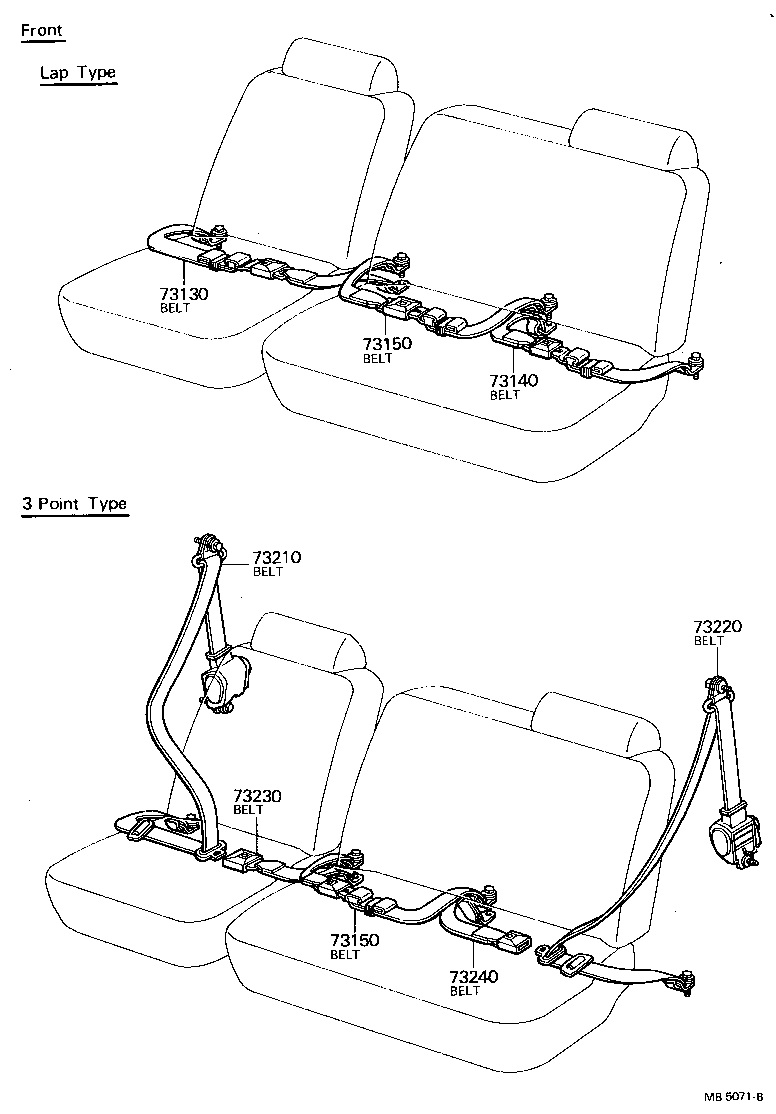

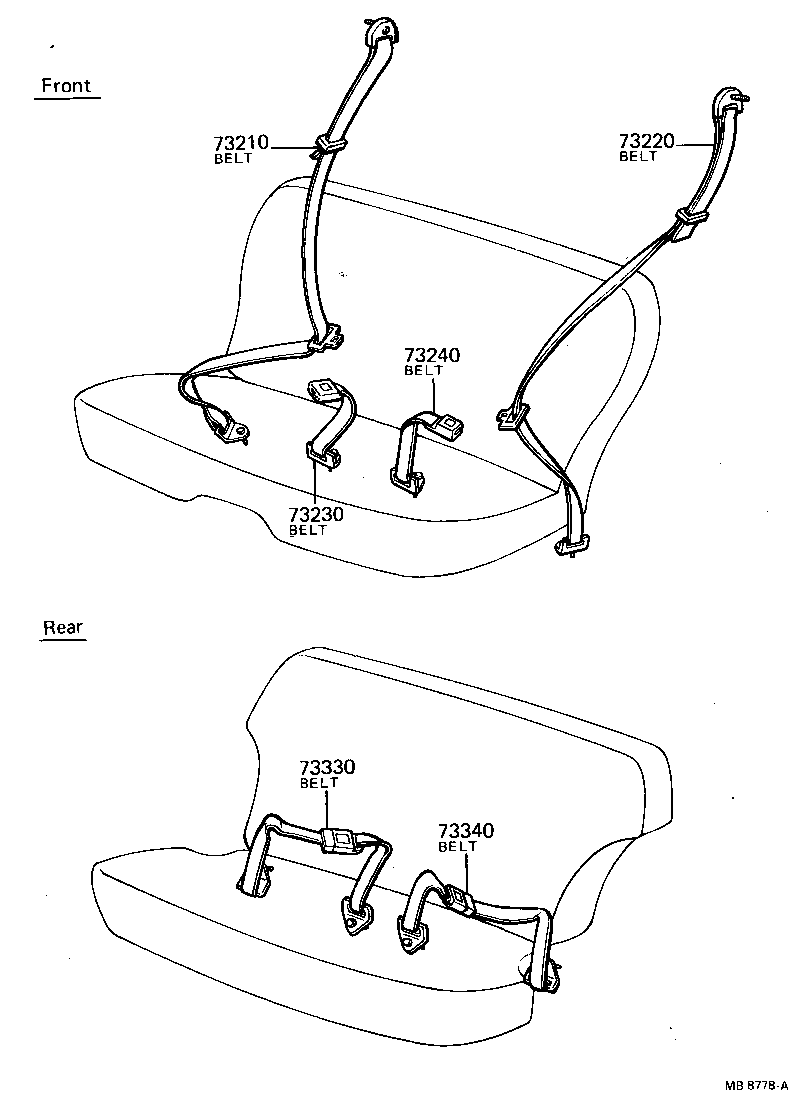

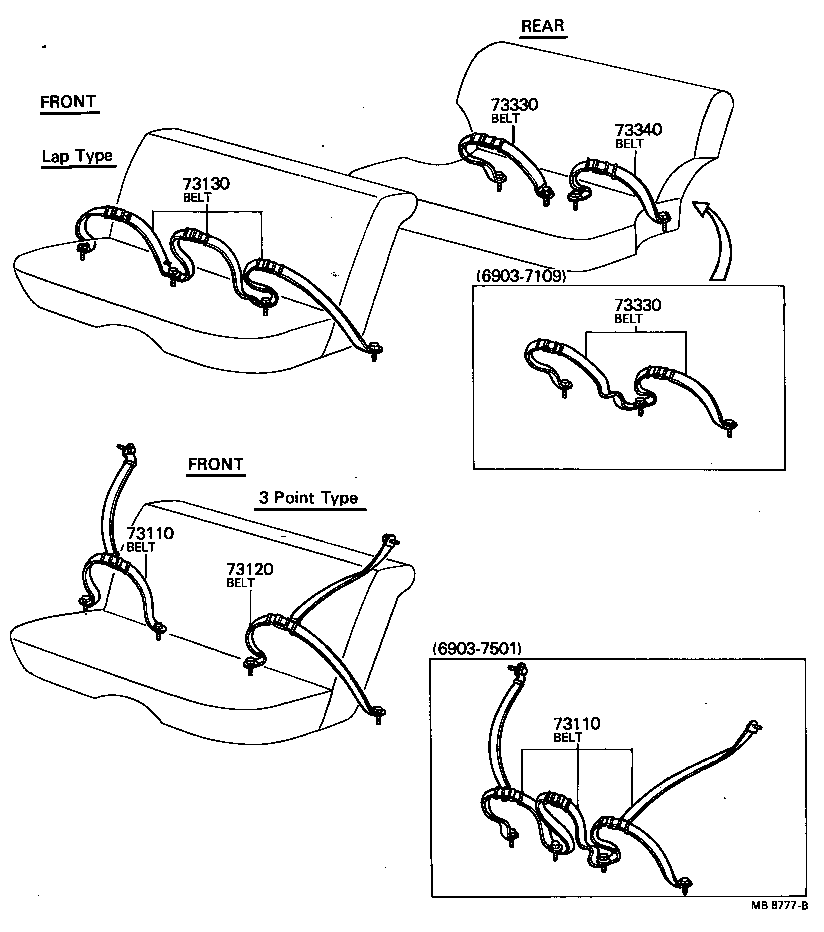

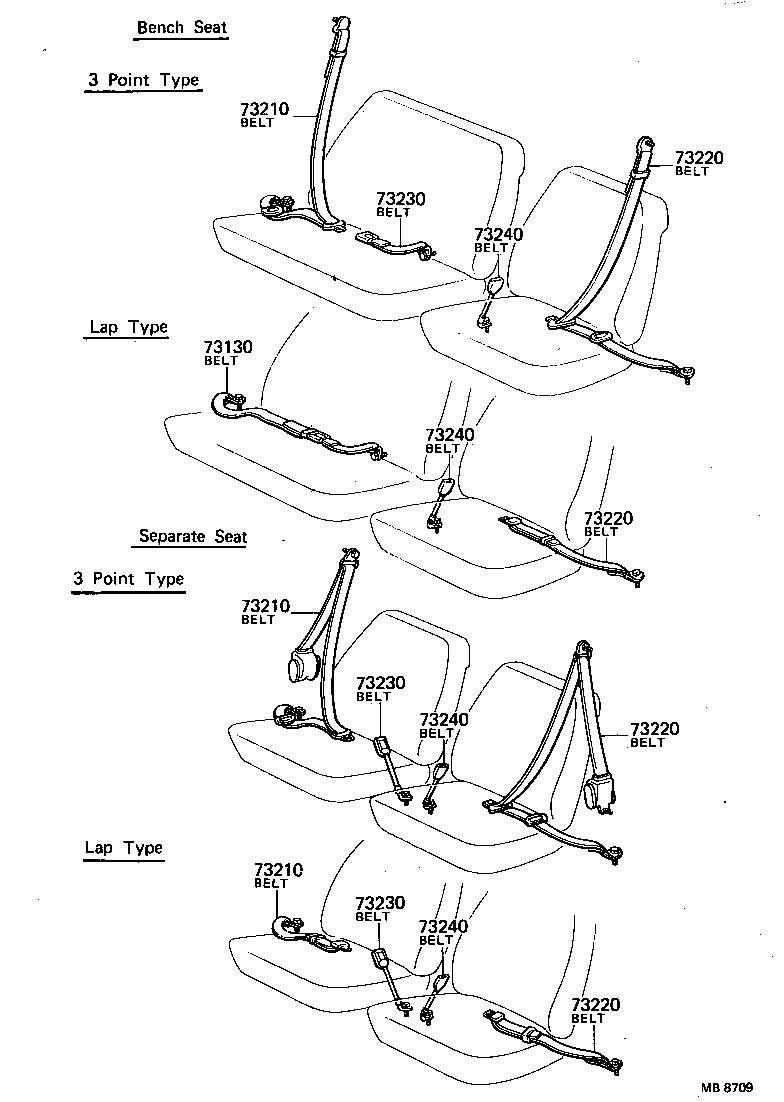

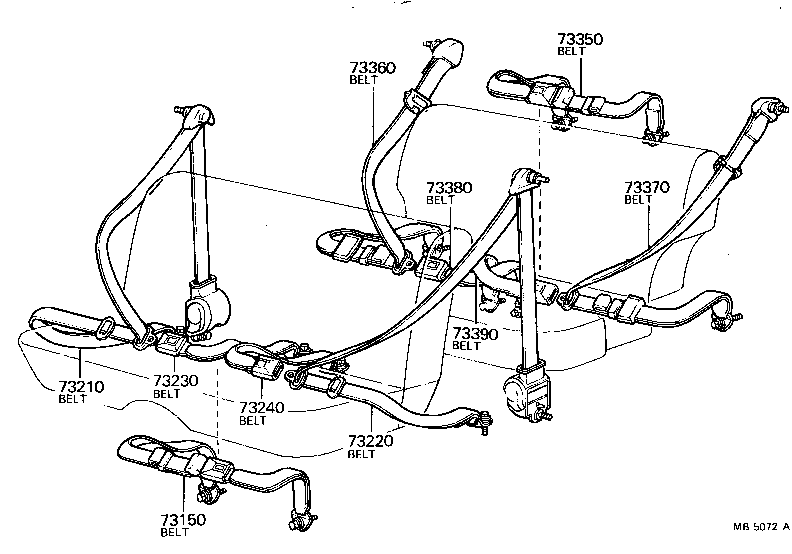

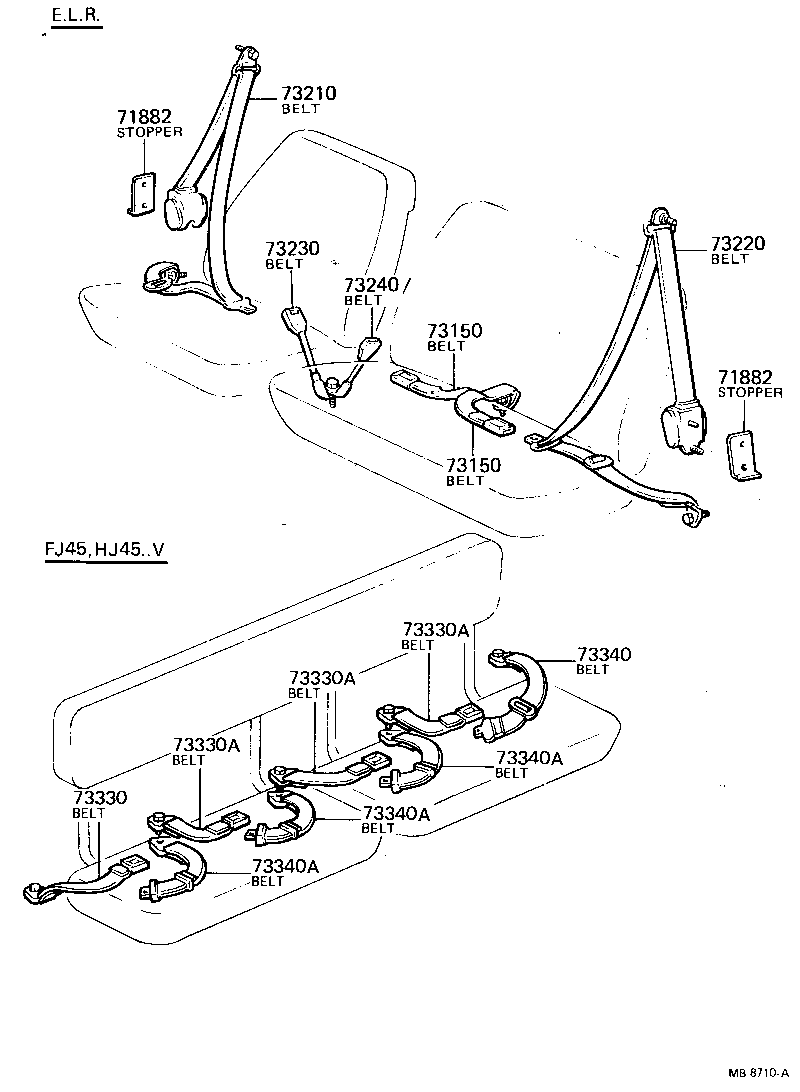

Figure MB3743D MB3743D 1969-03 → 1975-05 Figure MB3743D MB3743D 1975-05 → 1979-01 Figure MB8777B MB8777B 1969-03 → 1975-05 Figure MB8777B MB8777B 1975-05 → 1979-01 Figure MB8708 MB8708 1979-01 → 1980-07 Figure MB8709 MB8709 1979-01 → 1980-07 Figure MB5071B MB5071B 1975-05 → 1979-01 Figure MB8710A MB8710A 1979-01 → 1979-09 Figure MB5072A MB5072A 1975-05 → 1980-07 Figure MB8778A MB8778A 1979-01 → 1980-07

Part groups

PNCDescription
71882 Stopper, Seat Belt Retractor
73110 Belt Assy, Front Seat 3 Point Type, RH
73120 Belt Assy, Front Seat 3 Point Type, LH
73130 Belt Assy, Front Seat Lap Type, RH
73140 Belt Assy, Front Seat Lap Type, LH
73150 Belt Assy, Front Seat Lap Type, Center
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73310 Belt Assy, Rear Seat 3 Point Type, RH
73320 Belt Assy, Rear Seat 3 Point Type, LH
73330 Belt Assy, Rear Seat Lap Type, RH
73330A Belt Sub-assy, Rear Seat Lap Type, Front
73340 Belt Assy, Rear Seat Lap Type, LH
73340A Belt Sub-assy, Rear Seat Lap Type, Front
73350 Belt Assy, Rear Seat Lap Type, Center
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
