Toyota Land Cruiser
1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · General
Discontinued model
Data version 1987-01

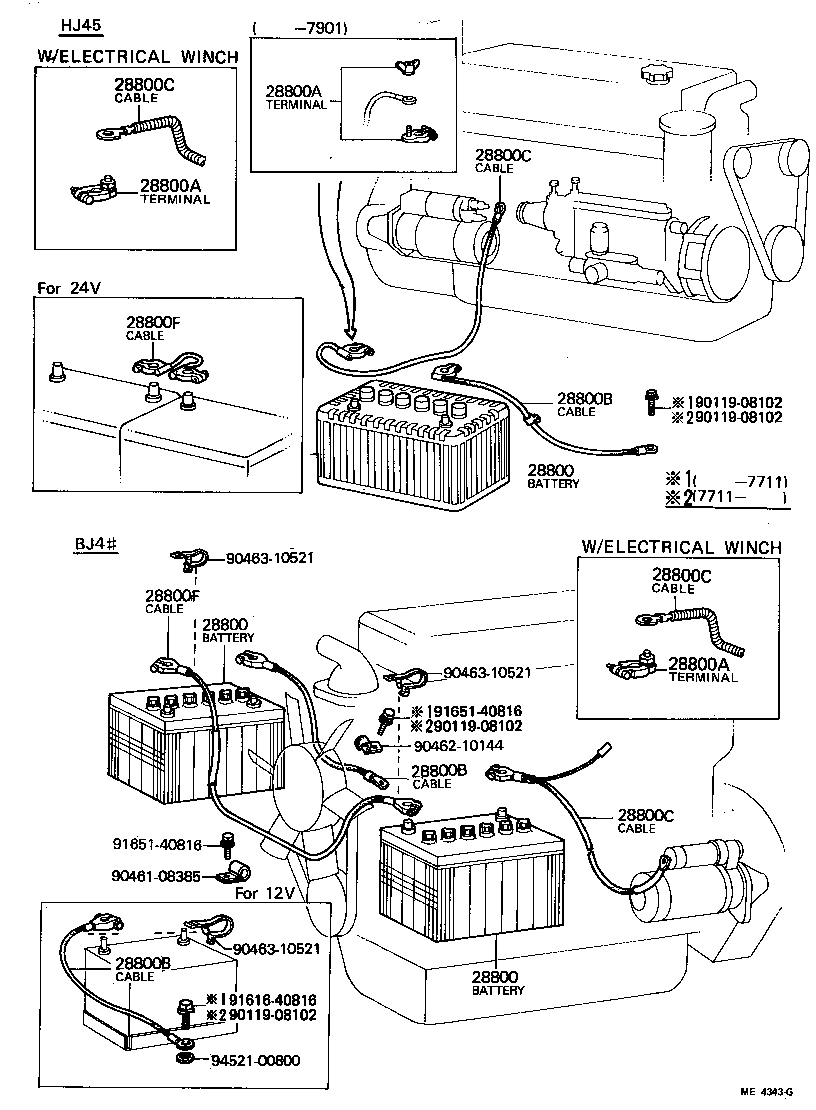

Battery & Battery Cable
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 28800 | Battery |
| 28800A | Terminal, Battery Positive |
| 28800B | Cable, Battery TO Ground |
| 28800C | Cable, Battery TO Starter(FOR BATTERY TO MAIN SWITCH) |
| 28800F | Cable, Battery TO Battery |
| 28800J | Terminal, Battery Negative |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
