Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · General

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Drive Shaft

28 part groups · 3 illustrations

Illustrations

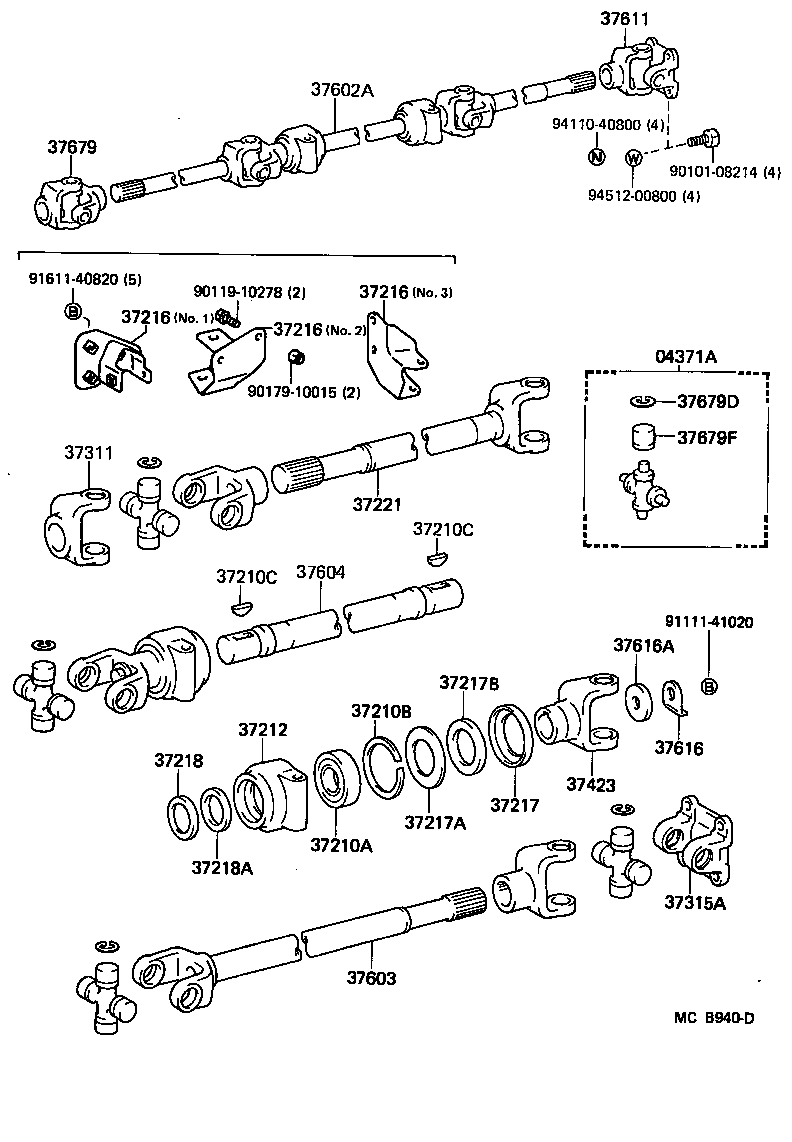

Figure MC7173D MC7173D 1980-08 → 1982-10 Figure MC7173D MC7173D 1982-10 → 1984-11 Figure MCB940D MCB940D 1984-11 → —

Part groups

PNCDescription
04371A Spider Kit, Universal Joint(FOR WINCH DRIVE SHAFT)
37210A Bearing (FOR PILLOW BLOCK)
37210B Ring, Hole Snap (FOR PILLOW BLOCK BEARING)
37210C Key, Woodruff (FOR PILLOW BLOCK)
37212 Body, Pillow Block, NO.2
37216 Bracket, Pillow Block
37217 Retainer, Dust Seal, NO.1
37217A Washer, Plate (FOR PILLOW BLOCK RETAINER)
37217B Seal, Dust (FOR PILLOW BLOCK RETAINER)
37218 Retainer, Dust Seal, NO.2
37218A Seal, Dust (FOR NO.2 PILLOW BLOCK RETAINER)
37221 Shaft, Pillow Block, NO.1
37311 Yoke, Universal Joint, NO.1 (FOR WINCH DRIVE SHAFT)
37315A Yoke, Universal Joint Flange (FOR WINCH DRIVE SHAFT)
37423 Yoke, Universal Joint Flange(FOR POWER TAKE-OFF DRIVE SHAFT)
37423A Spacer(FOR UNIVERSAL JOINT FLANGE YOKE)
37500 Shaft Assy, Drive, Front W/Pillow Block
37602A Shaft Sub-assy, W/Yoke Drive, Front
37603 Shaft Sub-assy, Drive, Front NO.3
37604 Shaft Sub-assy, Drive, Front NO.2
37611 Joint Assy, Universal, W/Yoke (FOR WINCH)
37616 Plate, Drive Shaft Lock
37616A Washer (FOR DRIVE SHAFT LOCK PLATE)
37679 Joint Assy, Universal (FOR WINCH DRIVE SHAFT)
37679B Cup, Universal Joint (FOR WINCH DRIVE SHAFT)
37679C Ring, O (FOR WINCH DRIVE SHAFT)
37679D Ring, Hole Snap (FOR WINCH DRIVE SHAFT)
37679F Bearing, Universal Joint (FOR WINCH DRIVE SHAFT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
