Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · General

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

50 part groups · 8 illustrations

Illustrations

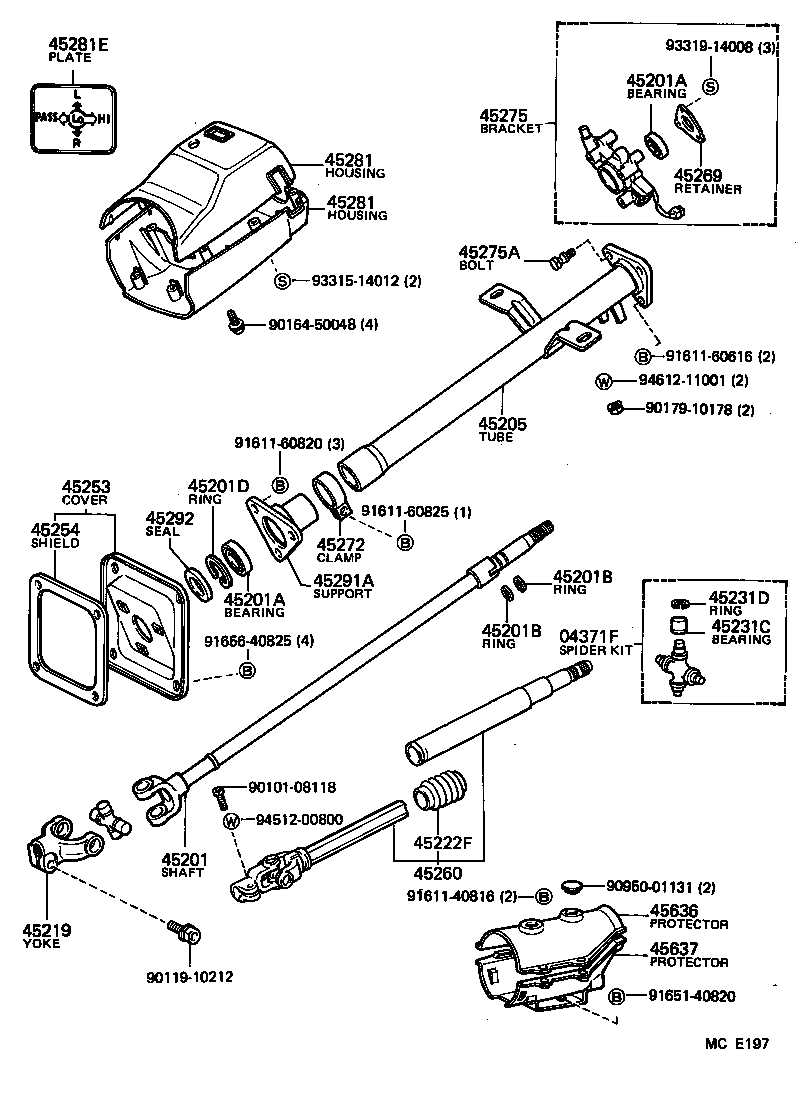

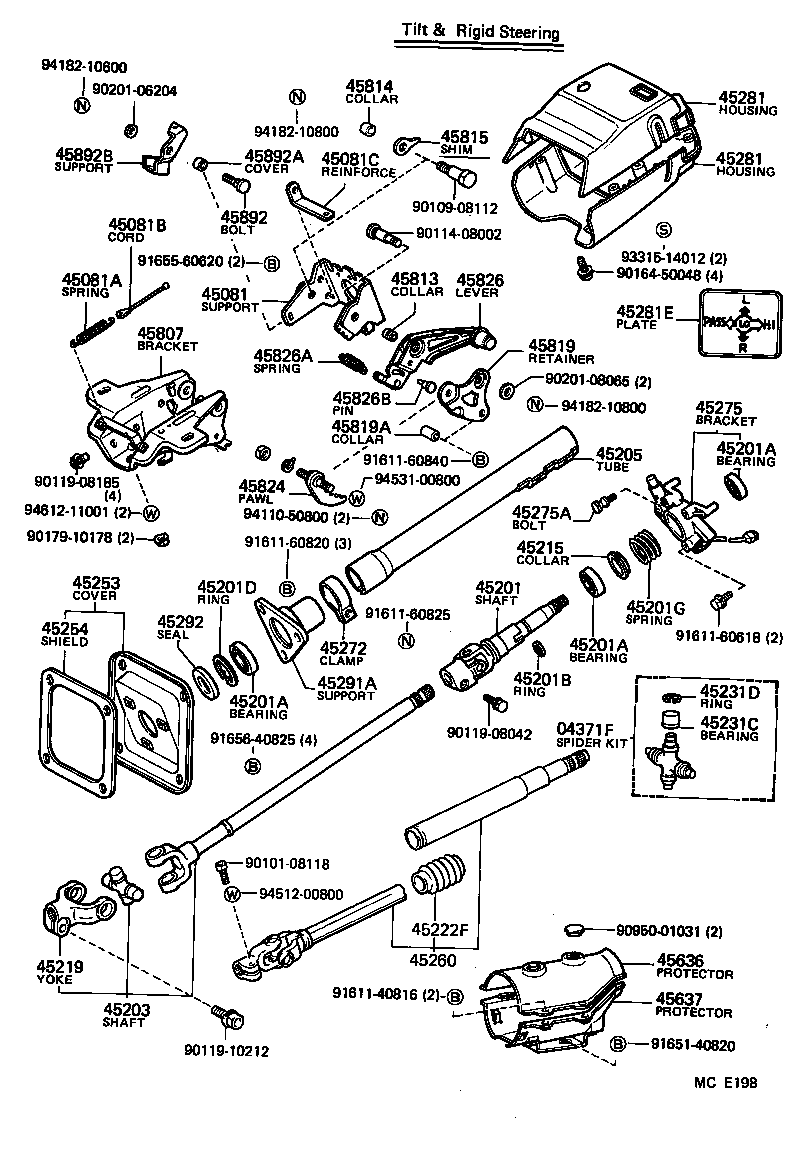

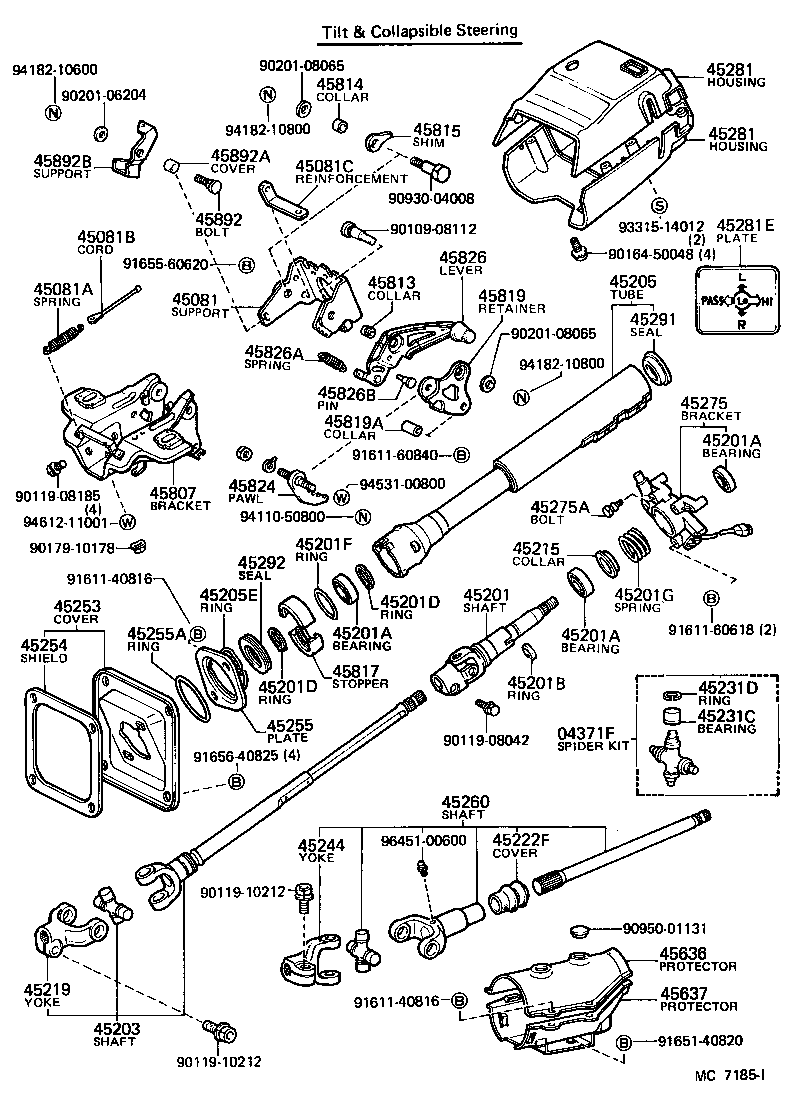

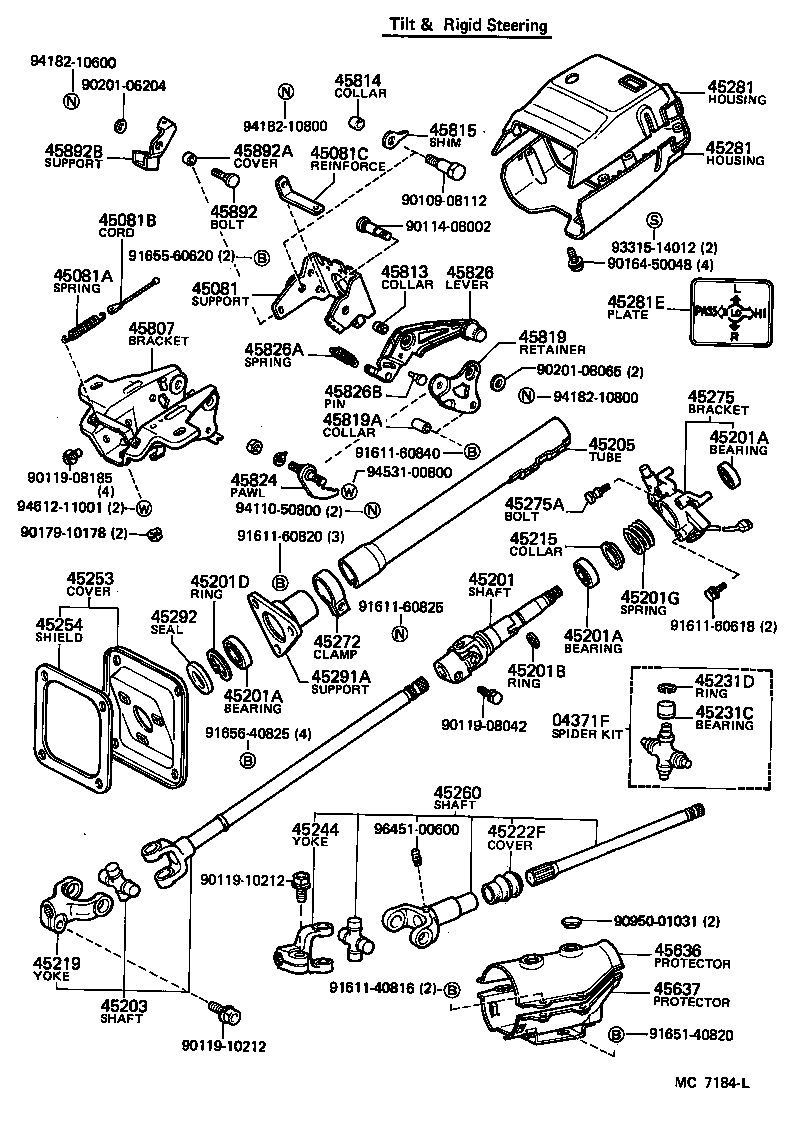

Figure MC7183E MC7183E 1980-08 → 1985-10 Figure MCE197 MCE197 1985-10 → — Figure MC7184L MC7184L 1980-08 → 1985-10 Figure MC7184L MC7184L 1981-03 → 1985-10 Figure MCE198 MCE198 1985-10 → — Figure MC7185I MC7185I 1980-08 → — Figure MC7185I MC7185I 1981-10 → — Figure MC7185I MC7185I 1983-05 → —

Part groups

PNCDescription
04371F Spider Kit, Universal Joint(FOR STEERING MAIN SHAFT)
45081 Support Sub-assy, Tilt Steering
45081A Spring, Tension(FOR TILT STEERING)
45081B Cord(FOR TILT STEERING)
45081C Reinforce, Tilt Steering Support
45201 Shaft Sub-assy, Steering Main
45201A Bearing(FOR STEERING MAIN SHAFT)
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45201D Ring(FOR STEERING MAIN SHAFT)
45201F Ring, O(FOR STEERING MAIN SHAFT)
45201G Spring, Compression(FOR STEERING MAIN SHAFT)
45203 Shaft Sub-assy, Steering Intermediate, NO.2
45205 Tube Sub-assy, Steering Column
45205E Ring, Snap(FOR STEERING COLUMN TUBE)
45215 Collar, Main Shaft Bearing Thrust
45219 Yoke, Steering Sliding
45222F Cover, Dust
45231C Bearing, Universal Joint Spider(FOR STEERING MAIN SHAFT)
45231D Ring, Hole Snap(FOR STEERING MAIN SHAFT)
45244 Yoke, Steering Worm
45253 Cover, Steering Column Hole
45254 Shield, Steering Column Hole
45255 Plate, Steering Column Hole Cover
45255A Grommet OR Ring, O(FOR STEERING COLUMN CLAMP)
45260 Shaft Assy, Steering Intermediate, NO.2
45269 Retainer, Main Shaft Bearing
45272 Clamp, Steering Column, Lower
45275 Bracket, Steering Column, Upper
45275A Bolt, Hexagon(FOR STEERING COLUMN BRACKET)
45281 Housing, Steering Column
45281E Plate, Safety Caution
45291 Seal, Main Shaft Upper Dust
45291A Support, Steering Column Tube
45292 Seal, Main Shaft Lower Dust
45636 Protector, Intermediate Link Joint, Upper
45637 Protector, Inter Link Joint, Lwr NO.1
45807 Bracket Sub-assy, Steering Column Upper Support
45813 Collar, Tilt Steering Support, NO.1
45814 Collar, Tilt Steering Support, NO.2
45815 Shim, Tilt Steering Support
45817 Stopper, Steering Shaft Thrust
45819 Retainer, Tilt Lever
45819A Collar(FOR TILT LEVER RETAINER)
45824 Pawl, Tilt Steering
45826 Lever, Steering Tilt
45826A Spring, Tension(FOR STEERING TILT LEVER)
45826B Pin(FOR STEERING TILT LEVER)
45892 Bolt, Tilt Steering Support Stopper
45892A Cover, Tilt Steering Support Stopper
45892B Support, Tilt Steering Column Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
