Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · General

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

14 part groups · 2 illustrations

Illustrations

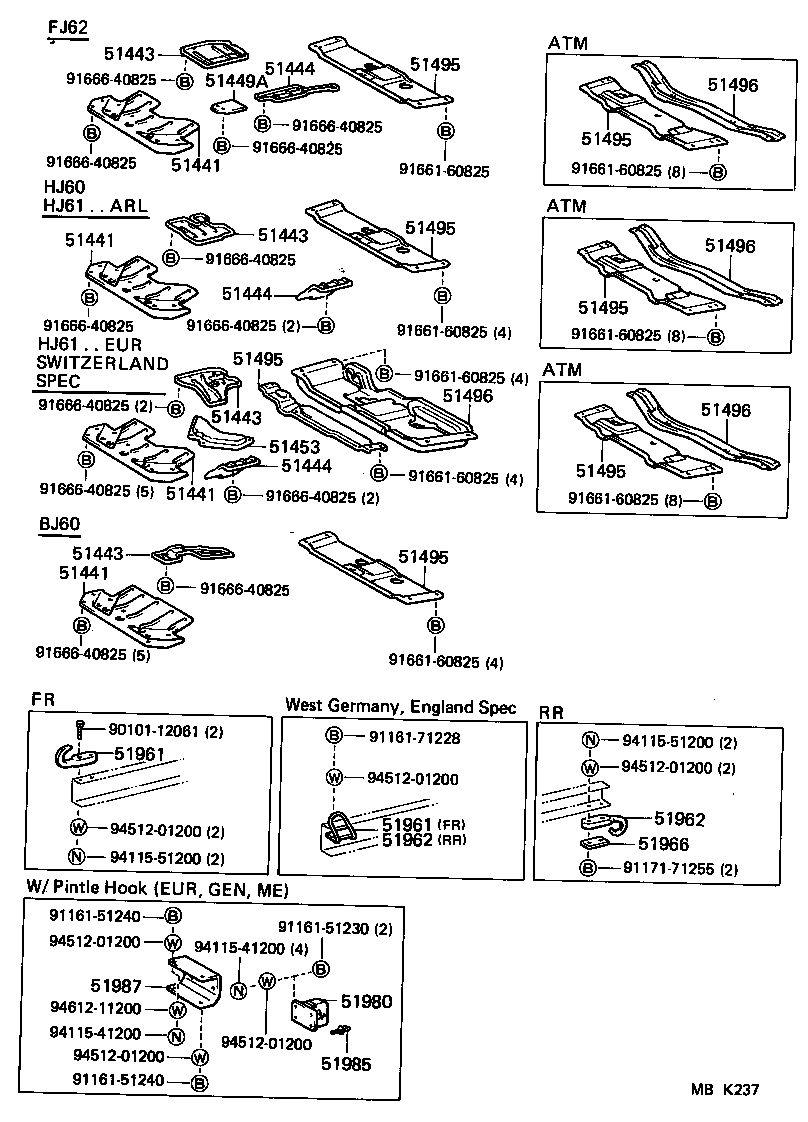

Figure MBB680I MBB680I 1980-08 → 1985-10 Figure MBK237 MBK237 1985-10 → —

Part groups

PNCDescription
51441 Cover, Engine Under, NO.1
51443 Cover, Engine Under, Rear RH
51444 Cover, Engine Under, Rear LH
51449A Cover, Engine Side Under, LH
51453 Silencer, Engine Under Cover, Front
51456A Seal, Engine Under Cover, Rear
51495 Cover, Transmission Under
51496 Cover, Transmission Under, NO.2
51961 Hook, NO.1
51962 Hook, NO.2
51966 Retainer, Rear Hook
51980 Hook Assy, Pintle
51985 Hook, Eyelet Pintle
51987 Bracket, Pintle Hook
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
