Toyota Land Cruiser

2021-04 → present · chassis FJA300,GRJ300,VJA300 · catalogue 791270 · General

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vane Pump & Reservoir (POWER STEERING)

11 part groups · 3 illustrations

Illustrations

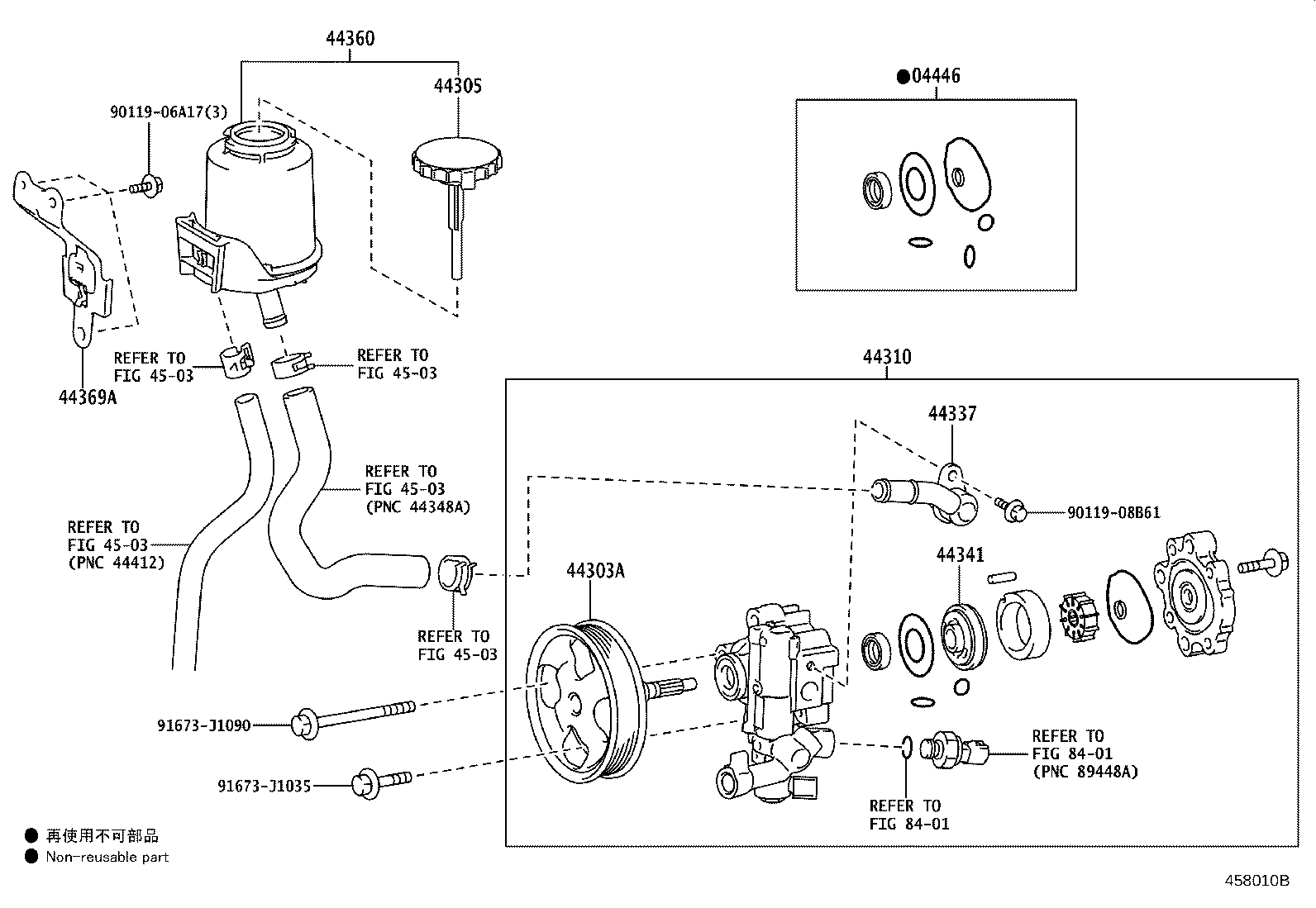

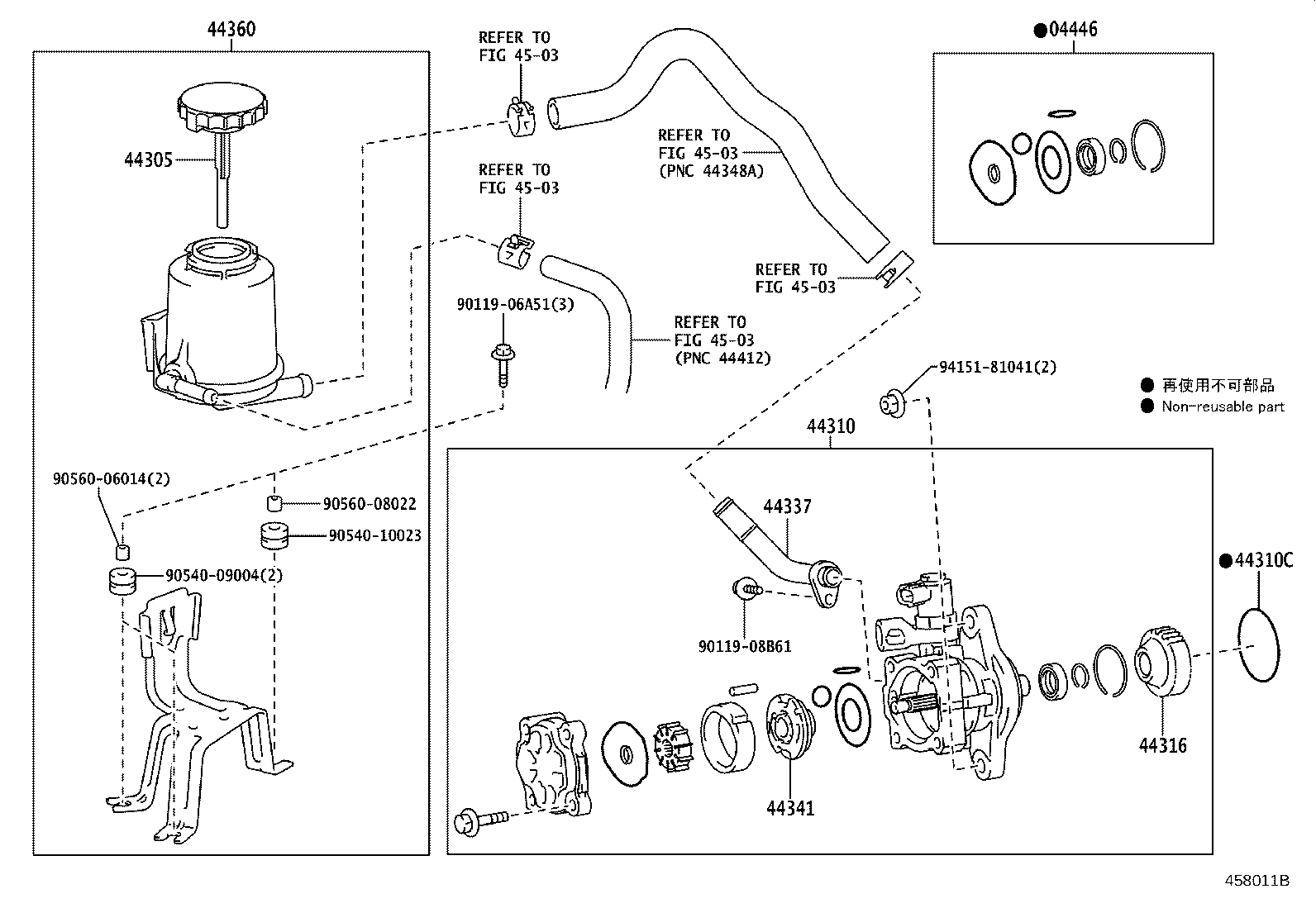

Figure 458009B 458009B 2021-04 → — Figure 458010B 458010B 2021-04 → — Figure 458011B 458011B 2021-07 → —

Part groups

PNCDescription
04446 Gasket Kit, Power Steering Pump
44303A Shaft Sub-assy, W/Pulley
44305 Cap Sub-assy, Vane Pump Oil Reservoir
44308 Union Sub-assy, Pressure Port
44310 Pump Assy, Vane
44310C Ring, O(FOR VANE PUMP)
44316 Gear, Vane Pump
44337 Union, Power Steering Suction Port
44341 Plate, Vane Pump Side, Front
44360 Reservoir Assy, Vane Pump Oil
44369A Bracket, Oil Reservoir, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
