Toyota Land Cruiser

2021-04 → present · chassis FJA300,GRJ300,VJA300 · catalogue 791270 · General

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

14 part groups · 6 illustrations

Illustrations

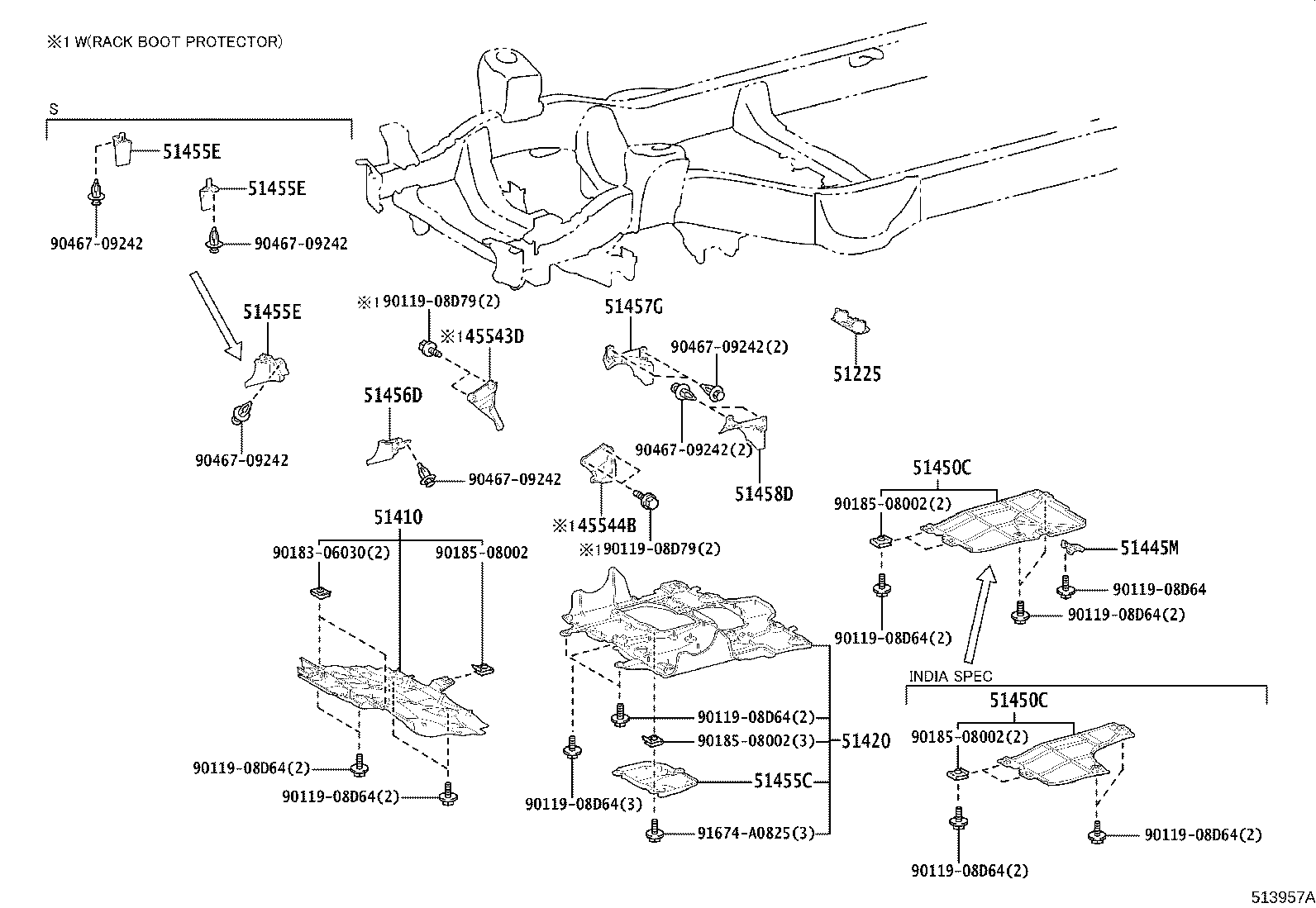

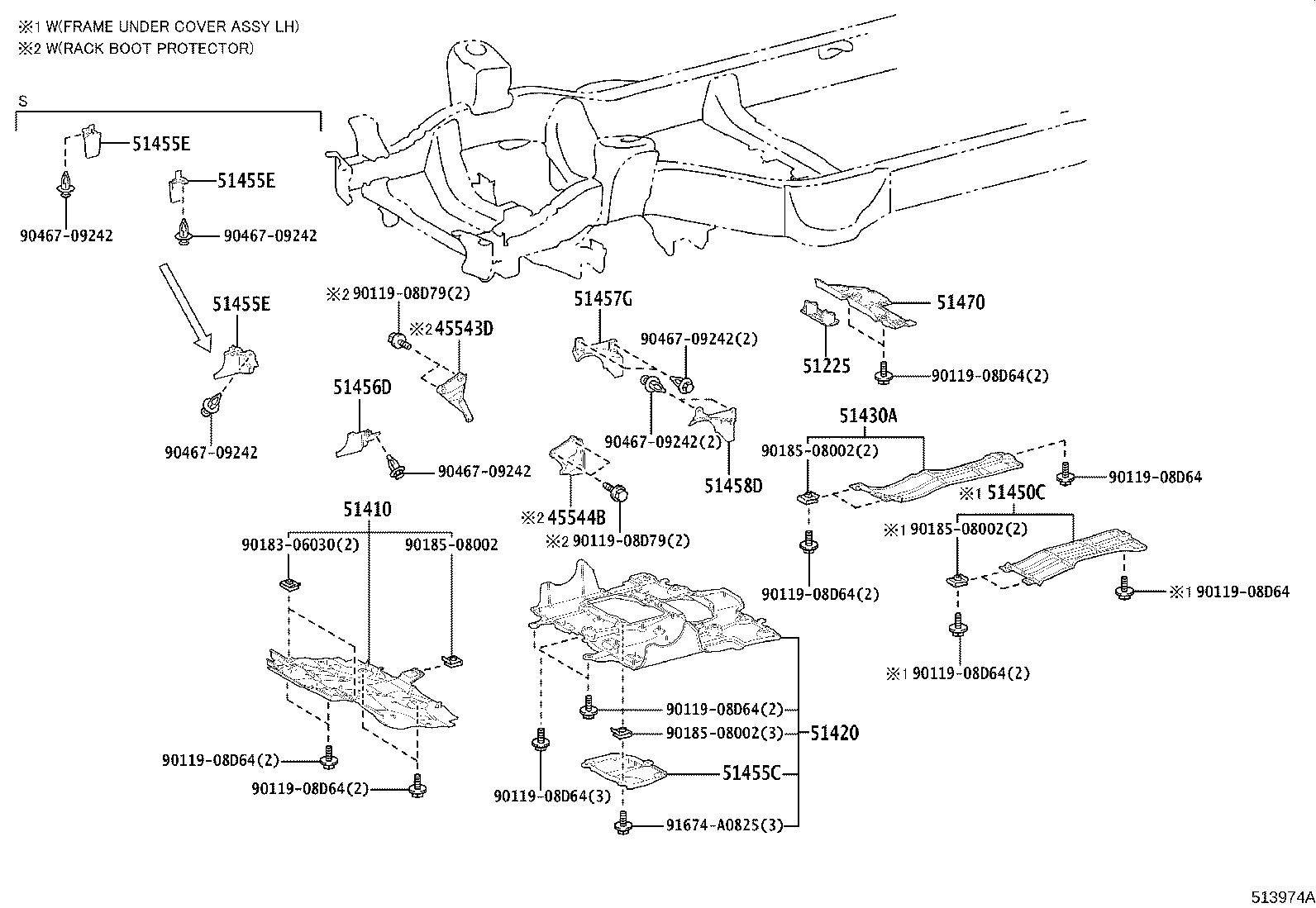

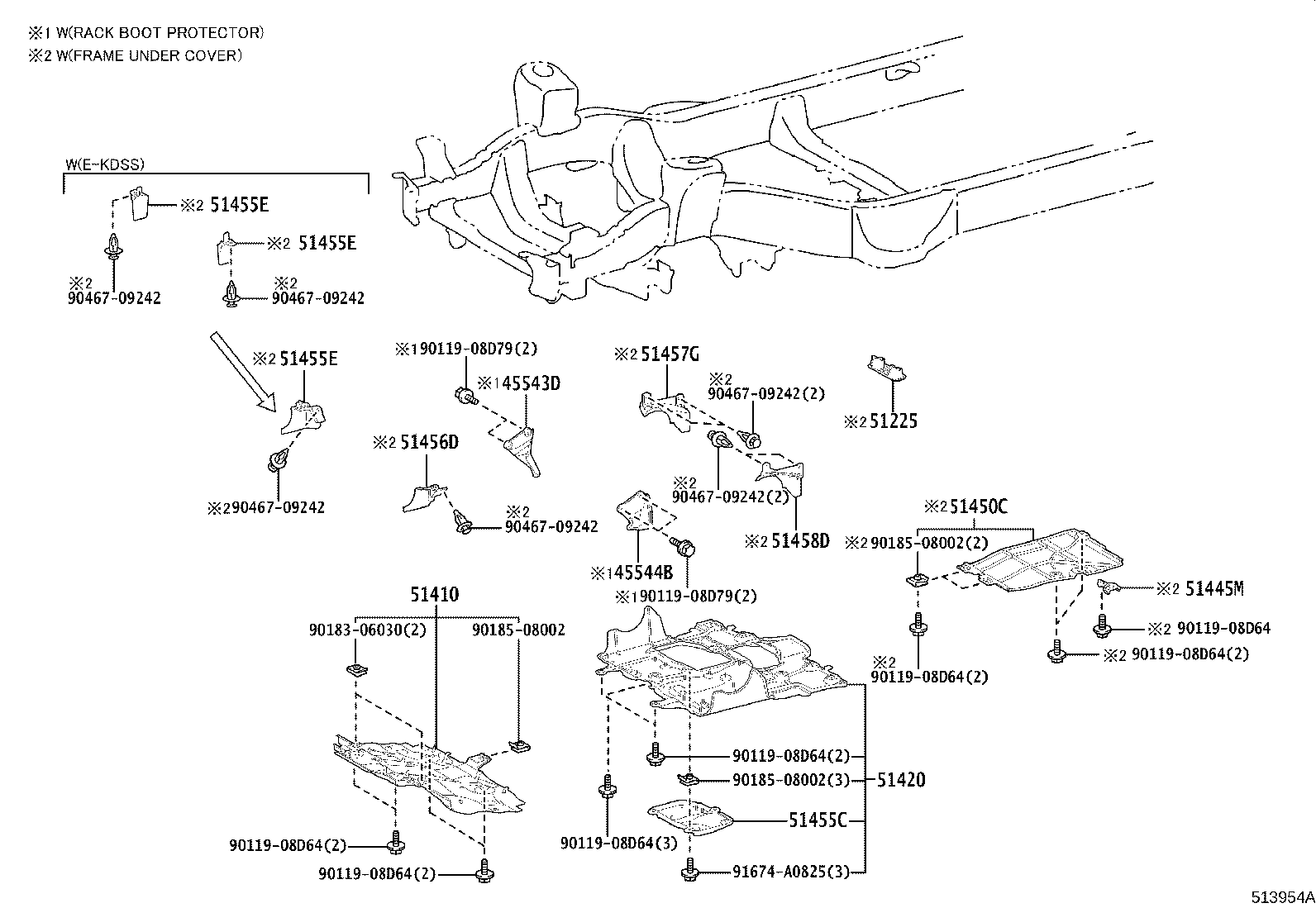

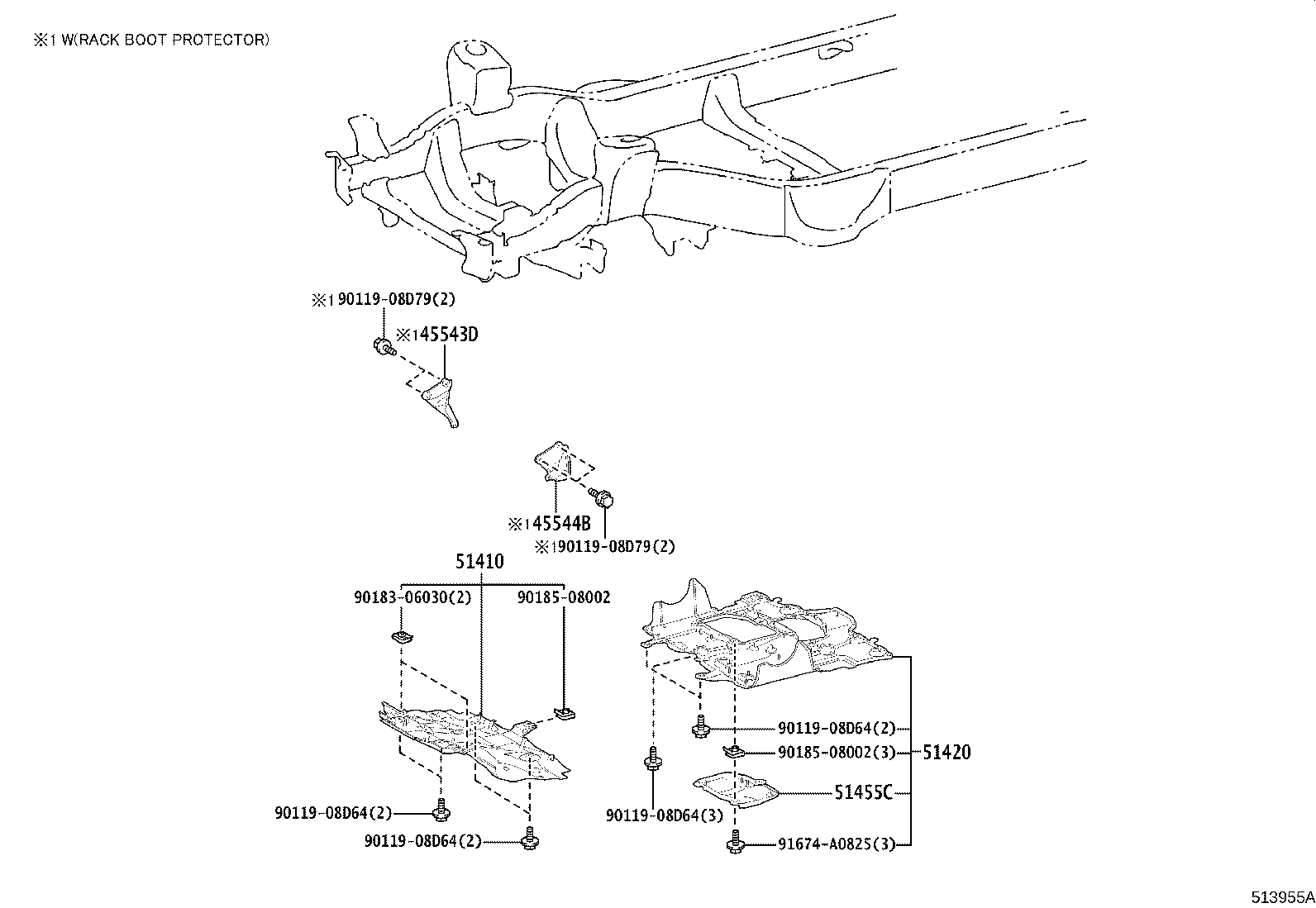

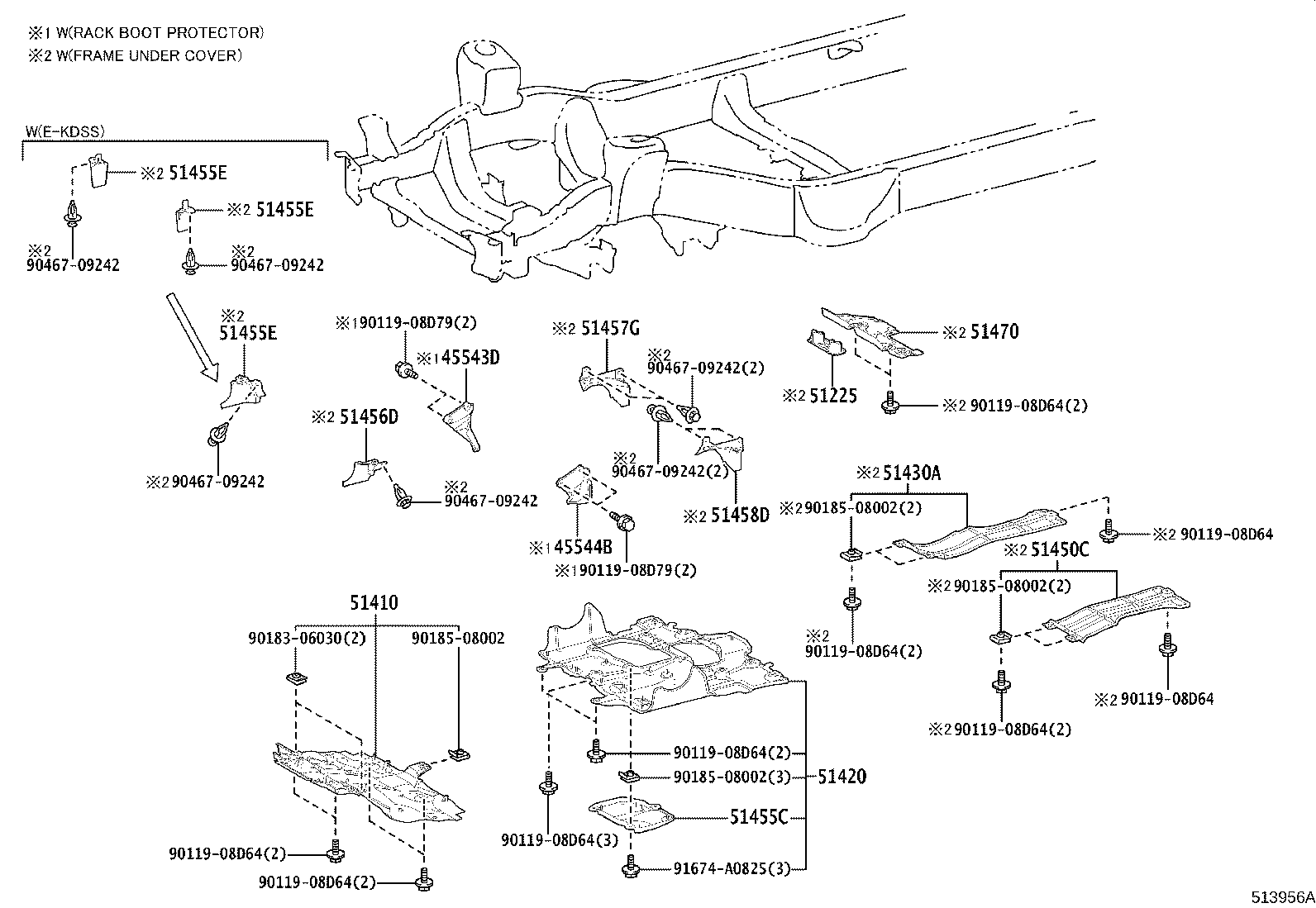

Figure 513953A 513953A 2021-04 → — Figure 513955A 513955A 2021-04 → — Figure 513956A 513956A 2021-04 → — Figure 513974A 513974A 2021-04 → — Figure 513954A 513954A 2021-07 → — Figure 513957A 513957A 2021-07 → —

Part groups

PNCDescription
45543D Protector, Steering Rack Boot, RH
45544B Protector, Steering Rack Boot, LH
51225 Cover, Engine Mounting Hole, NO.3
51410 Cover Assy, Engine Under, NO.1
51420 Cover Assy, Engine Under, NO.2
51430A Cover Assy, Frame Under, RH
51445M Bracket, Engine Rear Cover
51450C Cover Assy, Frame Under, LH
51455C Seal, Engine Under Cover, NO.2
51455E Seal, Frame Under, NO.1 RH
51456D Seal, Frame Under, NO.1 LH
51457G Seal, Frame Under, NO.2 RH
51458D Seal, Frame Under, NO.2 LH
51470 Cover Assy, Transmission Under
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
