Toyota Land Cruiser

2021-04 → present · chassis FJA300,GRJ300,VJA300 · catalogue 791270 · General

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

25 part groups · 4 illustrations

Illustrations

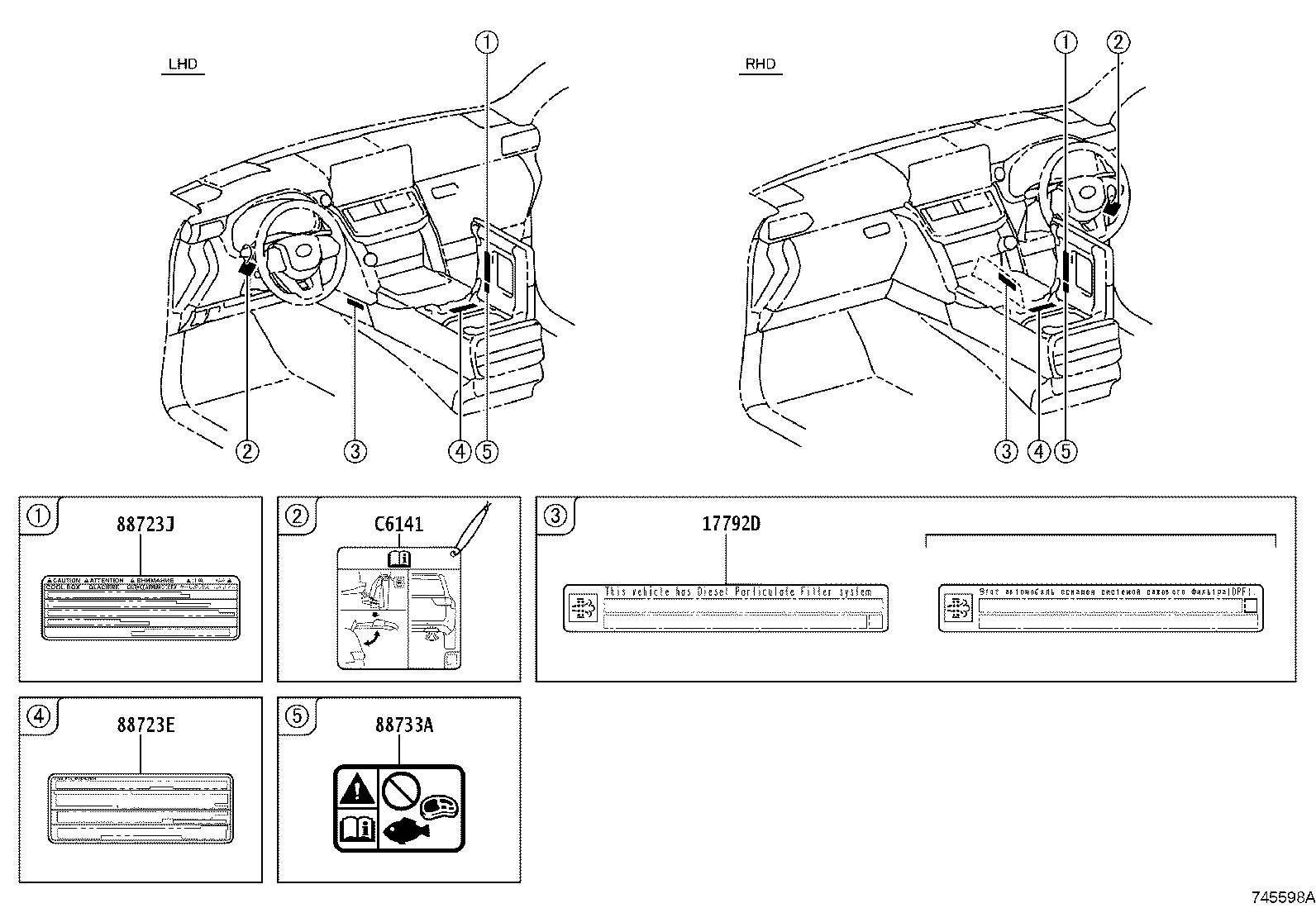

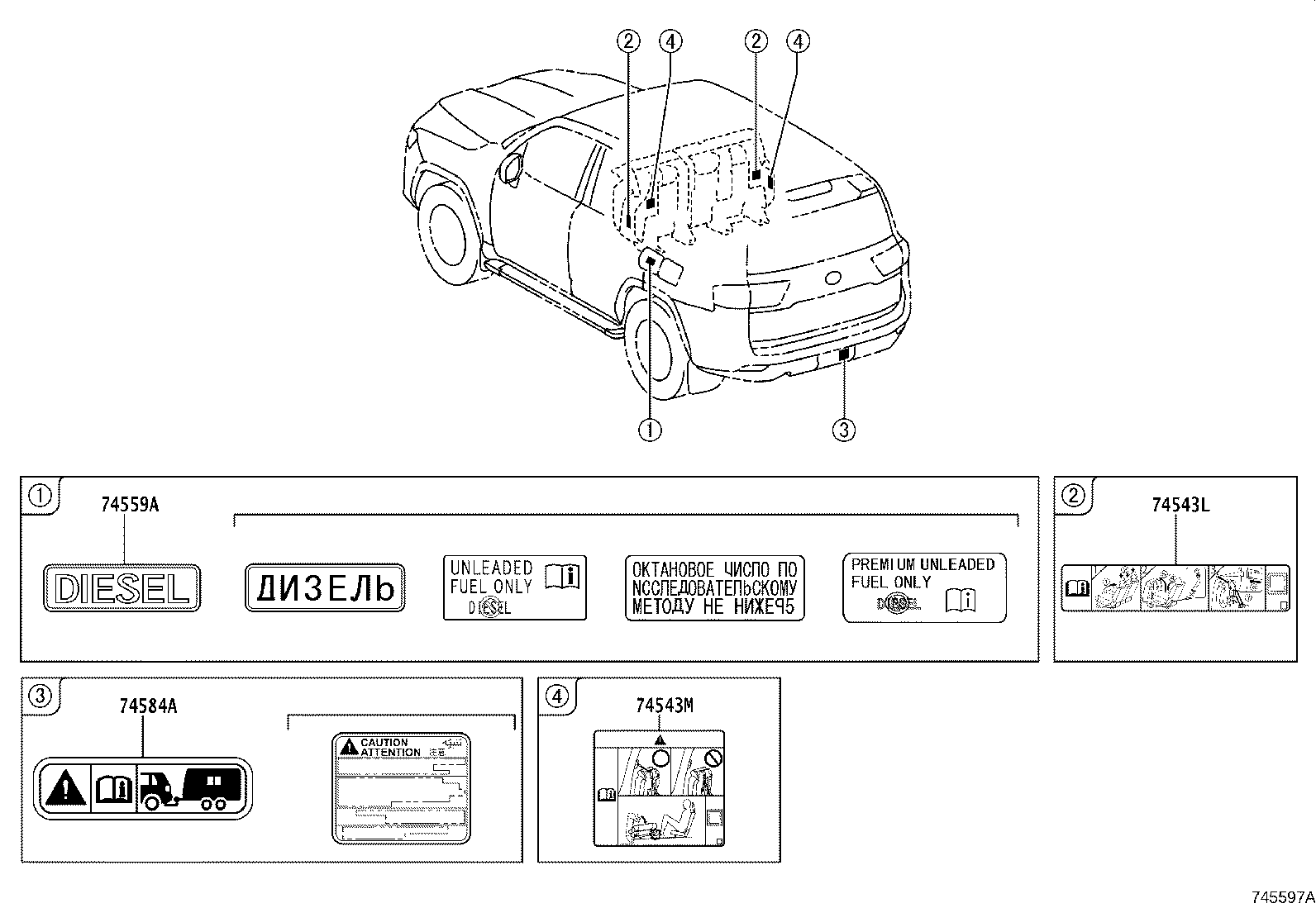

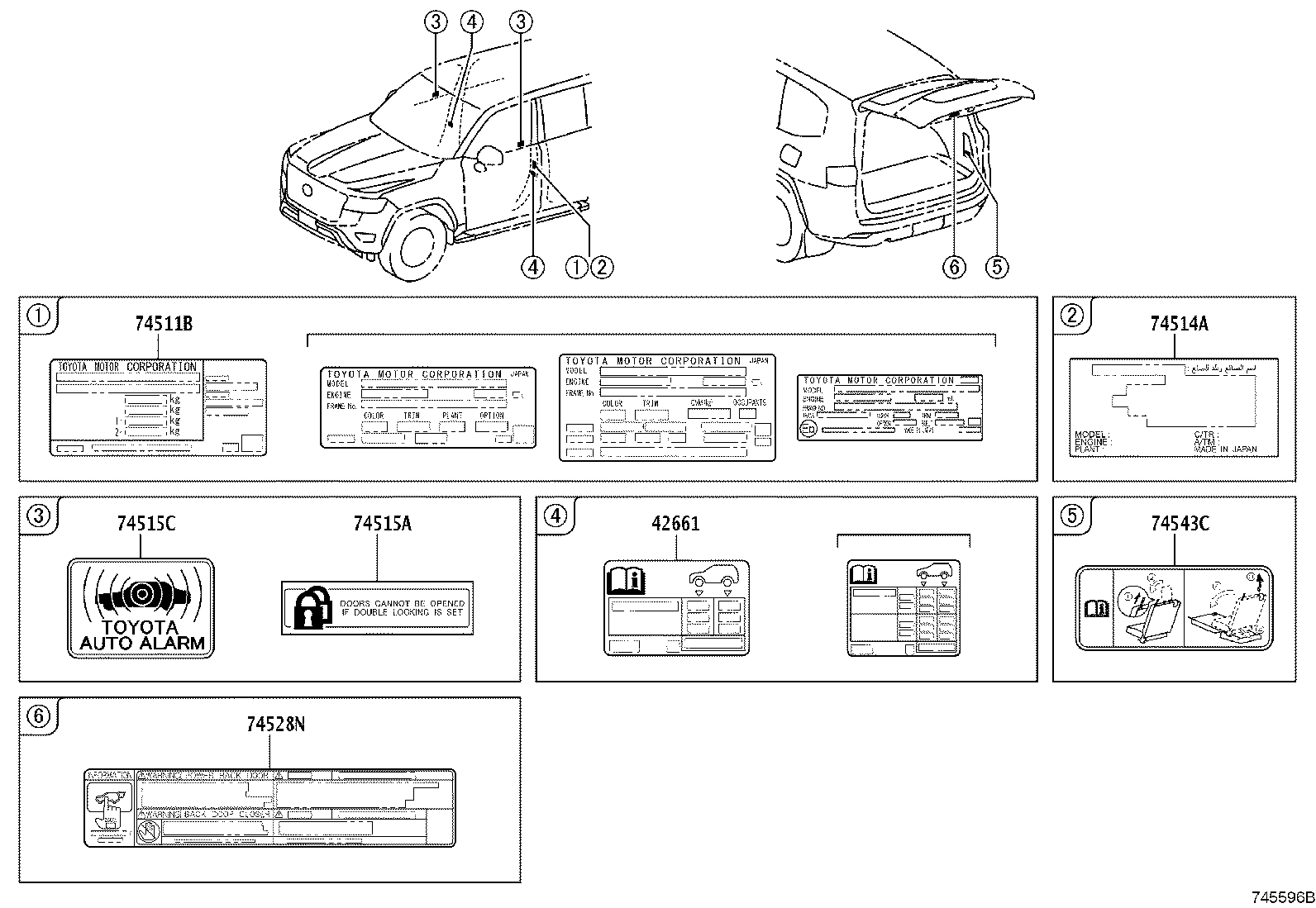

Figure 745595E 745595E 2021-04 → — Figure 745596B 745596B 2021-04 → — Figure 745597A 745597A 2021-04 → — Figure 745598A 745598A 2021-04 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11285F Label, Coolant System Caution
11285J Label, Coolant System Caution, NO.2
11298B Label, Emission Control Information
17792D Label, Emission Control Device Information
28897A Plate, Battery Caution
38191A Plate, Caution, NO.1
42661 Label, Tire Pressure Information
74511B Plate, Name
74514A Label, Certification Regulation Information
74515A Plate, Theft Warning
74515C Label, Theft Warning Information
74527B Label, Engine Cover Caution
74528N Label, Back Door Caution, NO.2
74543C Label, Rear Seat Information
74543L Label, Rear Seat Caution, NO.1
74543M Label, Rear Seat Caution, NO.2
74559A Plate, Fuel Caution
74567A Plate, E.C.E Approved Number
74584A Label, Towing Caution
88723E Label, Cooler Service Caution
88723H Label, Cooler Service Caution
88723J Label, Cooler Service Caution, NO.2
88733A Label, Cooler Service Information
C6141 Label, Back Door OR Luggage Compartment Door Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
