Toyota Land Cruiser

2021-04 → present · chassis FJA300,GRJ300,VJA300 · catalogue 791270 · General

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

13 part groups · 2 illustrations

Illustrations

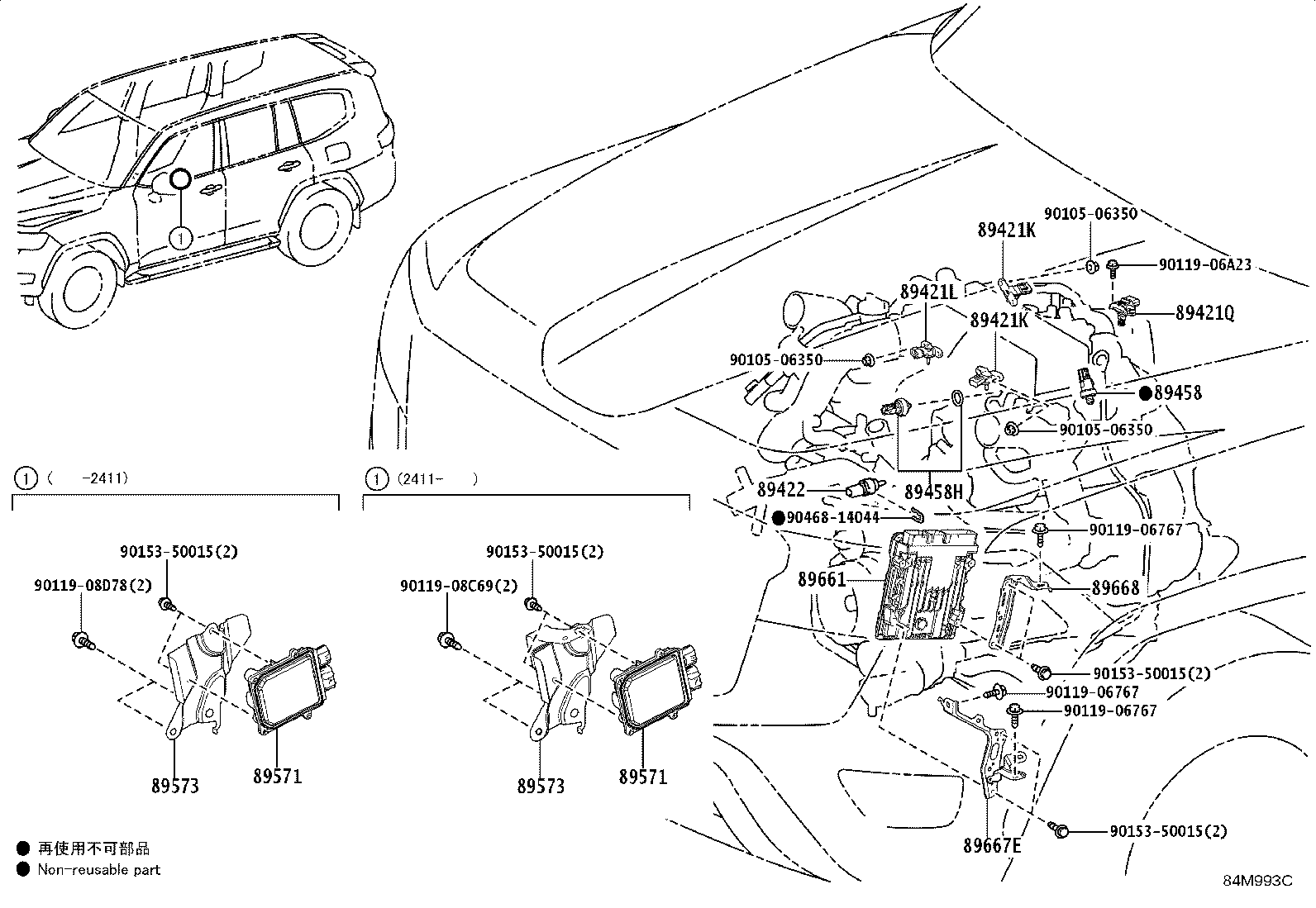

Figure 84M994A 84M994A 2021-04 → — Figure 84M993C 84M993C 2021-04 → —

Part groups

PNCDescription
89421K Sensor, Turbo Pressure, NO.1
89421L Sensor, Turbo Pressure, NO.2
89421Q Sensor, Turbo Pressure, NO.3
89422 Sensor, Water Temperature (FOR E.F.I.)
89458 Sensor, Fuel Pressure
89458H Sensor, Fuel Pressure, NO.2
89571 Computer, Fuel Pump Control
89573 Bracket, Fuel Pump Control Computer
89581A Driver, Air Injection Control
89661 Computer, Engine Control
89667E Bracket, Engine Control Computer, NO.1
89668 Bracket, Engine Control Computer, NO.2
89879A Bracket, Injector Driver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
