Toyota Land Cruiser

1987-08 → 1992-03 · chassis BJ60,HJ6#,FJ62 · catalogue 791330 · General

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

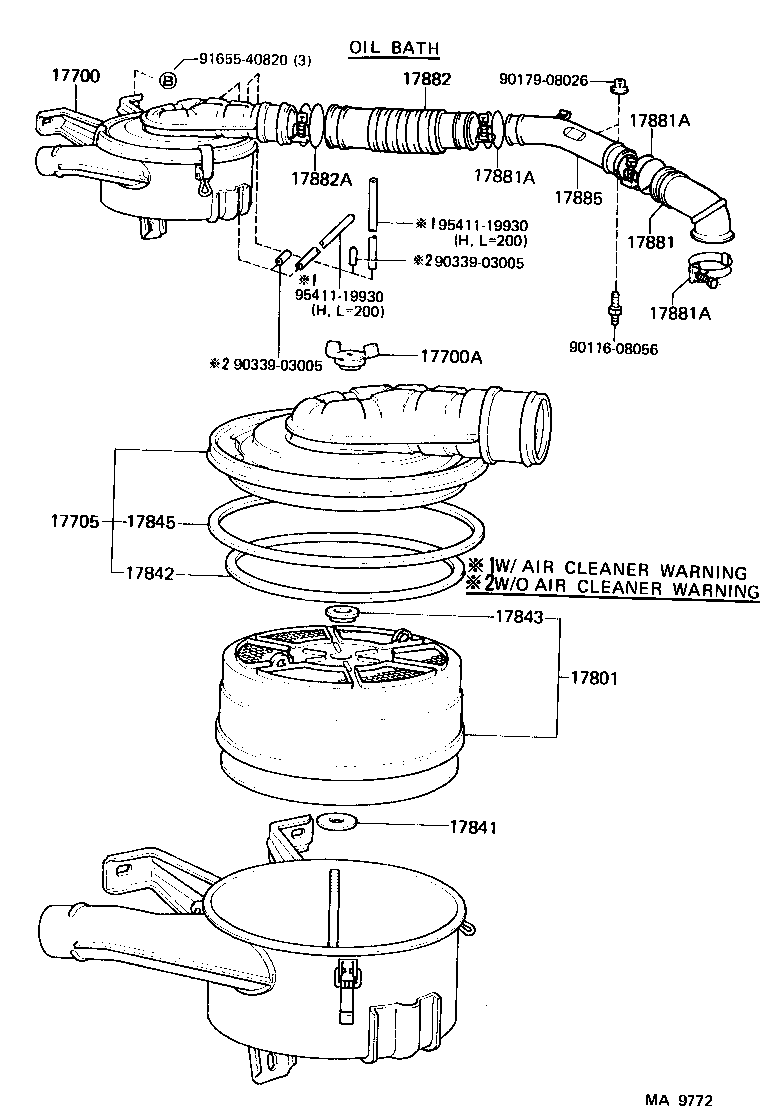

Exploded illustration MA9772 9165540820 — not listed in this catalogue 17700 — CLEANER ASSY, AIR (18 parts) 17882 — HOSE, AIR CLEANER, NO.2 (5 parts) 9017908026 — not listed in this catalogue 17881A — CLAMP(FOR AIR CLEANER HOSE, NO.1) (7 parts) 17881A — CLAMP(FOR AIR CLEANER HOSE, NO.1) (7 parts) 17882A — CLAMP(FOR AIR CLEANER HOSE, NO.2) (5 parts) 17885 — PIPE, AIR CLEANER (3 parts) 9541119930 — not listed in this catalogue 17881 — HOSE, AIR CLEANER, NO.1 (6 parts) 9033903005 — not listed in this catalogue 9541119930 — not listed in this catalogue 17881A — CLAMP(FOR AIR CLEANER HOSE, NO.1) (7 parts) 9011608056 — not listed in this catalogue 17700A — NUT, WING(FOR AIR CLEANER) (8 parts) 9033903005 — not listed in this catalogue 17845 — GASKET, AIR CLEANER CAP (7 parts) 17705 — CAP SUB-ASSY, AIR CLEANER (12 parts) 17842 — GASKET, FILTER ELEMENT, NO.2 (2 parts) 17843 — GASKET, FILTER ELEMENT, NO.3 (2 parts) 17801 — ELEMENT SUB-ASSY, AIR CLEANER FILTER (8 parts) 17841 — GASKET, FILTER ELEMENT (13 parts)
MA9772 · 15 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
96 parts on this figure
Part number Description Fitment Price
17700 — Cleaner Assy, Air
17700-61151 Cleaner Assy, Air
1987-08 → 1992-03 ended
3F FJ62 MTM GEN —
17700-61211 note Cleaner Assy, Air
1987-08 → 1992-03 ended
3F FJ62 GEN —
17700-68151 note Cleaner Assy, Air
1987-08 → 1988-08 ended
3B BJ60 GEN —
17700-68151 note Cleaner Assy, Air
1987-08 → 1988-08 ended
3F FJ62 MTM GEN —
17700-68151 note Cleaner Assy, Air
1988-08 → 1992-03 ended
3F FJ62 MTM GEN —
17700-68151 Cleaner Assy, Air
1987-08 → 1992-03 ended
3F FJ62 4FC;3F FJ62 +2 —
17700-68151 Cleaner Assy, Air
1987-08 → 1992-03 ended
3B BJ60 ME —
17700-68151 note Cleaner Assy, Air
1988-08 → 1990-01 ended
3B BJ60 —
17700-68160 note Cleaner Assy, Air
1987-08 → 1992-03 ended
3F FJ62 4FC GEN —
17700-68160 note Cleaner Assy, Air
1987-08 → 1992-03 ended
3F FJ62 MTM GEN —
17700-68160 note Cleaner Assy, Air
1987-08 → 1992-03 ended
3B BJ60 GEN —
17700-68160 note Cleaner Assy, Air
1987-08 → 1992-03 ended
2H HJ60 GEN —
17700-68240 Cleaner Assy, Air
1987-08 → 1990-01 ended
2H HJ60 GEN —
17700-68240 Cleaner Assy, Air
1987-08 → 1990-01 ended
3B BJ60 GEN —
17700-68250 note Cleaner Assy, Air
1988-08 → 1990-01 ended
2H HJ60 GEN —
17700-68250 Cleaner Assy, Air
1987-08 → 1990-01 ended
2H HJ60 ARL,ME —
17700-68250 note Cleaner Assy, Air
1987-08 → 1988-08 ended
2H HJ60 GEN —
17700-68260 Cleaner Assy, Air
1987-08 → 1990-01 ended
12HT HJ61 —
17700A — Nut, Wing(FOR AIR CLEANER)
90175-06003 Nut, Wing(FOR AIR CLEANER)
1987-08 → 1992-03 ended
3F FJ62 MTM GEN —
90175-08008 note Nut, Wing(FOR AIR CLEANER)
1988-08 → 1992-03 ended
3F FJ62 MTM GEN —
90175-08008 Nut, Wing(FOR AIR CLEANER)
1988-08 → 1992-03 ended
3F FJ62 4FC;3F FJ62 +2 —
90175-08008 Nut, Wing(FOR AIR CLEANER)
1988-08 → 1992-03 ended
12HT,2H HJ6# —
90175-08008 Nut, Wing(FOR AIR CLEANER)
1987-08 → 1988-08 ended
3F FJ62 4FC;3F FJ62 +2 —
90175-08008 Nut, Wing(FOR AIR CLEANER)
1987-08 → 1988-08 ended
12HT,2H HJ6# —
90175-08008 Nut, Wing(FOR AIR CLEANER)
1987-08 → 1988-08 ended
3B BJ60 —
90175-08008 note Nut, Wing(FOR AIR CLEANER)
1987-08 → 1988-08 ended
3F FJ62 MTM GEN —
17705 — Cap Sub-assy, Air Cleaner
17705-61080 Cap Sub-assy, Air Cleaner
1987-08 → 1992-03 ended
3F FJ62 MTM GEN —
17705-61120 note Cap Sub-assy, Air Cleaner
1987-08 → 1992-03 ended
3F FJ62 GEN —
17705-68100 note Cap Sub-assy, Air Cleaner
1987-08 → 1988-08 ended
3F FJ62 MTM GEN —
17705-68100 note Cap Sub-assy, Air Cleaner
1988-08 → 1992-03 ended
3F FJ62 MTM GEN —
17705-68100 Cap Sub-assy, Air Cleaner
1987-08 → 1992-03 ended
3B BJ60 —
17705-68100 Cap Sub-assy, Air Cleaner
1987-08 → 1992-03 ended
2H HJ60 —
17705-68100 Cap Sub-assy, Air Cleaner
1987-08 → 1992-03 ended
3F FJ62 4FC;3F FJ62 +2 —
17705-68110 note Cap Sub-assy, Air Cleaner
1987-08 → 1992-03 ended
2H HJ60 GEN —
17705-68110 note Cap Sub-assy, Air Cleaner
1987-08 → 1992-03 ended
3F FJ62 4FC GEN —
17705-68110 note Cap Sub-assy, Air Cleaner
1987-08 → 1992-03 ended
3B BJ60 GEN —
17705-68110 note Cap Sub-assy, Air Cleaner
1987-08 → 1992-03 ended
3F FJ62 MTM GEN —
17705-68120 Cap Sub-assy, Air Cleaner
1987-08 → 1990-01 ended
12HT HJ61 —
17801 — Element Sub-assy, Air Cleaner Filter
17801-61030 note Element Sub-assy, Air Cleaner Filter
1987-08 → 1990-01 ended
3F FJ62 LHD 4F +5 —
17801-61030 Element Sub-assy, Air Cleaner Filter
1987-08 → 1992-03 ended
3B BJ60 —
17801-61030 Element Sub-assy, Air Cleaner Filter
1987-08 → 1992-03 ended
3F FJ62 —
17801-61030 Element Sub-assy, Air Cleaner Filter
1987-08 → 1992-03 ended
12HT,2H HJ6# —
17801-68010 note Element Sub-assy, Air Cleaner Filter
1987-08 → 1992-03 ended
3F FJ62 MTM GEN —
17801-68010 note Element Sub-assy, Air Cleaner Filter
1987-08 → 1992-03 ended
3B BJ60 GEN —
17801-68010 note Element Sub-assy, Air Cleaner Filter
1987-08 → 1992-03 ended
3F FJ62 4FC GEN —
17801-68010 note Element Sub-assy, Air Cleaner Filter
1987-08 → 1992-03 ended
2H HJ60 GEN —
17841 — Gasket, Filter Element
17841-68010 Gasket, Filter Element
1988-08 → 1992-03 ended
12HT,2H HJ6# —
17841-68010 Gasket, Filter Element
1988-08 → 1992-03 ended
3F FJ62 —
17841-68010 Gasket, Filter Element
1987-08 → 1988-08 ended
12HT,2H HJ6# —
17841-68010 note Gasket, Filter Element
1988-08 → 1990-01 ended
3B BJ60 —
17841-68010 note Gasket, Filter Element
1987-08 → 1990-01 ended
3F FJ62 LHD 4F +5 —
17841-68010 Gasket, Filter Element
1987-08 → 1988-08 ended
3F FJ62 —
17841-68010 Gasket, Filter Element
1987-08 → 1988-08 ended
3B BJ60 —
17841-68040 note Gasket, Filter Element
1987-08 → 1992-03 ended
3F FJ62 MTM GEN —
17841-68040 note Gasket, Filter Element
1987-08 → 1992-03 ended
3B BJ60 GEN —
17841-68040 note Gasket, Filter Element
1987-08 → 1992-03 ended
3F FJ62 4FC GEN —
17841-68040 note Gasket, Filter Element
1987-08 → 1992-03 ended
2H HJ60 GEN —
17841-68050 note Gasket, Filter Element
1987-08 → 1990-01 ended
2H HJ60 GEN —
17841-68060 note Gasket, Filter Element
1987-08 → 1990-01 ended
2H HJ60 GEN —
17842 — Gasket, Filter Element, NO.2
17841-68050 Gasket, Filter Element, NO.2
1987-08 → 1992-03 ended
3F FJ62 GEN —
17841-68050 Gasket, Filter Element, NO.2
1987-08 → 1992-03 ended
3B BJ60 GEN —
17843 — Gasket, Filter Element, NO.3
17841-68060 Gasket, Filter Element, NO.3
1987-08 → 1992-03 ended
3F FJ62 GEN —
17841-68060 Gasket, Filter Element, NO.3
1987-08 → 1992-03 ended
3B BJ60 GEN —
17845 — Gasket, Air Cleaner Cap
17841-68010 Gasket, Air Cleaner Cap
1988-08 → 1990-01 ended
3B BJ60 —
17845-61011 Gasket, Air Cleaner Cap
1987-08 → 1988-08 ended
3B BJ60 —
17845-61011 Gasket, Air Cleaner Cap
1988-08 → 1992-03 ended
12HT,2H HJ6# —
17845-61011 Gasket, Air Cleaner Cap
1988-08 → 1992-03 ended
3F FJ62 —
17845-61011 note Gasket, Air Cleaner Cap
1988-08 → 1990-01 ended
3B BJ60 —
17845-61011 Gasket, Air Cleaner Cap
1987-08 → 1988-08 ended
12HT,2H HJ6# —
17845-61011 Gasket, Air Cleaner Cap
1987-08 → 1988-08 ended
3F FJ62 —
17881 — Hose, Air Cleaner, NO.1
17881-58090 Hose, Air Cleaner, NO.1
1987-08 → 1990-01 ended
3B BJ60 —
17881-61061 note Hose, Air Cleaner, NO.1
1987-08 → 1988-09 ended
3F FJ62 LHD 4F +5 —
17881-61061 note Hose, Air Cleaner, NO.1
1988-09 → 1990-01 ended
3F FJ62 LHD 4F +5 —
17881-61061 Hose, Air Cleaner, NO.1
1987-08 → 1992-03 ended
3F (GX,VX) FJ62 RHD +10 —
17881-68010 Hose, Air Cleaner, NO.1
1987-08 → 1990-01 ended
2H HJ60 —
17881-68060 Hose, Air Cleaner, NO.1
1987-08 → 1990-01 ended
12HT HJ61 —
17881A — Clamp(FOR AIR CLEANER HOSE, NO.1)
96111-10710 Clamp(FOR AIR CLEANER HOSE, NO.1)
1987-08 → 1990-01 ended
3B BJ60 —
96111-10780 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1987-08 → 1990-01 ended
2H HJ60 —
96111-10800 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1988-09 → 1990-01 ended
3F FJ62 LHD 4F +5 —
96111-10800 Clamp(FOR AIR CLEANER HOSE, NO.1)
1987-08 → 1992-03 ended
3F (GX,VX) FJ62 RHD +10 —
96111-10800 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1987-08 → 1988-09 ended
3F FJ62 LHD 4F +5 —
96111-10830 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1987-08 → 1990-01 ended
12HT,2H HJ6# —
96111-10900 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1987-08 → 1990-01 ended
12HT HJ61 —
17882 — Hose, Air Cleaner, NO.2
17342-68010 Hose, Air Cleaner, NO.2
1987-08 → 1990-01 ended
12HT HJ61 —
17882-58070 Hose, Air Cleaner, NO.2
1987-08 → 1990-01 ended
3B BJ60 —
17882-61031 note Hose, Air Cleaner, NO.2
1988-09 → 1990-01 ended
3F FJ62 LHD 4F +5 —
17882-61031 Hose, Air Cleaner, NO.2
1987-08 → 1992-03 ended
3F (GX,VX) FJ62 RHD +10 —
17882-61031 note Hose, Air Cleaner, NO.2
1987-08 → 1988-09 ended
3F FJ62 LHD 4F +5 —
17882A — Clamp(FOR AIR CLEANER HOSE, NO.2)
90460-80001 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1987-12 → 1990-05 ended
12HT HJ61 —
90460-90001 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1987-12 → 1990-05 ended
12HT HJ61 —
96111-10800 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1987-08 → 1987-12 ended
12HT HJ61 —
96111-10830 Clamp(FOR AIR CLEANER HOSE, NO.2)
1987-08 → 1990-01 ended
3B BJ60 —
96111-10900 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1987-08 → 1987-12 ended
12HT HJ61 —
17885 — Pipe, Air Cleaner
17875-68010 Pipe, Air Cleaner
1987-08 → 1990-01 ended
12HT HJ61 —
17885-58070 Pipe, Air Cleaner
1987-08 → 1988-08 ended
3B BJ60 —
17885-58160 Pipe, Air Cleaner
1988-08 → 1990-01 ended
3B BJ60 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
