Toyota Land Cruiser
1987-08 → 1992-03 · chassis BJ60,HJ6#,FJ62 · catalogue 791330 · General
Discontinued model
Data version 1993-06

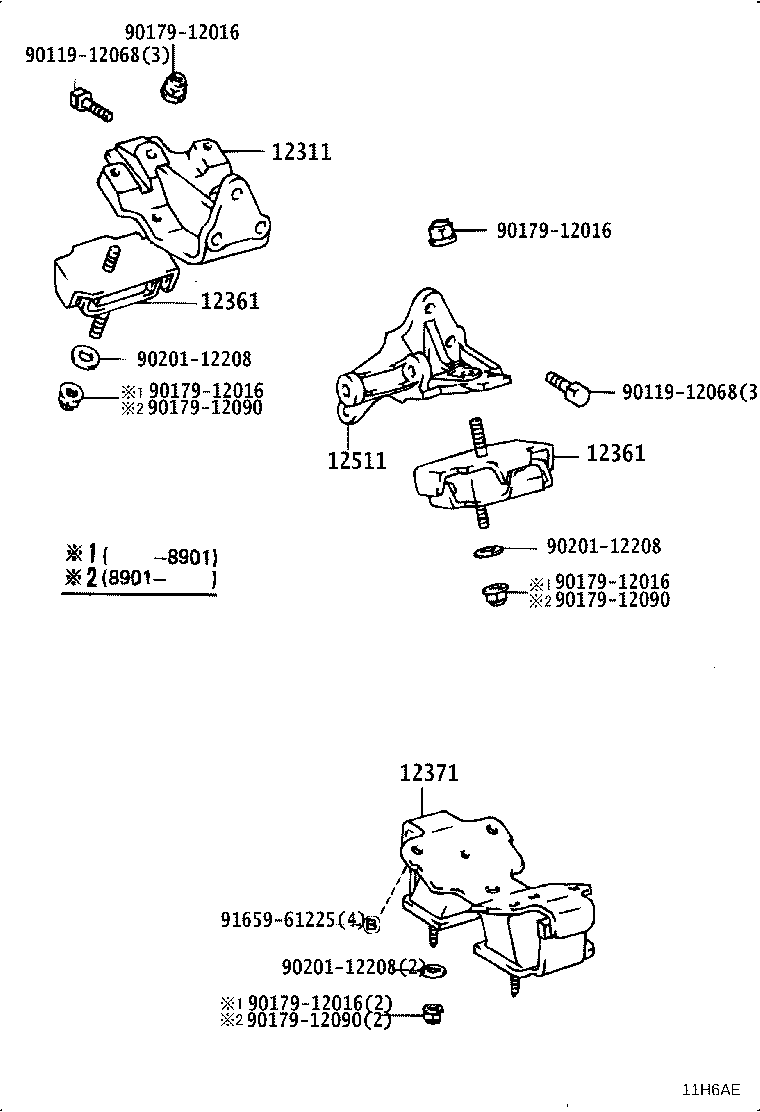

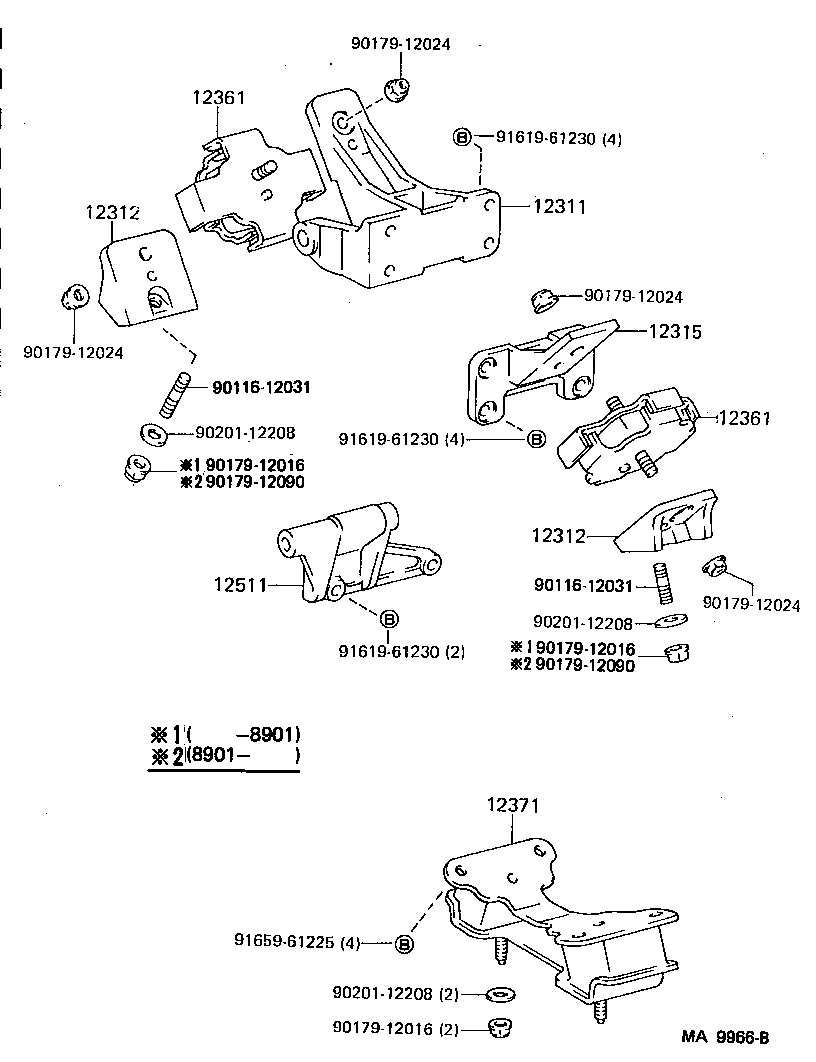

Mounting
6 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 12311 | Bracket, Engine Mounting, Front NO.1 RH |
| 12312 | Bracket, Engine Mounting, Front NO.2 |
| 12315 | Bracket, Engine Mounting, Front NO.1 LH |
| 12361 | Insulator, Engine Mounting, Front |
| 12371 | Insulator, Engine Mounting, Rear NO.1 |
| 12511 | Bracket, Alternator, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
