Toyota Land Cruiser

1987-08 → 1992-03 · chassis BJ60,HJ6#,FJ62 · catalogue 791330 · General

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

9 part groups · 9 illustrations

Illustrations

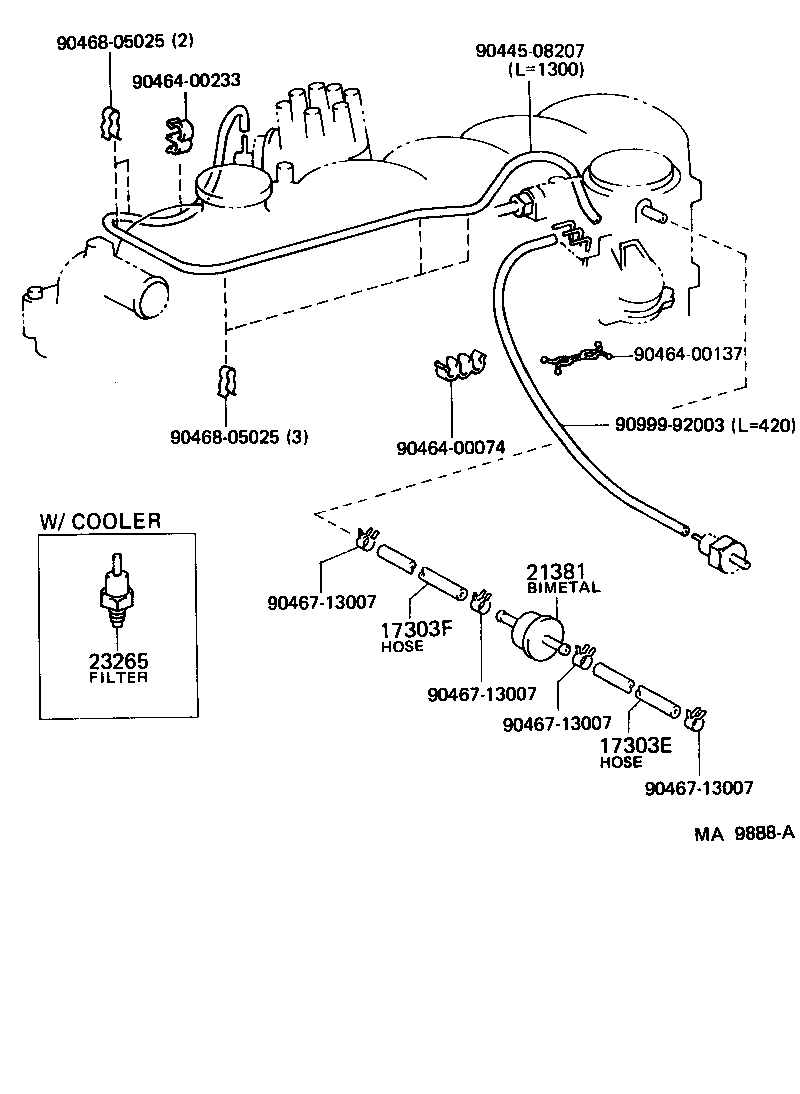

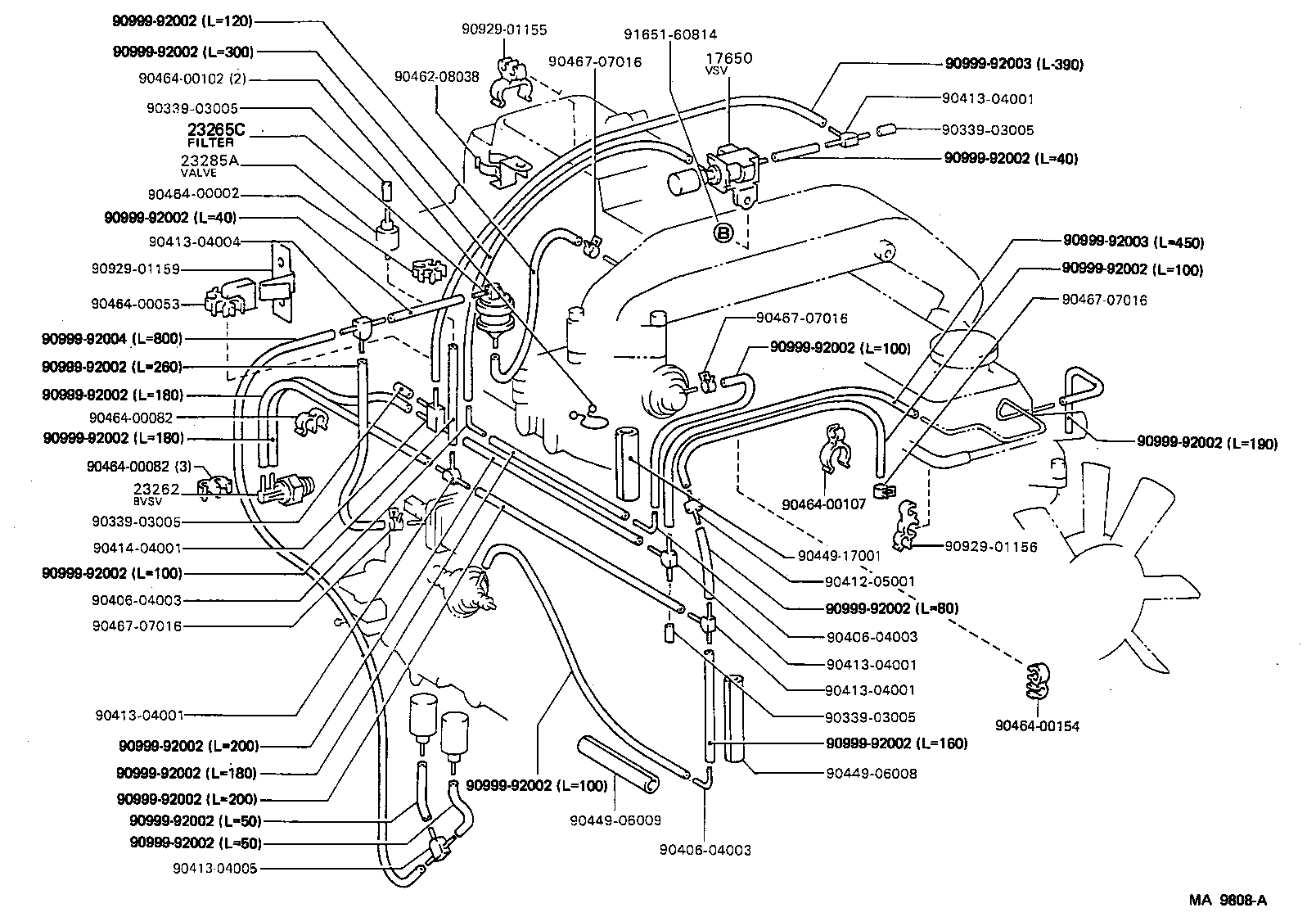

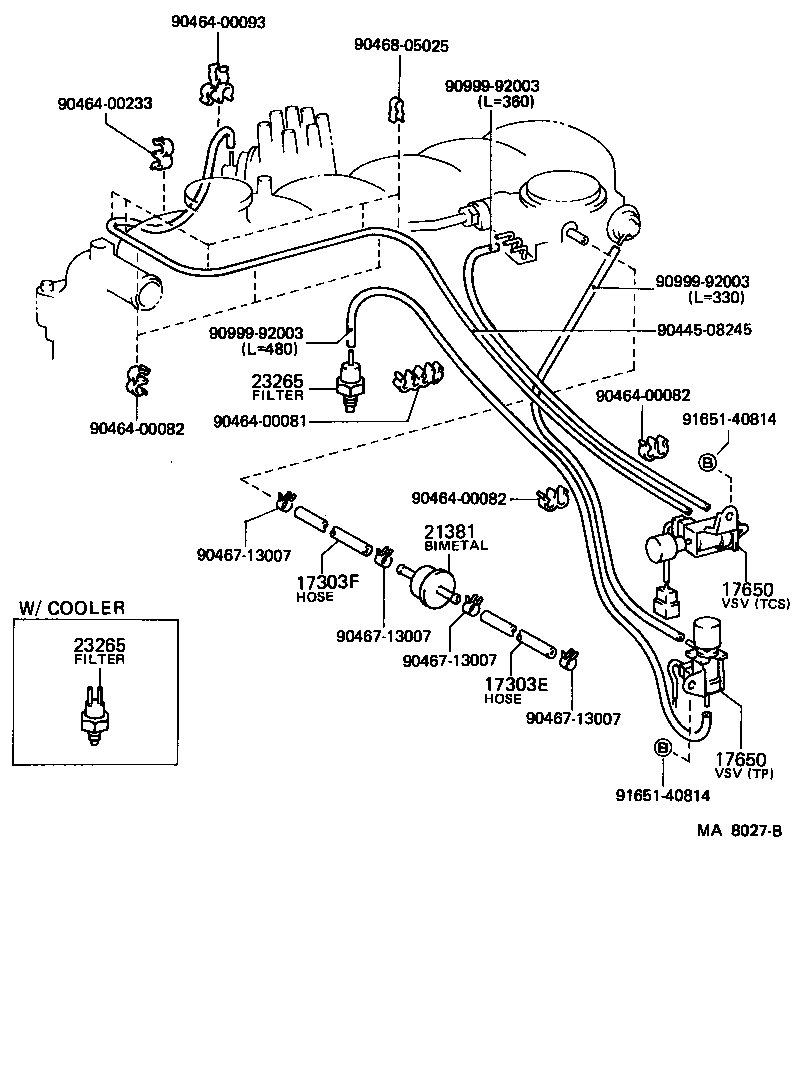

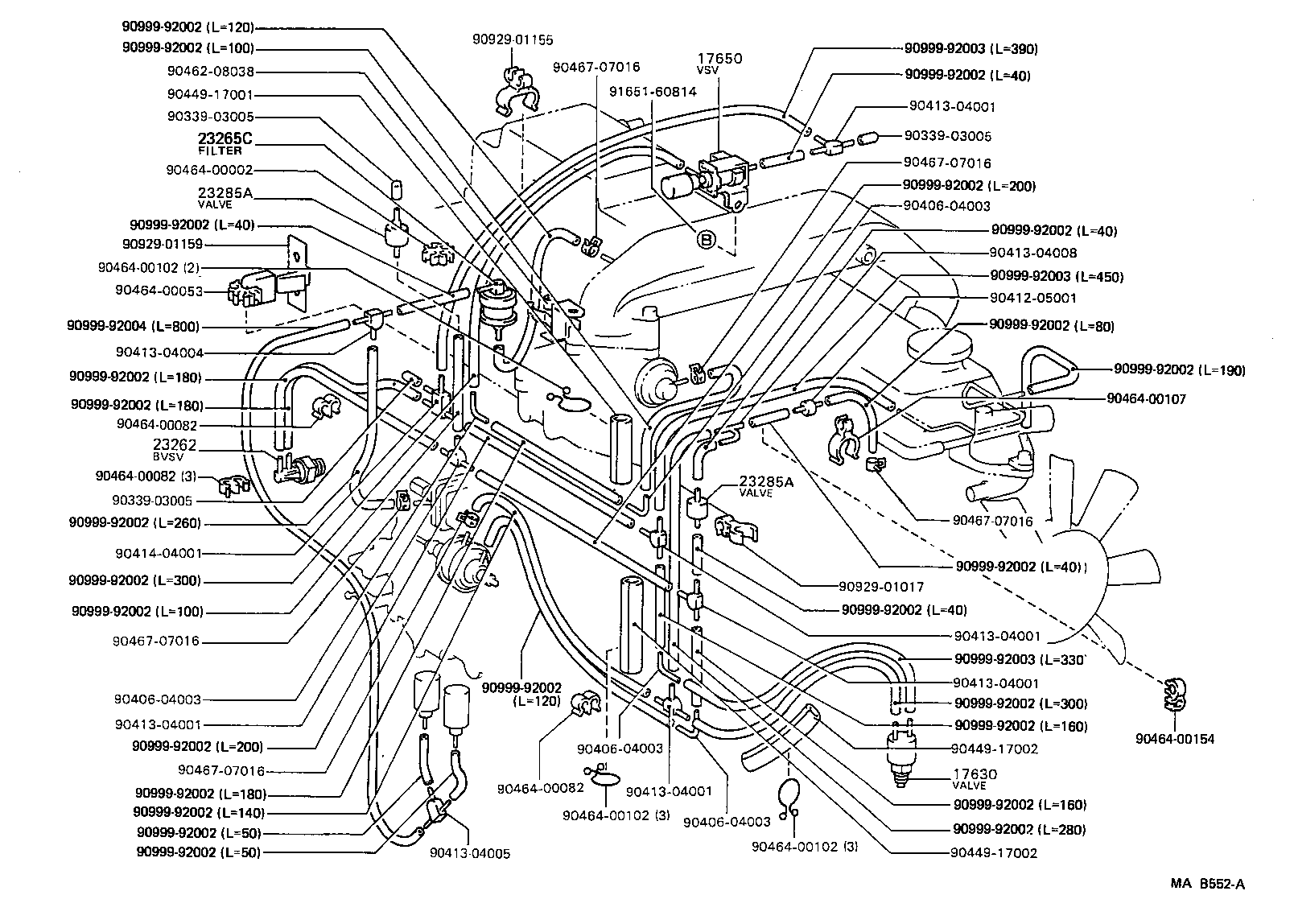

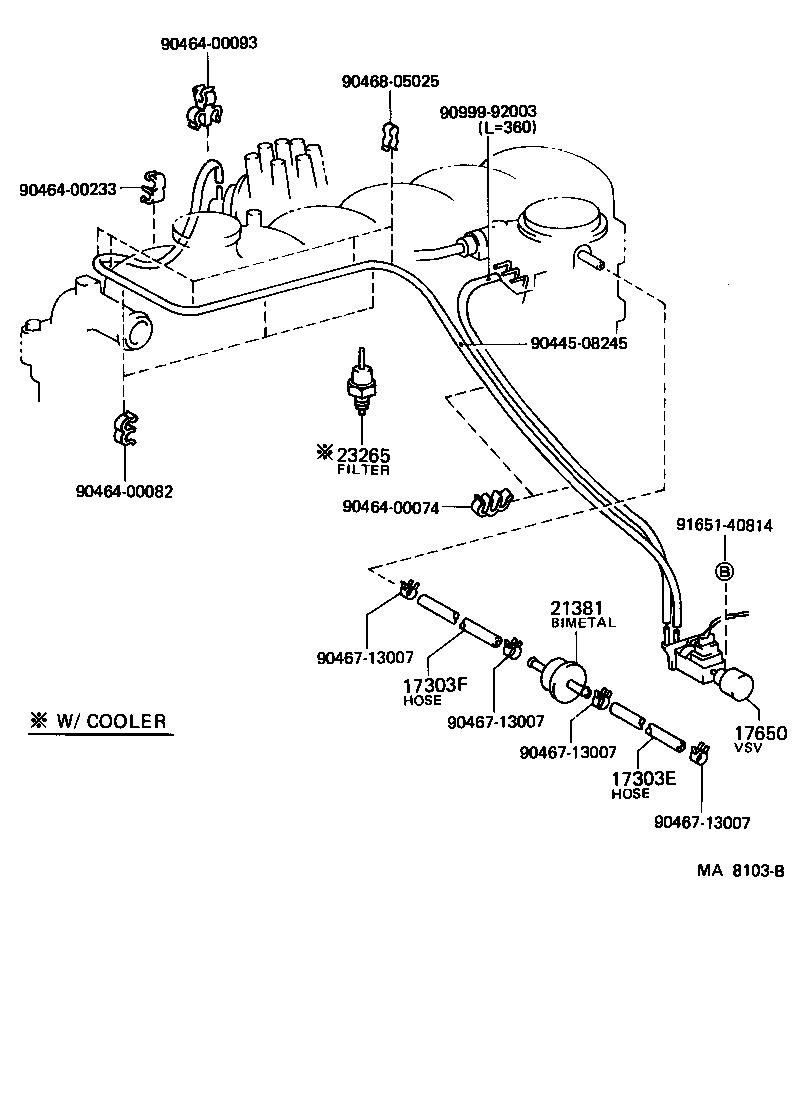

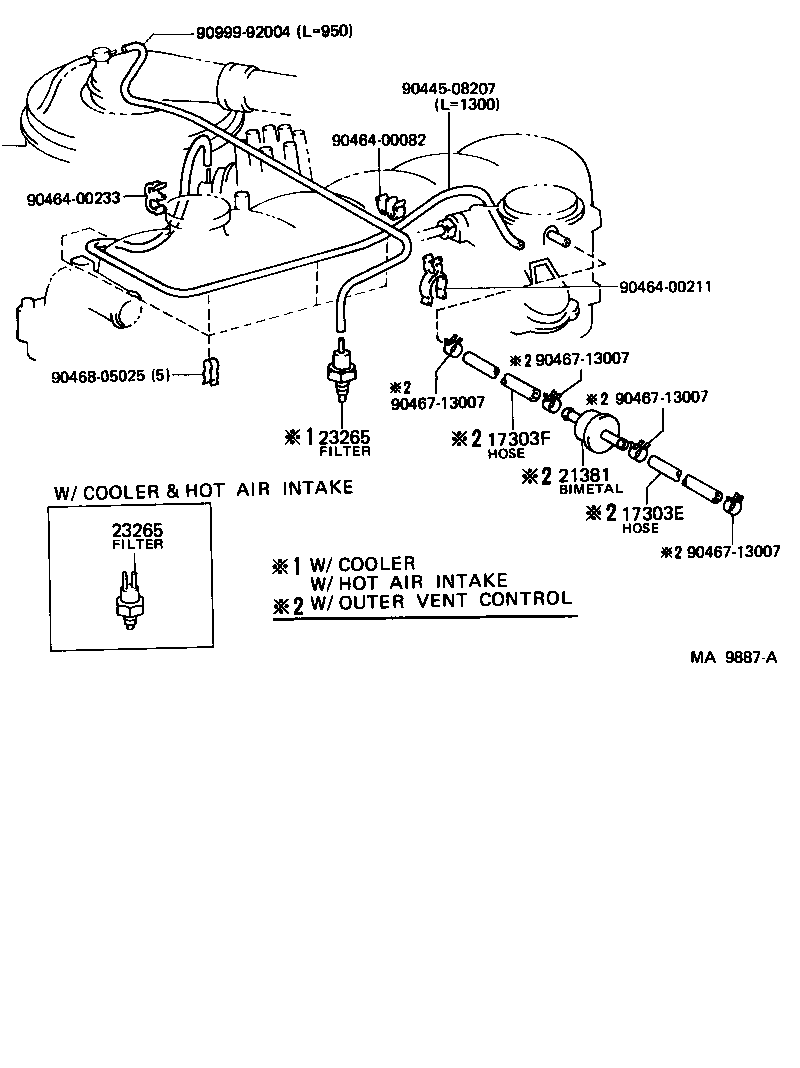

Figure MA9504B MA9504B 1987-08 → — Figure MA9504B MA9504B 1987-08 → — Figure MA9887A MA9887A 1987-08 → — Figure MA9888A MA9888A 1987-08 → — Figure MA8027B MA8027B 1987-08 → — Figure MA8103B MA8103B 1987-08 → — Figure MA9504B MA9504B 1987-08 → — Figure MA9808A MA9808A 1987-08 → — Figure MAB552A MAB552A 1987-08 → —

Part groups

PNCDescription
17303E Hose, NO.1(FOR AIR PIPE)
17303F Hose, NO.2(FOR AIR PIPE)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
21381 Bimetal, Thermostatic
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23265C Filter, Gas
23285A Valve, Check, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
