Toyota Land Cruiser

1987-08 → 1992-03 · chassis BJ60,HJ6#,FJ62 · catalogue 791330 · General

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Pump

12 part groups · 3 illustrations

Illustrations

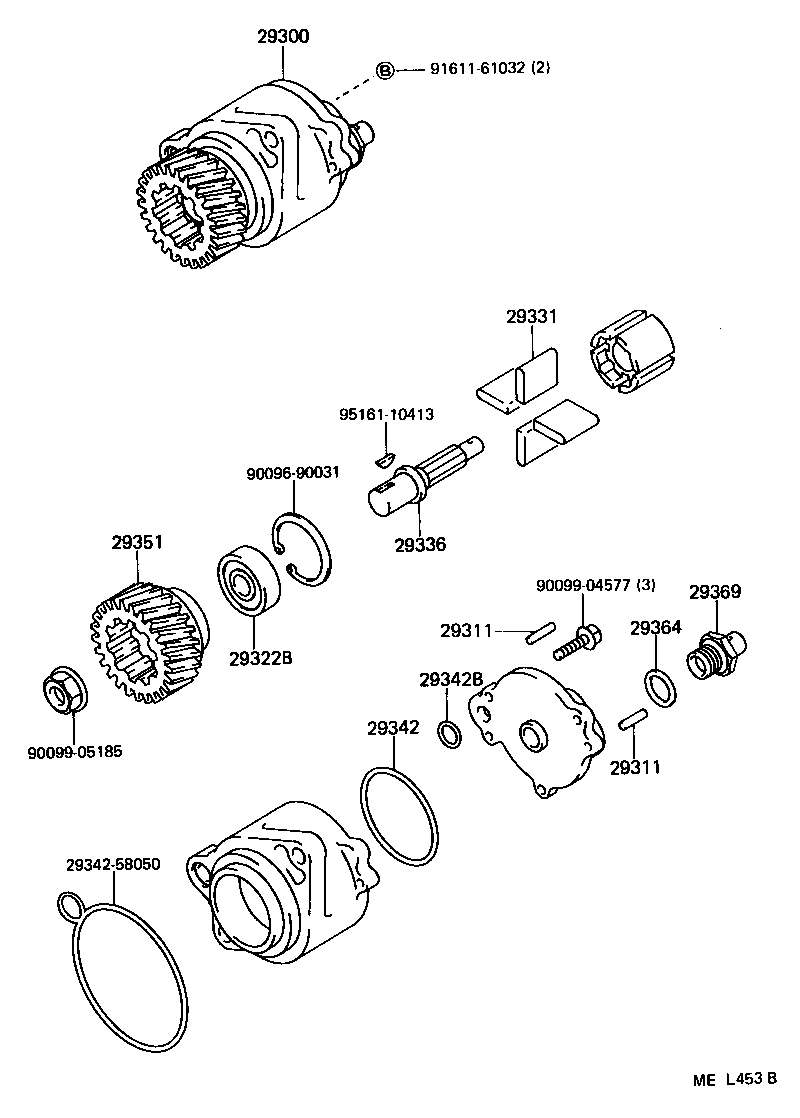

Figure MEM629 MEM629 1987-08 → 1988-08 Figure MEM629 MEM629 1987-08 → — Figure MEL453B MEL453B 1988-08 → —

Part groups

PNCDescription
29300 Pump Assy, Vacuum
29300A Hose, Vacuum Pump Oil Inlet
29300B Hose, Vacuum Pump Oil Outlet
29311 Pin, Vacuum Pump Dowel, NO.1
29322B Bearing, Vacuum Pump
29331 Blade, Vacuum Pump, A
29336 Shaft, Vacuum Pump
29342 Packing, Vacuum Pump
29342B Ring, O
29351 Gear, Vacuum Pump
29364 Washer, Vacuum Pump
29369 Valve Sub-assy, Check
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
