Toyota Land Cruiser
1987-08 → 1992-03 · chassis BJ60,HJ6#,FJ62 · catalogue 791330 · General
Discontinued model
Data version 1993-06

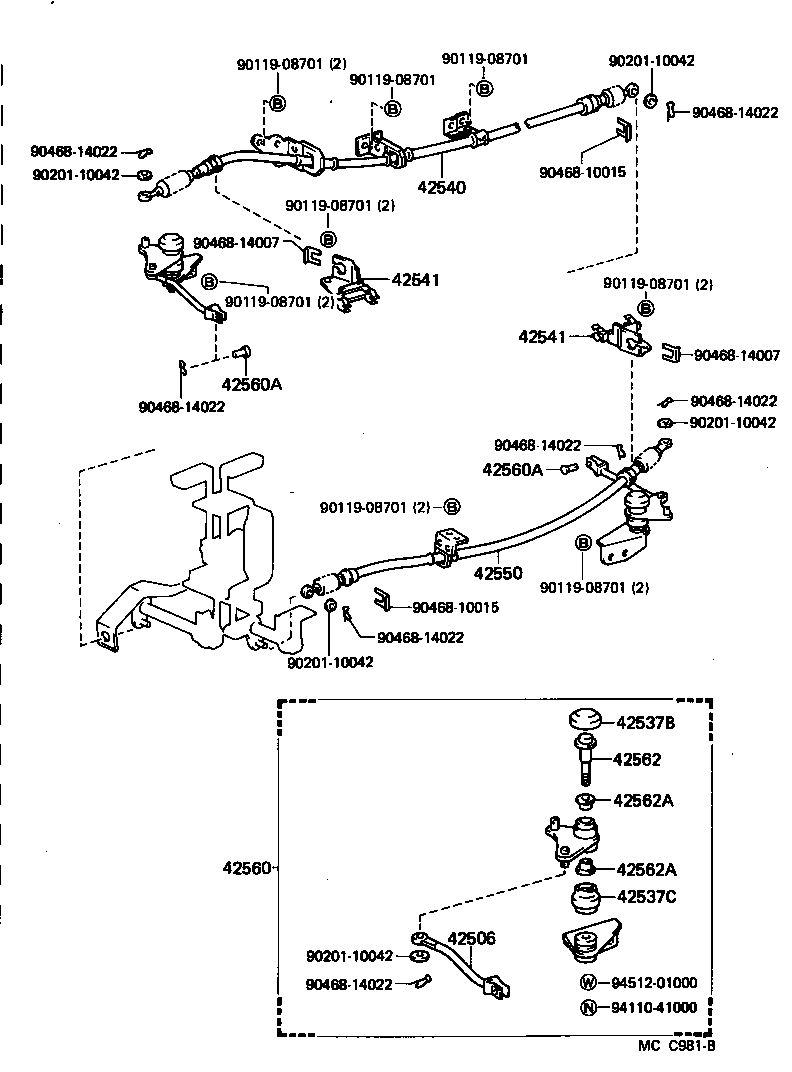

Differential Lock Control
39 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 42506 | Rod Sub-assy, Differential Lock Cable Link |
| 42510A | Bush (FOR DIFFERENTIAL LOCK LEVER) |
| 42510C | Pin, W/Hole (FOR DIFFERENTIAL LOCK LEVER) |
| 42511 | Lever, Differential Lock, Front |
| 42512 | Lever, Differential Lock, Rear |
| 42513 | Bracket, Differential Lock |
| 42513A | Grommet (FOR DIFFERENTIAL LOCK LEVER) |
| 42513B | Grommet (FOR DIFFERENTIAL LOCK BRACKET) |
| 42513C | Coller (FOR DIFFERENTIAL LOCK BRACKET) |
| 42514 | Knob, Differential Lock, Front |
| 42515 | Knob, Differential Lock, Rear |
| 42516 | Link, Differential Lock, Front |
| 42517 | Link, Differential Lock, Rear |
| 42518 | Shaft, Differential Lock Link |
| 42520A | Turn Buckle (FOR DIFFERENTIAL LOCK ROD) |
| 42520B | Grommet (FOR DIFFERENTIAL LOCK ROD) |
| 42520C | Grommet (FOR DIFFERENTIAL LOCK ROD) |
| 42521 | Rod, Differential Lock, NO.1 |
| 42522 | Rod, Differential Lock, NO.2 |
| 42523 | Cover, Differential Lock Grommet |
| 42531 | Shaft, Differential Lock Control, Front |
| 42531A | Bush (FOR DIFFERENTIAL LOCK CONTROL SHAFT) |
| 42532 | Shaft, Differential Lock Control, Rear |
| 42533 | Bracket, Differential Lock Control, Front NO.1 |
| 42534 | Bracket, Differential Lock Control, Front NO.2 |
| 42535 | Bracket, Differential Lock Control, Rear NO.1 |
| 42536 | Bracket, Differential Lock Control, Rear NO.2 |
| 42537 | Cover, Control Shaft Dust, NO.1 |
| 42537A | Cover, Control Shaft Dust, NO.2 |
| 42537B | Cover, Control Shaft Dust, NO.3 |
| 42537C | Cover, Control Shaft Dust, NO.4 |
| 42538 | Stay, Control Shaft Bracket |
| 42540 | Cable Assy, Differential Lock, Front |
| 42541 | Bracket, Differential Lock Cable |
| 42550 | Cable Assy, Differential Lock, Rear |
| 42560 | Link Assy, Differential Lock Cable |
| 42560A | Pin, W/Hole (FOR DIFFERENTIAL LOCK CABLE LINK) |
| 42562 | Shaft, Differential Lock Cable Link |
| 42562A | Bush (FOR DIFFERENTIAL LOCK CABLE LINK SHAFT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
