Toyota Land Cruiser
1987-08 → 1992-03 · chassis BJ60,HJ6#,FJ62 · catalogue 791330 · General
Discontinued model
Data version 1993-06

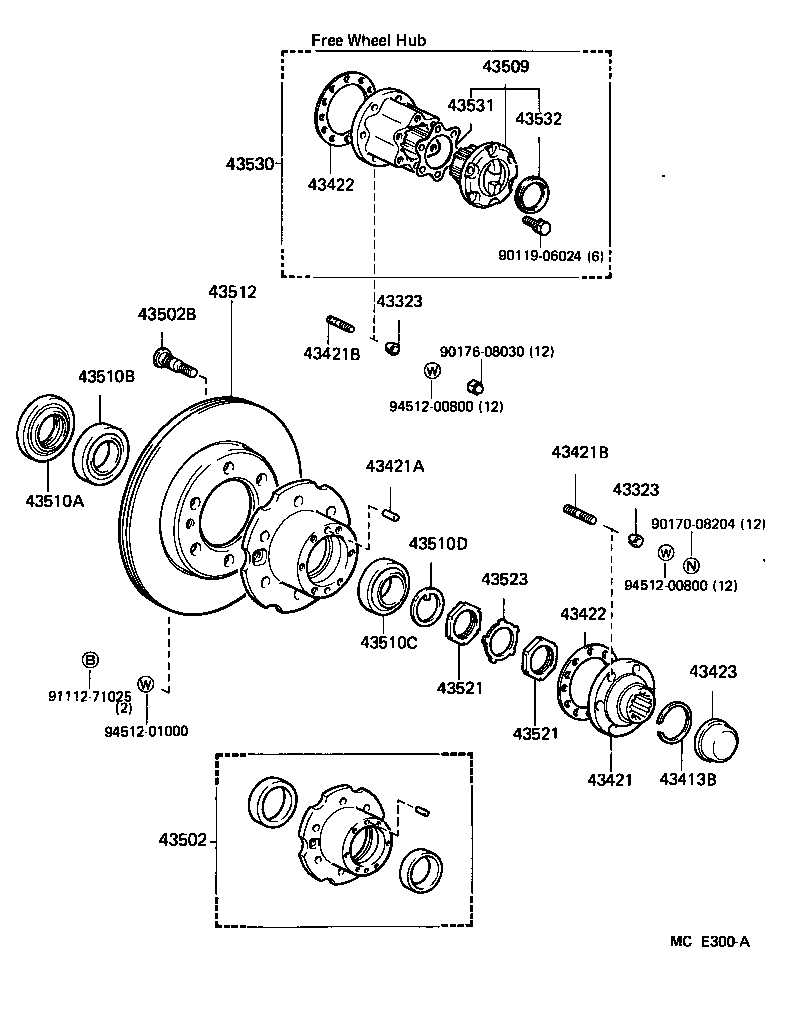

Front Axle Hub
25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 43323 | Washer, Cone (FOR FRONT AXLE SHAFT) |
| 43413B | Ring, Drive Shaft Snap |
| 43421 | Flange, Front Axle Outer Shaft |
| 43421A | Pin, Straight (FOR FRONT AXLE OUTER SHAFT FLANGE) |
| 43421B | Bolt, Stud (FOR FRONT AXLE OUTER SHAFT FLANGE) |
| 43422 | Gasket, Front Axle Outer Shaft Flange |
| 43423 | Cap, Front Axle Outer Shaft Flange |
| 43501A | Piece, Balance (FOR FRONT BRAKE DRUM) |
| 43501B | Bolt, Set (FOR FRONT BRAKE DRUM SETTING) |
| 43502 | Hub Sub-assy, Front Axle |
| 43502B | Bolt, Hub (FOR FRONT AXLE) |
| 43509 | Cover Sub-assy, Free Wheel Hub |
| 43510 | Hub And Brake Drum Assy, Front Axle, RH |
| 43510A | Seal, Oil (FOR FRONT AXLE HUB) |
| 43510B | Bearing, Tapered Roller (FOR FRONT AXLE INNER BEARING) |
| 43510C | Bearing, Tapered Roller (FOR FRONT AXLE OUTER BEARING) |
| 43510D | Washer, Claw (FOR STEERING KNUCKLE WASHER) |
| 43512 | Disc, Front |
| 43512B | Drum, Brake |
| 43520 | Hub And Brake Drum Assy, Front Axle, LH |
| 43521 | Nut, Front Wheel Adjusting |
| 43523 | Washer, Front Wheel Adjusting Lock |
| 43530 | Hub Assy, Free Wheel |
| 43531 | Gasket, Free Wheel Hub |
| 43532 | Ring, Free Wheel Hub |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
