Toyota Land Cruiser

1987-08 → 1992-03 · chassis BJ60,HJ6#,FJ62 · catalogue 791330 · General

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

32 part groups · 9 illustrations

Illustrations

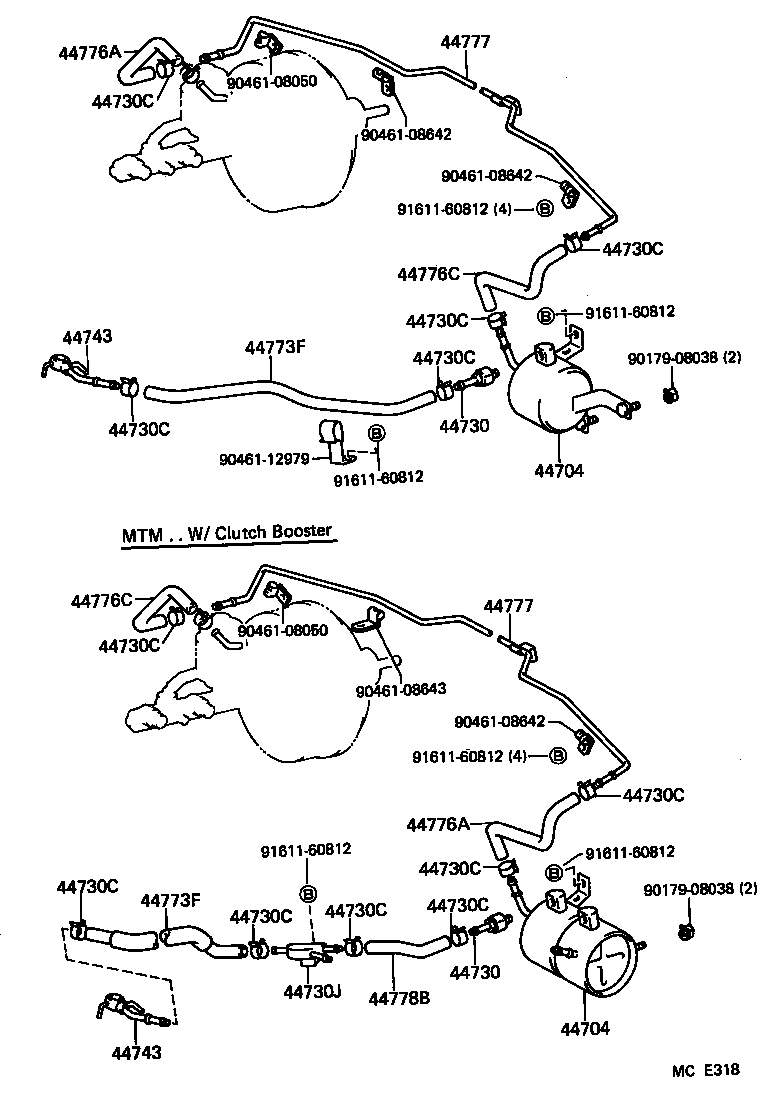

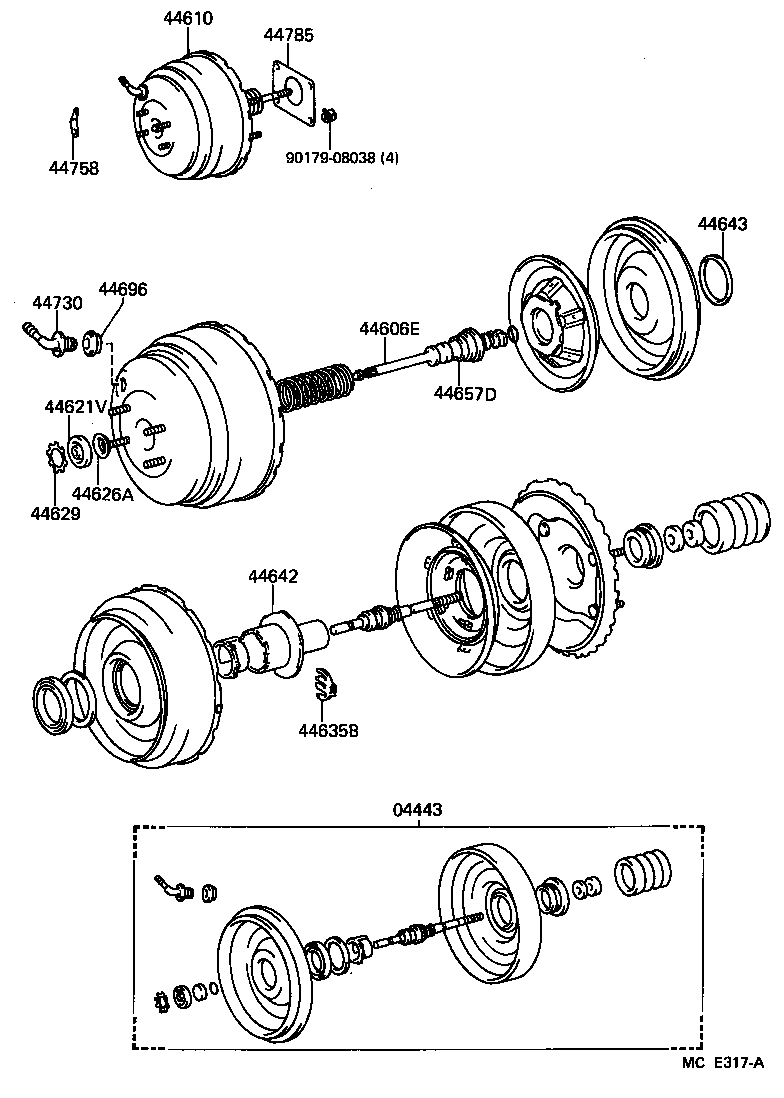

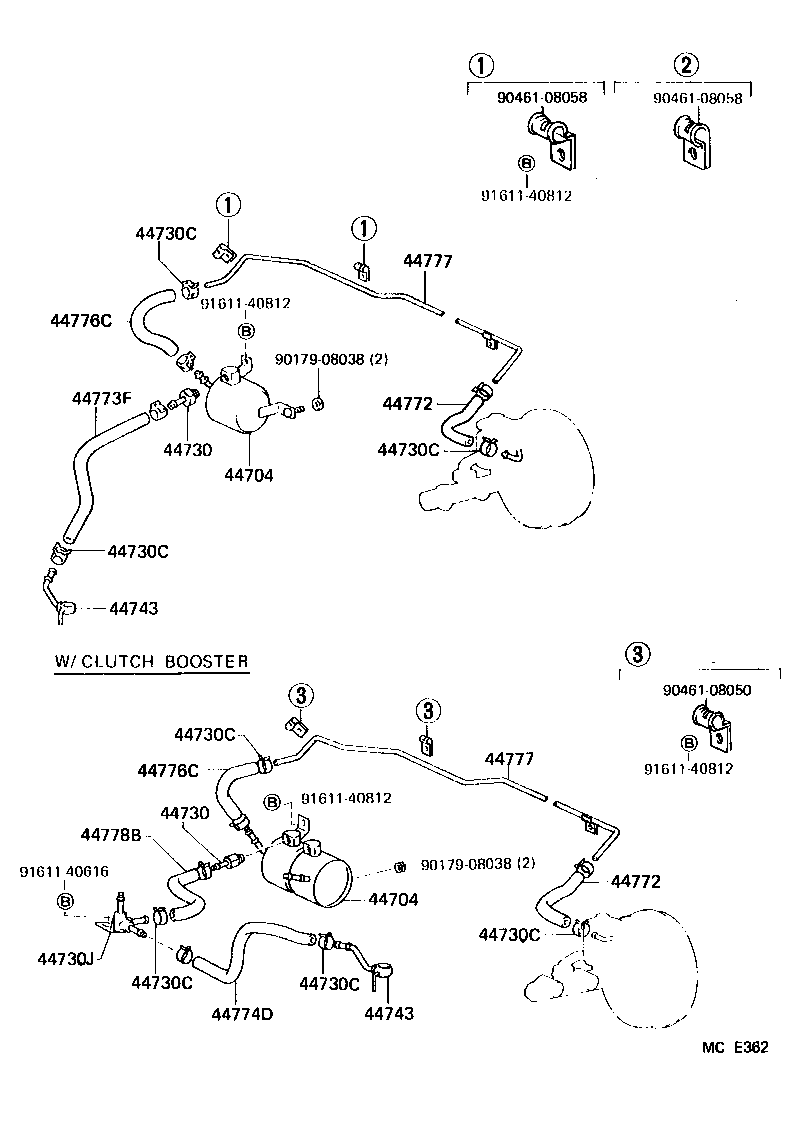

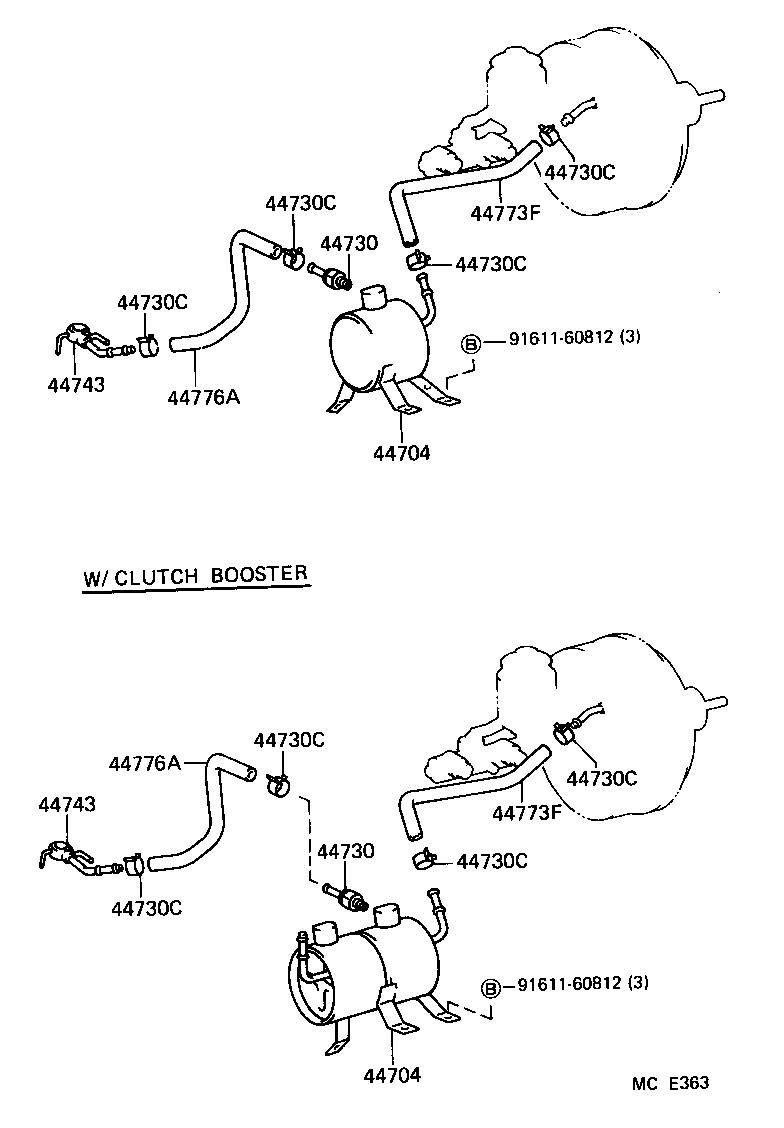

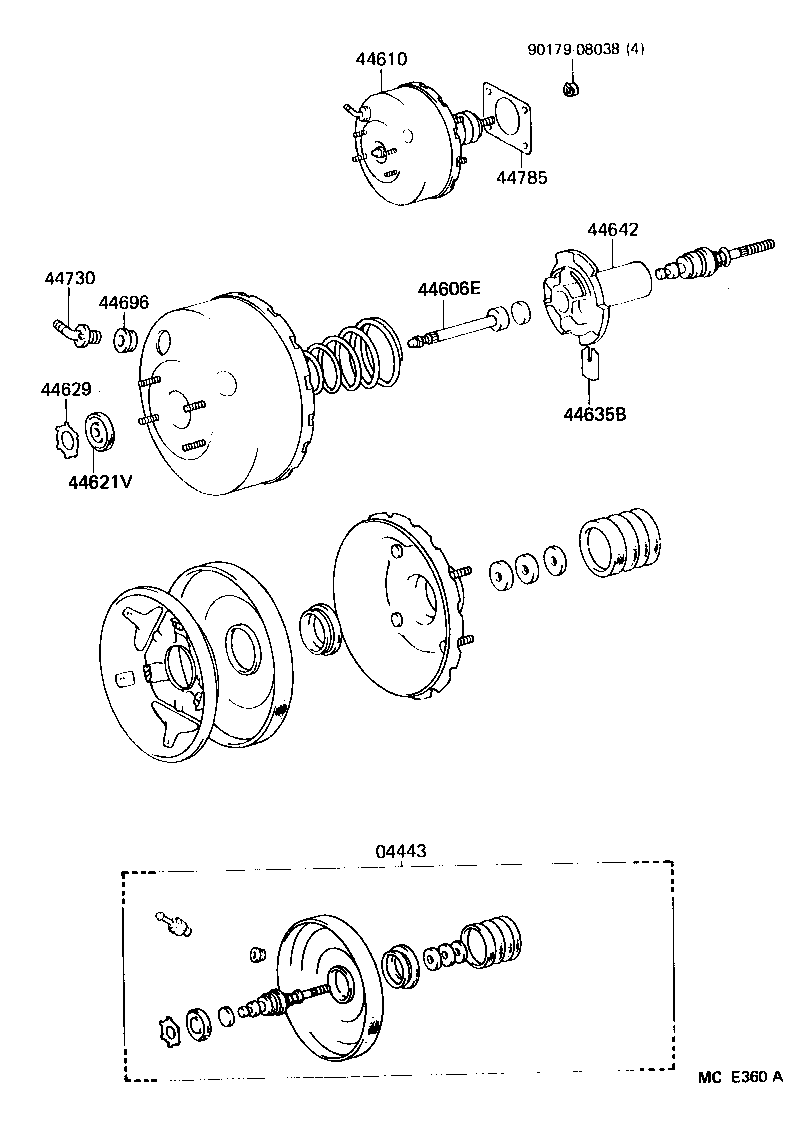

Figure MCF502 MCF502 1987-08 → — Figure MCE360A MCE360A 1987-08 → — Figure MCE317A MCE317A 1987-08 → — Figure MCE361A MCE361A 1987-08 → 1988-08 Figure MCG199B MCG199B 1988-08 → — Figure MCE362 MCE362 1987-08 → — Figure MCE318 MCE318 1987-08 → — Figure MCE363 MCE363 1987-08 → — Figure MCE364A MCE364A 1987-08 → —

Part groups

PNCDescription
04443 Booster Kit, Brake
44606E Rod Sub-assy, Brake Booster Piston
44610 Booster Assy, Brake
44621V Seal, Booster Body
44626A Retainer, Booster Body Seal
44629 Ring, Circular Internal
44635B Key, Valve Stopper
44642 Piston, Brake Booster
44643 Retainer, Diaphragm
44657D Case, Reaction Disc
44696 Grommet, Check Valve
44704 Reservoir Sub-assy, Vacuum
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730C Clip(FOR VACUUM HOSE)
44730F Union, Vacuum Hose(FOR MANIFOLD SIDE)
44730J Way(FOR BOOSTER VACUUM)
44730R Bolt, Union(FOR VACUUM HOSE UNION)
44743 Union(FOR VACUUM PUMP)
44758 Bracket, Vacuum Check Valve
44772 Hose, Check Valve TO Connector Tube
44773F Hose, Union TO Check Valve
44774 Hose, Union TO Connector Tube
44774B Hose, Union TO Connector Tube
44774D Hose, Union TO Way
44775C Hose, Connector TO Way
44776A Hose, Vacuum Reservoir TO Brake Booster
44776C Hose, Vacuum Reservoir TO Connector
44777 Connector, Vacuum Hose, NO.1
44778 Hose, Connector TO Check Valve
44778B Hose, Way TO Check Valve
44785 Gasket, Brake Booster
44786A Insulator, Brake Booster Heat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
