Toyota Land Cruiser

1987-08 → 1992-03 · chassis BJ60,HJ6#,FJ62 · catalogue 791330 · General

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

19 part groups · 7 illustrations

Illustrations

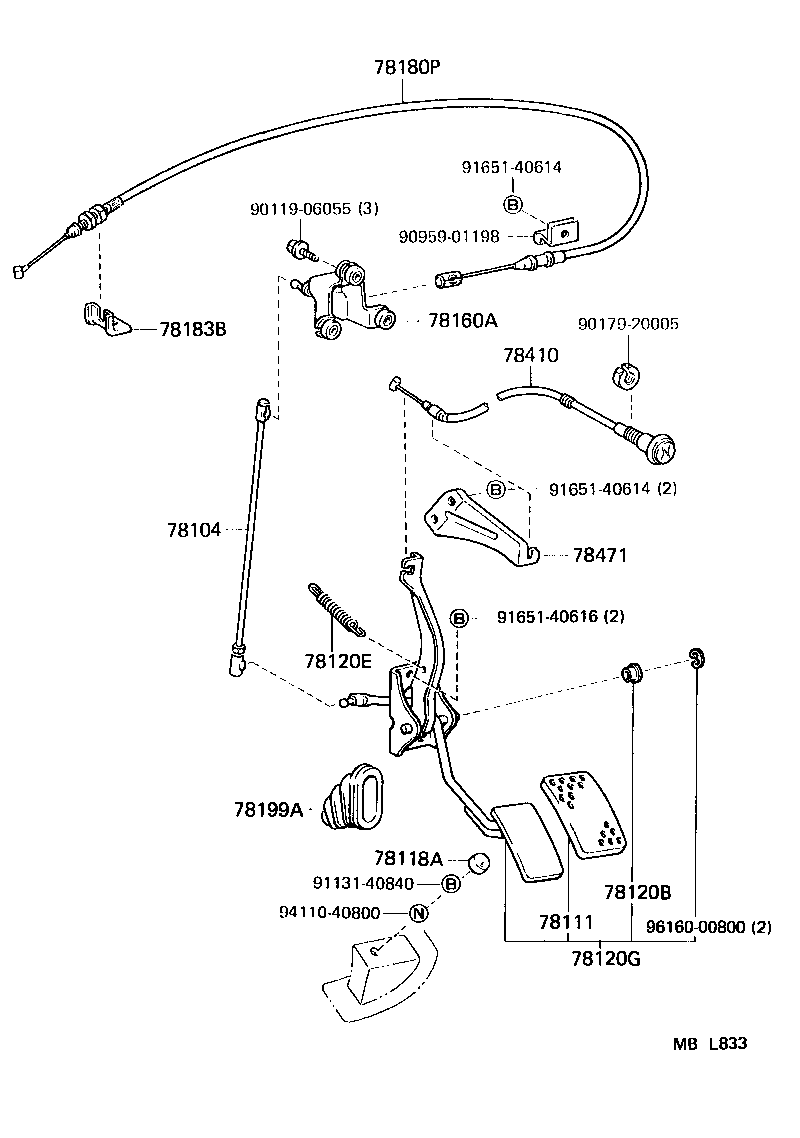

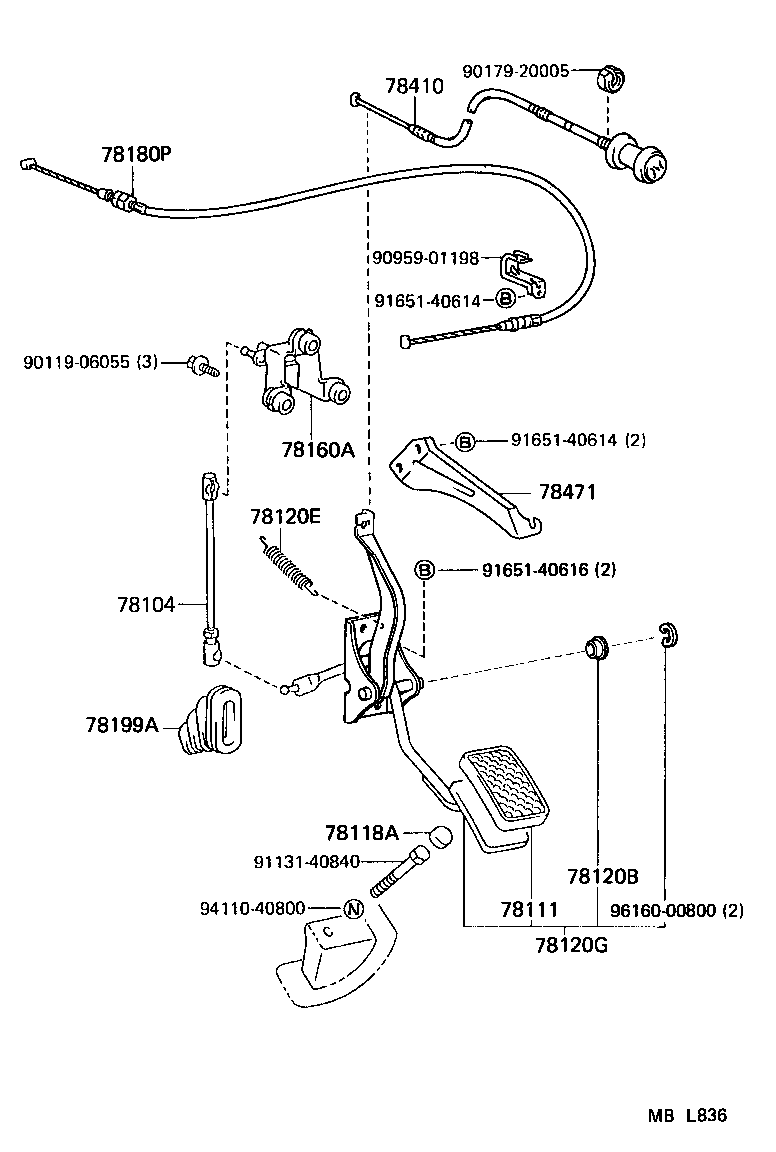

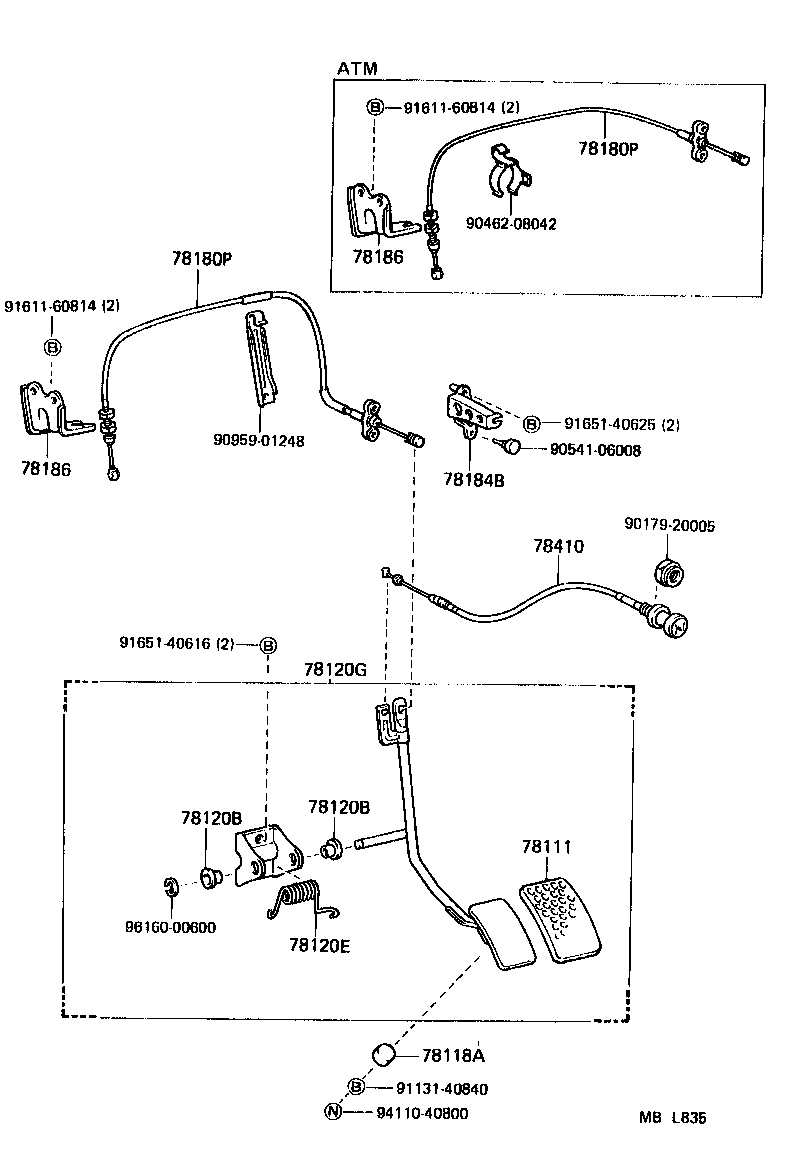

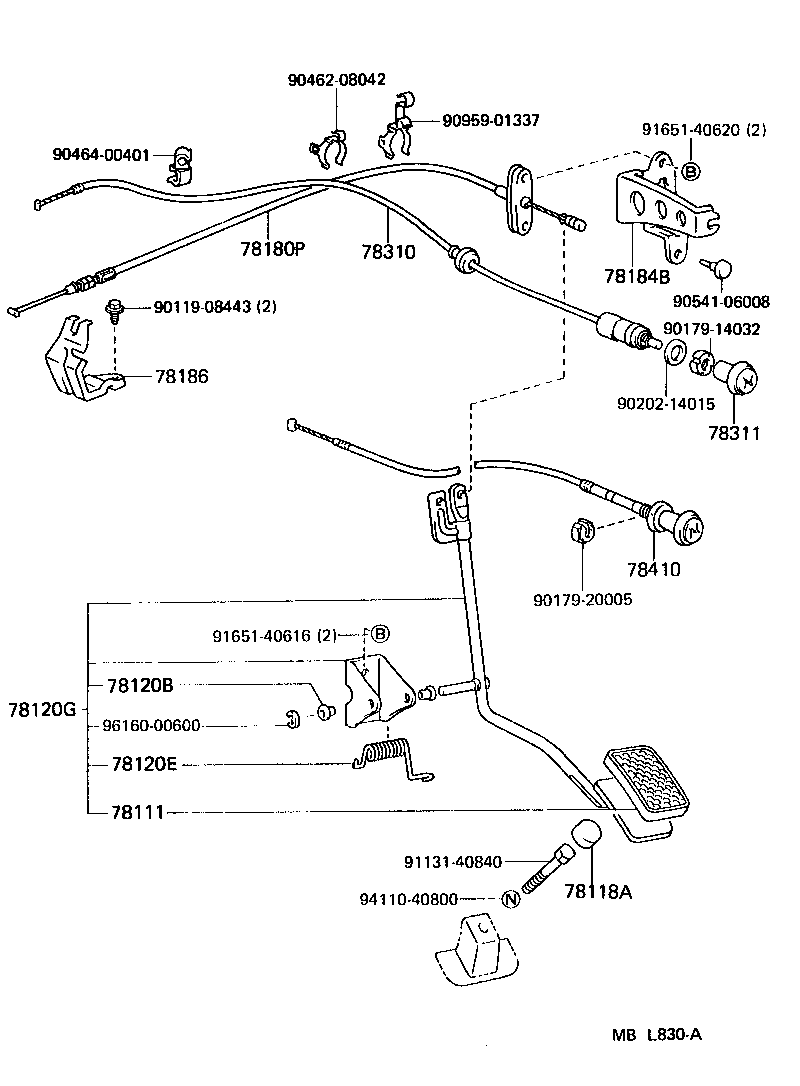

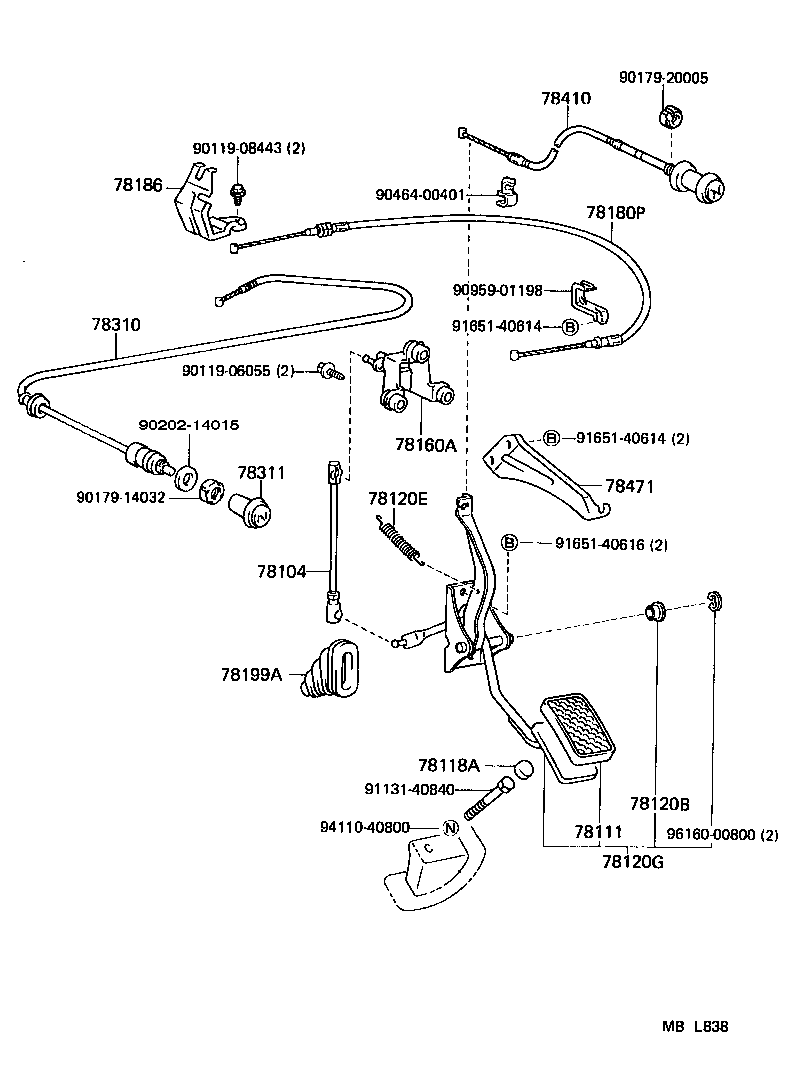

Figure MBL832A MBL832A 1987-08 → — Figure MBL833 MBL833 1987-08 → — Figure MBL834 MBL834 1987-08 → — Figure MBL835 MBL835 1987-08 → — Figure MBL836 MBL836 1987-08 → — Figure MBL830A MBL830A 1987-08 → — Figure MBL838 MBL838 1987-08 → —

Part groups

PNCDescription
78100 Link Assy, Accelerator
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78105 Rod Sub-assy, Accelerator Connecting, NO.3
78106A Rod Sub-assy, Accelerator Connecting, NO.4
78111 Pedal, Accelerator
78118A Stopper, Accelerator Pedal
78120B Bush (FOR ACCELERATOR LINK ROD)
78120E Spring, Tension (FOR ACCELERATOR LINK ROD)
78120G Rod Assy, Accelerator Pedal
78160A Bellcrank Assy, Accel Control W/Bracket
78180P Cable Assy, Accelerator Control
78183B Clamp, Accelerator Control Cable
78184B Bracket, Accelerator Control Cable
78186 Support, Accelerator Control Cable, NO.1
78199A Boot, Accelerator Pedal Rod
78310 Cable Assy, Choke
78311 Knob, Choke Control Cable
78410 Cable Assy, Throttle Control
78471 Bracket, Throttle Control Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
