Toyota Land Cruiser

1987-08 → 1992-03 · chassis BJ60,HJ6#,FJ62 · catalogue 791330 · General

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear License Plate Lamp

11 part groups · 2 illustrations

Illustrations

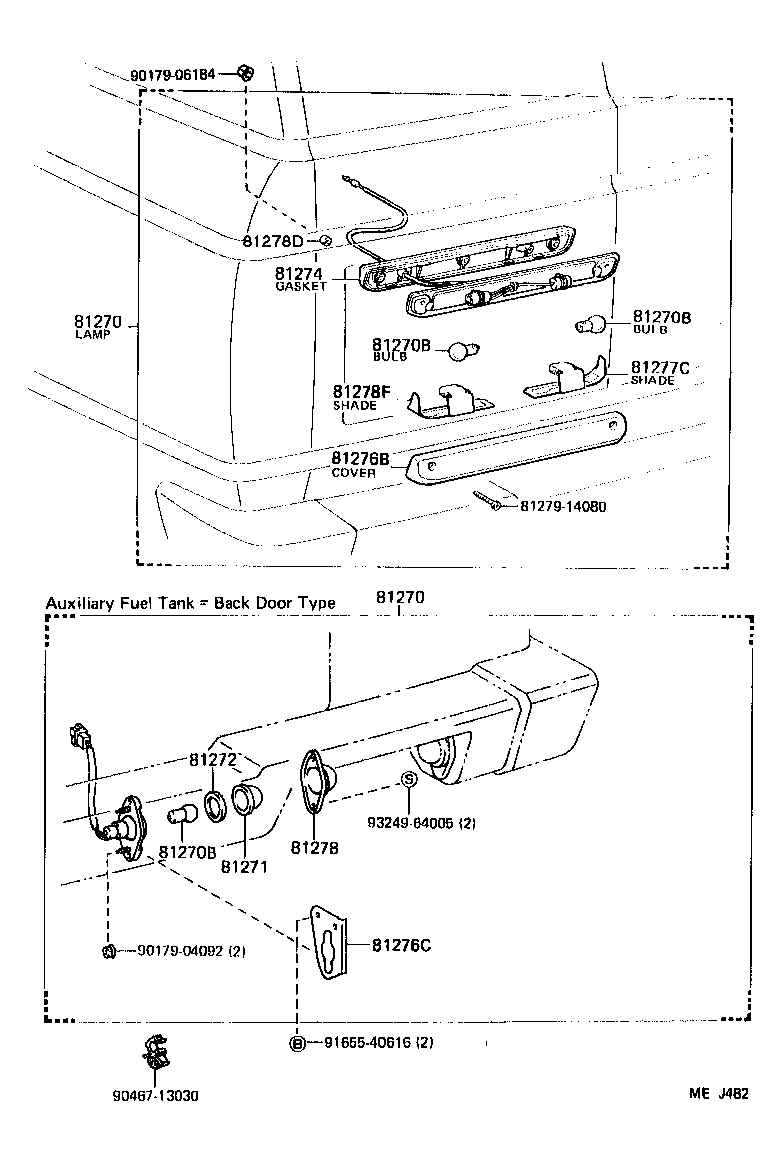

Figure MEJ481 MEJ481 1987-08 → — Figure MEJ482 MEJ482 1987-08 → —

Part groups

PNCDescription
81270 Lamp Assy, License Plate
81270B Bulb (FOR LICENSE PLATE LAMP)
81271 Lens, License Plate Lamp
81272 Gasket, License Plate Lamp Lens
81274 Gasket, License Plate Lamp Body
81276B Cover, License Plate Lamp
81276C Bracket, License Plate Lamp
81277C Shade, License Plate Lamp, RH
81278 Cover, License Plate Lamp
81278D Spacer, License Plate Lamp
81278F Shade, License Plate Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
