Toyota Land Cruiser
1987-08 → 1992-03 · chassis BJ60,HJ6#,FJ62 · catalogue 791330 · General
Discontinued model
Data version 1993-06
Meter
22 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83102 | Plate Sub-assy, Combination Meter Circuit, NO.1 |
| 83110 | Speedometer Assy |
| 83132 | Case, Combination Meter |
| 83134 | Cover, Combination Meter, NO.1 |
| 83138 | Glass, Speedometer |
| 83145 | Lens, Meter, NO.1 |
| 83180 | Detector Assy, Revolution |

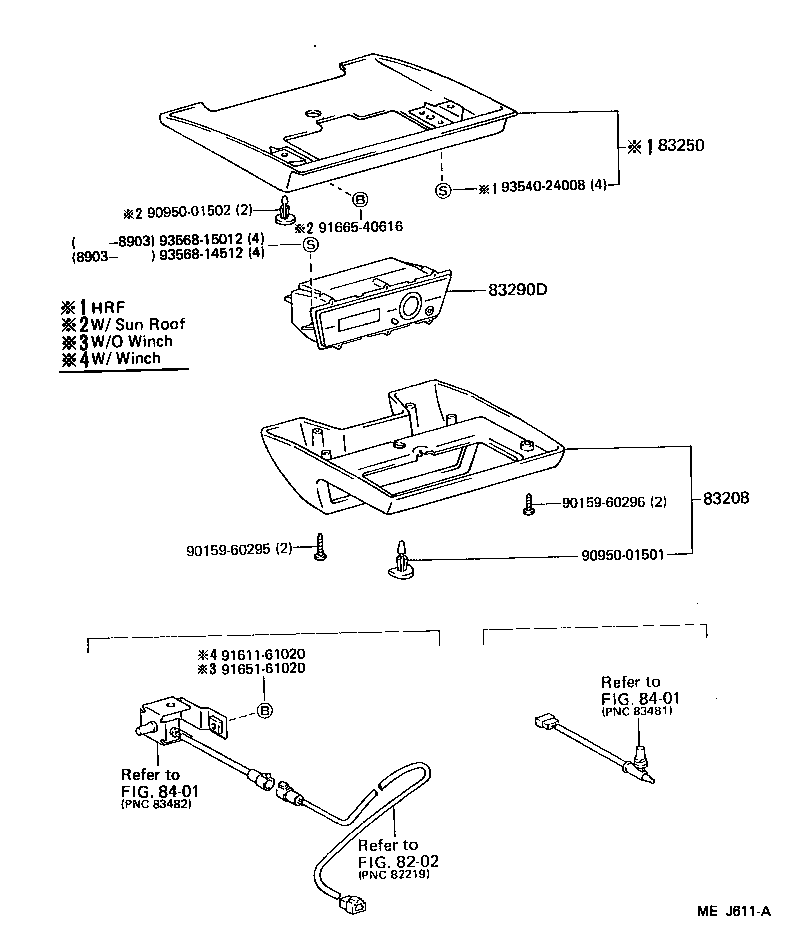

| 83208 | Panel Sub-assy, Roof Console Meter |
| 83246 | Gauge, Oil Pressure Receiver |
| 83250 | Bracket Assy, Roof Console Meter |
| 83270 | Tachometer Assy, Engine |
| 83290D | Meter Assy, Accessory |
| 83310 | Gage Assy, Fuel Receiver |
| 83410 | Gage Assy, Water Temperature Receiver |
| 83630 | Voltmeter Assy |

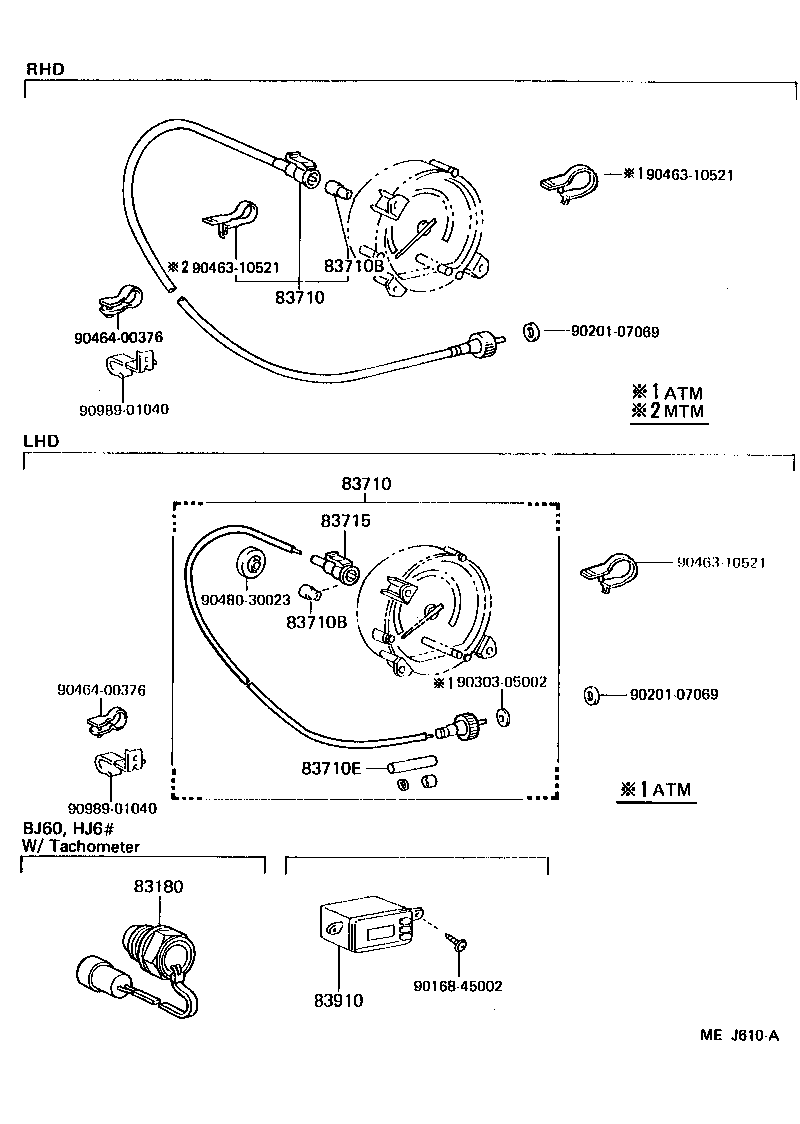

| 83710 | Cable Assy, Speedometer Drive, NO.1 |
| 83710B | Bush, Speedometer Drive Cable |
| 83710E | Hose, Speedometer Drive Cable |
| 83715 | Tube, Speedometer Casing |
| 83910 | Clock Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
