Toyota Land Cruiser
1987-08 → 1992-03 · chassis BJ60,HJ6#,FJ62 · catalogue 791330 · General
Discontinued model
Data version 1993-06

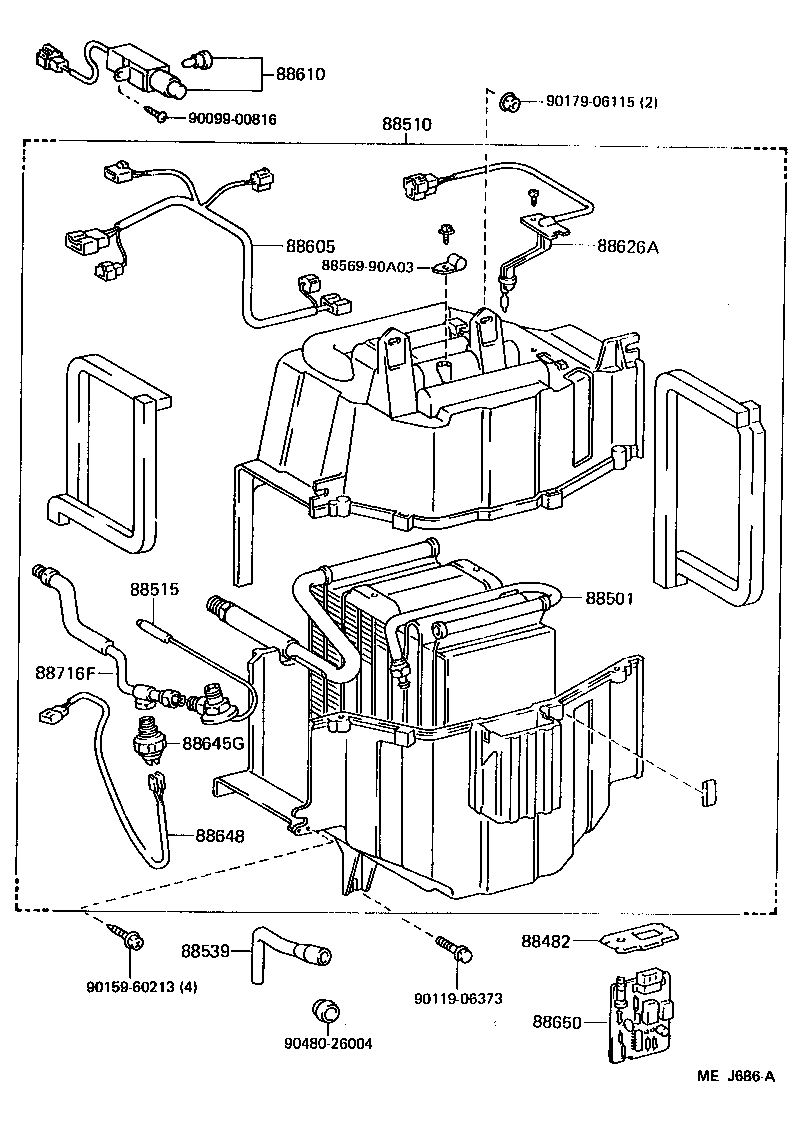

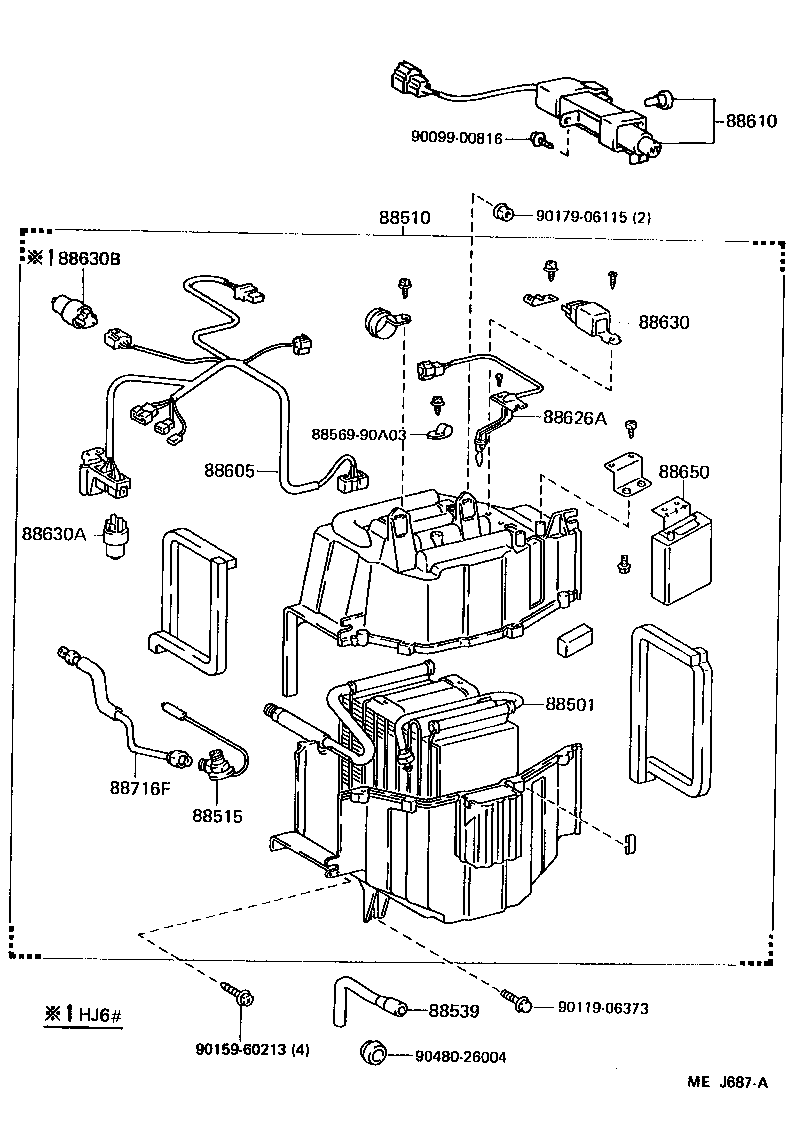

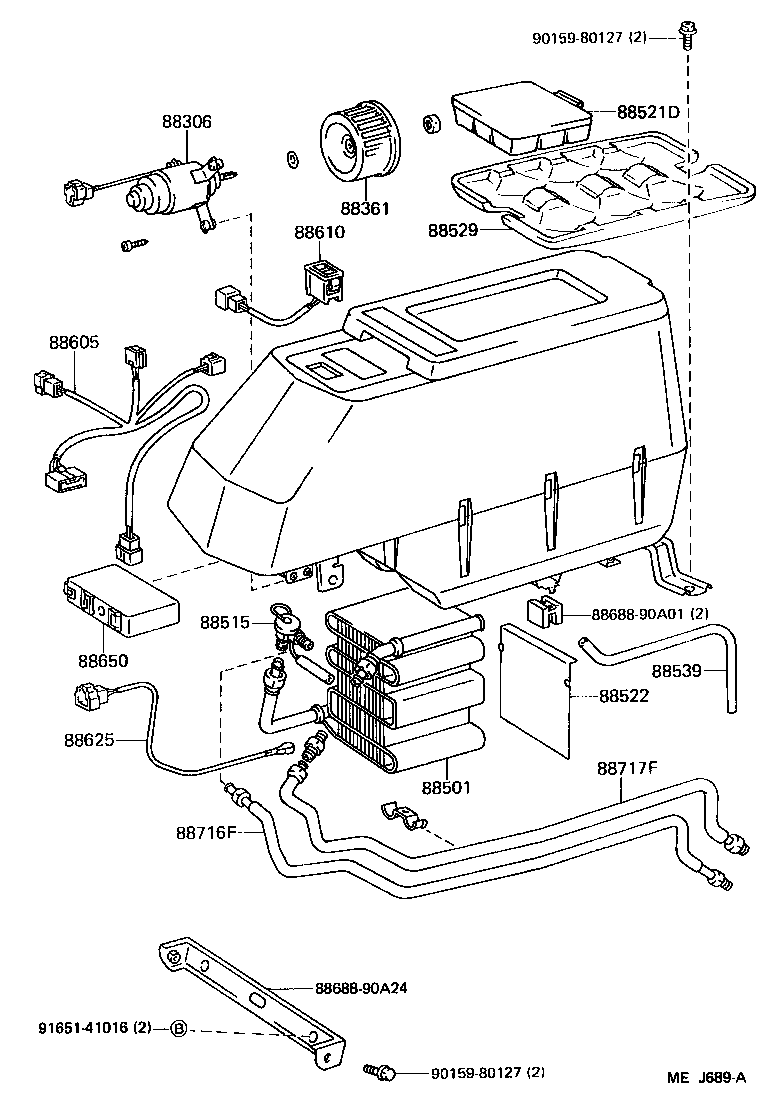

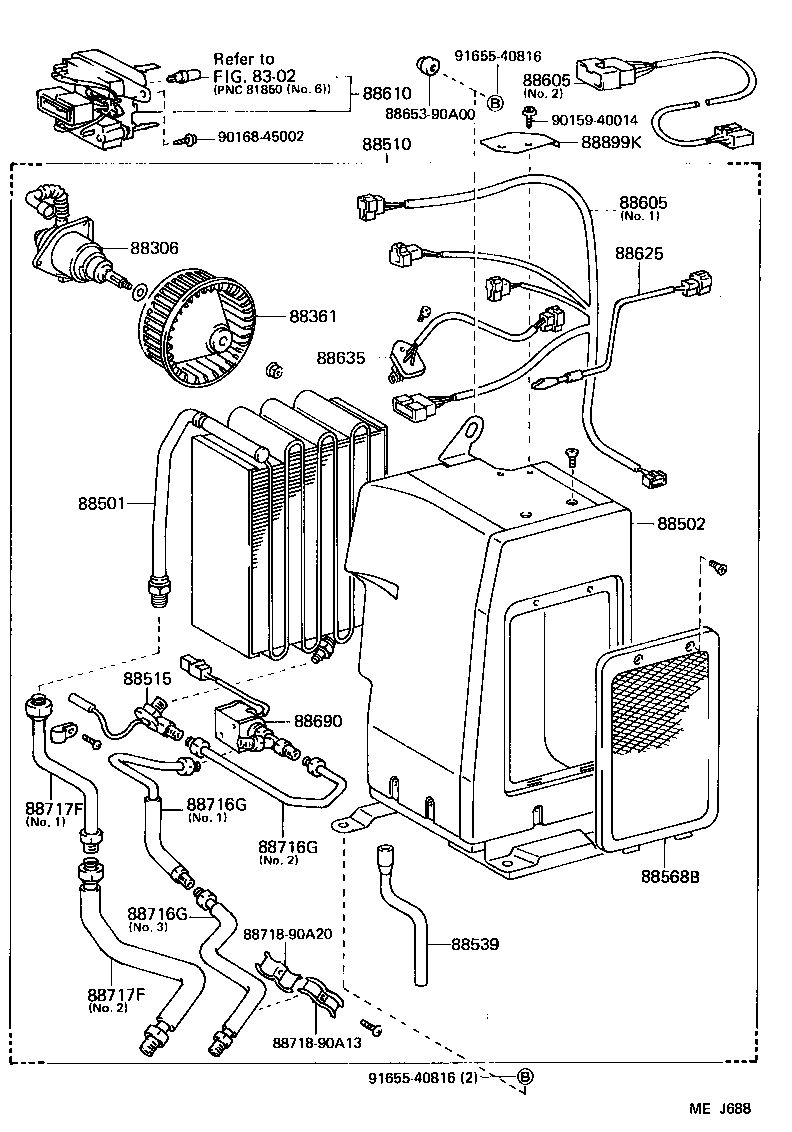

Heating & Air Conditioning - Cooler Unit
28 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 88306 | Motor Sub-assy, Cooler Blower, NO.1 |
| 88361 | Fan, Cooler Blower, NO.1 |
| 88482 | Cap, Cooler |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88502 | Case Sub-assy, Cooling Unit |
| 88510 | Unit Assy, Cooler |
| 88515 | Valve, Cooler Expansion |
| 88521D | Case, Ice |
| 88522 | Door, Cooling Unit |
| 88529 | Tray, Cooling Box |
| 88539 | Hose, Cooler Unit Drain, NO.1 |
| 88568B | Filter, Air |
| 88605 | Harness Sub-assy, Cooler Wiring, NO.1 |
| 88610 | Switch Assy, Cooler Control |
| 88625 | Thermistor, Cooler, NO.1 |
| 88626A | Holder, Thermistor |
| 88630 | Relay Assy, Cooler |
| 88630A | Relay Assy, Cooler |
| 88630B | Relay Assy, Cooler |
| 88635 | Resistor, Cooler Unit Blower |
| 88645G | Switch, Pressure |
| 88648 | Wiring, Cooler, NO.1 |
| 88650 | Amplifier Assy, Cooler Stabilizer |
| 88690 | Valve Assy, Cooler Magnet |
| 88716F | Pipe, Cooler Refrigerant Liquid, F |
| 88716G | Pipe, Cooler Refrigerant Liquid, G |
| 88717F | Pipe, Cooler Refrigerant Suction, F |
| 88899K | Plate, Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
