Toyota Land Cruiser

1987-08 → 1992-03 · chassis BJ60,HJ6#,FJ62 · catalogue 791330 · General

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

14 part groups · 13 illustrations

Illustrations

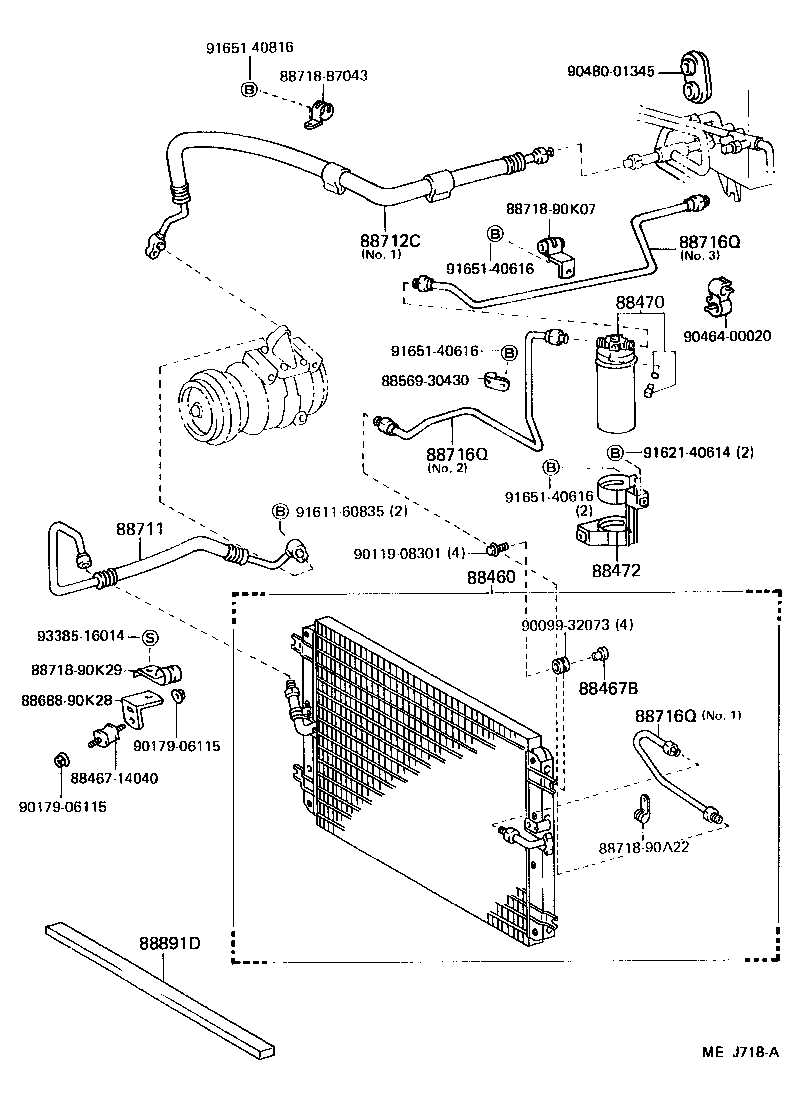

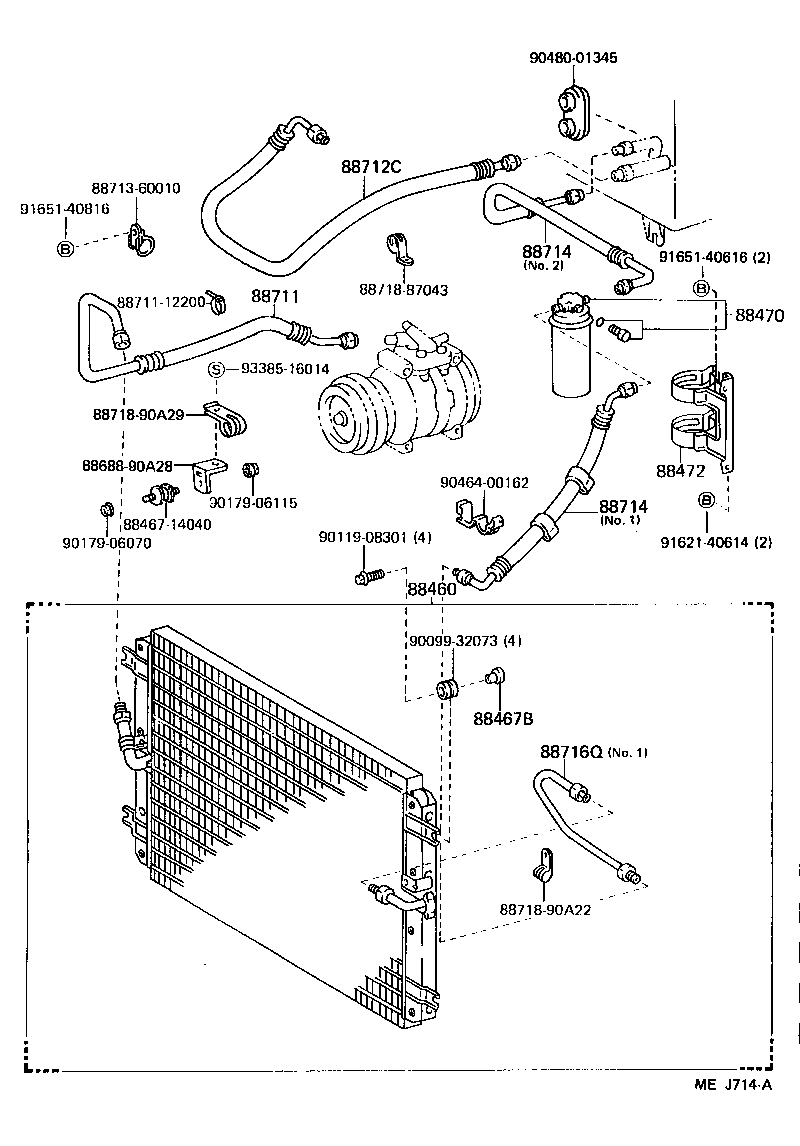

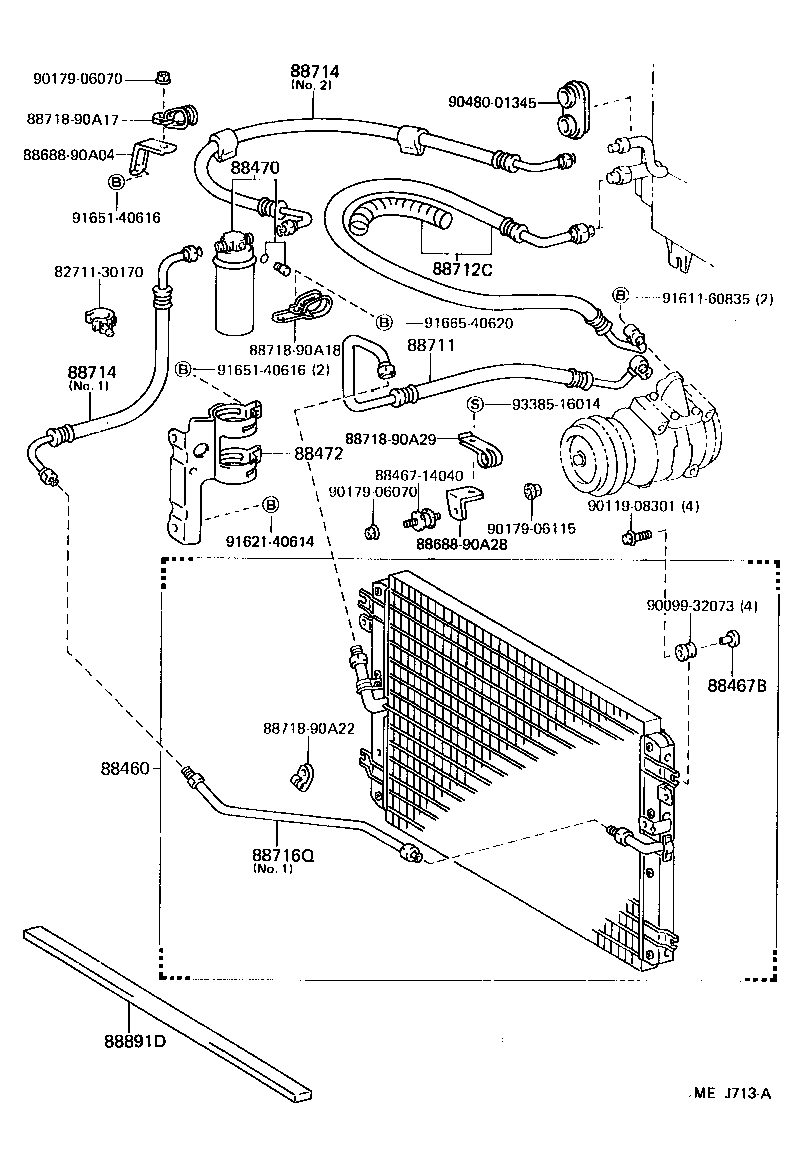

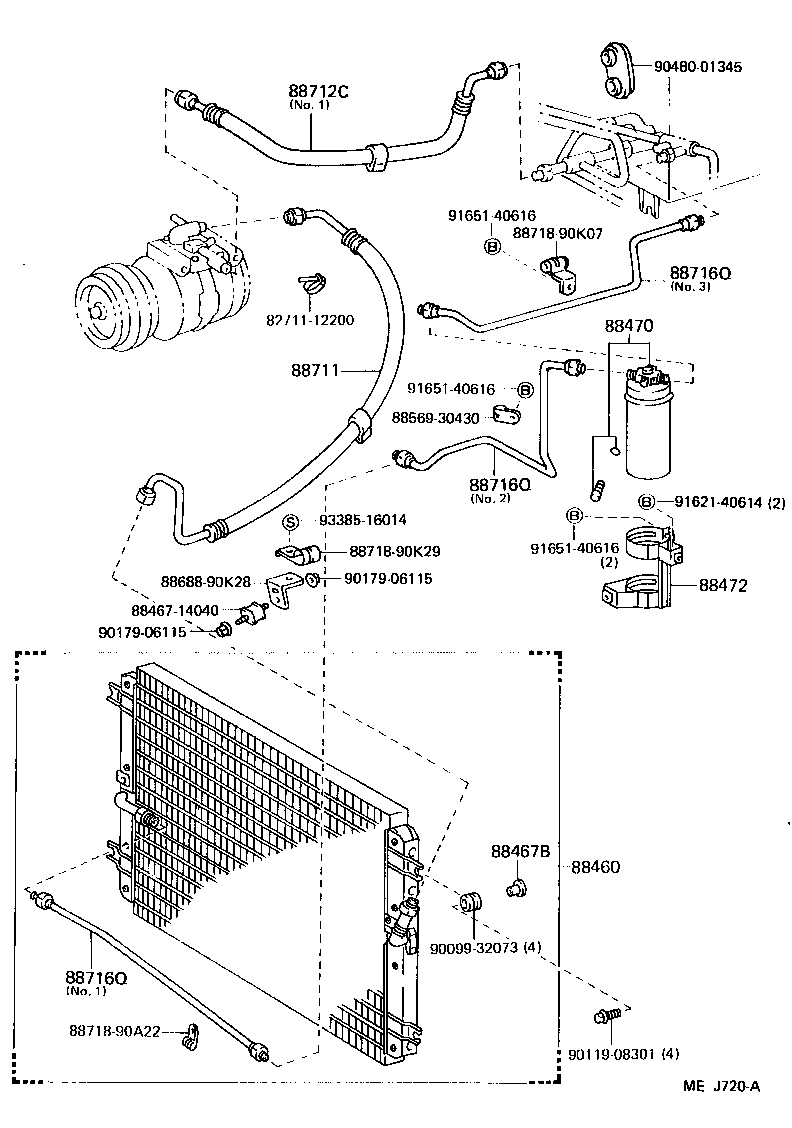

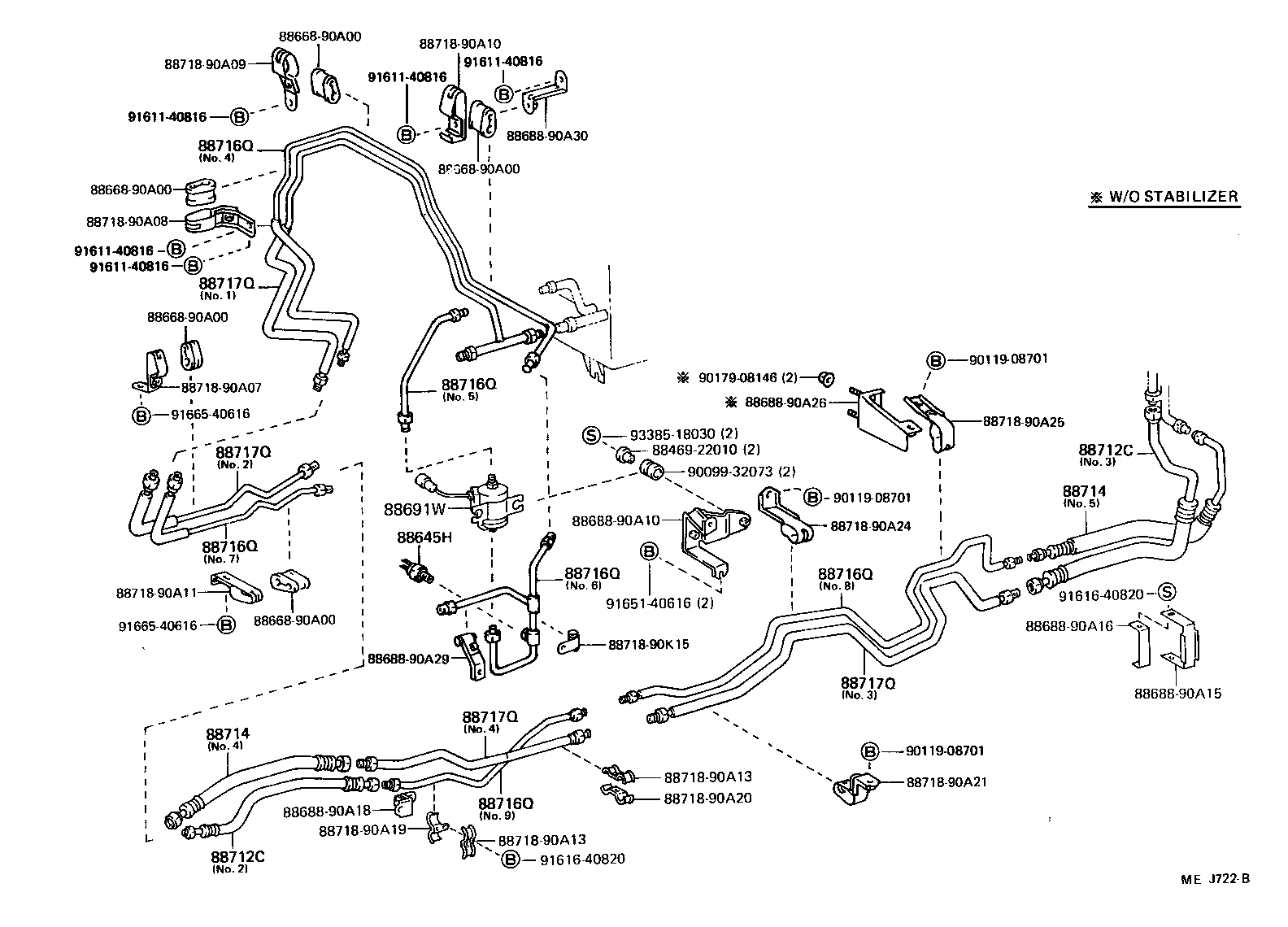

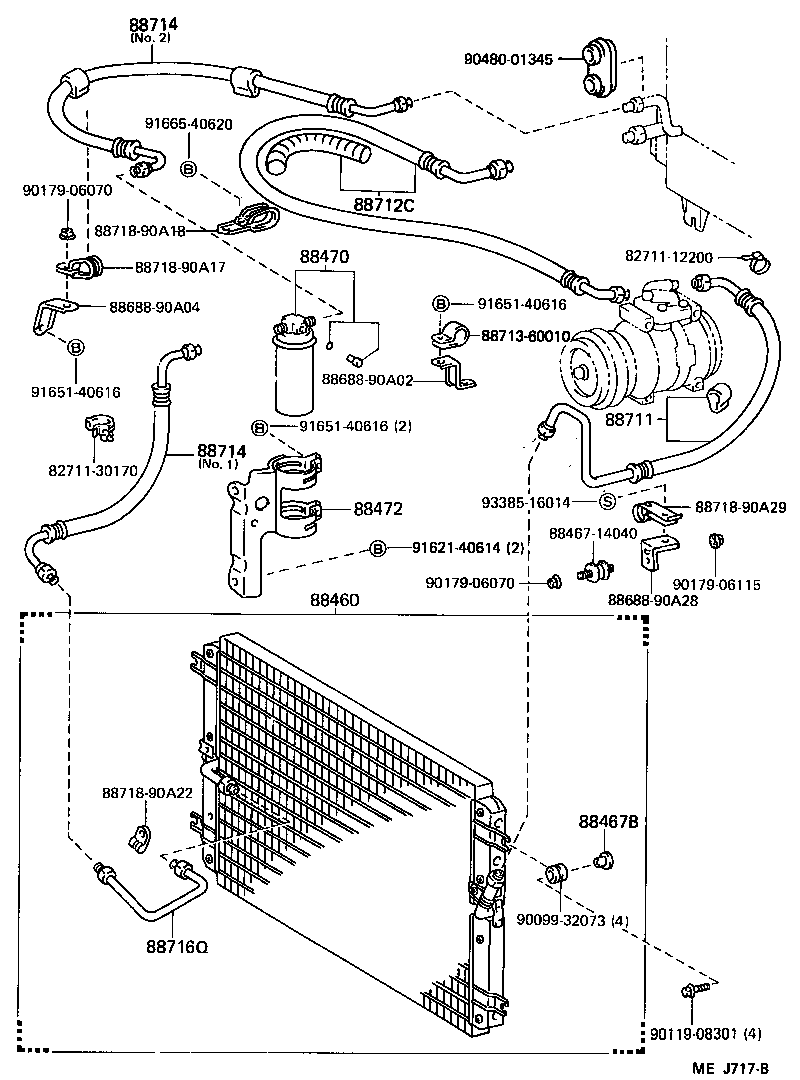

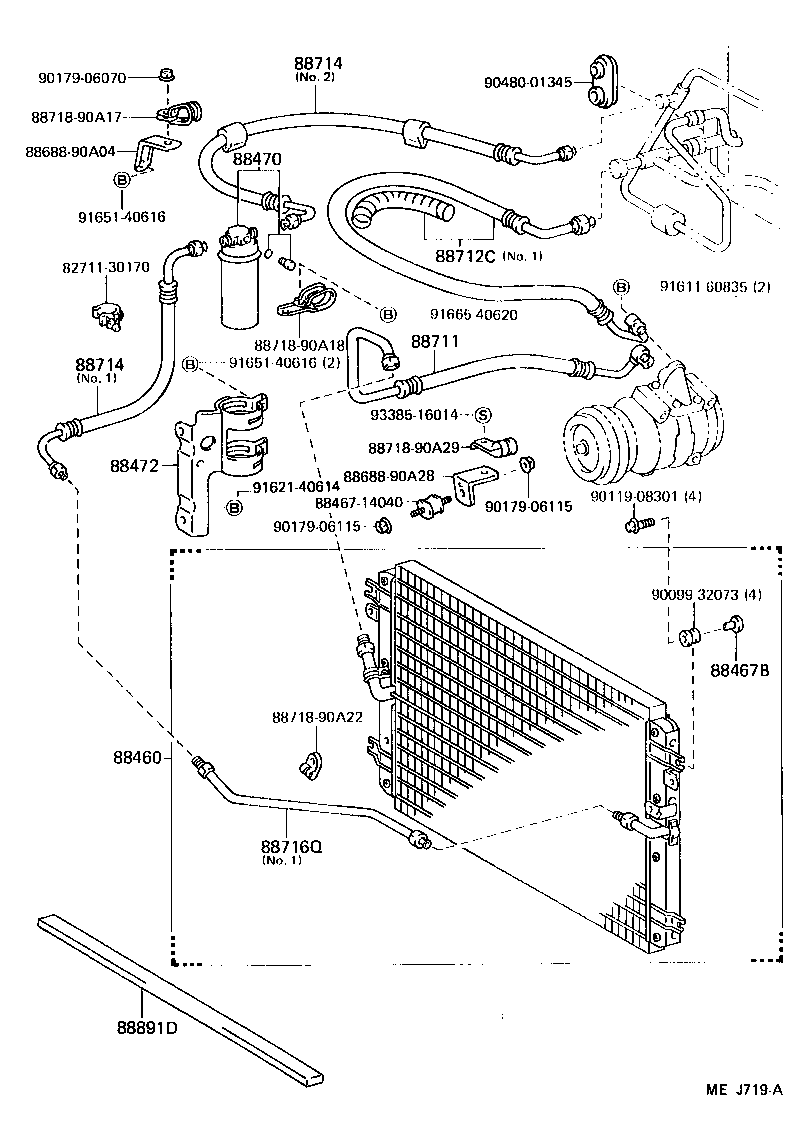

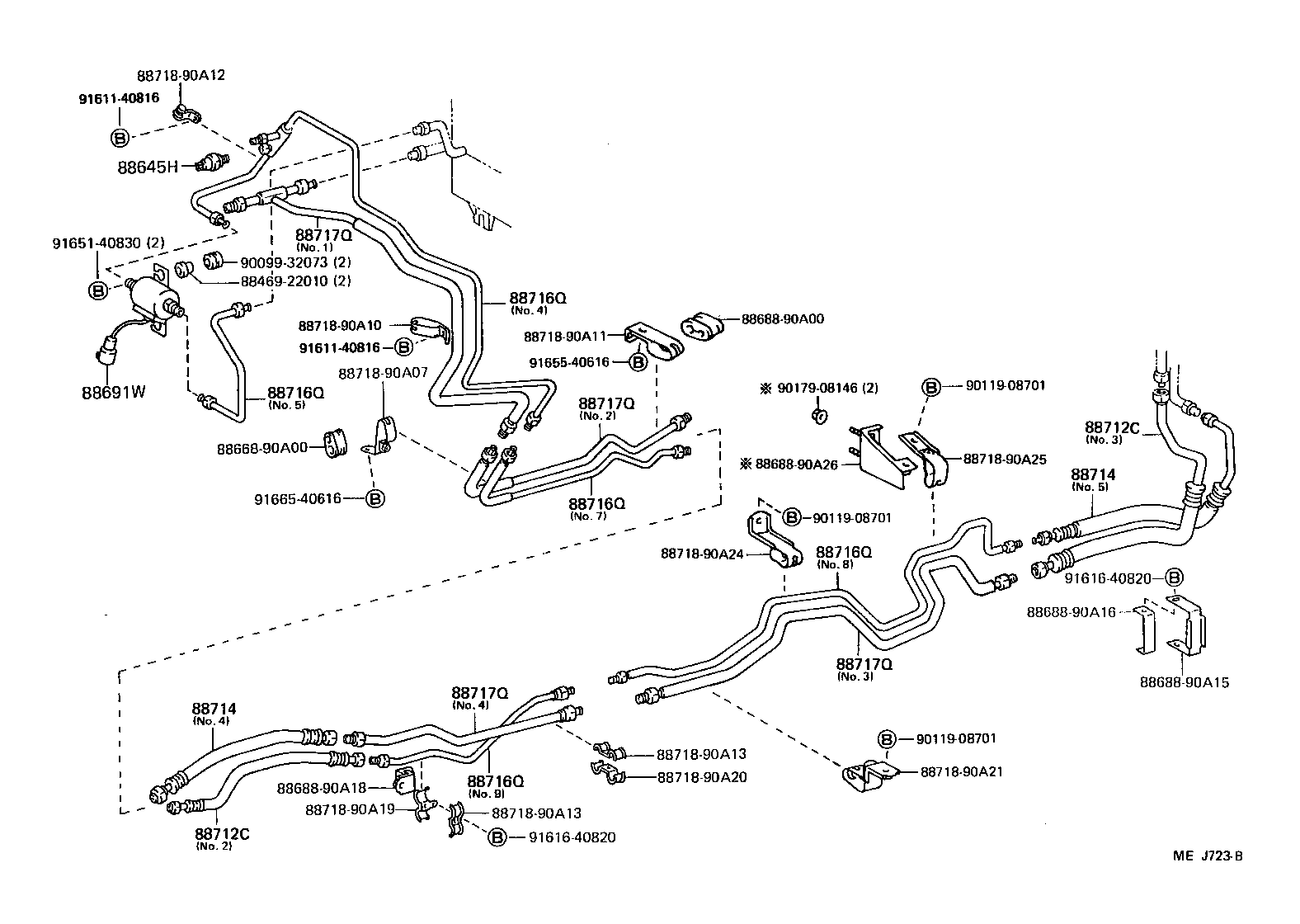

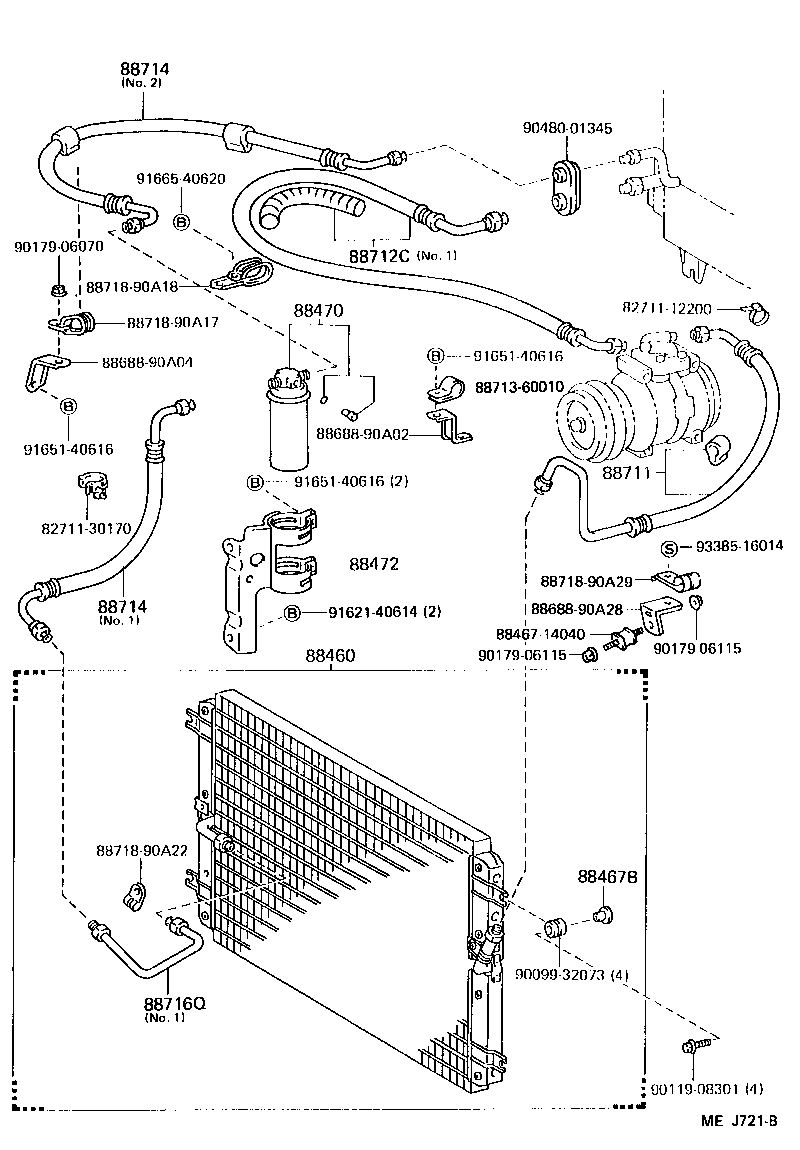

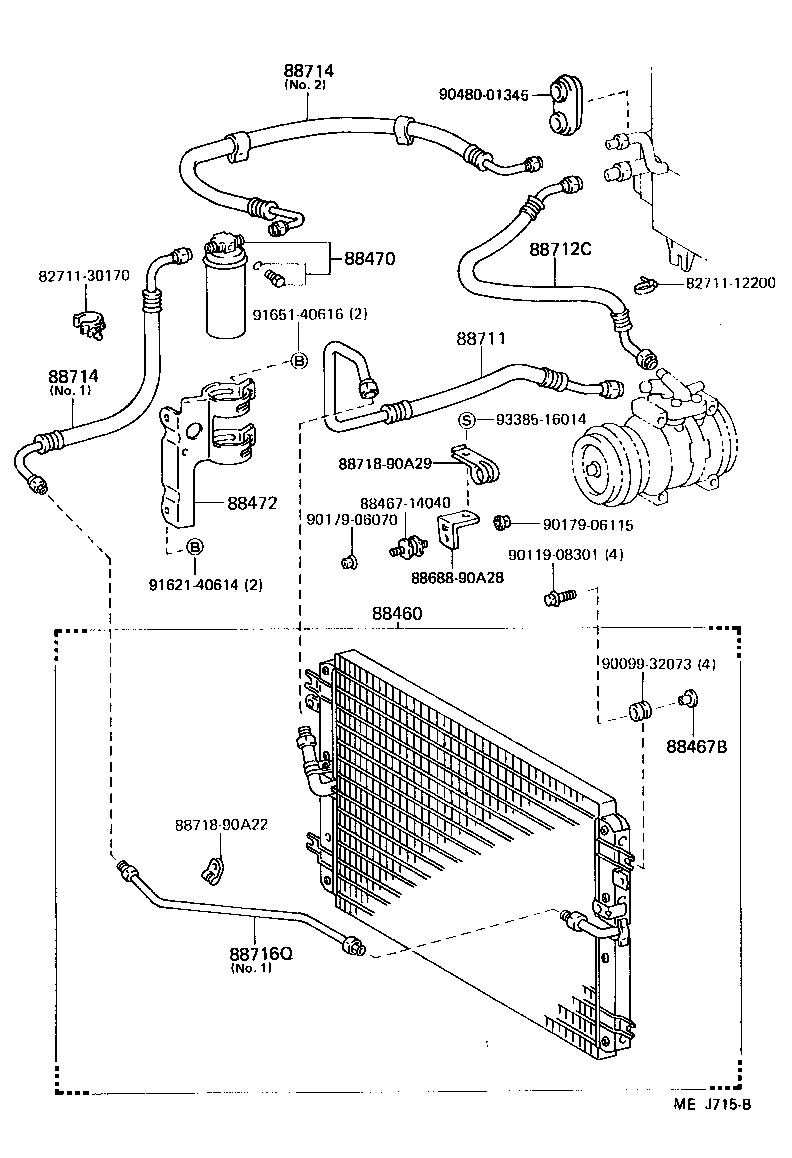

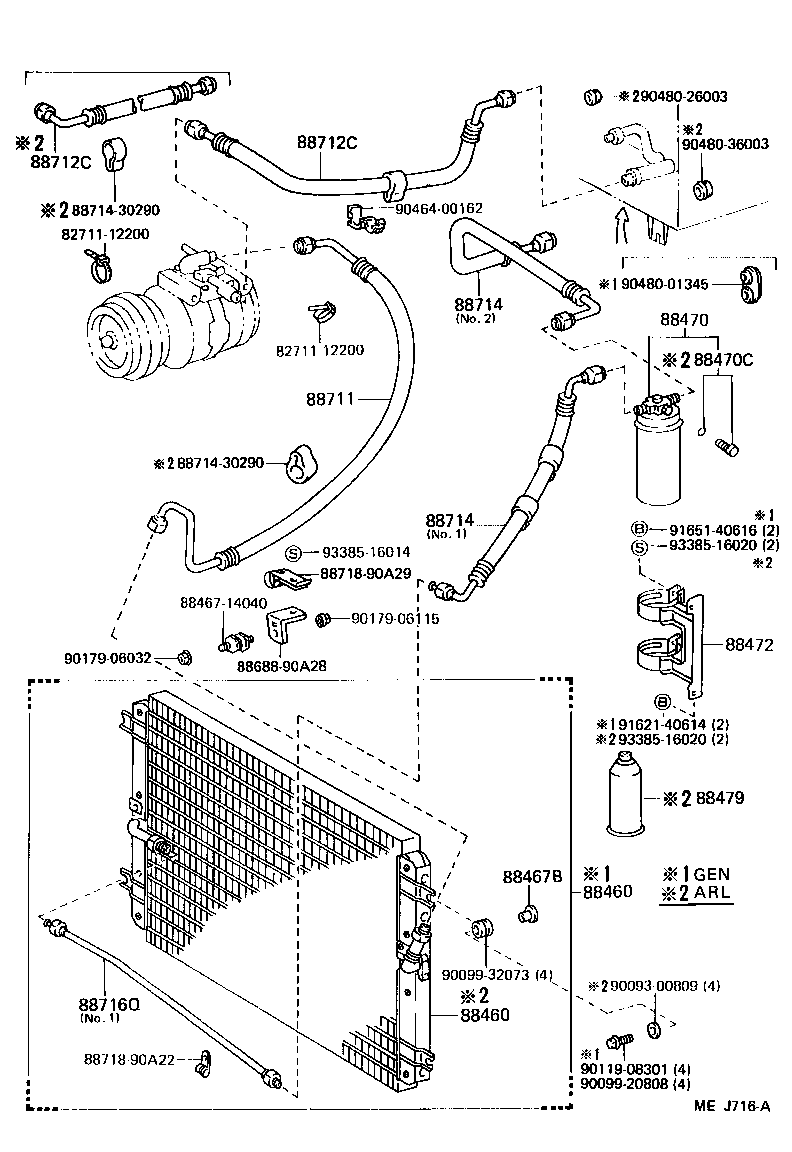

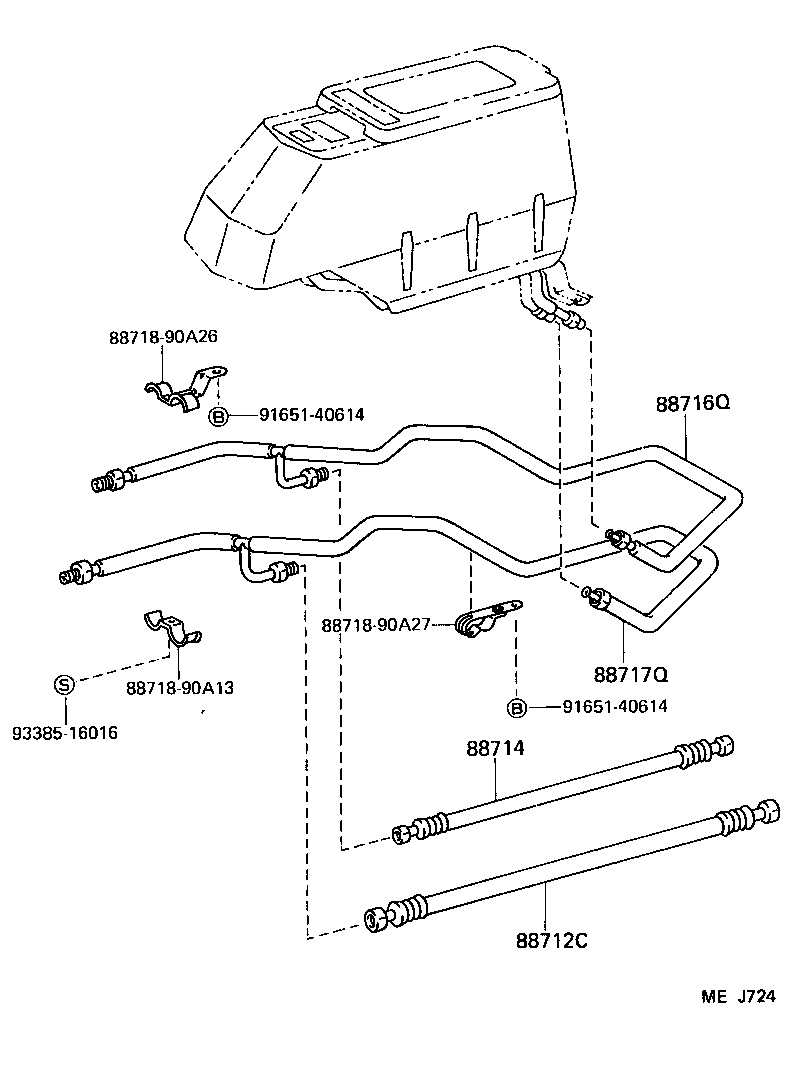

Figure MEJ712C MEJ712C 1987-08 → — Figure MEJ713A MEJ713A 1987-08 → — Figure MEJ714A MEJ714A 1987-08 → — Figure MEJ715B MEJ715B 1987-08 → — Figure MEJ716A MEJ716A 1987-08 → — Figure MEJ717B MEJ717B 1987-08 → — Figure MEJ718A MEJ718A 1987-08 → — Figure MEJ719A MEJ719A 1987-08 → — Figure MEJ720A MEJ720A 1987-08 → — Figure MEJ721B MEJ721B 1987-08 → — Figure MEJ722B MEJ722B 1987-08 → — Figure MEJ723B MEJ723B 1987-08 → — Figure MEJ724 MEJ724 1987-08 → —

Part groups

PNCDescription
88460 Condenser Assy, Cooler
88467B Insulator, Cooler Condenser Mounting
88470 Receiver & Dryer Assy, Cooler
88470C Bolt, Fuse
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88645H Switch, Pressure NO.1
88691W Valve, Magnet
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712C Hose, Suction
88714 Hose, Cooler Refrigerant Liquid, NO.1
88716Q Pipe, Cooler Refrigerant Liquid, Q
88717Q Pipe, Cooler Refrigerant Suction, Q
88891D Packing D (FOR COOLER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
