Toyota Land Cruiser
1990-01 → 2006-12 · chassis FJ80,HDJ80,HZJ80,FZJ80 · catalogue 791340 · General
Discontinued model
Data version 2007-10

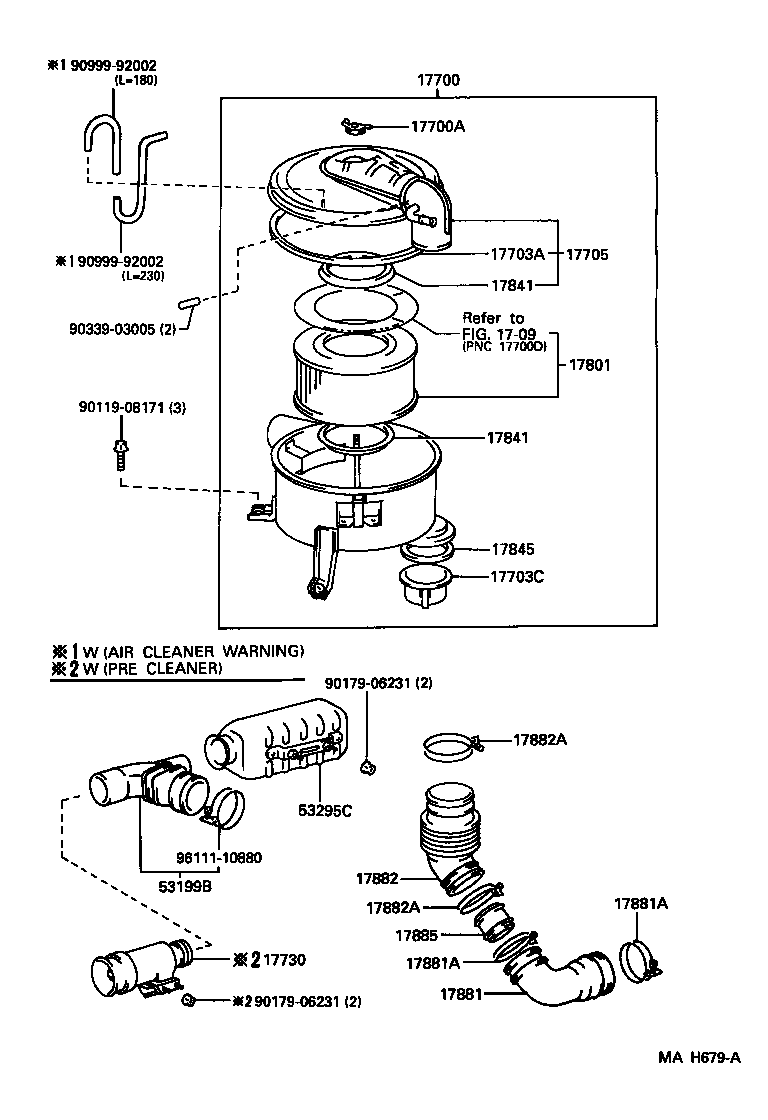

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17700 — Cleaner Assy, Air | ||||
| 17700-17030 |
Cleaner Assy, Air
1990-01 → 1992-08
ended
|
3F FJ80 | — | |
| 17700-17030 |
Cleaner Assy, Air
1990-01 → 1992-08
ended
|
1HZ HZJ80 | — | |
| 17700-17050 |
Cleaner Assy, Air
1990-01 → 1992-08
ended
|
1HDT HDJ80 | — | |
| 17700-61240 note |
Cleaner Assy, Air
1990-01 → 1990-05
ended
|
3F FJ80 GCC,GEN | — | |
| 17700-61240 note |
Cleaner Assy, Air
1990-01 → 1990-05
ended
|
3F FJ80 GX ARL | — | |
| 17700-61241 note |
Cleaner Assy, Air
1990-05 → 1992-01
ended
|
3F FJ80 GCC,GEN | — | |
| 17700-61241 note |
Cleaner Assy, Air
1990-05 → 1992-08
ended
|
3F FJ80 GX ARL | — | |
| 17700-61260 |
Cleaner Assy, Air
1990-01 → 1992-08
ended
|
3FE FJ80 | — | |
| 17700-66060 |
Cleaner Assy, Air
1992-01 → 1992-08
ended
|
1FZF FZJ80 | — | |
| 17700-66070 note |
Cleaner Assy, Air
1992-01 → 1992-08
ended
|
1FZF FZJ80 RHD STD;1FZF +3 | — | |
| 17700-66070 note |
Cleaner Assy, Air
1992-01 → 1992-08
ended
|
1FZF FZJ80 LHD SOB +2 | — | |
| 17700-17030 |
Cleaner Assy, Air
1992-08 → 1995-01
ended
|
1HZ HZJ80 | — | |
| 17700-17031 |
Cleaner Assy, Air
1995-01 → 2001-03
ended
|
1HZ HZJ80 | — | |
| 17700-17050 |
Cleaner Assy, Air
1992-08 → 1995-01
ended
|
1HDT HDJ80 | — | |
| 17700-17051 |
Cleaner Assy, Air
1995-01 → 1996-08
ended
|
1HDT HDJ80 | — | |
| 17700-17052 |
Cleaner Assy, Air
1996-08 → 2001-03
ended
|
1HDT HDJ80 | — | |
| 17700-17170 |
Cleaner Assy, Air
1995-01 → 1998-01
ended
|
1HDFT HDJ80 | — | |
| 17700-66060 |
Cleaner Assy, Air
1992-08 → 1995-01
ended
|
1FZF FZJ80 | — | |
| 17700-66061 |
Cleaner Assy, Air
1995-01 → 1999-01
ended
|
1FZF FZJ80 | — | |
| 17700-66070 note |
Cleaner Assy, Air
1994-01 → 1995-01
ended
|
1FZF FZJ80 (GX,VX) GEN;1FZF +4 | — | |
| 17700-66070 note |
Cleaner Assy, Air
1992-08 → 1994-01
ended
|
1FZF FZJ80 LHD SOB +2 | — | |
| 17700-66070 note |
Cleaner Assy, Air
1992-08 → 1994-01
ended
|
1FZF FZJ80 RHD STD;1FZF +3 | — | |
| 17700-66071 note |
Cleaner Assy, Air
1995-01 → 2001-09
ended
|
1FZF FZJ80 (GX,VX) GEN;1FZF +4 | — | |
| 17700-66090 |
Cleaner Assy, Air
1992-08 → 1995-01
ended
|
1FZFE FZJ80 | — | |
| 17700-66130 |
Cleaner Assy, Air
1995-01 → —
|
1FZFE FZJ80 | — | |
| 17700A — Nut, Wing(FOR AIR CLEANER) | ||||
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
1990-01 → 1992-08
ended
|
1FZF,3F# FJ80,FZJ80 | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
1990-01 → 1992-08
ended
|
1H# HDJ80,HZJ80 | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
1992-08 → 1998-01
ended
|
1HD#,1HZ HDJ80,HZJ80 | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
1998-01 → 2001-03
ended
|
1H# HDJ80,HZJ80 | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
1992-08 → —
|
1FZ# FZJ80 | — | |
| 17703A — Gasket(FOR BOTTOM AIR CLEANER FILTER CASE) | ||||
| 17845-61011 |
Gasket(FOR BOTTOM AIR CLEANER FILTER CASE)
1990-01 → 1992-08
ended
|
1H# HDJ80,HZJ80 | — | |
| 90430-98001 note |
Gasket(FOR BOTTOM AIR CLEANER FILTER CASE)
1990-01 → 1992-08
ended
|
3F FJ80 GX ARL | — | |
| 90430-98001 note |
Gasket(FOR BOTTOM AIR CLEANER FILTER CASE)
1990-01 → 1992-08
ended
|
3F FJ80 LHD STD +7 | — | |
| 90430-98001 note |
Gasket(FOR BOTTOM AIR CLEANER FILTER CASE)
1992-01 → 1992-08
ended
|
1FZF FZJ80 LHD SOB +2 | — | |
| 90430-98001 |
Gasket(FOR BOTTOM AIR CLEANER FILTER CASE)
1990-01 → 1992-08
ended
|
3F FZF,3F FJ80 FJ80,FZJ80 +18 | — | |
| 17845-61011 |
Gasket(FOR BOTTOM AIR CLEANER FILTER CASE)
1998-01 → 2001-03
ended
|
1H# HDJ80,HZJ80 | — | |
| 17845-61011 |
Gasket(FOR BOTTOM AIR CLEANER FILTER CASE)
1992-08 → 1998-01
ended
|
1HD#,1HZ HDJ80,HZJ80 | — | |
| 17845-68030 |
Gasket(FOR BOTTOM AIR CLEANER FILTER CASE)
1992-08 → —
|
1FZ# FZJ80 | — | |
| 90430-98001 note |
Gasket(FOR BOTTOM AIR CLEANER FILTER CASE)
1992-08 → 1993-04
ended
|
1FZF FZJ80 LHD SOB +2 | — | |
| 90430-98001 note |
Gasket(FOR BOTTOM AIR CLEANER FILTER CASE)
1992-08 → 1993-04
ended
|
1FZF FZJ80 RHD STD;1FZF +3 | — | |
| 17703C — Cap Sub-assy, Dust | ||||
| 17703-68010 |
Cap Sub-assy, Dust
1990-01 → 1992-08
ended
|
1H# HDJ80,HZJ80 | — | |
| 17703-68010 |
Cap Sub-assy, Dust
1992-01 → 1992-08
ended
|
1FZF FZJ80 | — | |
| 17703-17010 |
Cap Sub-assy, Dust
1995-01 → 1998-01
ended
|
1HD#,1HZ HDJ80,HZJ80 | — | |
| 17703-17010 |
Cap Sub-assy, Dust
1998-01 → 2001-03
ended
|
1H# HDJ80,HZJ80 | — | |
| 17703-17010 |
Cap Sub-assy, Dust
1995-01 → 2001-09
ended
|
1FZF FZJ80 | — | |
| 17703-66010 |
Cap Sub-assy, Dust
1992-08 → 1995-01
ended
|
1FZFE FZJ80 | — | |
| 17703-66020 |
Cap Sub-assy, Dust
1995-01 → —
|
1FZFE FZJ80 | — | |
| 17703-68010 |
Cap Sub-assy, Dust
1992-08 → 1995-01
ended
|
1FZF FZJ80 | — | |
| 17703-68010 |
Cap Sub-assy, Dust
1992-08 → 1995-01
ended
|
1H# HDJ80,HZJ80 | — | |
| 17705 — Cap Sub-assy, Air Cleaner | ||||
| 17705-17010 |
Cap Sub-assy, Air Cleaner
1990-01 → 1992-08
ended
|
1HDT HDJ80 | — | |
| 17705-17020 |
Cap Sub-assy, Air Cleaner
1990-01 → 1992-08
ended
|
3F FJ80 | — | |
| 17705-17020 |
Cap Sub-assy, Air Cleaner
1990-01 → 1992-08
ended
|
1HZ HZJ80 | — | |
| 17705-61140 note |
Cap Sub-assy, Air Cleaner
1990-01 → 1992-01
ended
|
3F FJ80 GCC,GEN | — | |
| 17705-61140 note |
Cap Sub-assy, Air Cleaner
1990-01 → 1992-08
ended
|
3F FJ80 GX ARL | — | |
| 17705-61160 |
Cap Sub-assy, Air Cleaner
1990-01 → 1992-08
ended
|
3FE FJ80 | — | |
| 17705-66040 |
Cap Sub-assy, Air Cleaner
1992-01 → 1992-08
ended
|
1FZF FZJ80 | — | |
| 17705-66050 note |
Cap Sub-assy, Air Cleaner
1992-01 → 1992-08
ended
|
1FZF FZJ80 LHD SOB +2 | — | |
| 17705-66050 note |
Cap Sub-assy, Air Cleaner
1992-01 → 1992-08
ended
|
1FZF FZJ80 RHD STD;1FZF +3 | — | |
| 17705-17010 |
Cap Sub-assy, Air Cleaner
1992-08 → 2001-03
ended
|
1HDT HDJ80 | — | |
| 17705-17020 |
Cap Sub-assy, Air Cleaner
1992-08 → 2001-03
ended
|
1HZ HZJ80 | — | |
| 17705-17110 |
Cap Sub-assy, Air Cleaner
1995-01 → 1998-01
ended
|
1HDFT HDJ80 | — | |
| 17705-66040 |
Cap Sub-assy, Air Cleaner
1992-08 → 1999-01
ended
|
1FZF FZJ80 | — | |
| 17705-66050 note |
Cap Sub-assy, Air Cleaner
1992-08 → 1994-01
ended
|
1FZF FZJ80 RHD STD;1FZF +3 | — | |
| 17705-66050 note |
Cap Sub-assy, Air Cleaner
1992-08 → 1994-01
ended
|
1FZF FZJ80 LHD SOB +2 | — | |
| 17705-66050 note |
Cap Sub-assy, Air Cleaner
1994-01 → 2001-09
ended
|
1FZF FZJ80 (GX,VX) GEN;1FZF +4 | — | |
| 17705-66080 |
Cap Sub-assy, Air Cleaner
1992-08 → 1995-01
ended
|
1FZFE FZJ80 | — | |
| 17705-66100 |
Cap Sub-assy, Air Cleaner
1995-01 → —
|
1FZFE FZJ80 | — | |
| 17730 — Precleaner Assy, Air W/Hose | ||||
| 17730-17010 |
Precleaner Assy, Air W/Hose
1990-01 → 1992-08
ended
|
3F# FJ80 ARL;1FZF FZJ80 +2 | — | |
| 17730-17010 note |
Precleaner Assy, Air W/Hose
1992-01 → 1992-08
ended
|
1FZF FZJ80 LHD SOB +2 | — | |
| 17730-17010 note |
Precleaner Assy, Air W/Hose
1990-01 → 1992-08
ended
|
3F FJ80 GCC,GEN;1FZF FZJ80 +7 | — | |
| 17730-17010 note |
Precleaner Assy, Air W/Hose
1990-01 → 1992-08
ended
|
1HZ HZJ80 GCC,GEN | — | |
| 17730-17010 |
Precleaner Assy, Air W/Hose
1990-01 → 1992-08
ended
|
1HDT HDJ80;1HZ HZJ80 ARL | — | |
| 17730-17020 note |
Precleaner Assy, Air W/Hose
1990-01 → 1992-08
ended
|
1HZ HZJ80 GCC,GEN | — | |
| 17730-17020 note |
Precleaner Assy, Air W/Hose
1990-01 → 1992-08
ended
|
1FZF,3F FJ80,FZJ80 GCC,GEN | — | |
| 17730-17010 |
Precleaner Assy, Air W/Hose
1995-01 → 1998-01
ended
|
1HDT HDJ80 LHD;1HDT HDJ80 +5 | — | |
| 17730-17010 |
Precleaner Assy, Air W/Hose
1995-01 → —
|
1FZFE FZJ80;1FZF FZJ80 GCC;1FZF +3 | — | |
| 17730-17010 |
Precleaner Assy, Air W/Hose
1998-01 → 1999-01
ended
|
1HDT HDJ80 5F | — | |
| 17730-17010 note |
Precleaner Assy, Air W/Hose
1995-01 → 1999-01
ended
|
1HZ HZJ80 5F GEN;1HZ +3 | — | |
| 17730-17010 note |
Precleaner Assy, Air W/Hose
1995-01 → 1999-01
ended
|
1FZF FZJ80 (GX,VX) GEN;1FZF +4 | — | |
| 17730-17010 note |
Precleaner Assy, Air W/Hose
1994-01 → 1995-01
ended
|
1FZF FZJ80 SOB STD;1FZ# +3 | — | |
| 17730-17010 note |
Precleaner Assy, Air W/Hose
1992-08 → 1995-01
ended
|
1HZ HZJ80 GCC,GEN | — | |
| 17730-17010 |
Precleaner Assy, Air W/Hose
1992-08 → 1995-01
ended
|
1HDT HDJ80;1HZ HZJ80 ARL | — | |
| 17730-17010 |
Precleaner Assy, Air W/Hose
1992-08 → 1995-01
ended
|
1FZFE FZJ80 ARL;1FZF FZJ80 +2 | — | |
| 17730-17010 note |
Precleaner Assy, Air W/Hose
1992-08 → 1994-01
ended
|
1FZF FZJ80 LHD SOB +2 | — | |
| 17730-17010 note |
Precleaner Assy, Air W/Hose
1992-08 → 1994-01
ended
|
1FZF FZJ80 RHD STD;1FZF +6 | — | |
| 17730-17020 note |
Precleaner Assy, Air W/Hose
1992-08 → 1995-01
ended
|
1HZ HZJ80 GCC,GEN | — | |
| 17730-17020 note |
Precleaner Assy, Air W/Hose
1992-08 → 1995-01
ended
|
1FZFE FZJ80 LHD | — | |
| 17730-17020 note |
Precleaner Assy, Air W/Hose
1995-01 → 1999-01
ended
|
1FZF FZJ80 GX,STD;1FZF FZJ80 +2 | — | |
| 17730-17020 note |
Precleaner Assy, Air W/Hose
1995-01 → 1999-01
ended
|
1HZ HZJ80 STD ARL;1HZ +3 | — | |
| 17730-17020 note |
Precleaner Assy, Air W/Hose
1992-08 → 1995-01
ended
|
1FZF FZJ80 | — | |
| 17801 — Element Sub-assy, Air Cleaner Filter | ||||
| 17801-61030 |
Element Sub-assy, Air Cleaner Filter
1990-01 → 1992-08
ended
|
1FZF,3F# FJ80,FZJ80 | — | |
| 17801-61030 |
Element Sub-assy, Air Cleaner Filter
1990-01 → 1992-08
ended
|
1H# HDJ80,HZJ80 | — | |
| 17801-61030 |
Element Sub-assy, Air Cleaner Filter
1992-08 → 1998-01
ended
|
1HD#,1HZ HDJ80,HZJ80 | — | |
| 17801-61030 |
Element Sub-assy, Air Cleaner Filter
1998-01 → 2001-03
ended
|
1H# HDJ80,HZJ80 | — | |
| 17801-61030 |
Element Sub-assy, Air Cleaner Filter
1992-08 → —
|
1FZ# FZJ80 | — | |
| 17841 — Gasket, Filter Element | ||||
| 17841-68010 |
Gasket, Filter Element
1990-01 → 1992-08
ended
|
1FZF,3F# FJ80,FZJ80 | — | |
| 17841-68010 |
Gasket, Filter Element
1990-01 → 1992-08
ended
|
1H# HDJ80,HZJ80 | — | |
| 17841-68010 |
Gasket, Filter Element
1992-08 → 1998-01
ended
|
1HD#,1HZ HDJ80,HZJ80 | — | |
| 17841-68010 |
Gasket, Filter Element
1998-01 → 2001-03
ended
|
1H# HDJ80,HZJ80 | — | |
| 17841-68010 |
Gasket, Filter Element
1992-08 → —
|
1FZ# FZJ80 | — | |
| 17845 — Gasket, Air Cleaner Cap | ||||
| 17845-61011 note |
Gasket, Air Cleaner Cap
1990-01 → 1992-08
ended
|
3F FJ80 | — | |
| 17845-61011 |
Gasket, Air Cleaner Cap
1990-01 → 1992-08
ended
|
3FE FJ80 | — | |
| 17845-61011 note |
Gasket, Air Cleaner Cap
1990-01 → 1992-08
ended
|
3F FJ80 GX ARL | — | |
| 17845-61011 note |
Gasket, Air Cleaner Cap
1990-01 → 1992-08
ended
|
3F FJ80 GCC,GEN;1FZF FZJ80 +5 | — | |
| 17845-61011 note |
Gasket, Air Cleaner Cap
1992-01 → 1992-08
ended
|
1FZF FZJ80 | — | |
| 17845-61011 note |
Gasket, Air Cleaner Cap
1992-01 → 1992-08
ended
|
1FZF FZJ80 LHD SOB +2 | — | |
| 17845-68030 note |
Gasket, Air Cleaner Cap
1990-01 → 1992-08
ended
|
3F FJ80 | — | |
| 17845-68030 |
Gasket, Air Cleaner Cap
1990-01 → 1992-08
ended
|
1H# HDJ80,HZJ80 | — | |
| 17845-68030 note |
Gasket, Air Cleaner Cap
1992-01 → 1992-08
ended
|
1FZF FZJ80 | — | |
| 17845-61011 |
Gasket, Air Cleaner Cap
1992-08 → 1995-01
ended
|
1FZFE FZJ80 GX,VX | — | |
| 17845-61011 note |
Gasket, Air Cleaner Cap
1992-08 → 2001-09
ended
|
1FZF FZJ80 LHD SOB +2 | — | |
| 17845-61011 note |
Gasket, Air Cleaner Cap
1992-08 → 1998-01
ended
|
1FZF FZJ80 RHD STD;1FZF +3 | — | |
| 17845-61011 |
Gasket, Air Cleaner Cap
1992-08 → 1998-01
ended
|
1FZF FZJ80 GCC;1FZF FZJ80 +5 | — | |
| 17845-68010 |
Gasket, Air Cleaner Cap
1995-01 → 2006-12
ended
|
1FZFE FZJ80 | — | |
| 17845-68030 |
Gasket, Air Cleaner Cap
1992-08 → 1998-01
ended
|
1HD#,1HZ HDJ80,HZJ80 | — | |
| 17845-68030 |
Gasket, Air Cleaner Cap
1998-01 → 2001-03
ended
|
1H# HDJ80,HZJ80 | — | |
| 17881 — Hose, Air Cleaner, NO.1 | ||||
| 17880-61040 |
Hose, Air Cleaner, NO.1
1990-01 → 1992-08
ended
|
3F FJ80 | — | |
| 17881-17010 |
Hose, Air Cleaner, NO.1
1990-01 → 1992-08
ended
|
1HDT HDJ80 | — | |
| 17881-17020 |
Hose, Air Cleaner, NO.1
1990-01 → 1992-08
ended
|
1HZ HZJ80 | — | |
| 17881-61110 |
Hose, Air Cleaner, NO.1
1990-01 → 1992-08
ended
|
3FE FJ80 | — | |
| 17881-66050 |
Hose, Air Cleaner, NO.1
1992-01 → 1992-08
ended
|
1FZF FZJ80 VX GEN;1FZF +7 | — | |
| 17881-66050 note |
Hose, Air Cleaner, NO.1
1992-01 → 1992-08
ended
|
1FZF FZJ80 LHD LUB +2 | — | |
| 17881-66050 note |
Hose, Air Cleaner, NO.1
1992-01 → 1992-08
ended
|
1FZF FZJ80 LHD SOB +2 | — | |
| 17881-17010 |
Hose, Air Cleaner, NO.1
1998-01 → 2001-03
ended
|
1HDT HDJ80 | — | |
| 17881-17010 |
Hose, Air Cleaner, NO.1
1992-08 → 1998-01
ended
|
1HD# HDJ80 | — | |
| 17881-17020 |
Hose, Air Cleaner, NO.1
1992-08 → 2001-03
ended
|
1HZ HZJ80 | — | |
| 17881-66050 note |
Hose, Air Cleaner, NO.1
1992-08 → 1994-01
ended
|
1FZF FZJ80 LHD SOB +2 | — | |
| 17881-66050 |
Hose, Air Cleaner, NO.1
1992-08 → 1998-01
ended
|
1FZF FZJ80 VX GEN;1FZF +7 | — | |
| 17881-66050 note |
Hose, Air Cleaner, NO.1
1994-01 → 2001-09
ended
|
1FZF FZJ80 LHD LUB +7 | — | |
| 17881-66050 note |
Hose, Air Cleaner, NO.1
1992-08 → 1994-01
ended
|
1FZF FZJ80 LHD LUB +2 | — | |
| 17881A — Clamp(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-88003 note |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1990-01 → 1992-08
ended
|
3F FJ80 | — | |
| 96111-10460 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1992-01 → 1992-08
ended
|
1FZF FZJ80 VX GEN;1FZF +7 | — | |
| 96111-10460 note |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1992-01 → 1992-08
ended
|
1FZF FZJ80 LHD LUB +2 | — | |
| 96111-10460 note |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1992-01 → 1992-08
ended
|
1FZF FZJ80 LHD SOB +2 | — | |
| 96111-10780 note |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1990-01 → 1992-08
ended
|
1HDT HDJ80 | — | |
| 96111-10800 note |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1990-01 → 1992-08
ended
|
1HDT HDJ80 | — | |
| 96111-10800 note |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1990-01 → 1992-08
ended
|
3F FJ80 | — | |
| 96111-10800 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1990-01 → 1992-08
ended
|
1HZ HZJ80 | — | |
| 96111-10900 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1990-01 → 1992-08
ended
|
3FE FJ80 | — | |
| 96111-10460 note |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1992-08 → 1994-01
ended
|
1FZF FZJ80 LHD LUB +2 | — | |
| 96111-10460 note |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1994-01 → 2001-09
ended
|
1FZF FZJ80 LHD LUB +7 | — | |
| 96111-10460 note |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1992-08 → 1994-01
ended
|
1FZF FZJ80 LHD SOB +2 | — | |
| 96111-10460 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1992-08 → 1998-01
ended
|
1FZF FZJ80 VX GEN;1FZF +7 | — | |
| 96111-10780 note |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1992-08 → 1998-01
ended
|
1HD# HDJ80 | — | |
| 96111-10780 note |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1998-01 → 2001-03
ended
|
1HDT HDJ80 | — | |
| 96111-10800 note |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1992-08 → 1998-01
ended
|
1HD# HDJ80 | — | |
| 96111-10800 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1992-08 → 2001-03
ended
|
1HZ HZJ80 | — | |
| 96111-10800 note |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1998-01 → 2001-03
ended
|
1HDT HDJ80 | — | |
| 17882 — Hose, Air Cleaner, NO.2 | ||||
| 17881-66030 |
Hose, Air Cleaner, NO.2
1992-01 → 1992-08
ended
|
1FZF FZJ80 | — | |
| 17882-17010 |
Hose, Air Cleaner, NO.2
1990-01 → 1992-08
ended
|
1HDT HDJ80 | — | |
| 17882-61060 |
Hose, Air Cleaner, NO.2
1990-01 → 1992-08
ended
|
3F FJ80 | — | |
| 17882-61080 |
Hose, Air Cleaner, NO.2
1990-01 → 1992-08
ended
|
3FE FJ80 | — | |
| 17881-66030 |
Hose, Air Cleaner, NO.2
1992-08 → 2001-09
ended
|
1FZF FZJ80 | — | |
| 17881-66060 |
Hose, Air Cleaner, NO.2
1992-08 → 1995-01
ended
|
1FZFE FZJ80 | — | |
| 17881-66080 |
Hose, Air Cleaner, NO.2
1995-01 → —
|
1FZFE FZJ80 | — | |
| 17882-17010 |
Hose, Air Cleaner, NO.2
1998-01 → 2001-03
ended
|
1HDT HDJ80 | — | |
| 17882-17010 |
Hose, Air Cleaner, NO.2
1992-08 → 1998-01
ended
|
1HD# HDJ80 | — | |
| 17882A — Clamp(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1990-01 → 1992-08
ended
|
1HDT HDJ80 | — | |
| 96111-10830 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1992-01 → 1992-08
ended
|
1FZF FZJ80 | — | |
| 96111-10900 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1990-01 → 1992-08
ended
|
1HDT HDJ80 | — | |
| 96111-10900 |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1990-01 → 1992-08
ended
|
3FE FJ80 | — | |
| 96111-10930 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1992-01 → 1992-08
ended
|
1FZF FZJ80 | — | |
| 96111-10780 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1998-01 → 2001-03
ended
|
1HDT HDJ80 | — | |
| 96111-10780 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1992-08 → 1998-01
ended
|
1HD# HDJ80 | — | |
| 96111-10800 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1992-08 → 2001-09
ended
|
1FZF FZJ80 | — | |
| 96111-10900 |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1993-05 → 1995-01
ended
|
1FZFE FZJ80 | — | |
| 96111-10900 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1992-08 → 1998-01
ended
|
1HD# HDJ80 | — | |
| 96111-10900 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1992-08 → 1993-05
ended
|
1FZFE FZJ80 | — | |
| 96111-10900 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1998-01 → 2001-03
ended
|
1HDT HDJ80 | — | |
| 96111-10900 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1993-05 → 2001-09
ended
|
1FZF FZJ80 | — | |
| 96111-10900 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1995-01 → —
|
1FZFE FZJ80 | — | |
| 96111-10930 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1992-08 → 1993-05
ended
|
1FZ# FZJ80 | — | |
| 96111-10930 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1995-01 → —
|
1FZFE FZJ80 | — | |
| 17885 — Pipe, Air Cleaner | ||||
| 17885-17010 |
Pipe, Air Cleaner
1990-01 → 1992-08
ended
|
1HDT HDJ80 | — | |
| 17885-17010 |
Pipe, Air Cleaner
1992-08 → 1998-01
ended
|
1HD# HDJ80 | — | |
| 17885-17010 |
Pipe, Air Cleaner
1998-01 → 2001-03
ended
|
1HDT HDJ80 | — | |
| 53199B — Duct Sub-assy, Cool Air Intake | ||||
| 53207-60010 |
Duct Sub-assy, Cool Air Intake
1990-01 → 1992-08
ended
|
FJ80 | — | |
| 53207-60020 note |
Duct Sub-assy, Cool Air Intake
1990-01 → 1991-08
ended
|
FJ80 GX ARL CBR | — | |
| 53207-60020 note |
Duct Sub-assy, Cool Air Intake
1990-01 → 1991-08
ended
|
FJ80 GCC,GEN | — | |
| 53207-60020 note |
Duct Sub-assy, Cool Air Intake
1991-08 → 1992-08
ended
|
FJ80 (GX,VX) CBR;FJ80 STD +1 | — | |
| 53207-60030 |
Duct Sub-assy, Cool Air Intake
1990-01 → 1992-08
ended
|
HDJ80,HZJ80 | — | |
| 53207-60040 note |
Duct Sub-assy, Cool Air Intake
1990-01 → 1990-04
ended
|
FJ80 GCC,GEN | — | |
| 53207-60040 note |
Duct Sub-assy, Cool Air Intake
1990-03 → 1990-04
ended
|
HZJ80 GCC,GEN | — | |
| 53207-60040 note |
Duct Sub-assy, Cool Air Intake
1990-01 → 1990-03
ended
|
HDJ80,HZJ80 GCC,GEN | — | |
| 53207-60041 note |
Duct Sub-assy, Cool Air Intake
1990-04 → 1992-08
ended
|
HZJ80 GCC,GEN | — | |
| 53207-60041 note |
Duct Sub-assy, Cool Air Intake
1990-04 → 1992-08
ended
|
FJ80,FZJ80 GCC,GEN | — | |
| 53207-60080 note |
Duct Sub-assy, Cool Air Intake
1990-01 → 1992-08
ended
|
FJ80 | — | |
| 53207-60090 note |
Duct Sub-assy, Cool Air Intake
1990-01 → 1992-08
ended
|
HDJ80,HZJ80 | — | |
| 53207-60100 |
Duct Sub-assy, Cool Air Intake
1992-01 → 1992-08
ended
|
FZJ80 GX,VX;FZJ80 SOB STD | — | |
| 53207-60110 note |
Duct Sub-assy, Cool Air Intake
1992-01 → 1992-08
ended
|
FZJ80 (GX,VX) GEN;FZJ80 SOB +2 | — | |
| 53207-60120 note |
Duct Sub-assy, Cool Air Intake
1992-01 → 1992-08
ended
|
FZJ80 GX,VX;FZJ80 SOB STD | — | |
| 53207-60120 |
Duct Sub-assy, Cool Air Intake
1992-01 → 1992-08
ended
|
FZJ80 LUB STD | — | |
| 53207-60130 note |
Duct Sub-assy, Cool Air Intake
1992-01 → 1992-08
ended
|
FZJ80 LHD SOB STD +1 | — | |
| 53207-60041 note |
Duct Sub-assy, Cool Air Intake
1992-08 → 1995-01
ended
|
FZJ80 LHD EFI | — | |
| 53207-60041 note |
Duct Sub-assy, Cool Air Intake
1992-08 → 1995-01
ended
|
FZJ80 CBR | — | |
| 53207-60041 note |
Duct Sub-assy, Cool Air Intake
1992-08 → 1995-01
ended
|
HZJ80 GCC,GEN | — | |
| 53207-60041 note |
Duct Sub-assy, Cool Air Intake
1995-01 → 1998-01
ended
|
FZJ80 VX GEN CBR;FZJ80 +2 | — | |
| 53207-60041 note |
Duct Sub-assy, Cool Air Intake
1995-01 → 1998-01
ended
|
HZJ80 STD ARL;HZJ80 5F +1 | — | |
| 53207-60101 |
Duct Sub-assy, Cool Air Intake
1992-08 → 1995-01
ended
|
HDJ80,HZJ80 | — | |
| 53207-60101 |
Duct Sub-assy, Cool Air Intake
1992-08 → 1995-01
ended
|
FZJ80 GX,VX;FZJ80 SOB STD | — | |
| 53207-60101 |
Duct Sub-assy, Cool Air Intake
1995-01 → 1999-01
ended
|
FZJ80 STD EFI;FZJ80 SOB +4 | — | |
| 53207-60101 |
Duct Sub-assy, Cool Air Intake
1995-01 → 2001-03
ended
|
HDJ80,HZJ80 ARL,GEN | — | |
| 53207-60101 |
Duct Sub-assy, Cool Air Intake
1999-01 → 1999-09
ended
|
FZJ80 EFI | — | |
| 53207-60111 note |
Duct Sub-assy, Cool Air Intake
1992-08 → 2001-09
ended
|
FZJ80 SOB STD GEN;FZJ80 +3 | — | |
| 53207-60121 note |
Duct Sub-assy, Cool Air Intake
1998-01 → 1999-01
ended
|
HZJ80 5F | — | |
| 53207-60121 note |
Duct Sub-assy, Cool Air Intake
1995-01 → 1998-01
ended
|
HDJ80 TD4;HDJ80 LHD;HDJ80 RHD +4 | — | |
| 53207-60121 |
Duct Sub-assy, Cool Air Intake
1995-01 → —
|
FZJ80 GCC;FZJ80 4FC STD;FZJ80 +3 | — | |
| 53207-60121 note |
Duct Sub-assy, Cool Air Intake
1999-09 → —
|
FZJ80 5F EFI;FZJ80 4FC +1 | — | |
| 53207-60121 note |
Duct Sub-assy, Cool Air Intake
1995-01 → 1999-01
ended
|
FZJ80 STD EFI;FZJ80 SOB +4 | — | |
| 53207-60121 |
Duct Sub-assy, Cool Air Intake
1995-01 → 1998-01
ended
|
HZJ80 GCC | — | |
| 53207-60121 note |
Duct Sub-assy, Cool Air Intake
1992-08 → 1995-01
ended
|
FZJ80 GX,VX;FZJ80 SOB STD | — | |
| 53207-60121 note |
Duct Sub-assy, Cool Air Intake
1992-08 → 1995-01
ended
|
HDJ80,HZJ80 | — | |
| 53207-60121 |
Duct Sub-assy, Cool Air Intake
1992-08 → 1995-01
ended
|
FZJ80 LUB STD | — | |
| 53207-60131 note |
Duct Sub-assy, Cool Air Intake
1992-08 → 1994-01
ended
|
FZJ80 LHD SOB STD +1 | — | |
| 53295C — Silencer, Cool Air Intake | ||||
| 53295-60010 |
Silencer, Cool Air Intake
1990-01 → 1992-08
ended
|
HZJ80 | — | |
| 53295-60020 |
Silencer, Cool Air Intake
1990-01 → 1992-08
ended
|
HDJ80 | — | |
| 53295-60010 |
Silencer, Cool Air Intake
1992-08 → 2001-03
ended
|
HZJ80 | — | |
| 53295-60010 |
Silencer, Cool Air Intake
1992-08 → —
|
FZJ80 | — | |
| 53295-60020 |
Silencer, Cool Air Intake
1992-08 → 2001-03
ended
|
HDJ80 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
