Toyota Land Cruiser
1990-01 → 2006-12 · chassis FJ80,HDJ80,HZJ80,FZJ80 · catalogue 791340 · General
Discontinued model
Data version 2007-10
Mounting
12 part groups · 4 illustrations

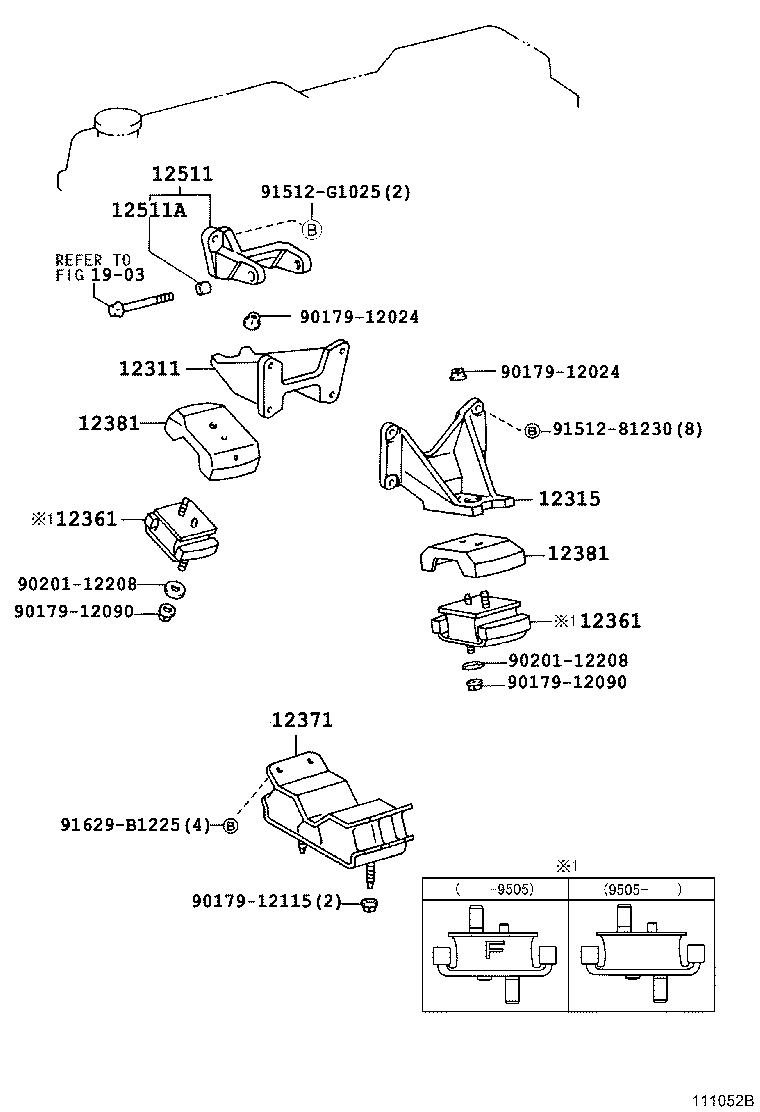

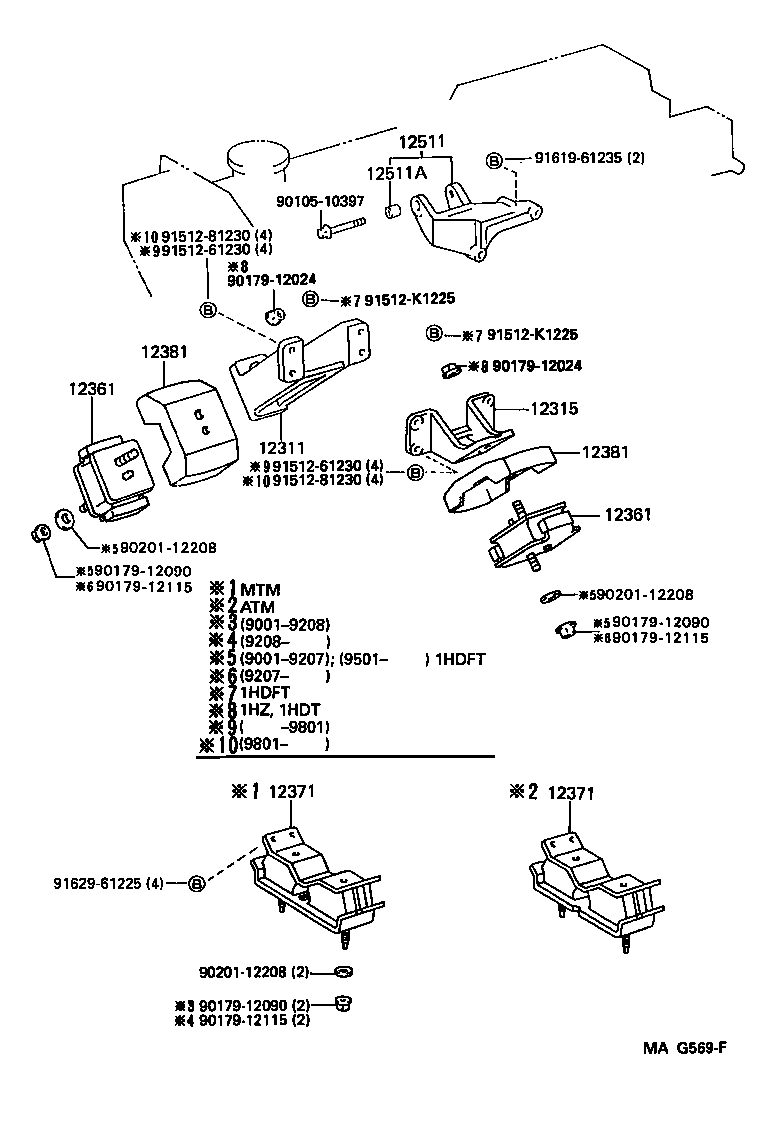

Part groups
| PNC | Description |
|---|---|
| 12311 | Bracket, Engine Mounting, Front NO.1 RH |
| 12315 | Bracket, Engine Mounting, Front NO.1 LH |
| 12361 | Insulator, Engine Mounting, Front |
| 12362 | Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE) |
| 12371 | Insulator, Engine Mounting, Rear NO.1 |
| 12381 | Stabilizer, Engine Mounting |
| 12511 | Bracket, Alternator, NO.1 |
| 12511A | Bush, Alternator Bracket |
| 16630 | Pulley Assy, Idler |
| 17314B | Bracket, Idler Pulley |
| 17318A | Bar, Idler Pulley Adjusting |
| 27420 | Pulley Assy, Alternator Idler |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
