Toyota Land Cruiser

1990-01 → 2006-12 · chassis FJ80,HDJ80,HZJ80,FZJ80 · catalogue 791340 · General

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

65 part groups · 9 illustrations

Illustrations

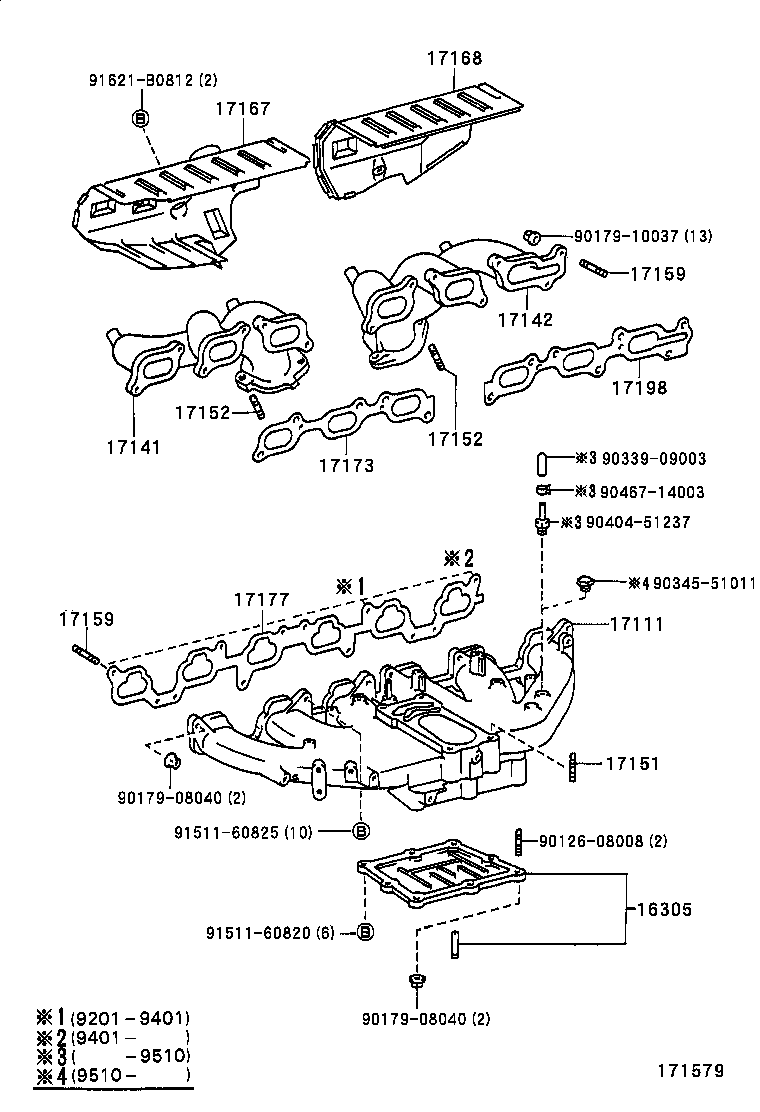

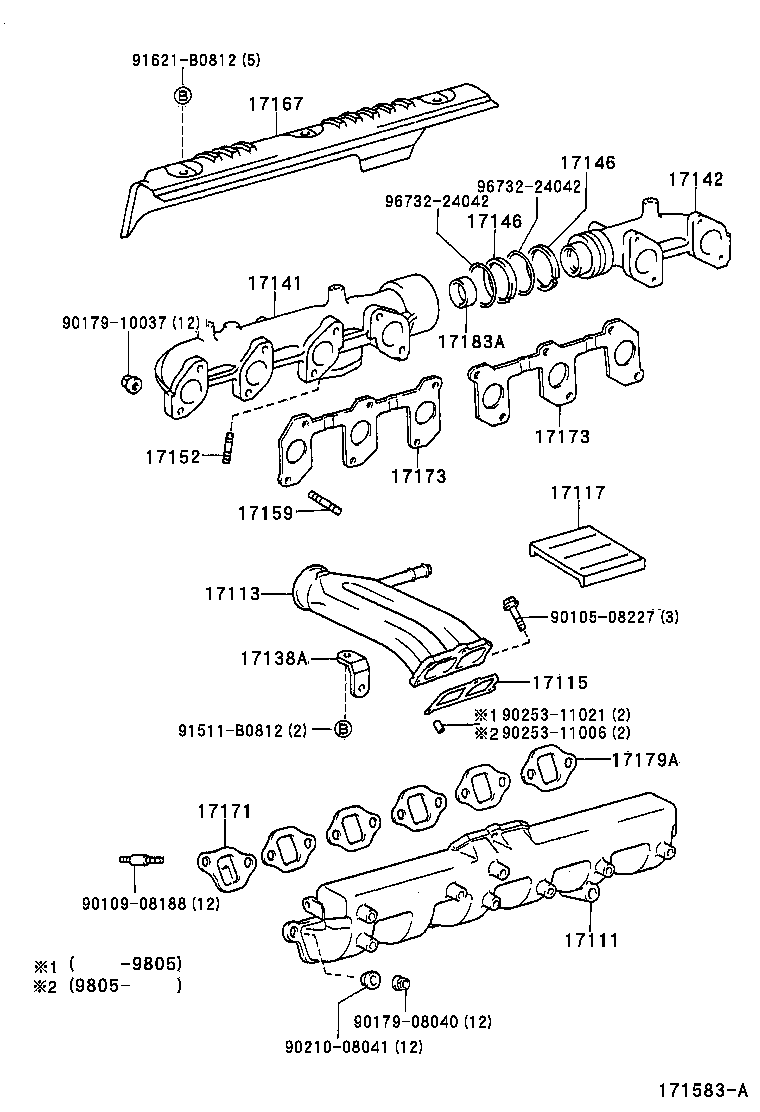

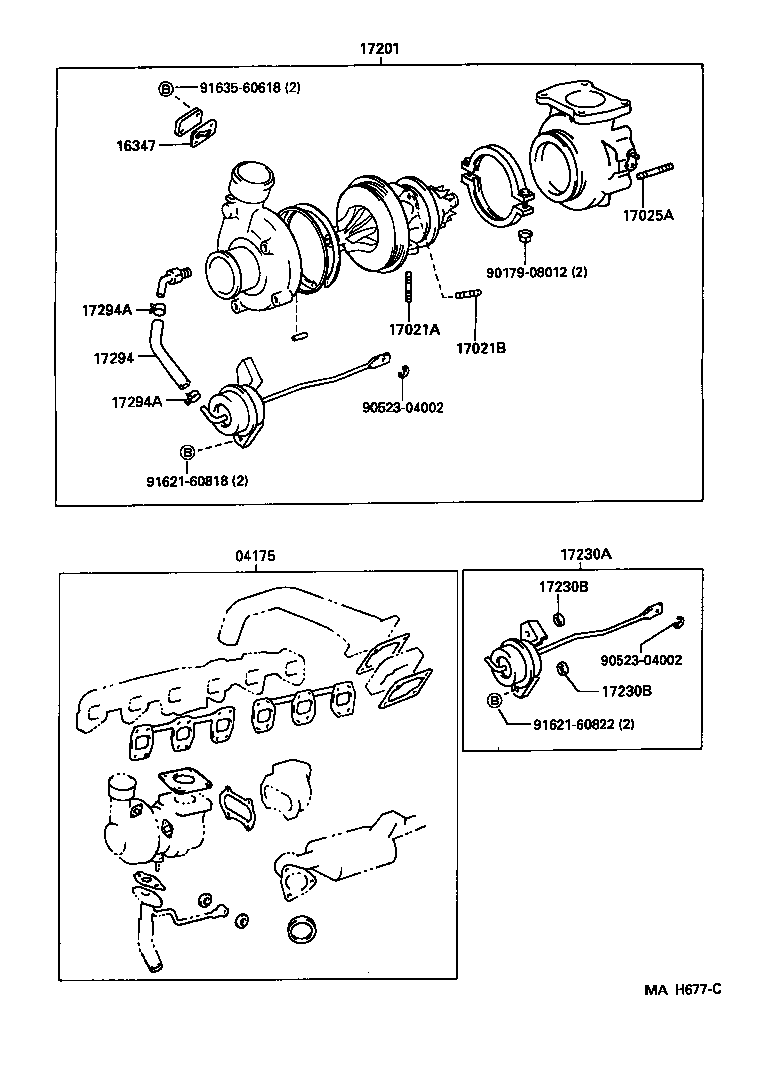

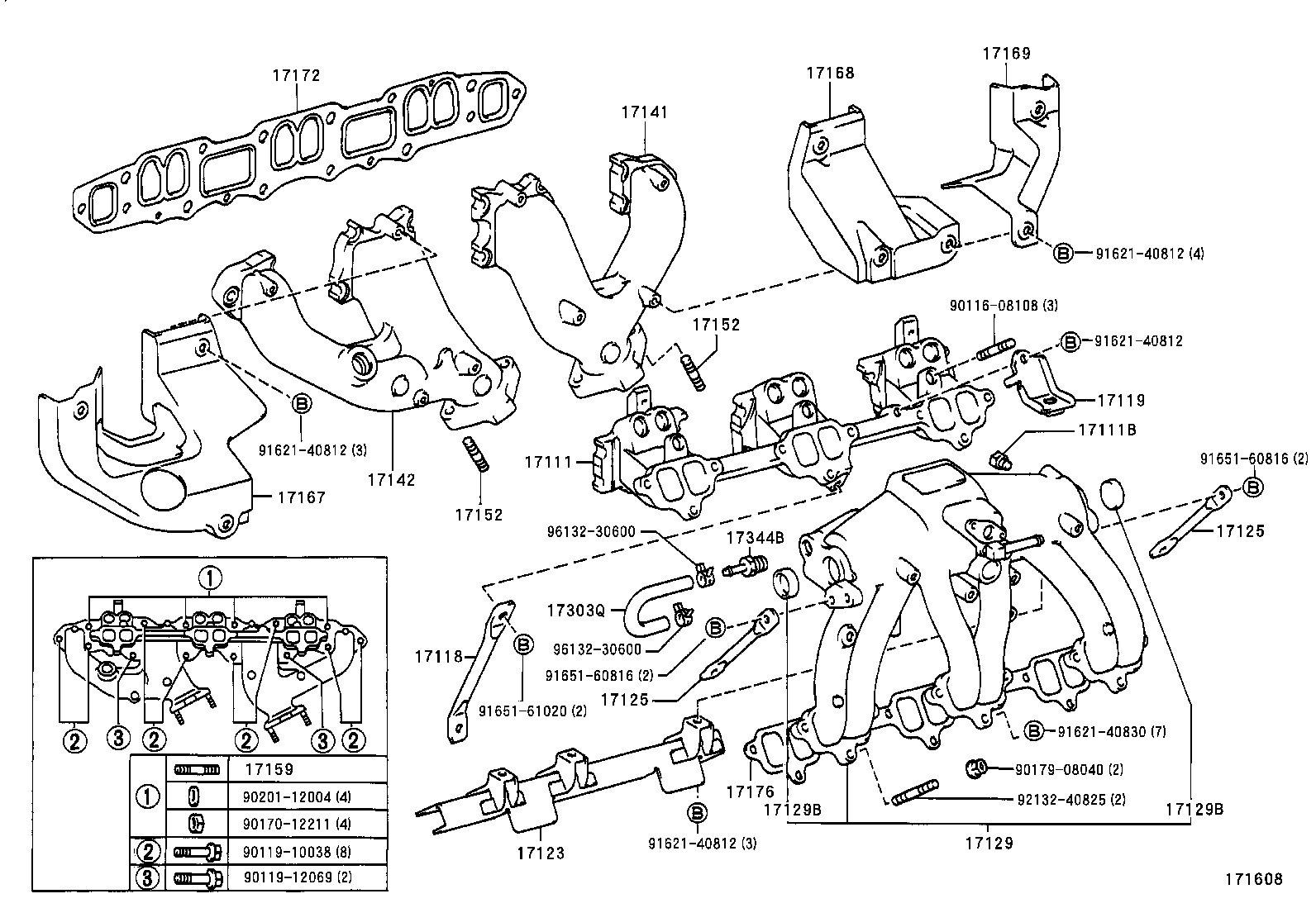

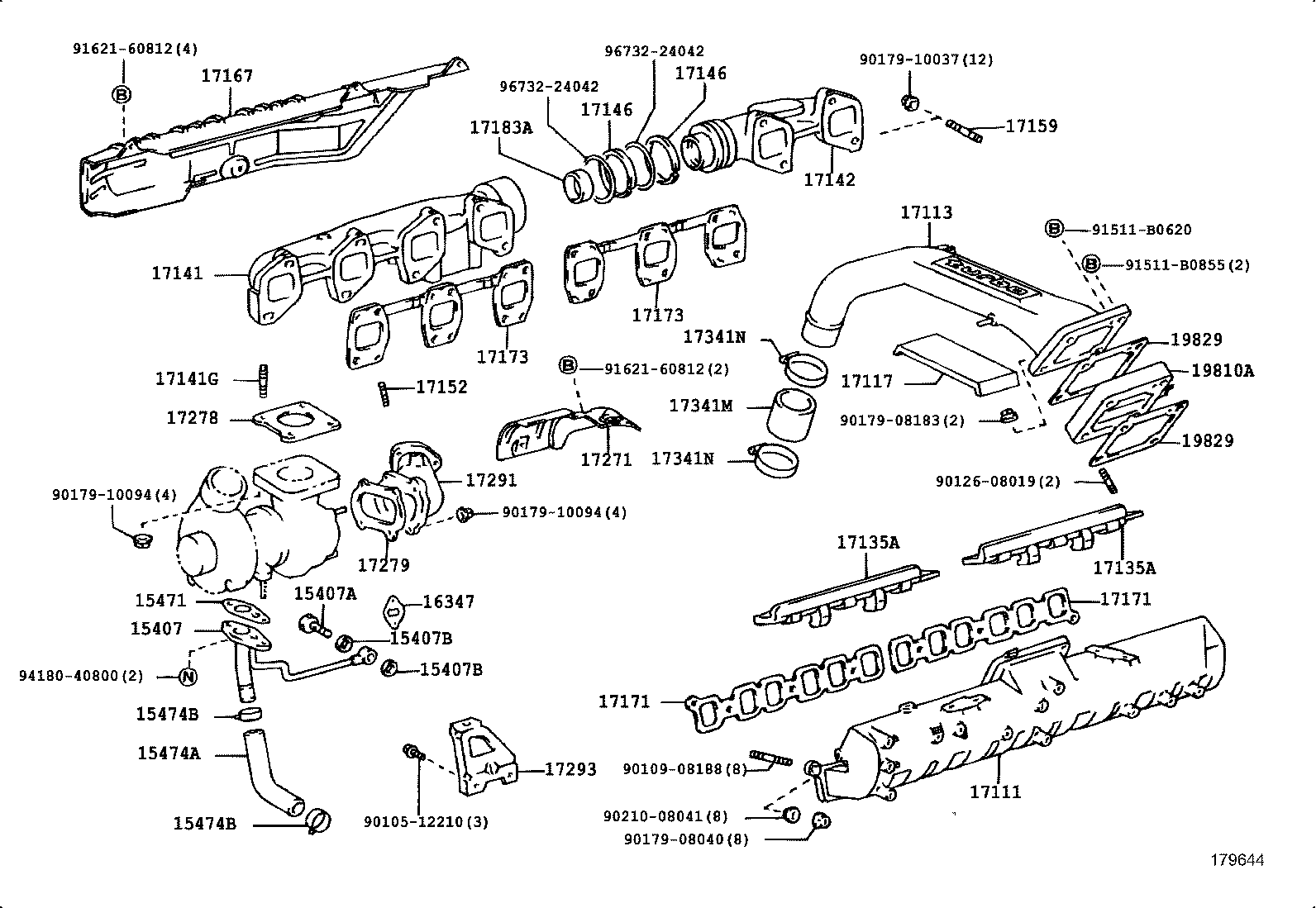

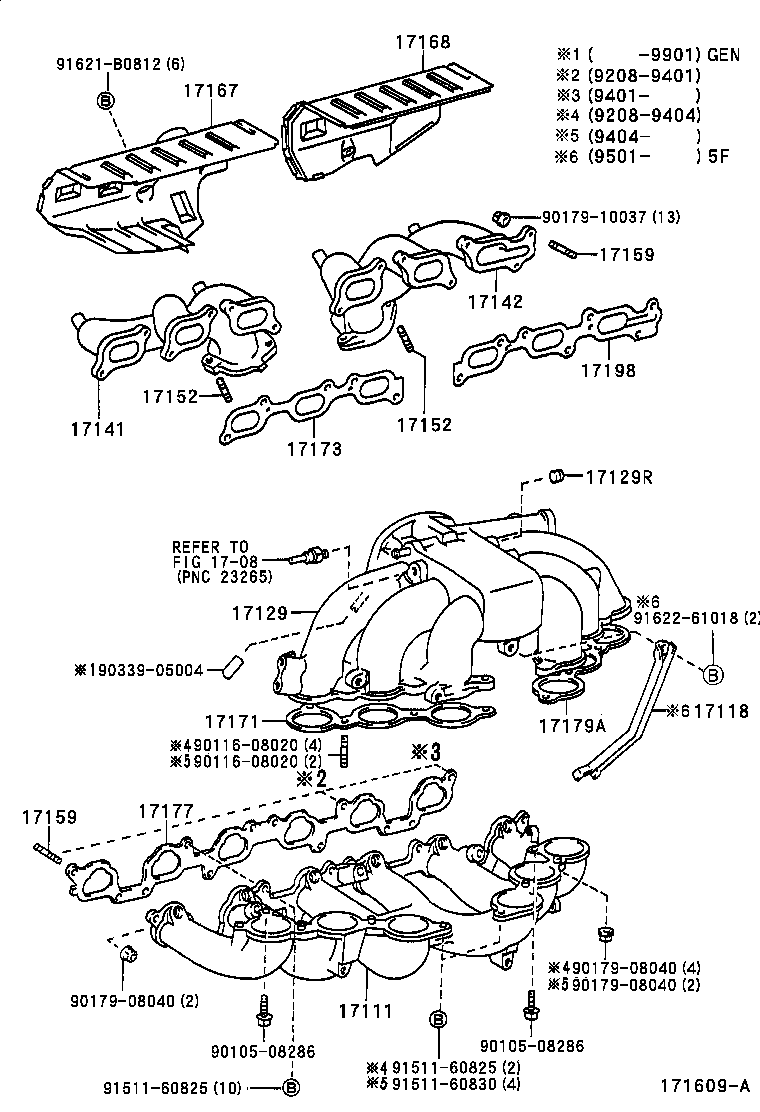

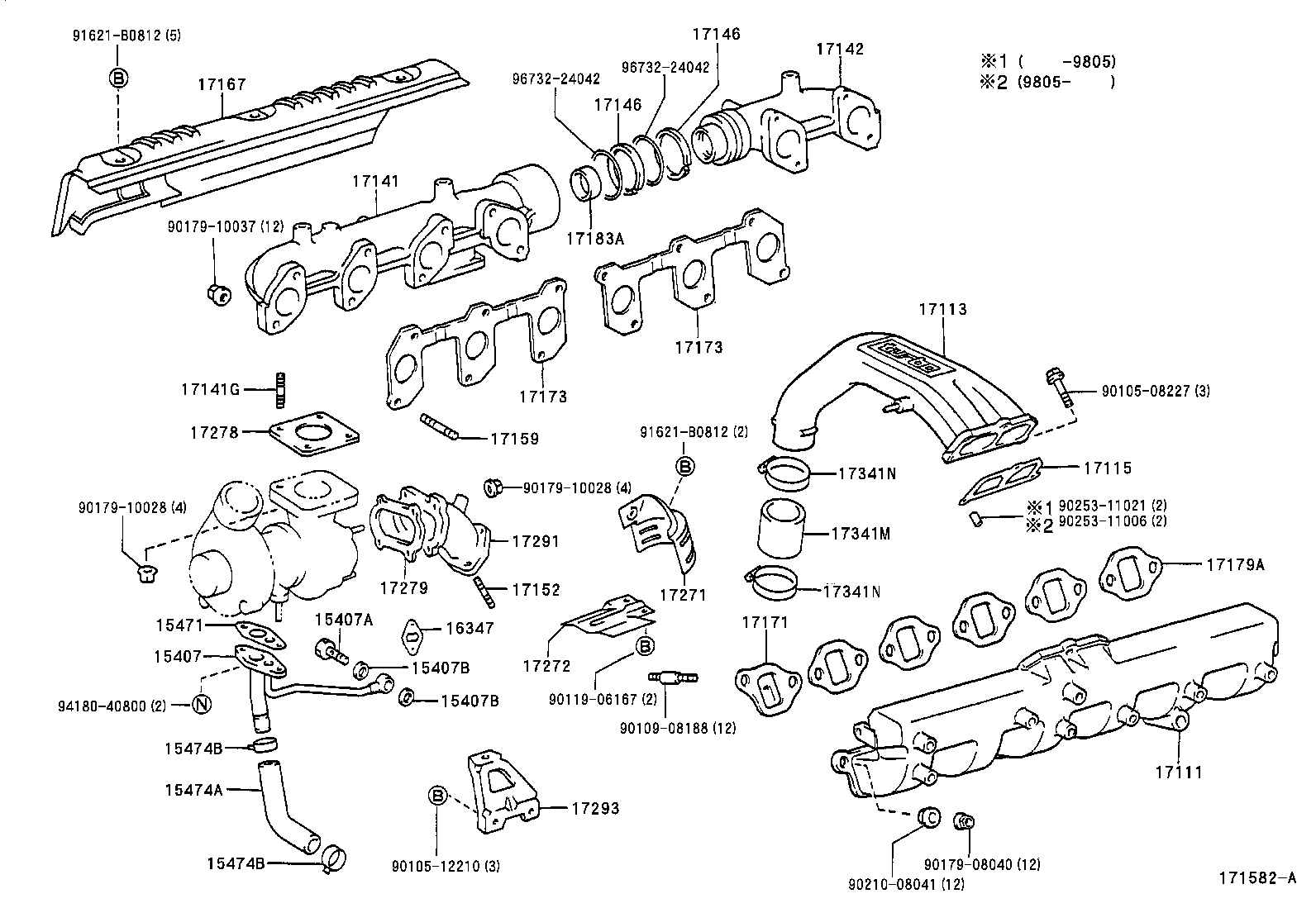

Figure MAD611 MAD611 1990-01 → 1992-08 Figure 171608 171608 1990-01 → 1992-08 Figure 171579 171579 1992-01 → 2001-09 Figure 171609A 171609A 1992-08 → — Figure 179644 179644 1995-01 → 1998-01 Figure 171582A 171582A 1990-01 → — Figure MAH677C MAH677C 1995-01 → 1998-01 Figure MAD808D MAD808D 1990-01 → — Figure 171583A 171583A 1990-01 → —

Part groups

PNCDescription
04175 Gasket Kit, Turbocharger
15407 Pipe Sub-assy, Turbo Oil Inlet
15407A Bolt, Union(FOR TURBO OIL INLET PIPE)
15407B Gasket(FOR TURBO OIL INLET PIPE)
15471 Gasket, Turbo Oil Inlet
15474A Hose, Turbo Oil Outlet
15474B Clamp OR Clip(FOR TURBO OIL OUTLET HOSE)
16305 Outlet Sub-assy, Water By-pass
16347 Gasket, Water By-pass
17021A Bolt, Stud(FOR BEARING HOUSING)
17021B Bolt, Stud
17025A Bolt, Stud(FOR TURBINE HOUSING)
17110 Manifold Assy
17111 Manifold, Intake
17111A Plug, NO.1
17111B Plug, NO.2
17113 Pipe, Intake
17115 Gasket, Intake Manifold Hole Cover
17117 Insulator, Intake Pipe
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17123 Cover, Surge Tank
17125 Stay, Surge Tank, NO.1
17129 Tank, Intake Air Surge
17129B Plug
17129R Plug, W/Head Taper Screw(FOR INTAKE AIR SURGE TANK)
17135A Insulator, Intake Manifold, NO.1
17138A Stay, Intake Pipe
17141 Manifold, Exhaust
17141G Bolt, Stud(FOR TURBOCHARGER)
17142 Case, Exhaust Manifold, NO.2
17146 Ring, Exhaust Manifold
17147 Spring, Exhaust Manifold
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17169 Insulator, Exhaust Manifold Heat, NO.3
17171 Gasket, Intake TO Exhaust Manifold
17172 Gasket, Manifold TO Cylinder Head
17173 Gasket, Exhaust Manifold TO Head
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
17179A Gasket, Intake Manifold, NO.2
17183A Collar, Manifold
17198 Gasket, Exhaust Manifold, NO.2
17201 Turbocharger Sub-assy
17224B Plug, Taper Screw
17230A Repair Actuaor Assy, W/Bracket
17230B Washer, Plate(FOR REPAIR ACTUATOR SET)
17271 Insulator, Turbo, NO.1
17272 Insulator, Turbo, NO.2
17278 Gasket, Turbo TO Exhaust Manifold
17279 Gasket, Turbine Outlet Elbow
17291 Elbow, Turbine Outlet
17293 Stay, Turbocharger
17294 Hose, Actuator
17294A Clip(FOR ACTUATOR HOSE)
17303Q Hose(FOR PIPE TO UNION)
17341M Hose, Air, NO.1
17341N Clamp OR Clip(FOR AIR HOSE, NO.1)
17344B Union(FOR AIR HOSE)
19810A Heater Assy, Intake
19829 Gasket, Intake Heater
