Toyota Land Cruiser
1990-01 → 2006-12 · chassis FJ80,HDJ80,HZJ80,FZJ80 · catalogue 791340 · General
Discontinued model
Data version 2007-10

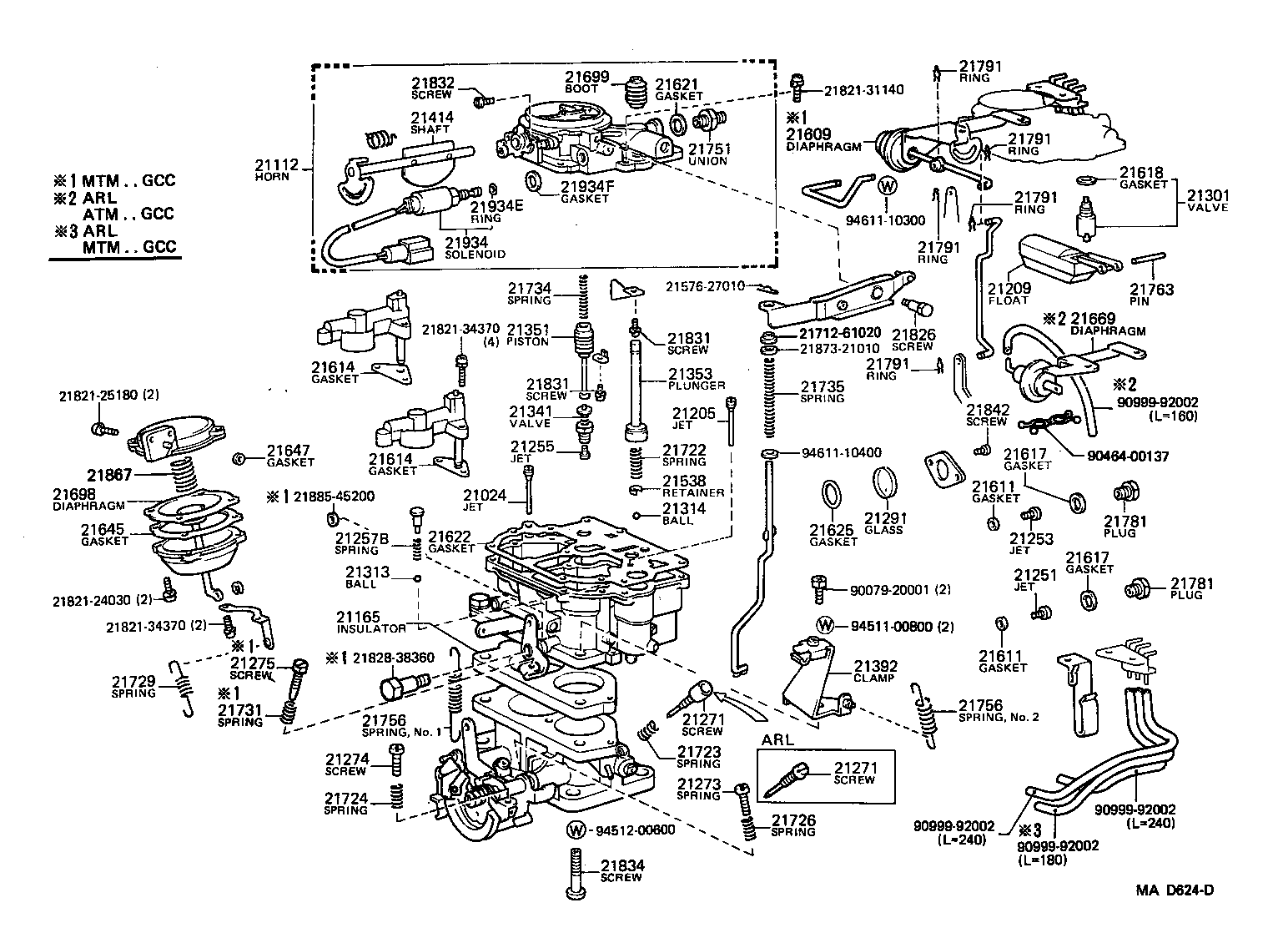

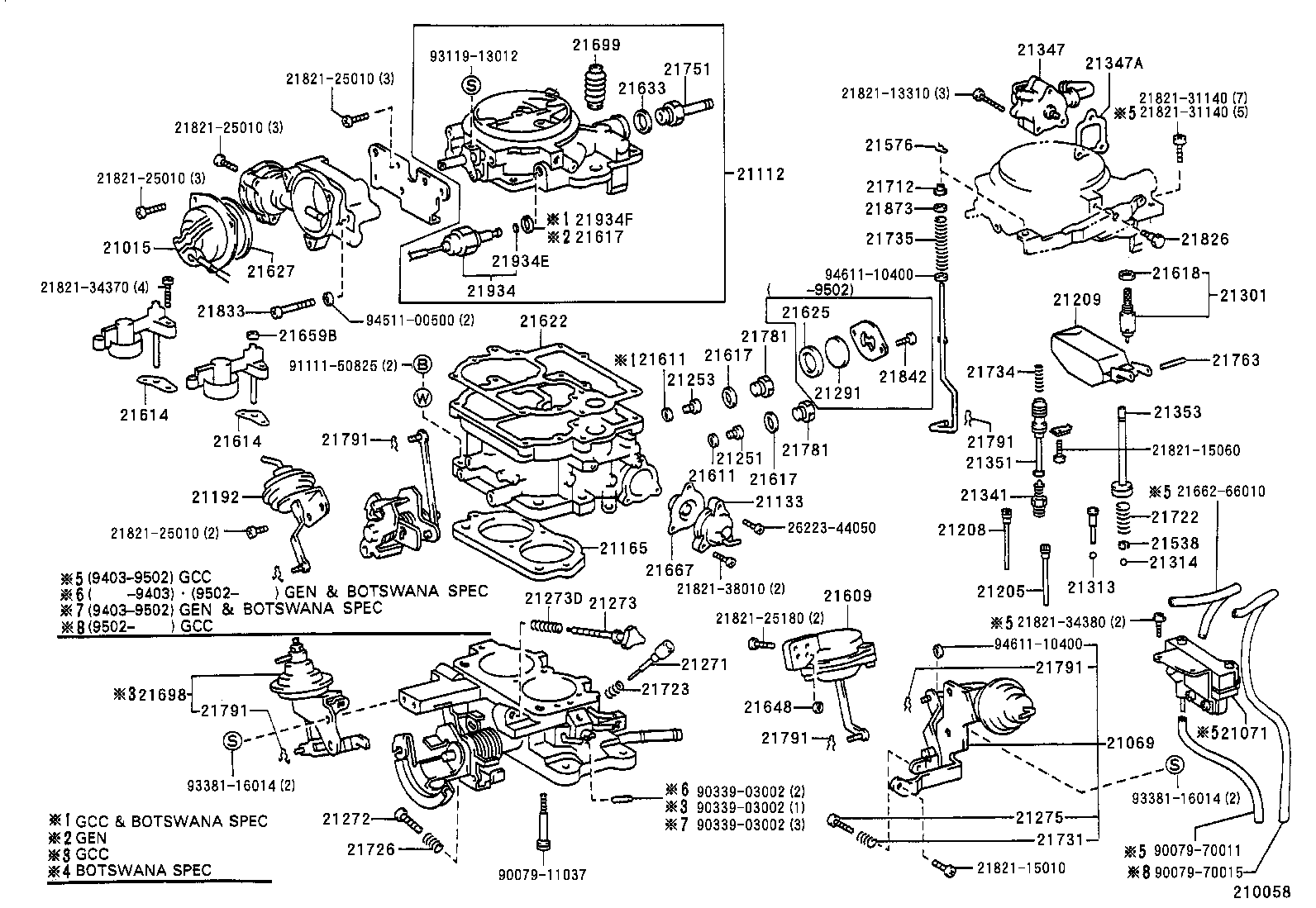

Carburetor
77 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 21015 | Housing Sub-assy, Coil |
| 21024 | Jet Sub-assy, 2ND |
| 21069 | Dash Pot Sub-assy |
| 21071 | Valve Sub-assy, Thermostatic |
| 21112 | Horn, Air |
| 21133 | Cover(FOR DIAPHRAGM) |
| 21165 | Insulator |
| 21192 | Breaker |
| 21205 | Jet Sub-assy, Slow |
| 21208 | Jet Sub-assy, Step |
| 21209 | Float Sub-assy |
| 21251 | Jet, 1ST Main |
| 21253 | Jet, 2ND Main |
| 21255 | Jet, Power |
| 21257B | Spring(FOR PUMP JET) |
| 21271 | Screw, Idle Adjusting |
| 21272 | Screw, 1ST Idle Adjusting |
| 21273 | Screw, Throttle Adjusting |
| 21273D | Spring, Idle Adjusting |
| 21274 | Screw, 1ST Throttle Adjusting |
| 21275 | Screw, Adjusting |
| 21291 | Glass, Level Gage |
| 21301 | Valve Sub-assy, Needle |
| 21313 | Ball, Steel, NO.1(FOR DISCHARGE WEIGHT) |
| 21314 | Ball, Steel, NO.2(FOR PUMP PLUNGER) |
| 21341 | Valve, Power |
| 21347 | Valve, Solenoid |
| 21347A | Gasket(FOR VALVE, SOLENOID) |
| 21351 | Piston, Power |
| 21353 | Plunger, Pump |
| 21392 | Clamp, Choke Wire |
| 21414 | Shaft, Choke |
| 21538 | Retainer, Ball Check |
| 21576 | Clip, Pump Strainer |
| 21609 | Diaphragm Sub-assy |
| 21611 | Gasket, Main Jet |
| 21614 | Gasket, Venturi |
| 21617 | Gasket, Main Passage Plug |
| 21618 | Gasket, Needle Valve Seat |
| 21621 | Gasket, Union Nipple |
| 21622 | Gasket, Air Horn |
| 21625 | Gasket, Level Gage |
| 21627 | Gasket, Coil Housing |
| 21633 | Gasket, Union Nipple |
| 21645 | Gasket, Diaphragm, Cap |
| 21647 | Gasket, Diaphragm Housing Cap |
| 21648 | Packing(FOR SLOW VALVE COVER) |
| 21659B | Ring(FOR CARBURETOR) |
| 21667 | Diaphragm |
| 21669 | Diaphragm |
| 21698 | Diaphragm |
| 21699 | Boot(FOR PUMP PLUNGER) |
| 21712 | Bush, Sliding Rod |
| 21722 | Spring, Pump Damping |
| 21723 | Spring, Idle Adjusting |
| 21724 | Spring, Throttle Adjusting |
| 21726 | Spring, 1ST Idle Adjusting |
| 21729 | Spring, 1ST Throttle Back |
| 21731 | Spring, Dash Pot OR Positioner Adjusting |
| 21734 | Spring, Power Piston |
| 21735 | Spring, Pump Arm |
| 21751 | Union, Nipple |
| 21756 | Spring, Back(FOR THROTTLE SHAFT) |
| 21763 | Pin, Float Lever |
| 21781 | Plug, Main Passage(FOR CARBURETOR JET) |
| 21791 | Ring, Snap, NO.1(FOR CARBURETOR LINK) |
| 21826 | Screw, Pump Arm Set |
| 21831 | Screw, Power Piston Stop |
| 21832 | Screw(FOR CHOKE LEVER ADAPTER SET) |
| 21833 | Screw, Set, NO.1(FOR CARBURETOR BODY SET) |
| 21834 | Screw, Set, NO.2(FOR CARBURETOR BODY SET) |
| 21842 | Screw, Set(FOR CARBURETOR LEVEL GAGE CLAMP SET) |
| 21867 | Spring, Diaphragm |
| 21873 | Washer, Plunger |
| 21934 | Solenoid, Throttle Valve |
| 21934E | Ring, O(FOR SOLENOID VALVE) |
| 21934F | Gasket |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
