Toyota Land Cruiser
1990-01 → 2006-12 · chassis FJ80,HDJ80,HZJ80,FZJ80 · catalogue 791340 · General
Discontinued model
Data version 2007-10

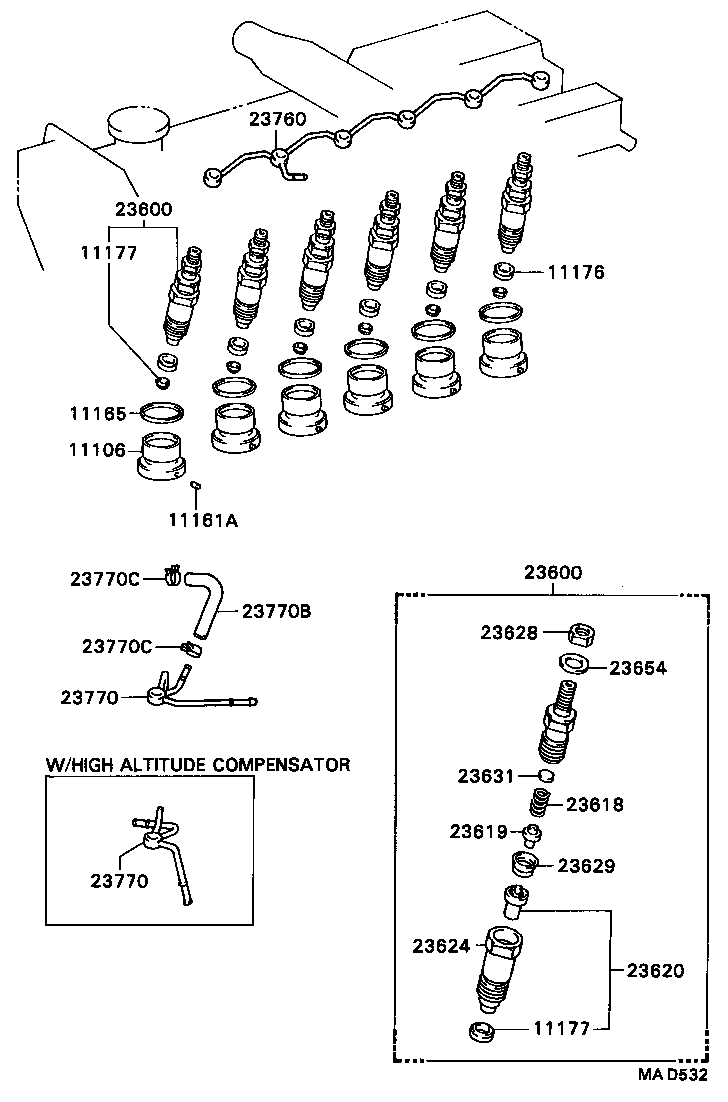

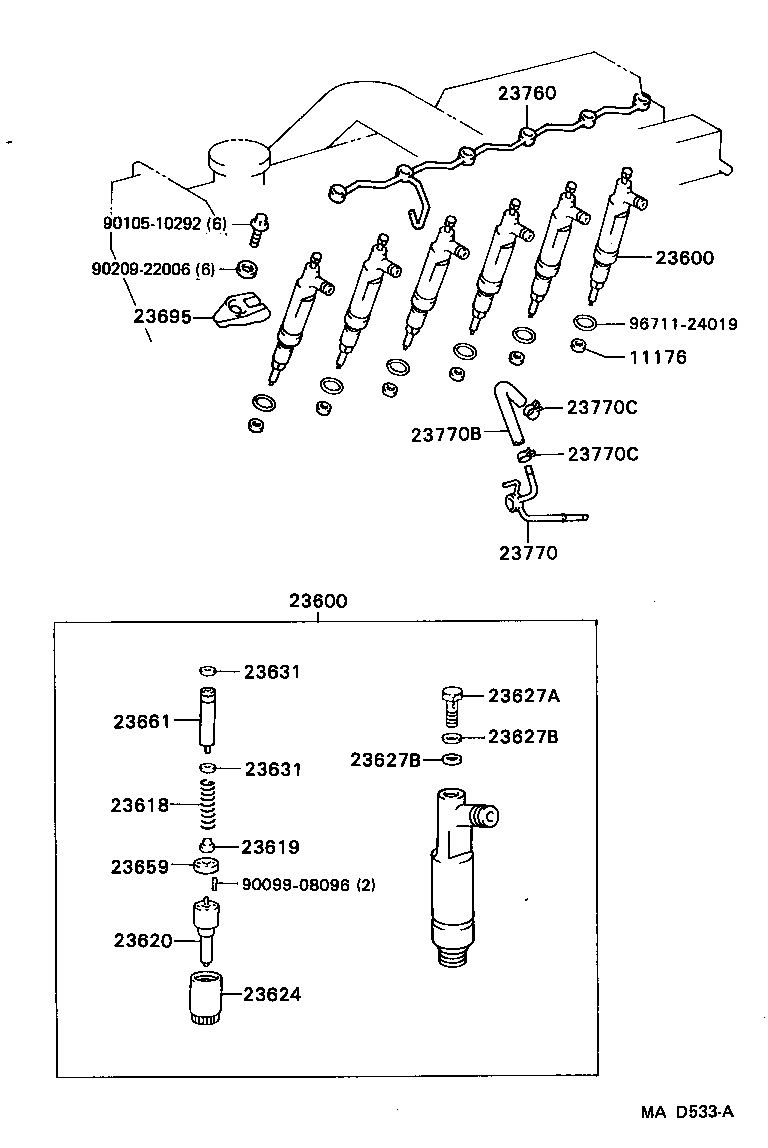

Injection Nozzle
30 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11106 | Chamber Sub-assy, Combustion |
| 11161A | Pin, Straight(FOR COMBUSTION CHAMBER) |
| 11165 | Shim(FOR COMBUSTION CHAMBER) |
| 11176 | Seat, Injection Nozzle |
| 11177 | Gasket, Injection Nozzle Seat |
| 23600 | Holder & Nozzle Set, Nozzle |
| 23600C | Gasket(FOR HOLDER & NOZZLE SET) |
| 23617 | Seat, Pressure Spring |
| 23617A | Seat, Pressure Spring, NO.1 |
| 23618 | Spring, Nozzle Holder Pressure |
| 23619 | Pin, Nozzle Holder Pressure |
| 23620 | Nozzle Assy |
| 23624 | Nut, Nozzle Retaining |
| 23626 | Body Sub-assy, Nozzle |
| 23627A | Screw, Follow(FOR NOZZLE) |
| 23627B | Washer, Copper Plate(FOR NOZZLE) |
| 23628 | Nut(FOR RING PACKING SETTING) |
| 23629 | Piece, Distance(FOR NOZZLE) |
| 23631 | Washer(FOR NOZZLE HOLDER PRESSURE SPRING) |
| 23631A | Washer(FOR NOZZLE HOLDER PRESSURE SPRING NO.1) |
| 23631B | Washer(FOR NOZZLE HOLDER PRESSURE SPRING NO.2) |
| 23654 | Washer(FOR RING PACKING) |
| 23659 | Packing, Tip(FOR NOZZLE) |
| 23661 | Capsule Sub-assy |
| 23695 | Clamp, Nozzle Holder, NO.1 |
| 23760 | Pipe Assy, Nozzle Leakage |
| 23770 | Pipe Assy, Nozzle Leakage, NO.2 |
| 23770B | Hose, Fuel |
| 23770C | Clamp OR Clip(FOR FUEL HOSE SET) |
| 23780 | Pipe, Nozzle Leakage, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
