Toyota Land Cruiser
1990-01 → 2006-12 · chassis FJ80,HDJ80,HZJ80,FZJ80 · catalogue 791340 · General
Discontinued model
Data version 2007-10

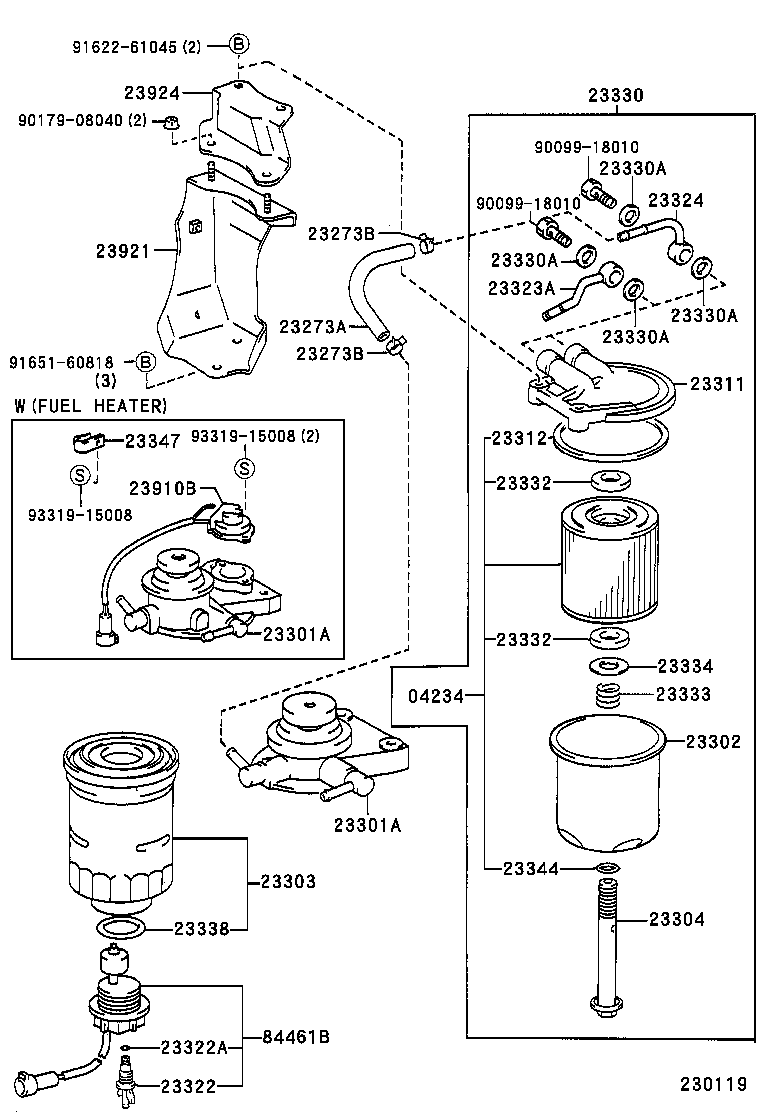

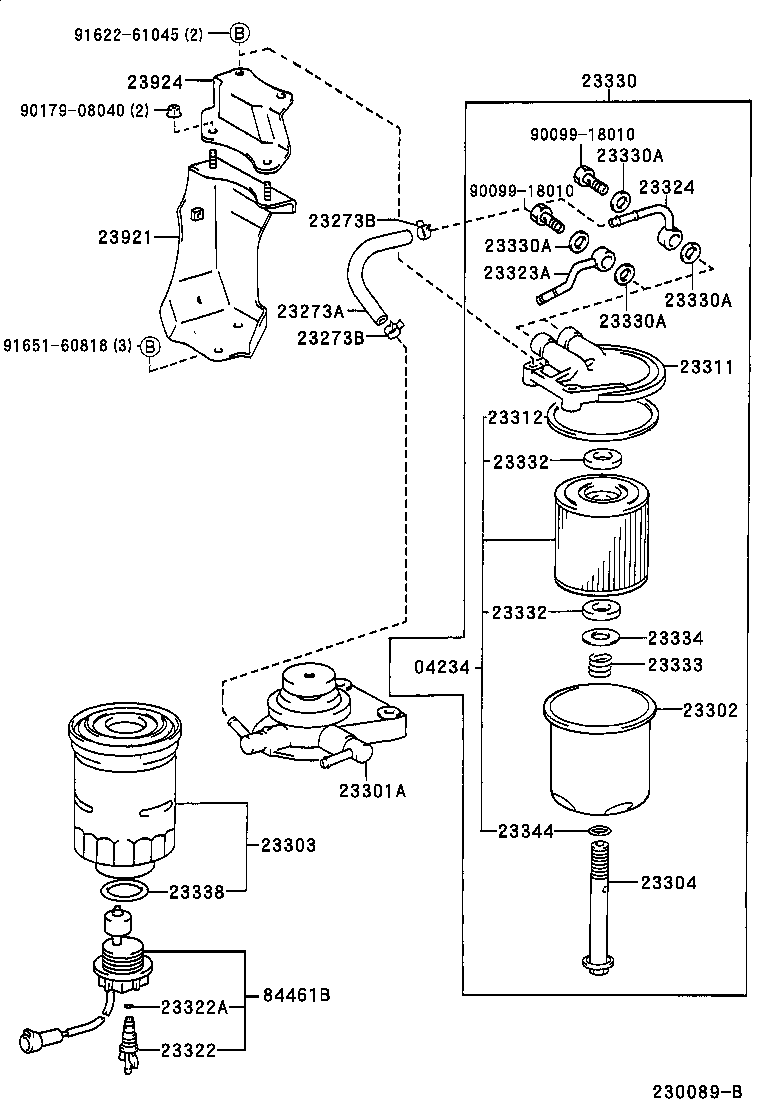

Fuel Filter
26 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 04234 | Element Kit, Fuel Filter |
| 23273A | Hose, Fuel, NO.2 |
| 23273B | Clip, Hose |
| 23300 | Filter Assy, Fuel |
| 23301A | Cap Assy, Fuel Filter |
| 23302 | Body Sub-assy, Fuel Filter, Lower |
| 23303 | Element Sub-assy, Fuel Filter |
| 23304 | Bail Sub-assy, Filter Bowl |
| 23311 | Body, Fuel Filter Upper |
| 23312 | Gasket, Filter Bowl |
| 23322 | Plug, Drain(FOR FUEL FILTER) |
| 23322A | Ring, O(FOR DRAIN PLUG) |
| 23323A | Union |
| 23324 | Nipple Union(FOR FUEL FILTER) |
| 23330 | Prefilter Assy, Fuel |
| 23330A | Gasket |
| 23332 | Gasket, Element(FOR FUEL FILTER) |
| 23333 | Spring, Filter Element Set |
| 23334 | Plate, Spring(FOR FILTER ELEMENT) |
| 23338 | Gasket(FOR WARNING SWITCH) |
| 23344 | Gasket, Clamping Nut(FOR FUEL FILTER) |
| 23347 | Clip, Cord |
| 23910B | Heater Assy, Fuel |
| 23921 | Support, Fuel Filter |
| 23924 | Support, Fuel Prefilter |
| 84461B | Switch, Level Warning |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
