Toyota Land Cruiser

1990-01 → 2006-12 · chassis FJ80,HDJ80,HZJ80,FZJ80 · catalogue 791340 · General

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

13 part groups · 10 illustrations

Illustrations

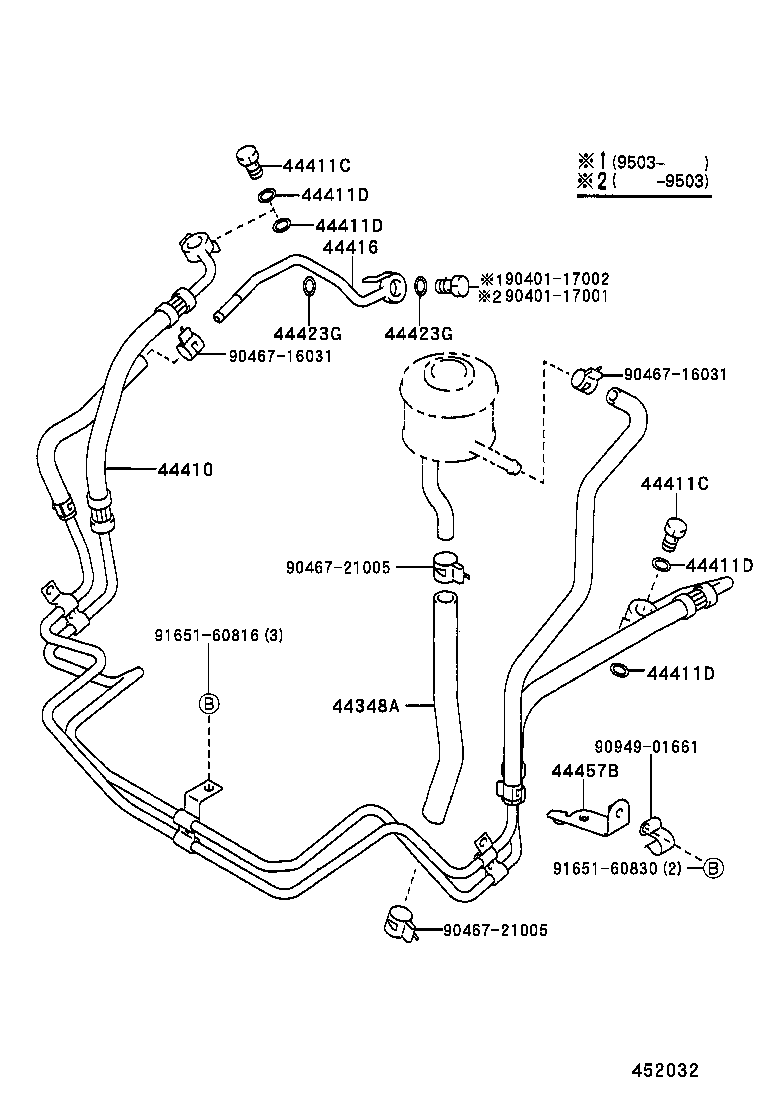

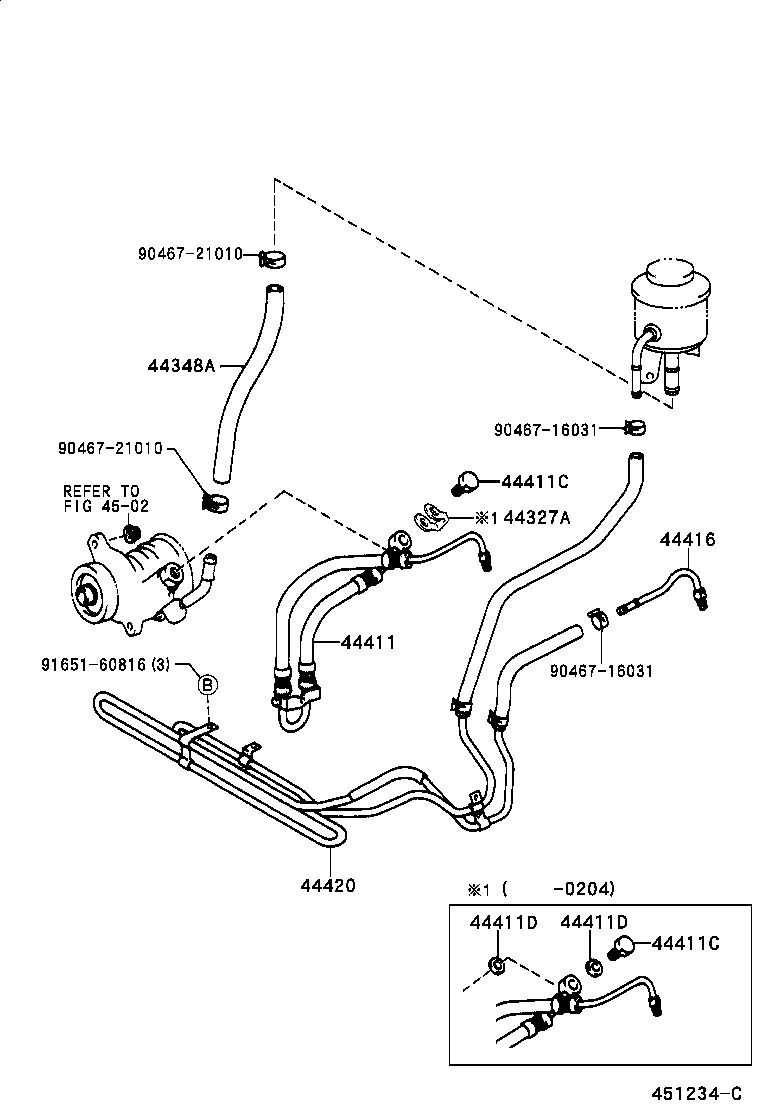

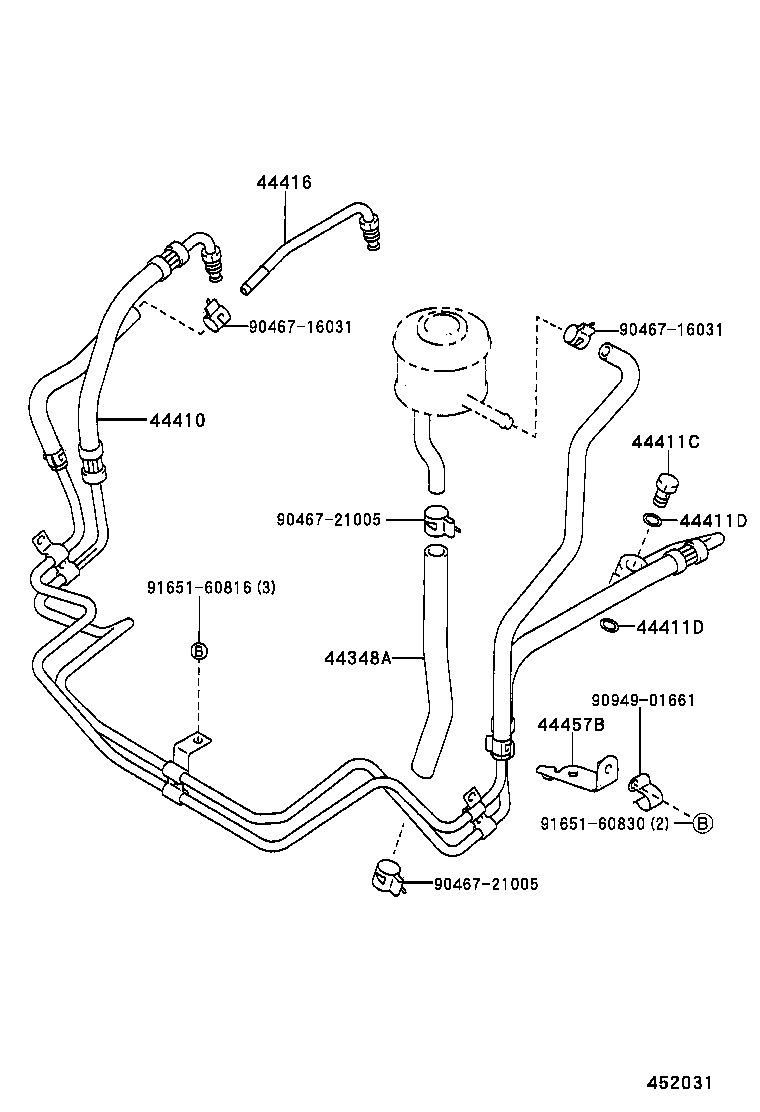

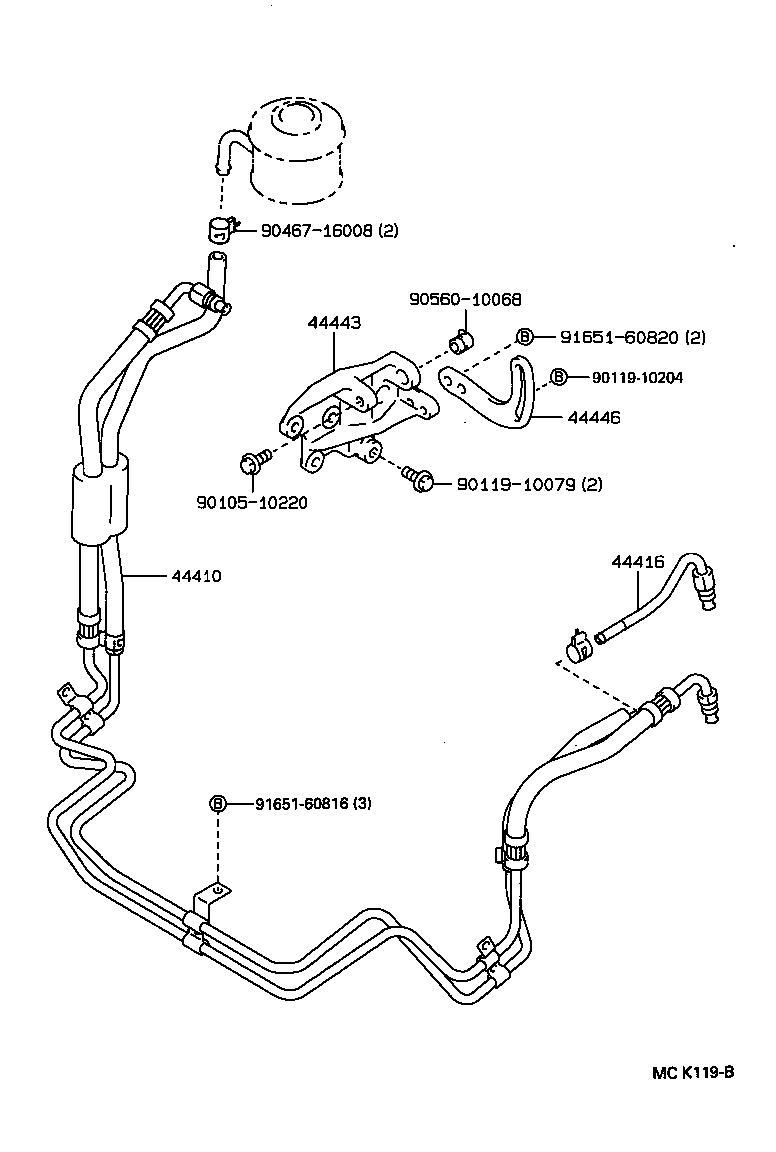

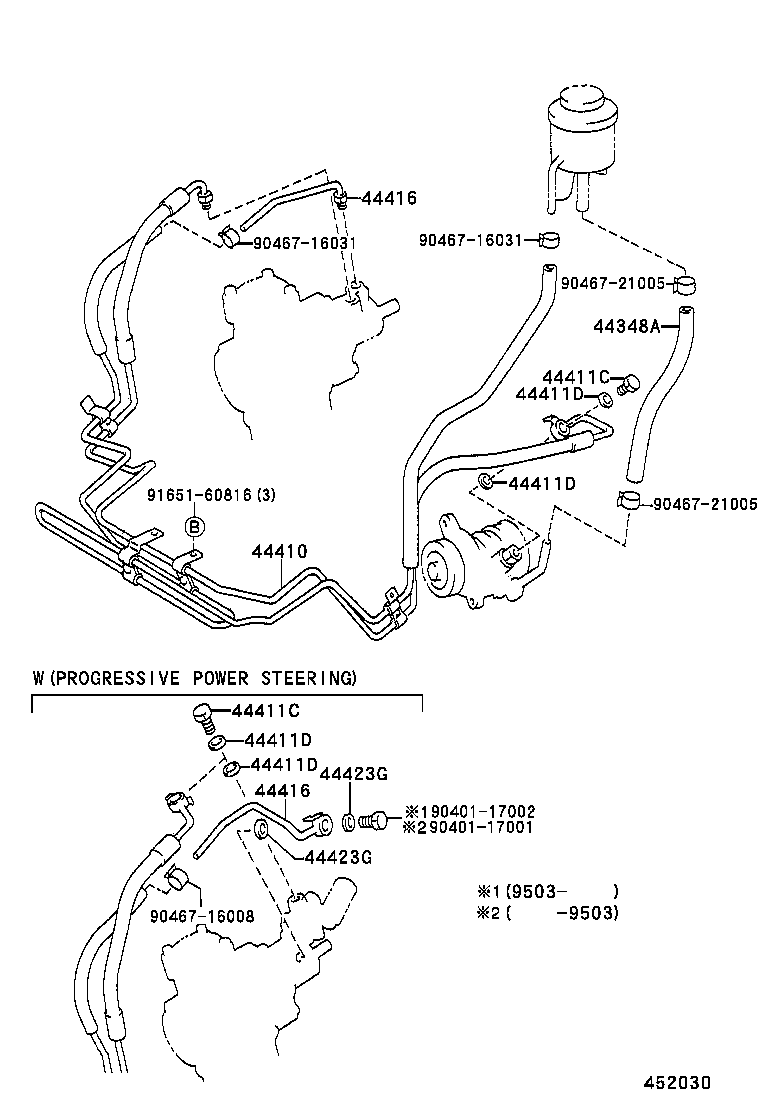

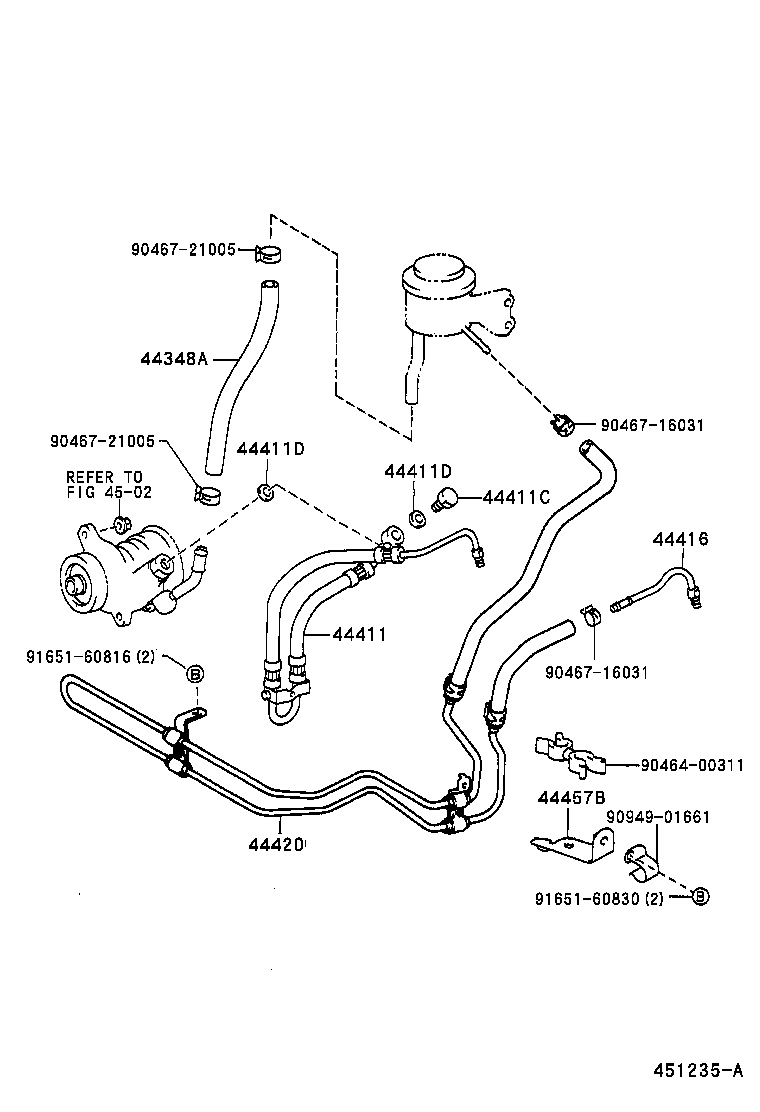

Figure 452033 452033 1990-01 → 1992-08 Figure MCK119B MCK119B 1990-01 → 1992-08 Figure MCK156B MCK156B 1990-01 → 1992-08 Figure 451233A 451233A 1992-01 → 1998-01 Figure 452030 452030 1992-08 → 1998-01 Figure 451234C 451234C 1992-01 → — Figure 452031 452031 1990-01 → — Figure MCK121D MCK121D 1990-01 → 1992-08 Figure 451235A 451235A 1992-08 → — Figure 452032 452032 1990-01 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44410 Tube Assy, Pressure Feed
44411 Hose, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44411D Gasket(FOR PRESSURE FEED HOSE)
44412D Hose, Return, NO.1
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44420 Cooler Assy, Oil
44423G Gasket, Union Bolt
44443 Bracket, Pump
44446 Strut, Adjusting
44457B Bracket, Power Steering Tube Support, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
