Toyota Land Cruiser

1990-01 → 2006-12 · chassis FJ80,HDJ80,HZJ80,FZJ80 · catalogue 791340 · General

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

34 part groups · 6 illustrations

Illustrations

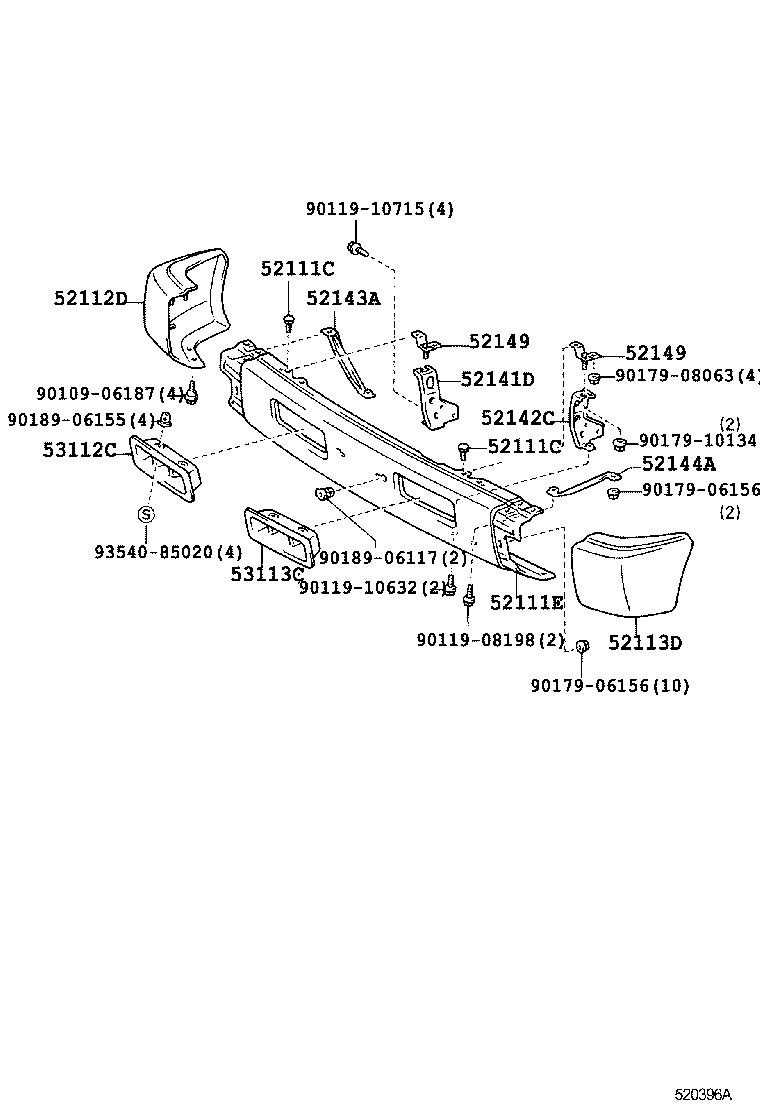

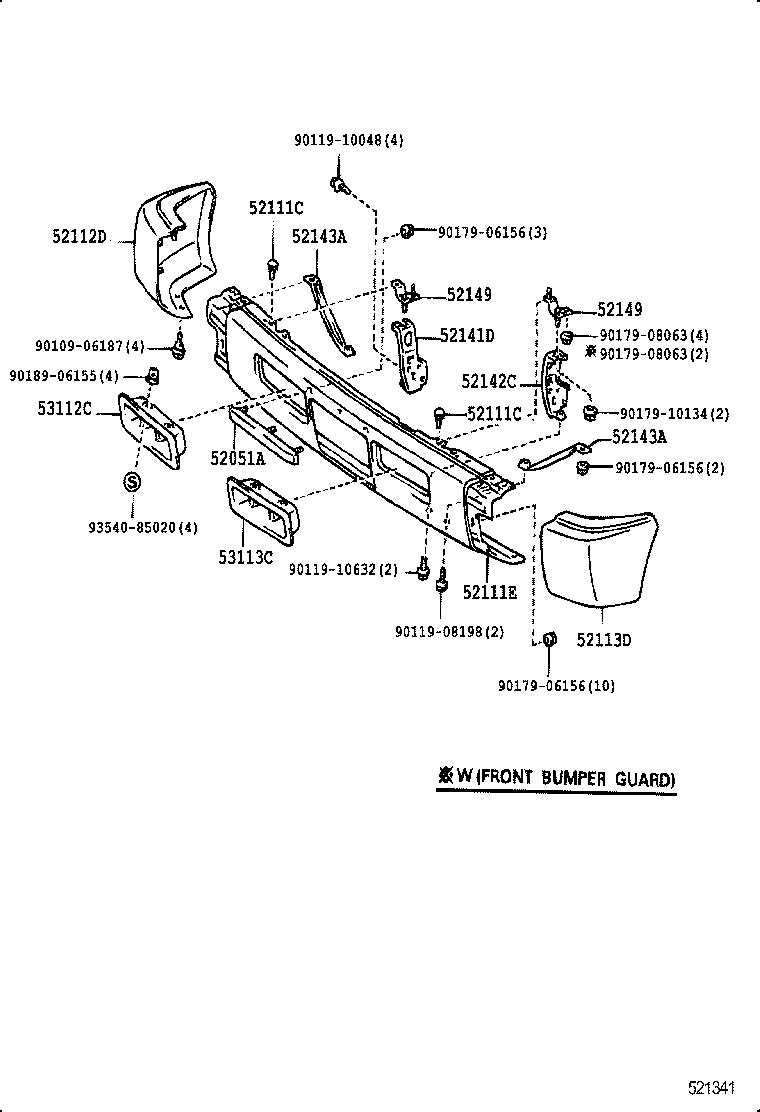

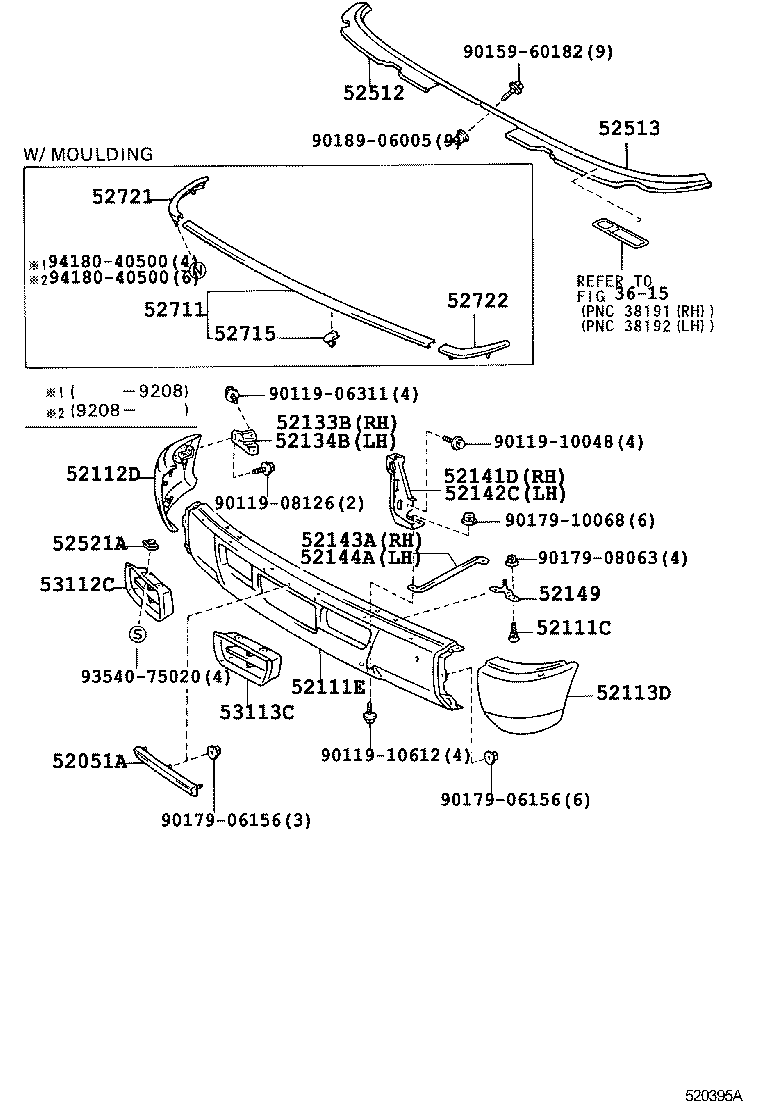

Figure 520394A 520394A 1990-01 → 1995-01 Figure 520395A 520395A 1990-01 → 1995-01 Figure 520396A 520396A 1995-01 → — Figure 521341 521341 1995-01 → — Figure 520397 520397 1992-08 → 1995-01 Figure MBY668B MBY668B 1995-01 → —

Part groups

PNCDescription
52051A Pad Sub-assy, Front Bumper
52111C Bolt, Round Head Square Neck(FOR FRONT BUMPER)
52111E Bar, Front Bumper
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52133B Bracket, Front Bumper Extension Mounting, RH
52134B Bracket, Front Bumper Extension Mounting, LH
52141D Stay, Front Bumper, RH
52142C Stay, Front Bumper, LH
52143A Arm, Front Bumper, Inner RH
52144A Arm, Front Bumper, Inner LH
52149 Bracket, Front Bumper, Inner
52401A Guard Sub-assy, Front Bumper, RH
52402A Guard Sub-assy, Front Bumper, LH
52407 Guard Sub-assy, Front Bumper, NO.2
52411 Guard, Front Bumper
52413 Pad, Front Bumper Guard
52413A Pad, Front Bumper Guard, RH
52431 Retainer, Front Bumper Guard
52432 Retainer, Front Bumper Guard
52439A Tape, Front Bumper Guard Prtector
52447 Pad, Front Bumper Guard, NO.2 RH
52448 Pad, Front Bumper Guard, NO.2 LH
52478 Guard, Front Bumper, NO.4
52512 Filler, Front Bumper, RH
52513 Filler, Front Bumper, LH
52521A Clip(FOR FRONT BUMPER RETAINER)
52525 Retainer, Front Bumper, Lower Center
52711 Moulding, Front Bumper
52715 Retainer, Front Bumper Moulding, NO.1
52721 Moulding, Front Bumper Extension, RH
52722 Moulding, Front Bumper Extension, LH
53112C Grille, Radiator, Lower RH
53113C Grille, Radiator, Lower LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
