Toyota Land Cruiser

1990-01 → 2006-12 · chassis FJ80,HDJ80,HZJ80,FZJ80 · catalogue 791340 · General

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

15 part groups · 2 illustrations

Illustrations

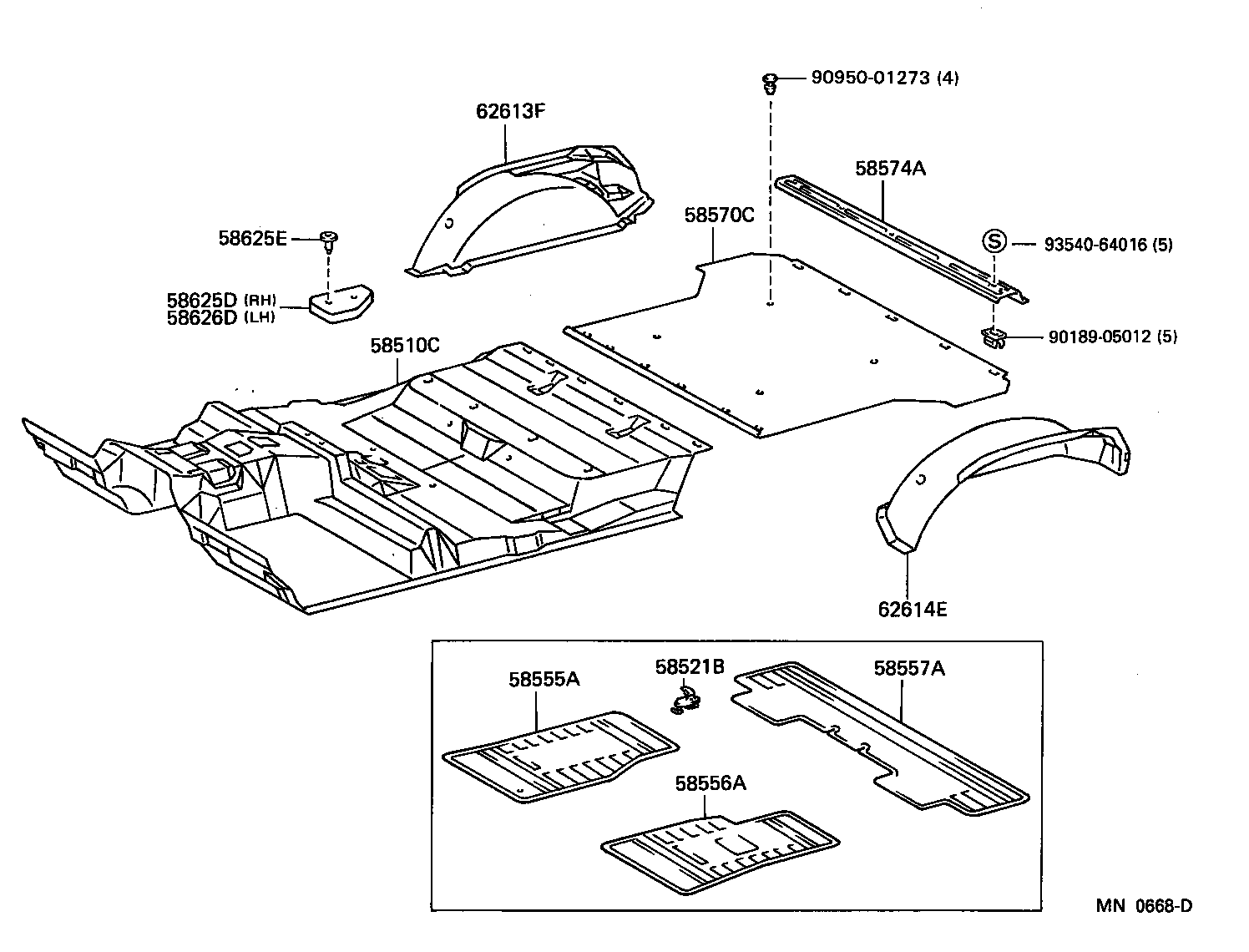

Figure MN2940 MN2940 1990-01 → — Figure MN0668D MN0668D 1990-01 → —

Part groups

PNCDescription
58510B Mat, Front Floor, Front
58510C Carpet Assy, Front Floor, Front
58521B Hook, Floor Carpet
58540C Mat Assy, Floor, Rear
58555A Mat, Front, RH
58556A Mat, Front, LH
58557A Mat, Rear
58570B Mat Assy, Rear Floor
58570C Carpet Assy, Rear Floor
58574A Plate, Rear Floor Mat Support, Rear
58625D Plate, Rear Floor Mat, NO.1
58625E Clip(FOR REAR FLOOR MAT PLATE)
58626D Plate, Rear Floor Mat, NO.2
62613F Cover, Quarter Wheel House, RH
62614E Cover, Quarter Wheel House, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
