Toyota Land Cruiser

1990-01 → 2006-12 · chassis FJ80,HDJ80,HZJ80,FZJ80 · catalogue 791340 · General

Discontinued model Data version 2007-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

84 part groups · 3 illustrations

Illustrations

611153 1990-01 → —

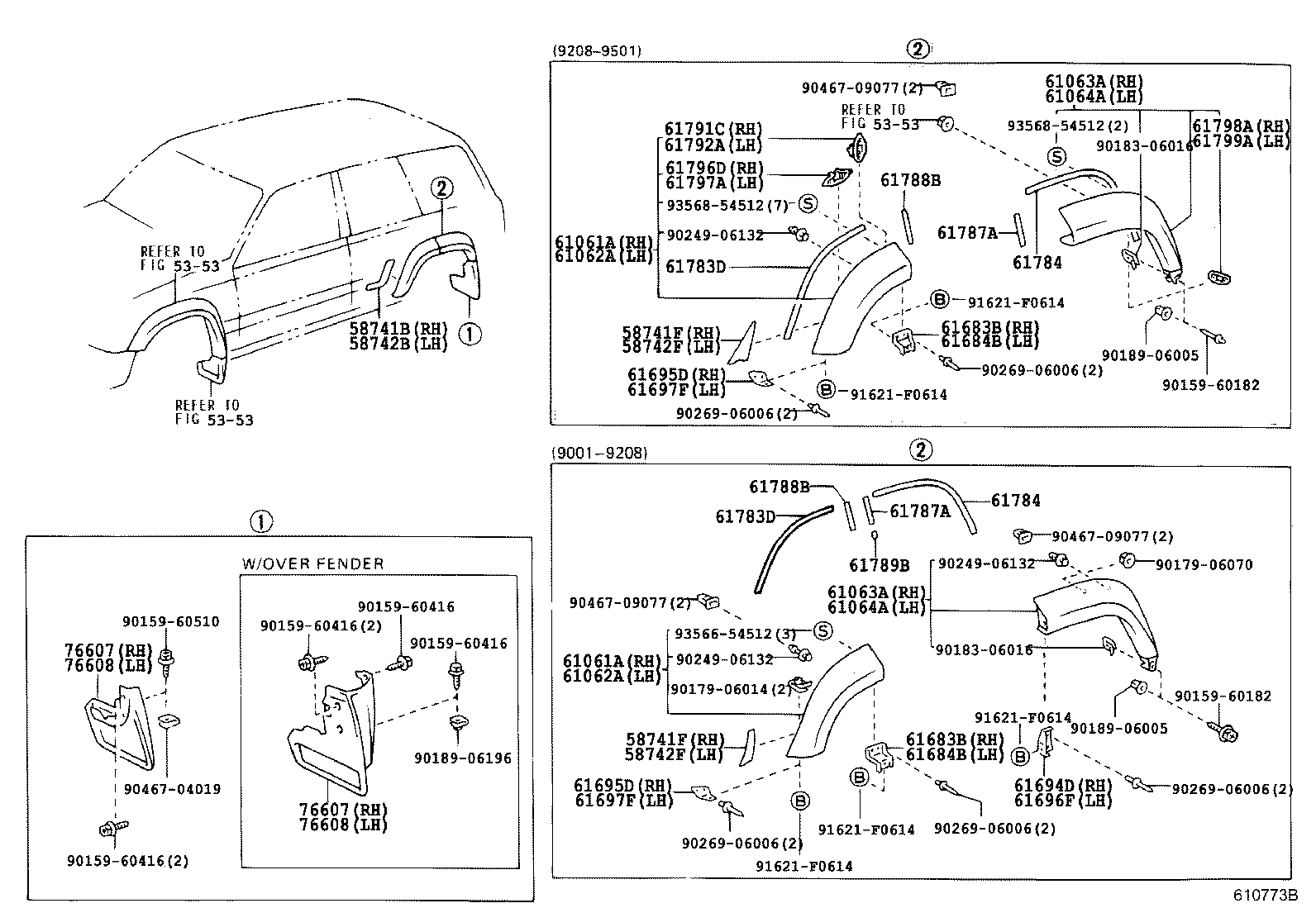

610773B 1990-01 → 1995-01

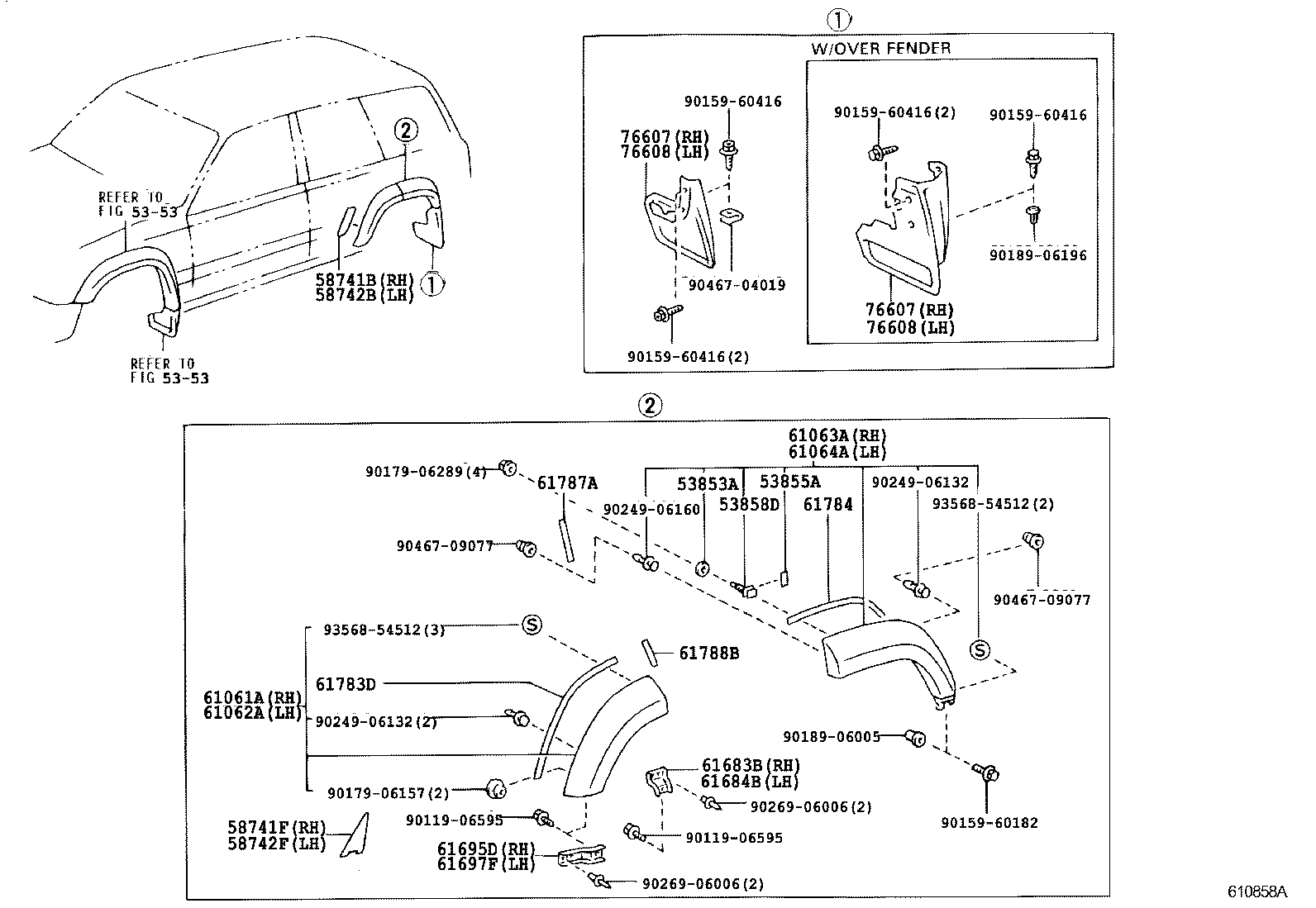

610858A 1995-01 → —

Part groups

PNC	Description
51909A	Retainer Sub-assy, Spare Wheel, NO.1
53853A	Pad, Rear Wheel Opening Extension
53855A	Pad, Rear Wheel Opening Extension, NO.3
53858D	Bolt, Wheel Opening
58741B	Protector, Quarter Panel, RH
58741F	Protector, Rear Wheel Extension, RH
58742B	Protector, Quarter Panel, LH
58742F	Protector, Rear Wheel Extension, LH
58747B	Protector, Quarter Panel, Rear
60131	Pillar Sub-assy, Center Body, NO.2 RH
60132	Pillar Sub-assy, Center Body, NO.2 LH
61021C	Pillar Sub-assy, Front Body, RH
61022C	Pillar Sub-assy, Front Body, LH
61027A	Pillar Sub-assy, Front Body, Outer RH
61028A	Pillar Sub-assy, Front Body, Outer LH
61031	Extension Sub-assy, Quarter Panel, Rear Lower RH
61032	Extension Sub-assy, Quarter Panel, Rear Lower LH
61053	Step Sub-assy, Quarter Panel, NO.1 RH
61054	Step Sub-assy, Quarter Panel, NO.1 LH
61057	Step Sub-assy, Quarter Panel, NO.2 RH
61058	Step Sub-assy, Quarter Panel, NO.2 LH
61061A	Extension Sub-assy, Rear Wheel Opening, NO.1 RH
61062A	Extension Sub-assy, Rear Wheel Opening, NO.1 LH
61063A	Extension Sub-assy, Rear Wheel Opening, NO.2 RH
61064A	Extension Sub-assy, Rear Wheel Opening, NO.2 LH
61067C	Step Sub-assy, Quarter Panel, NO.3 RH
61068D	Step Sub-assy, Quarter Panel, NO.3 LH
61181A	Bracket, Instrument Side, RH
61182A	Pillar, Front Body, Inner LH
61211	Rail, Roof Side, Outer RH
61212	Rail, Roof Side, Outer LH
61231	Rail, Roof Side, Inner RH
61232	Rail, Roof Side, Inner LH
61261	Channel, Roof Drip, RH
61262	Channel, Roof Drip, LH
61267A	Channel, Roof Drip Side, Rear RH
61268	Channel, Roof Drip Side, Rear LH
61301	Pillar Sub-assy, Center Body, RH
61302	Pillar Sub-assy, Center Body, LH
61411	Panel, Rocker, Outer RH
61412	Panel, Rocker, Outer LH
61605E	Panel, Quarter, RH
61606E	Panel, Quarter, LH
61611	Panel, Quarter, RH
61612	Panel, Quarter, LH
61633A	Panel, Quarter Wheel House, Inner RH
61634A	Panel, Quarter Wheel House, Inner LH
61645B	Gusset, Quarter Wheel House, Rear RH
61646B	Gusset, Quarter Wheel House, Rear LH
61659B	Retainer, Rear Door Open Switch Set, RH
61659C	Retainer, Rear Door Open Switch Set, LH
61665B	Reinforce, Seat Belt Anchorage TO Quarter Wheel House, RH
61666B	Reinforce, Seat Belt Anchorage TO Quarter Wheel House, LH
61679C	Ornament, Quarter Panel Step, NO.3 LH
61683A	Ornament, Quarter Panel Step, NO.1 RH
61683B	Bracket, Rear Wheel Opening, NO.1 RH
61684	Ornament, Quarter Panel Step, NO.1 LH
61684B	Bracket, Rear Wheel Opening, NO.1 LH
61685	Ornament, Quarter Panel Step, NO.2 RH
61686	Ornament, Quarter Panel Step, NO.2 LH
61687C	Ornament, Quarter Panel Step, NO.3 RH
61694D	Bracket, Rear Wheel Opening, NO.2
61695D	Bracket, Rear Wheel Opening, NO.3
61696F	Bracket, Rear Wheel Opening, NO.2 LH
61697F	Bracket, Rear Wheel Opening, NO.3 LH
61703G	Panel Sub-assy, Quarter, Inner RH
61704H	Panel Sub-assy, Quarter, Inner LH
61711	Panel, Roof Side, Outer RH
61712	Panel, Roof Side, Outer LH
61733A	Panel, Roof Side, Inner Front RH
61734A	Panel, Roof Side, Inner Front LH
61783D	Pad, Rear Wheel Opening Extension, NO.1
61784	Pad, Rear Wheel Opening Extension, NO.2
61787A	Pad, Rear Wheel Opening Extension, NO.3 Rear
61788B	Pad, Rear Wheel Opening Extension, NO.3
61789B	Pad, Rear Wheel Opening Extension, NO.5
61791C	Bracket, Rear Wheel Opening, Center RH
61792A	Bracket, Rear Wheel Opening, Center LH
61796D	Bracket, Rear Wheel Opening, Front RH
61797A	Bracket, Rear Wheel Opening, Front LH
61798A	Bracket, Rear Wheel Opening, Rear RH
61799A	Bracket, Rear Wheel Opening, Rear LH
76607	Mudguard Sub-assy, Quarter Panel, Rear RH
76608	Mudguard Sub-assy, Quarter Panel, Rear LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
