Toyota Land Cruiser

1990-01 → 2006-12 · chassis FJ80,HDJ80,HZJ80,FZJ80 · catalogue 791340 · General

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

14 part groups · 6 illustrations

Illustrations

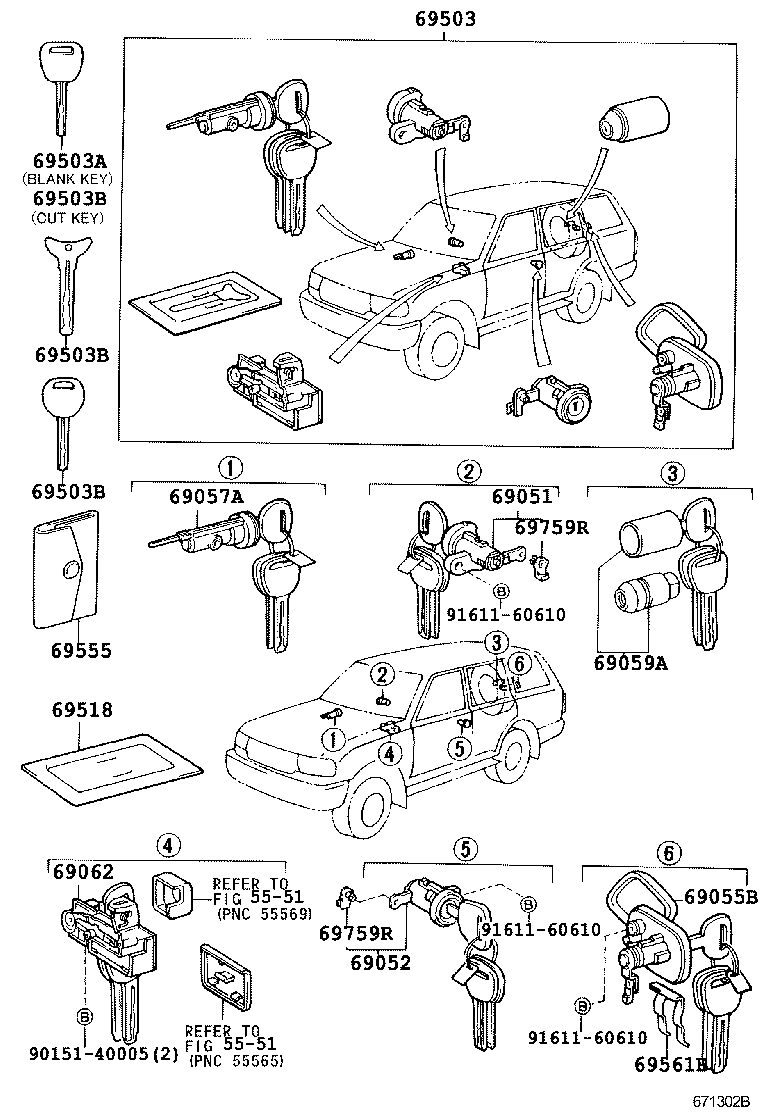

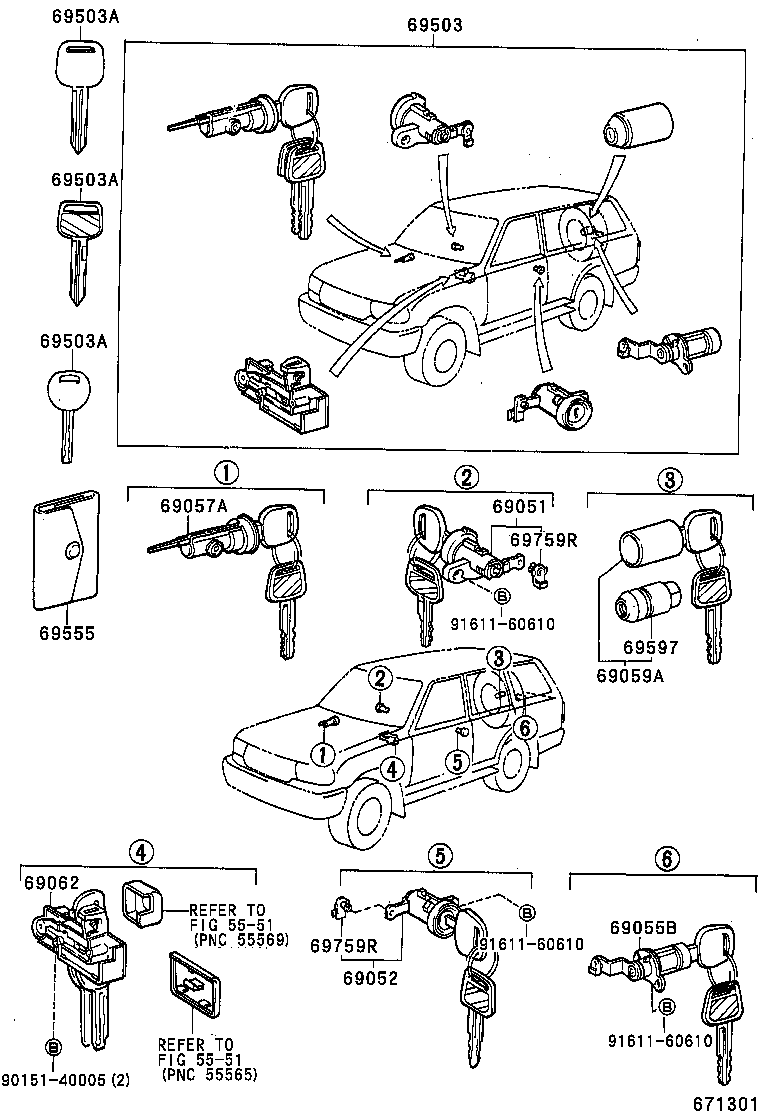

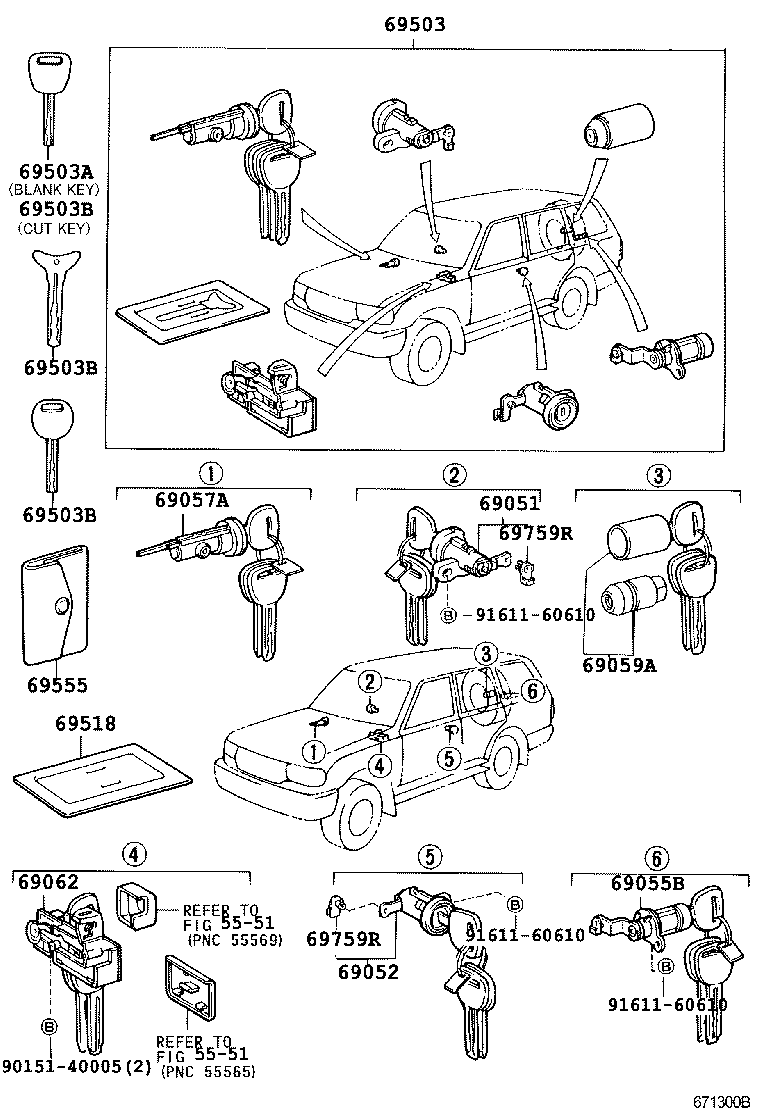

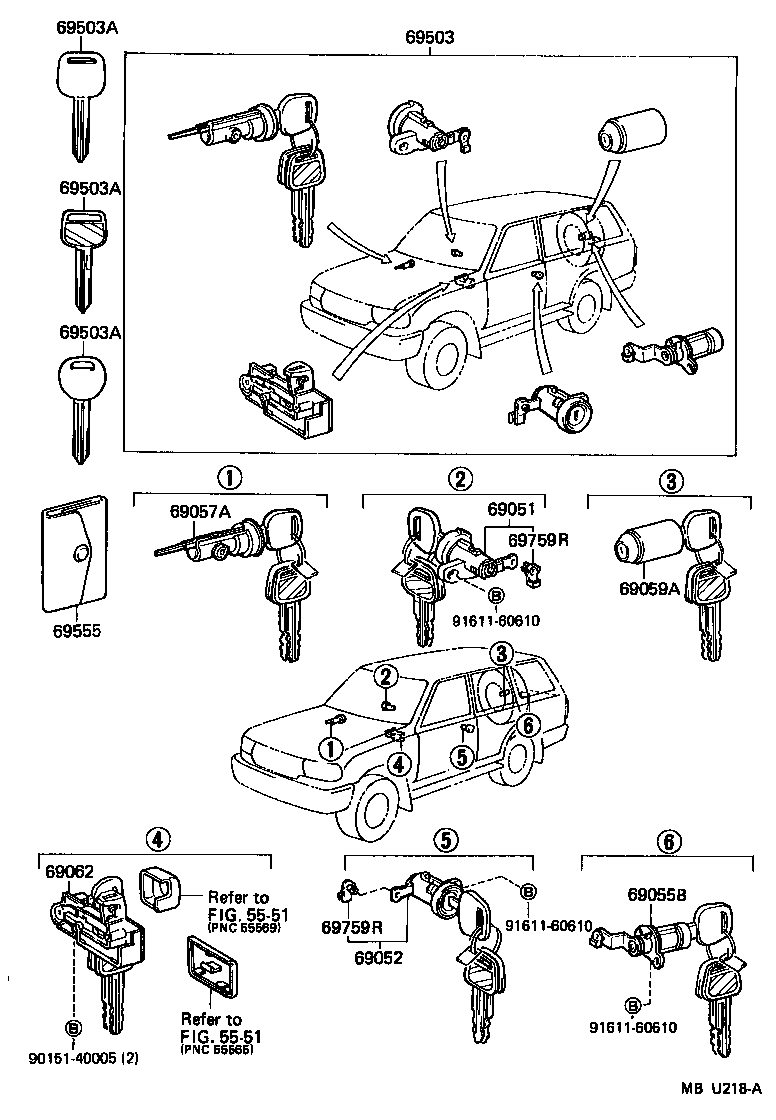

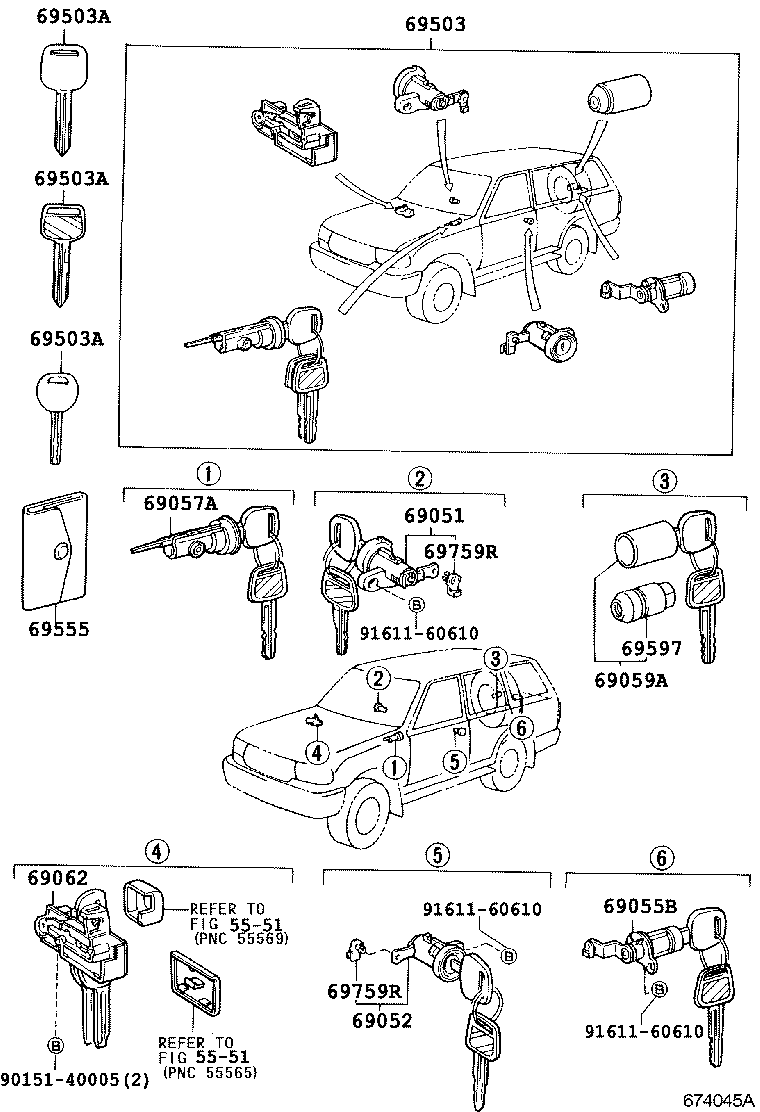

Figure 671299A 671299A 1990-01 → — Figure 671300B 671300B 1990-01 → 1998-01 Figure 674045A 674045A 1990-01 → — Figure 671301 671301 1990-01 → — Figure MBU218A MBU218A 1990-01 → 1992-01 Figure 671302B 671302B 1990-01 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69055B Cylinder & Key Set, Back Door Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69059A Cylinder & Key Set, Spare Wheel Lock
69062 Cylinder & Key Set, Glove Compartment Lock
69503 Cylinder Set, Lock
69503A Key, Blank
69503B Key, Cut
69518 Card, Spare Key
69555 Cover, Key
69561B Retainer, Back Door Lock Cylinder
69597 Nut, Spare Wheel Lock
69759R Snap, Front Door Lock Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
