Toyota Land Cruiser
1990-01 → 2006-12 · chassis FJ80,HDJ80,HZJ80,FZJ80 · catalogue 791340 · General
Discontinued model
Data version 2007-10
Moulding

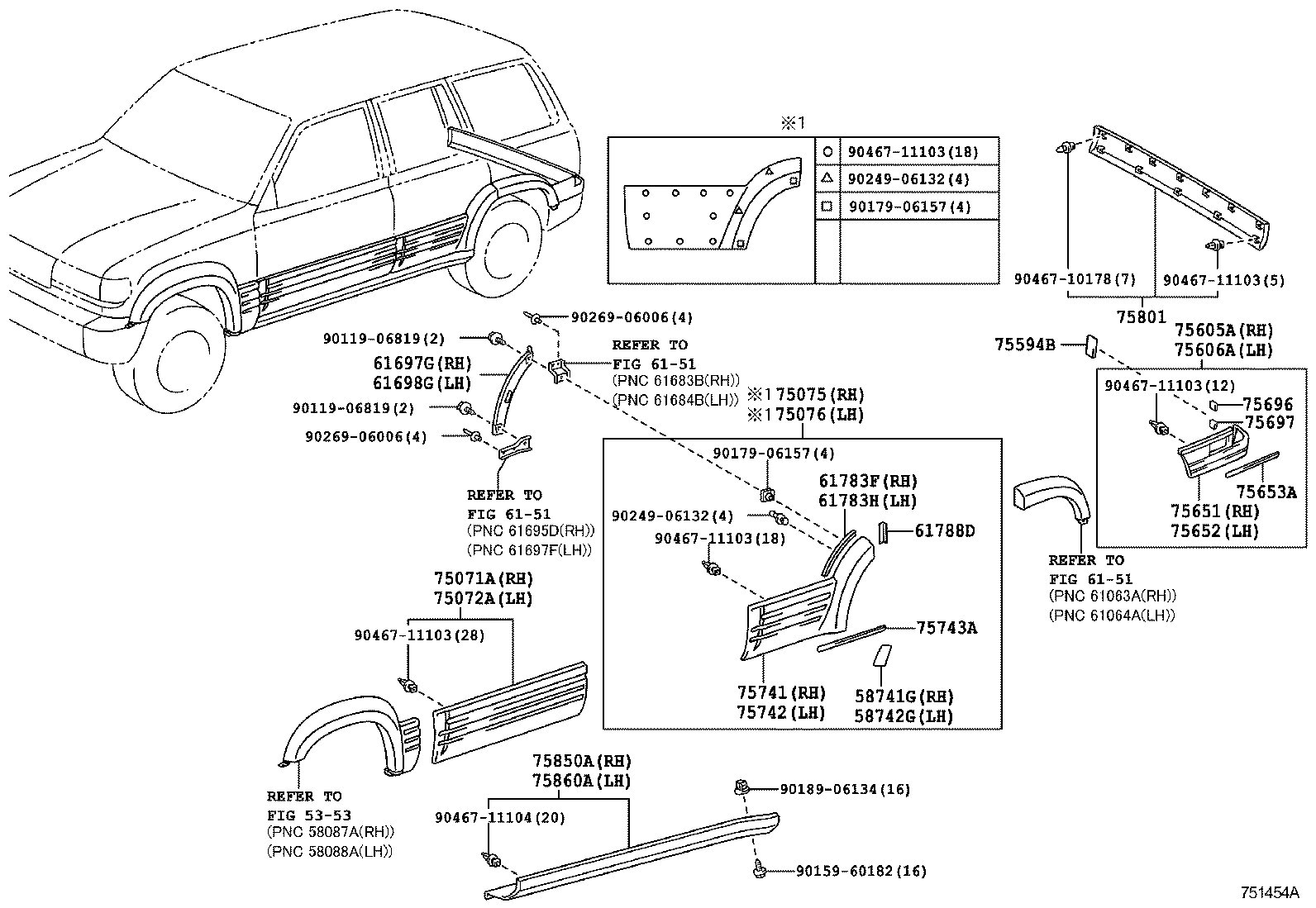

49 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58741G | Protector, Rear Wheel Extension, RH |
| 58742G | Protector, Rear Wheel Extension, LH |
| 61697G | Plate, Rear Wheel Opening Extension, Inner RH |
| 61698G | Plate, Rear Wheel Opening Extension, Inner LH |
| 61783F | Pad, Rear Wheel Opening Extension NO.1 |
| 61783H | Pad, Reae Wheel Opening Extension, NO.2 |
| 61788D | Pad, Rear Wheel Opening Extension Pad NO.4 |
| 62795C | Cover, Windshiled Moulding Joint |
| 62795D | Cover, Back Window Moulding Joint |
| 68211G | Clip(DOOR BELT MOULDING RH) |
| 68211L | Clip, Rear Door Belt Moulding, RH |
| 68212D | Clip(DOOR BELT MOULDING LH) |
| 68212J | Clip, Rear Door Belt Moulding, LH |
| 75071A | Moulding Sub-assy, Front Door, Outside RH |
| 75072A | Moulding Sub-assy, Front Door, Outside LH |
| 75075 | Moulding Sub-assy, Rear Door, Outside RH |
| 75076 | Moulding Sub-assy, Rear Door, Outside LH |
| 75533 | Moulding, Windshield, Outside RH |
| 75534 | Moulding, Windshield, Outside LH |
| 75535A | Moulding, Windshield, Outside Lower |
| 75543B | Cover, Windshield Moulding Joint, Lower |
| 75551 | Moulding, Roof Drip Side Finish, RH |
| 75552 | Moulding, Roof Drip Side Finish, LH |
| 75571 | Moulding, Back Window, Outside Upper |
| 75572E | Moulding, Back Window, Outside Upper LH |
| 75594B | Pad, Quarter Garnish, RH |
| 75605A | Moulding Sub-assy, Quarter Outside, RH |
| 75606A | Moulding Sub-assy, Quarter Outside, LH |
| 75611C | Moulding, Front Fender, Outside RH |
| 75612C | Moulding, Front Fender, Outside LH |
| 75651 | Moulding, Quarter, Outside RH |
| 75652 | Moulding, Quarter, Outside LH |
| 75653A | Moulding, Quarter, Outside Rear RH |
| 75671 | Moulding, Quarter Belt, RH |
| 75672 | Moulding, Quarter Belt, LH |
| 75696 | Pad, Body Outside Moulding, NO.1 |
| 75697 | Pad, Body Outside Moulding, NO.2 |
| 75710 | Moulding Assy, Front Door Belt, RH |
| 75720 | Moulding Assy, Front Door Belt, LH |
| 75730 | Moulding Assy, Rear Door Belt, RH |
| 75731A | Moulding, Front Door, Outside RH |
| 75732A | Moulding, Front Door, Outside LH |
| 75740 | Moulding Assy, Rear Door Belt, LH |
| 75741 | Moulding, Rear Door, Outside RH |
| 75742 | Moulding, Rear Door, Outside LH |
| 75743A | Moulding, Rear Door, Outside Upper Rear RH |
| 75801 | Moulding Sub-assy, Back Door, Outside |
| 75850A | Moulding Assy, Body Rocker Panel, RH |
| 75860A | Moulding Assy, Body Rocker Panel, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
