Toyota Land Cruiser

1990-01 → 2006-12 · chassis FJ80,HDJ80,HZJ80,FZJ80 · catalogue 791340 · General

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

16 part groups · 11 illustrations

Illustrations

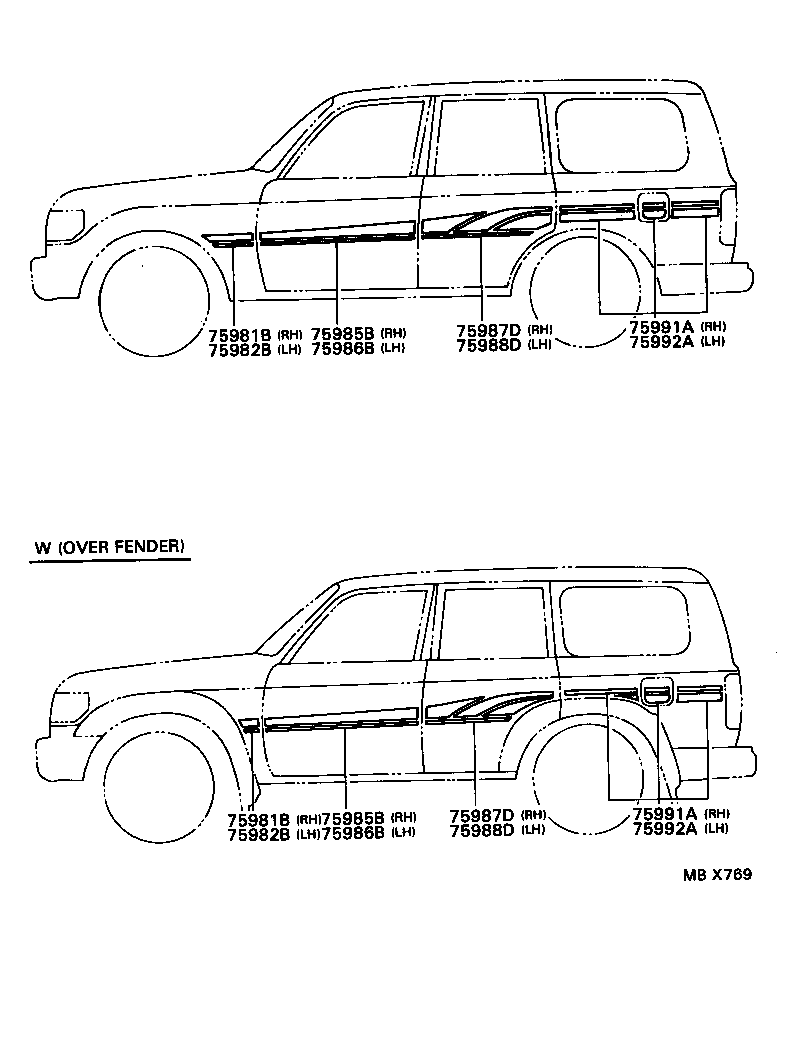

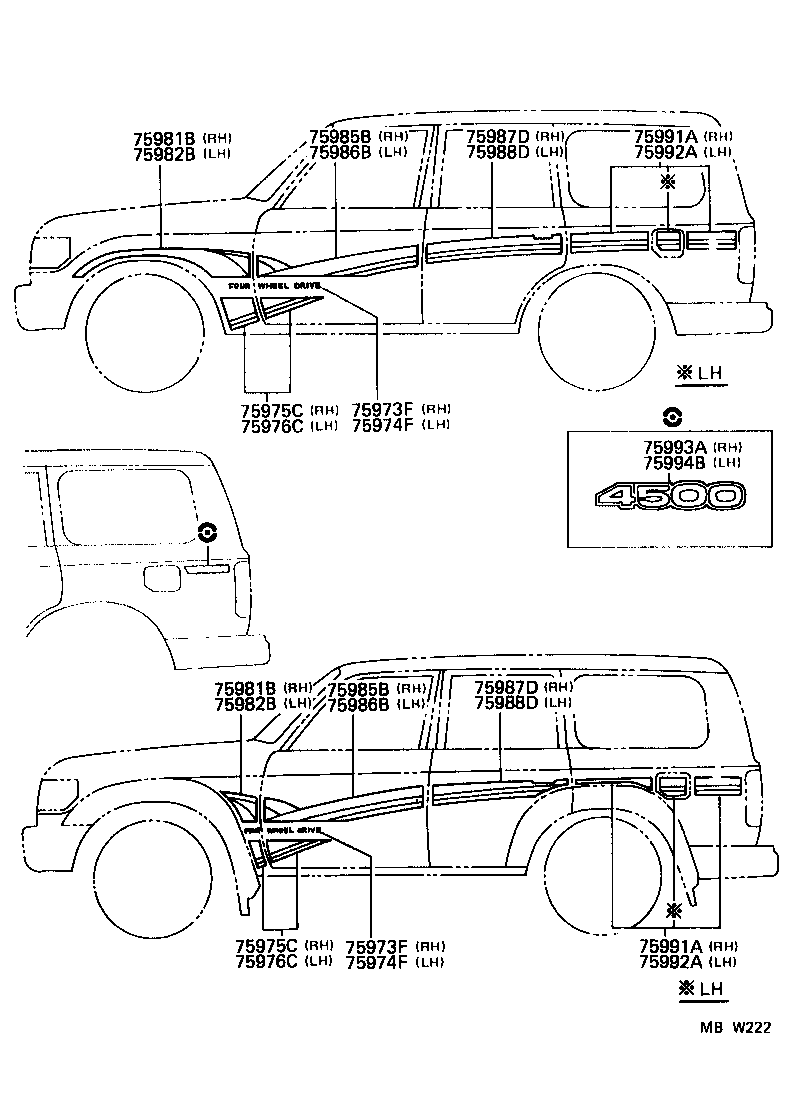

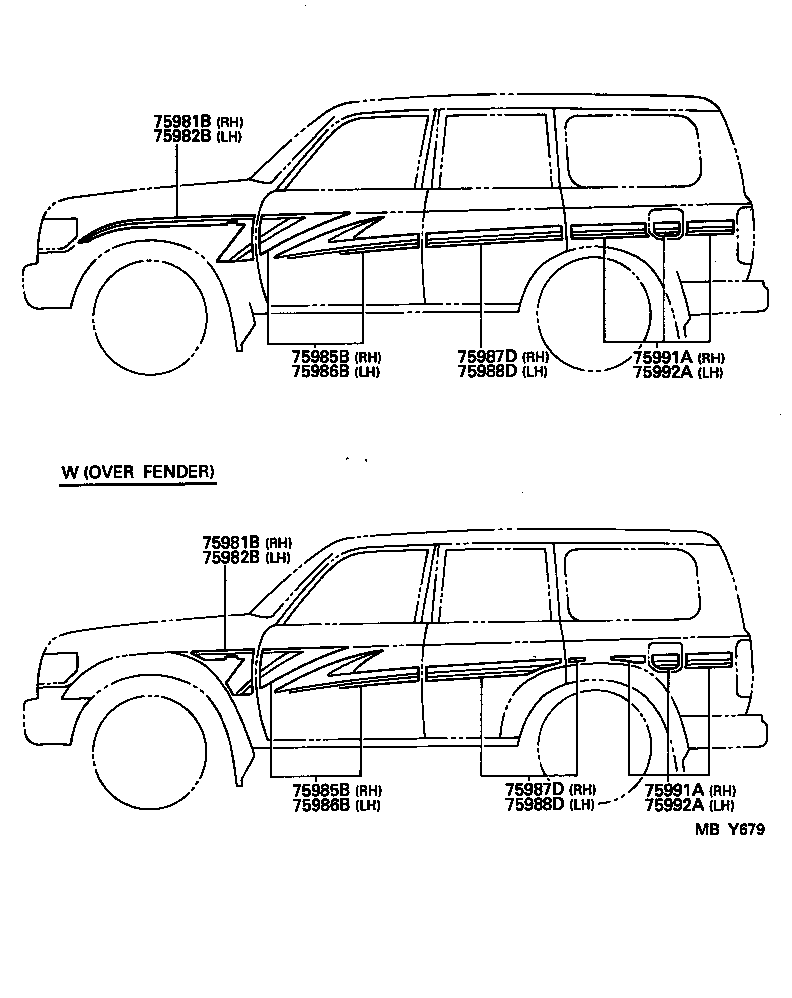

Figure MBU517A MBU517A 1990-01 → — Figure MBU518 MBU518 1990-01 → 1995-01 Figure MBU519 MBU519 1990-01 → 1995-01 Figure MBW222 MBW222 1992-01 → 1995-01 Figure MBX769 MBX769 1993-08 → 1995-01 Figure MBX770C MBX770C 1993-08 → 1996-08 Figure MBY679 MBY679 1995-01 → 1996-08 Figure NB1141 NB1141 1996-08 → — Figure NB1142A NB1142A 1996-08 → — Figure NB1213A NB1213A 1996-08 → — Figure NB1817 NB1817 1997-08 → 1997-12

Part groups

PNCDescription
75973F Stripe, Front Side Panel, RH
75974F Stripe, Front Side Panel, LH
75975C Stripe, Side, RH NO.3 (FOR LOWER)
75976C Stripe, Side, LH NO.3 (FOR LOWER)
75979B Stripe, Rear Door, Outside Upper RH
75981B Stripe, Fender, RH
75982B Stripe, Fender, LH
75985B Stripe, Front Door, NO.3 RH
75986B Stripe, Front Door, NO.3 LH
75987D Stripe, Rear Door, Outside, RH
75988D Stripe, Rear Door Outside, LH
75989B Stripe, Rear Door, Outside Upper LH
75991A Stripe, Quarter, RH
75992A Stripe, Quarter, LH
75993A Stripe, Quarter, Rear RH
75994B Strip, Quarter, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
