Toyota Land Cruiser

1990-01 → 2006-12 · chassis FJ80,HDJ80,HZJ80,FZJ80 · catalogue 791340 · General

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

25 part groups · 15 illustrations

Illustrations

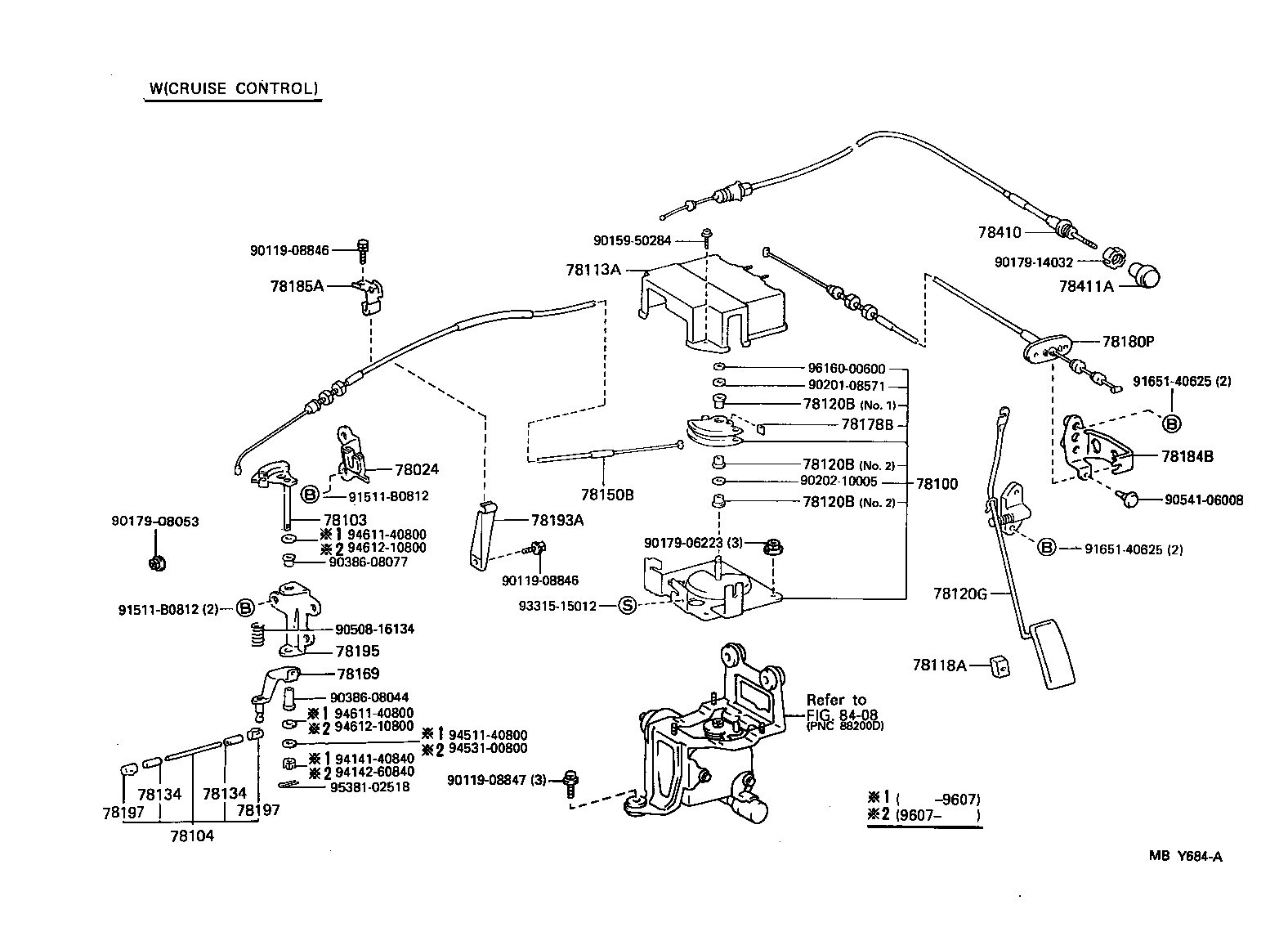

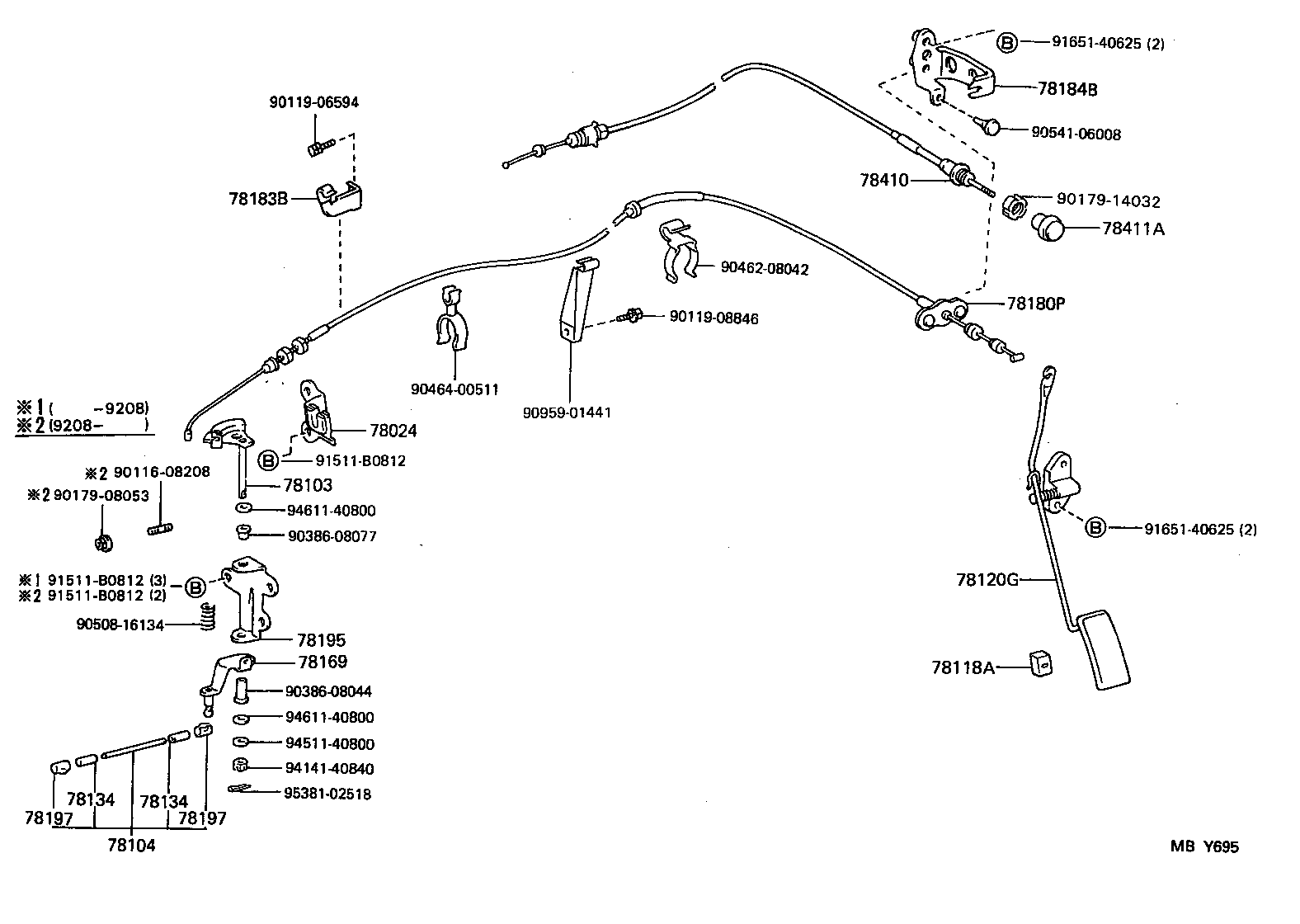

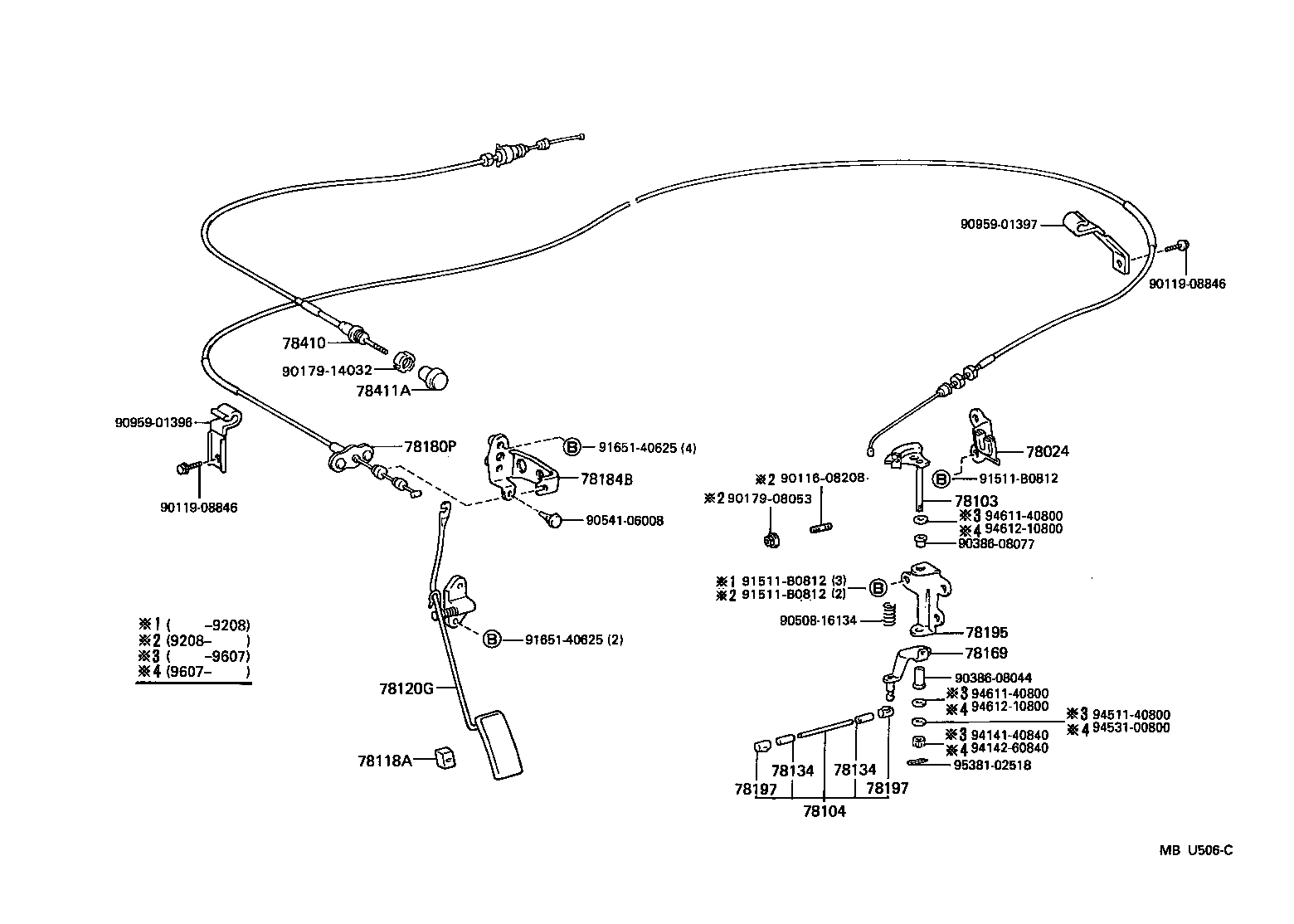

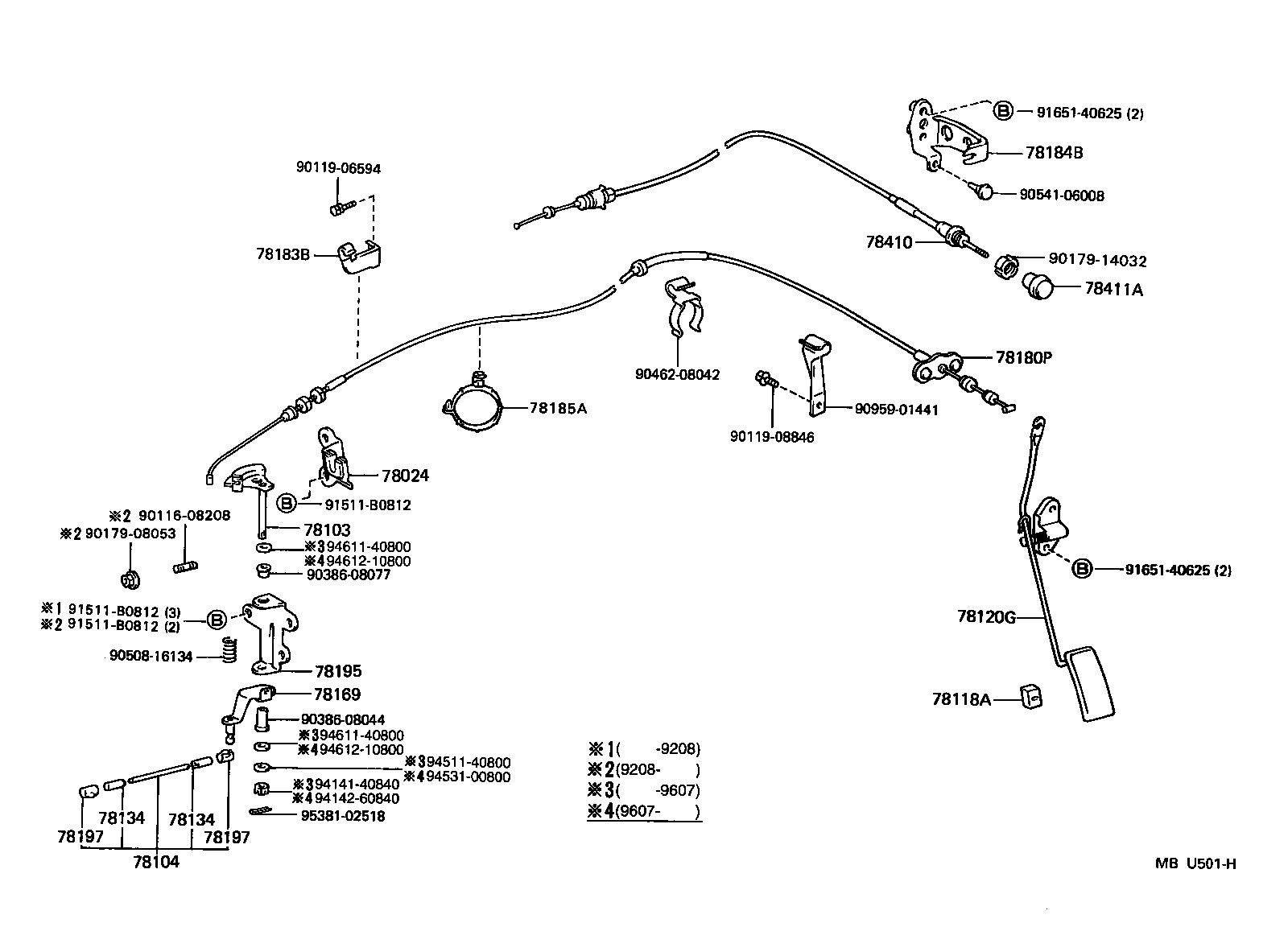

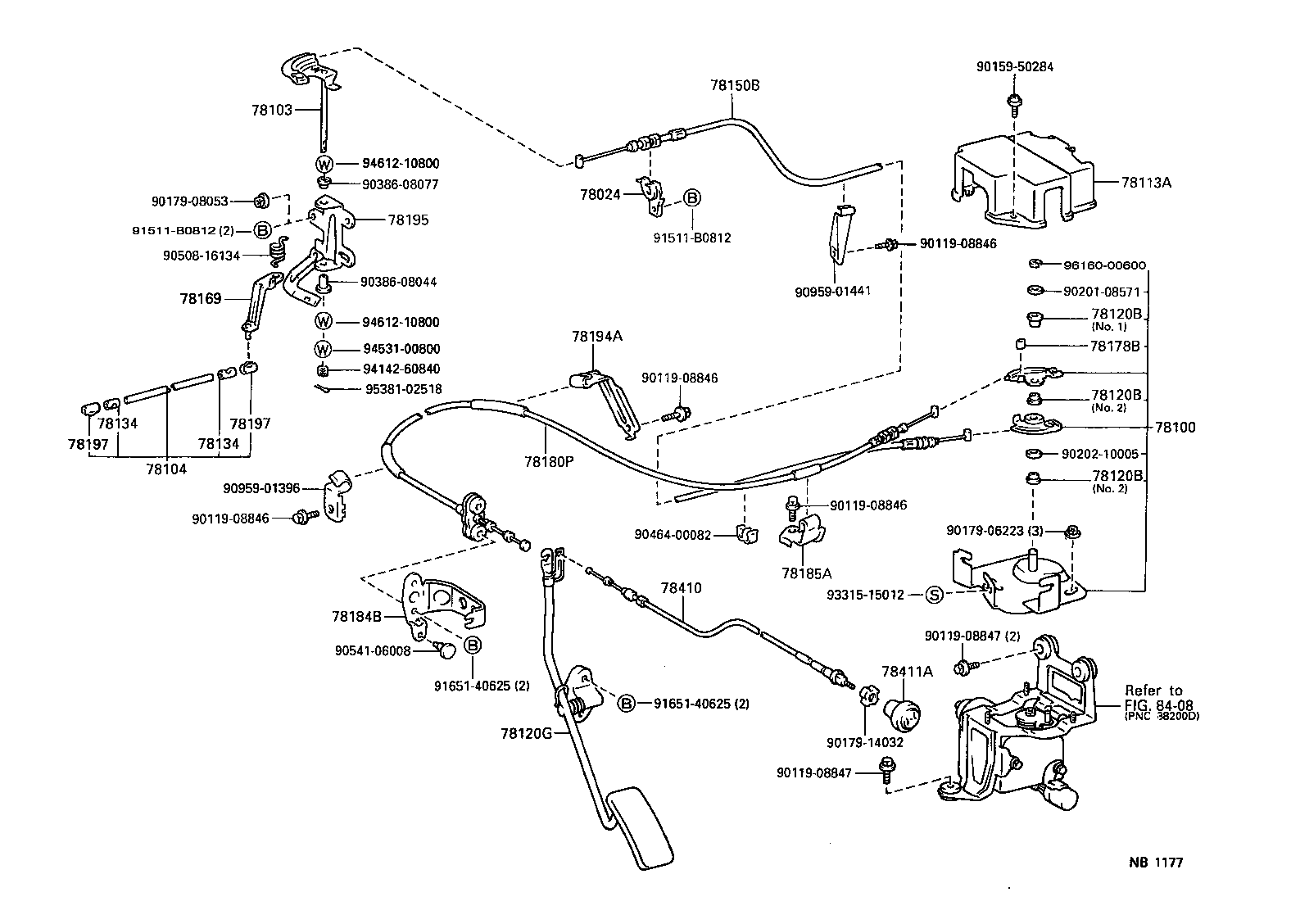

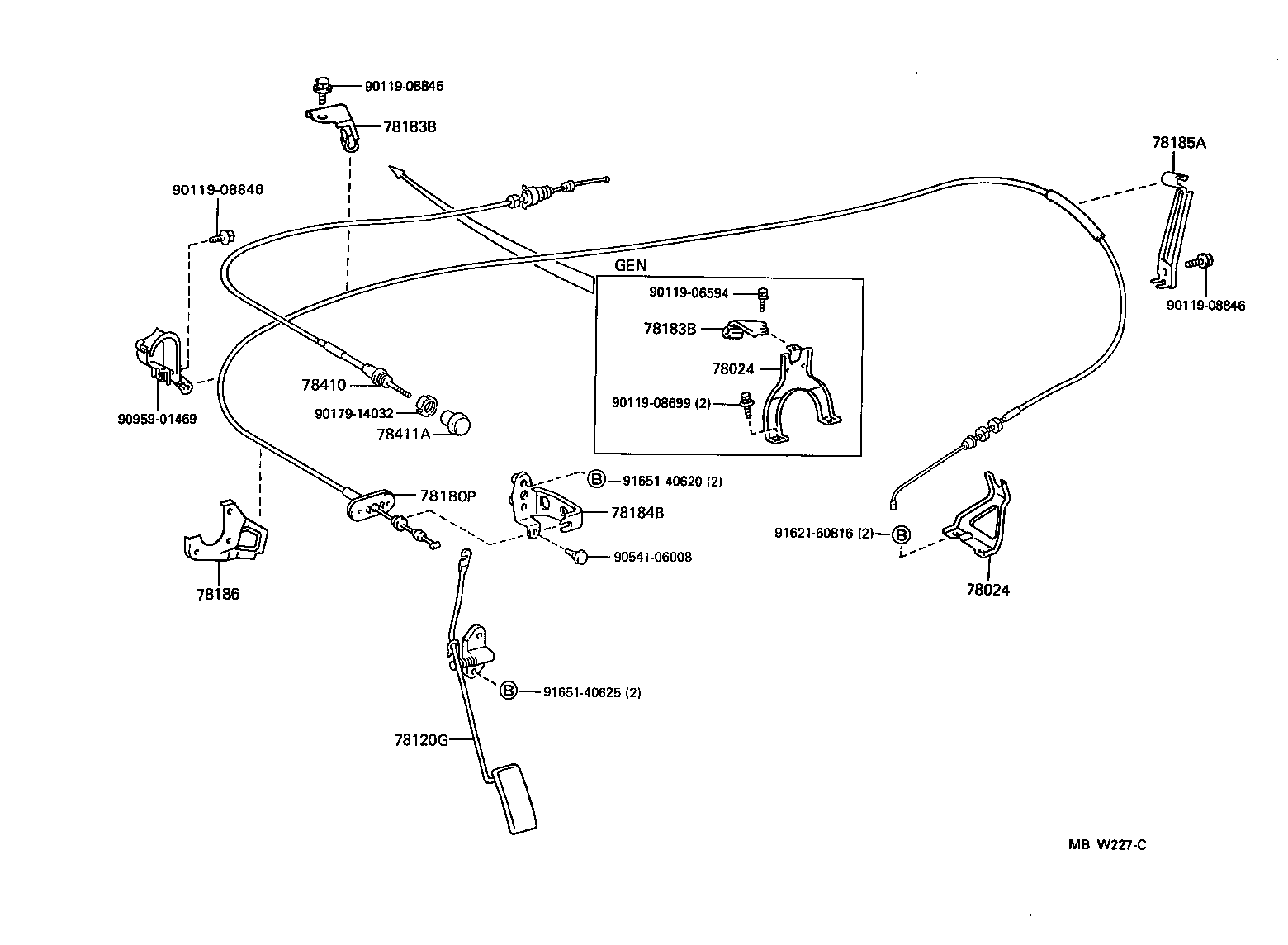

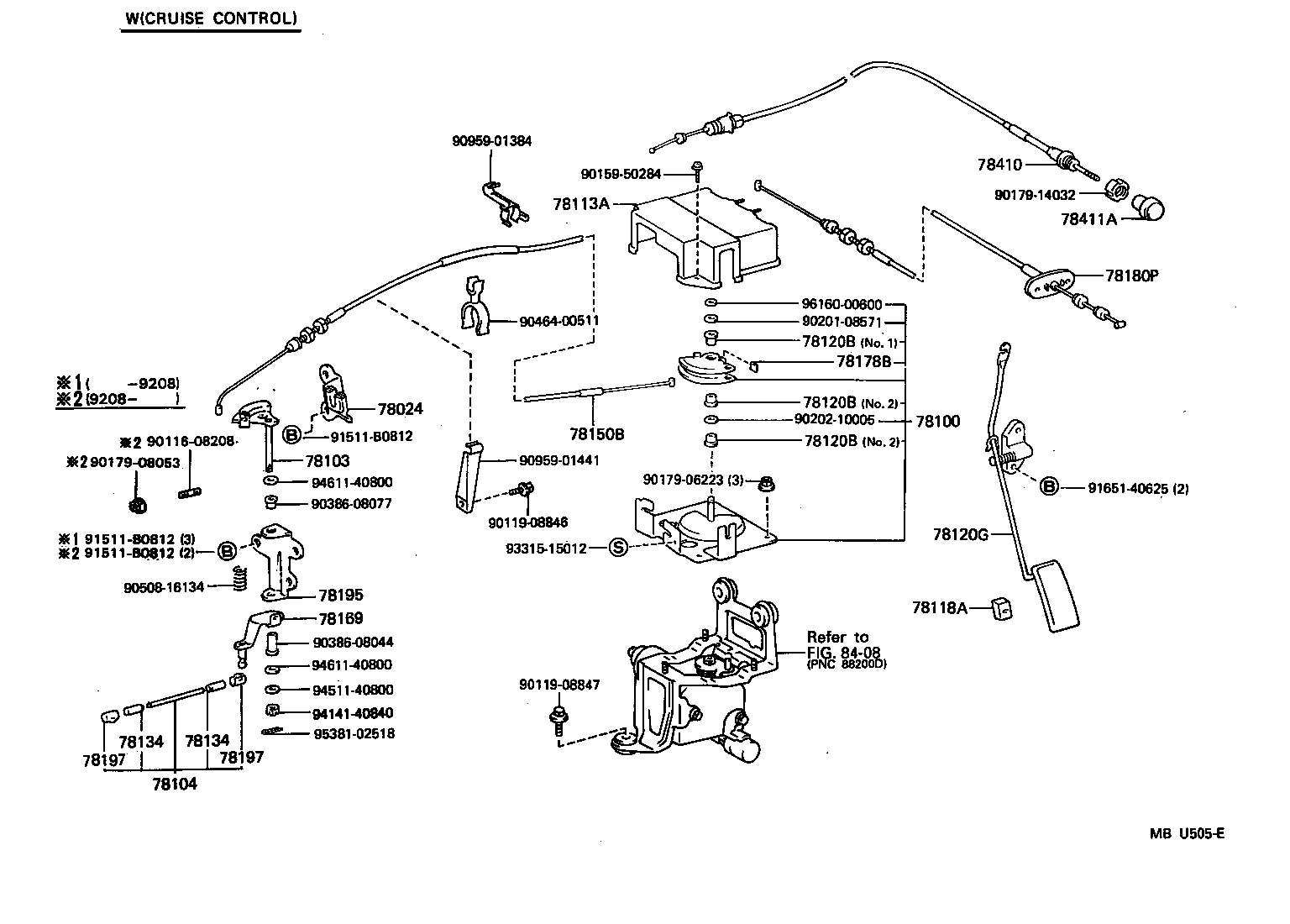

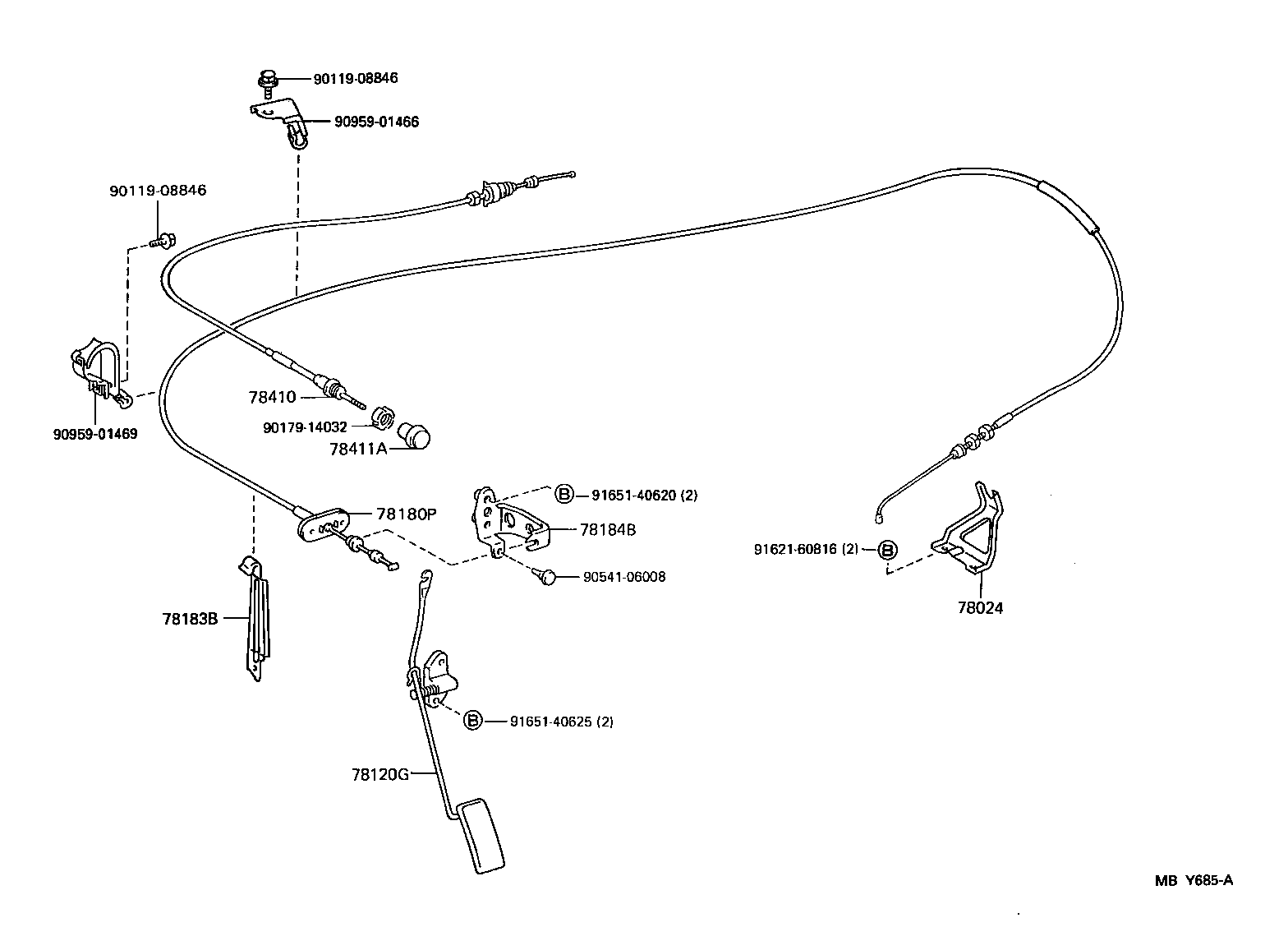

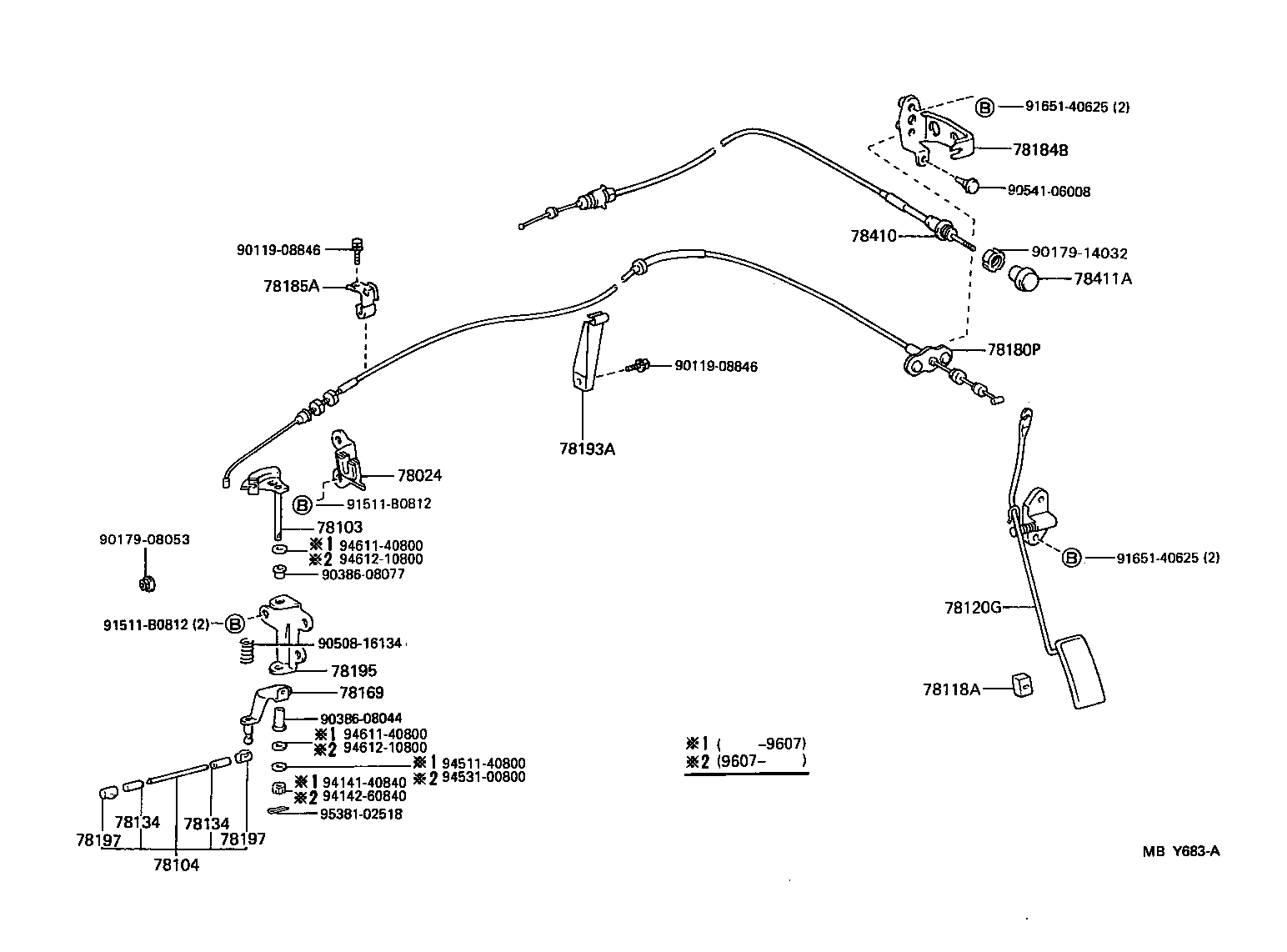

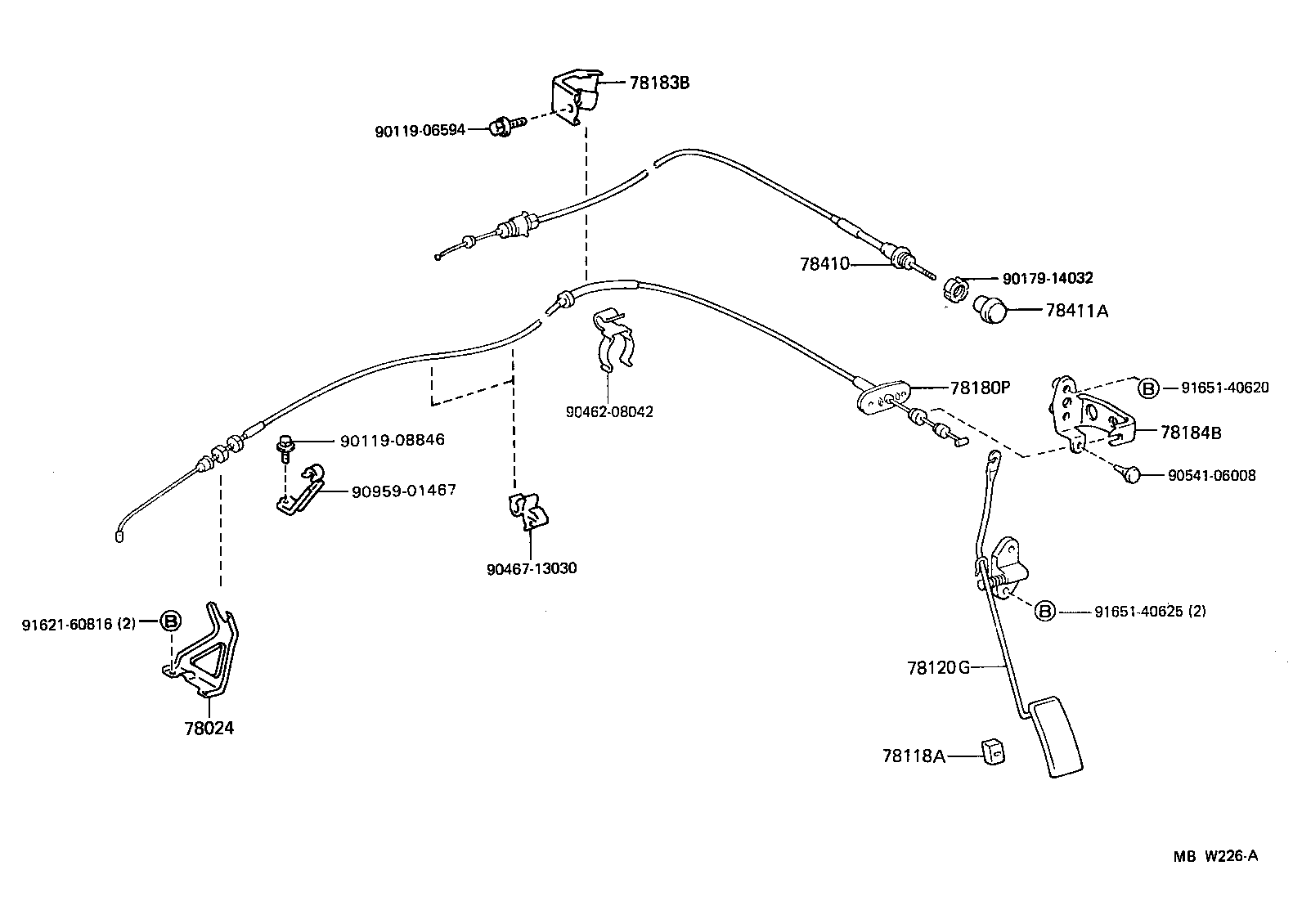

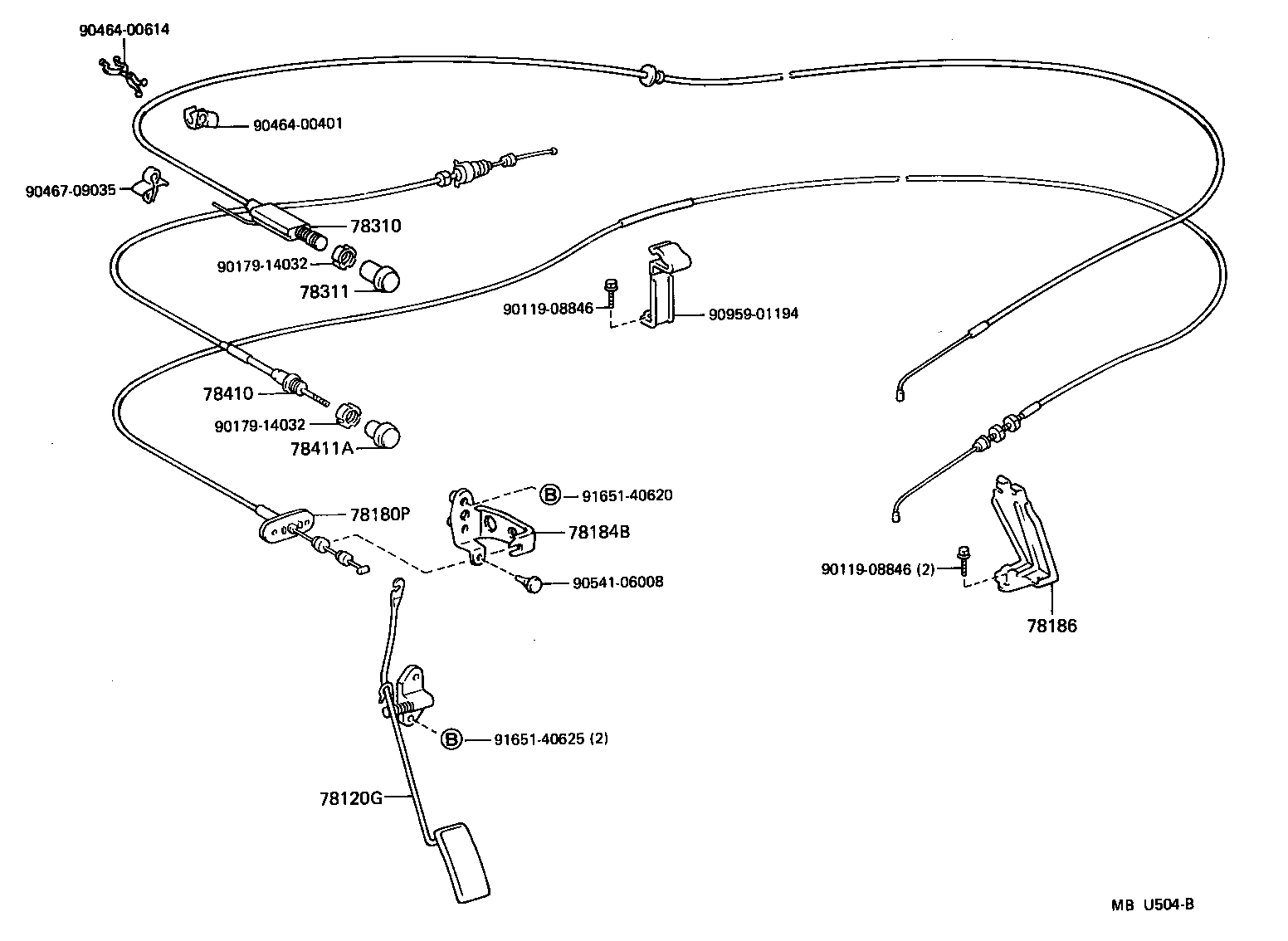

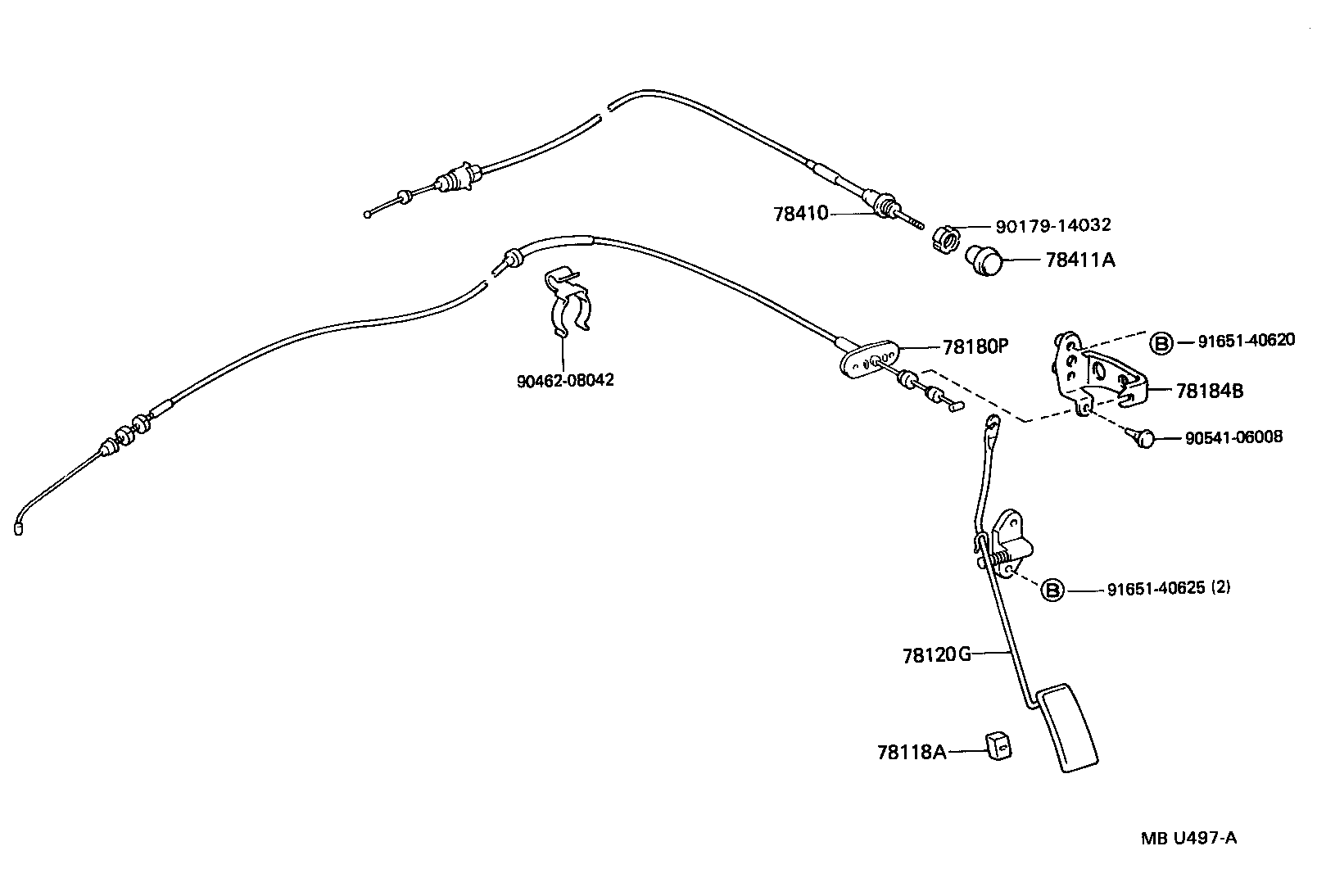

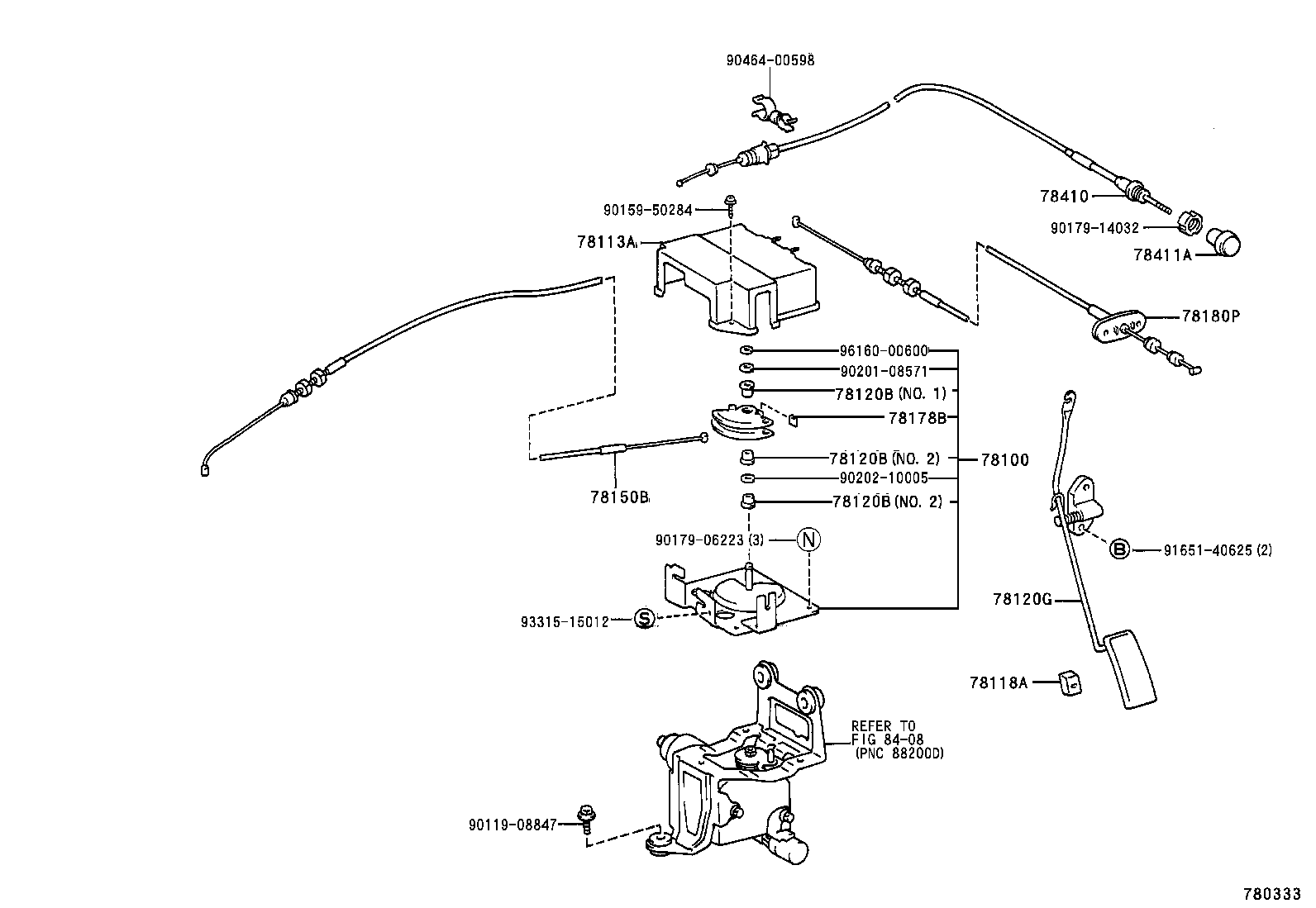

Figure 780332 780332 1990-01 → 1992-08 Figure MBU497A MBU497A 1990-01 → 1992-08 Figure 780333 780333 1990-01 → 1992-08 Figure MBU504B MBU504B 1990-01 → 1992-01 Figure MBY695 MBY695 1990-01 → 1995-01 Figure MBY695 MBY695 1995-01 → — Figure MBY683A MBY683A 1995-01 → — Figure MBU505E MBU505E 1990-01 → 1995-01 Figure MBY684A MBY684A 1995-01 → — Figure MBU506C MBU506C 1990-01 → — Figure NB1177 NB1177 1996-08 → — Figure MBU501H MBU501H 1990-01 → — Figure MBW226A MBW226A 1992-01 → — Figure MBY685A MBY685A 1992-01 → — Figure MBW227C MBW227C 1992-01 → —

Part groups

PNCDescription
78024 Bracket Sub-assy, Accelerator Control Cable
78100 Link Assy, Accelerator
78103 Rod Sub-assy, Accelerator Connecting, NO.1
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78113A Cover, Auto Drive Accelerator Link
78118A Stopper, Accelerator Pedal
78120B Bush (FOR ACCELERATOR LINK ROD)
78120G Rod Assy, Accelerator Pedal
78134 End, Accelerator Connecting Rod
78150B Cable Assy, Accelerator Auto Drive
78169 Hanger, Accelerator Spring
78178B Damper, Accel Control NO.4 Rod Bracket
78180P Cable Assy, Accelerator Control
78183B Clamp, Accelerator Control Cable
78184B Bracket, Accelerator Control Cable
78185A Clamp, Accelerator Control Cable, NO.2
78186 Support, Accelerator Control Cable, NO.1
78193A Support, Accelerator Control Cable, NO.3
78194A Support, Accelerator Control Cable, NO.4
78195 Bracket, Accelerator Link
78197 Clip, Accelerator Joint Ball
78310 Cable Assy, Choke
78311 Knob, Choke Control Cable
78410 Cable Assy, Throttle Control
78411A Knob, Throttle Control Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
